Applications:
Fuel tank truck Shacman (also called fuel bowser, diesel tanker truck, oil tanker truck, oil bowser, petrol tanker, crude oil tanker, refuel tanker truck) is used to transport oil, diesel, gasoline, kerosene, etc.
CEEC TRUCKS fuel bowser can be divided into many compartments to transport different types of fuels, lubricant, crude oil, alcohol...
The fuel truck can be equipped with oil pump and refueling machine, all for easy operation.
Key Features:
---- Shacman chassis, perfect performance
---- WEICHAI engine option, super powerful, no overhaul within 100,000 km.
---- Tanker body capacity from 3 to 40 Cublic Meter.
---- Easy operation and easy maintenance.
---- Various types of refuse container lifter are available.
Specifications:
|

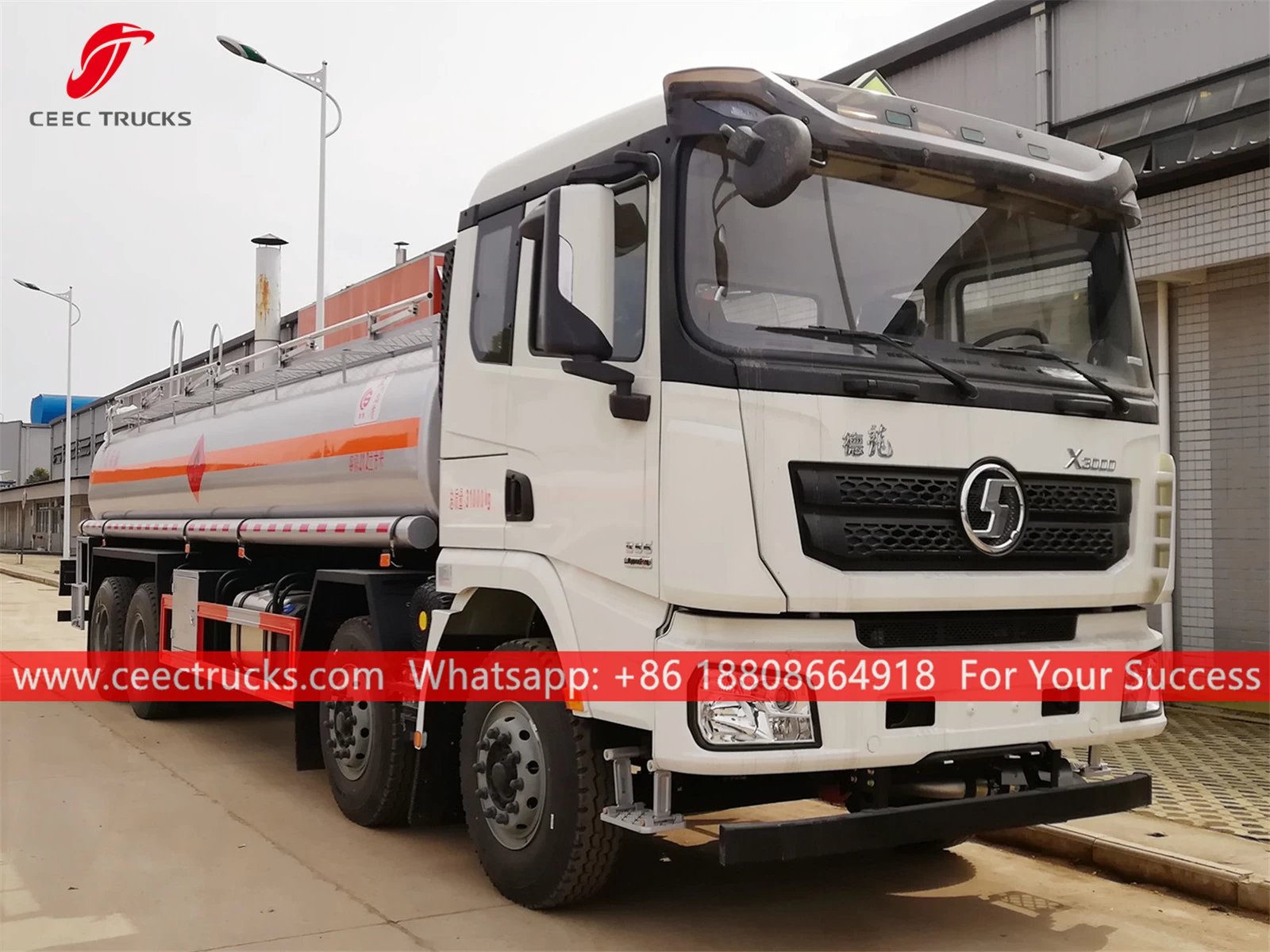

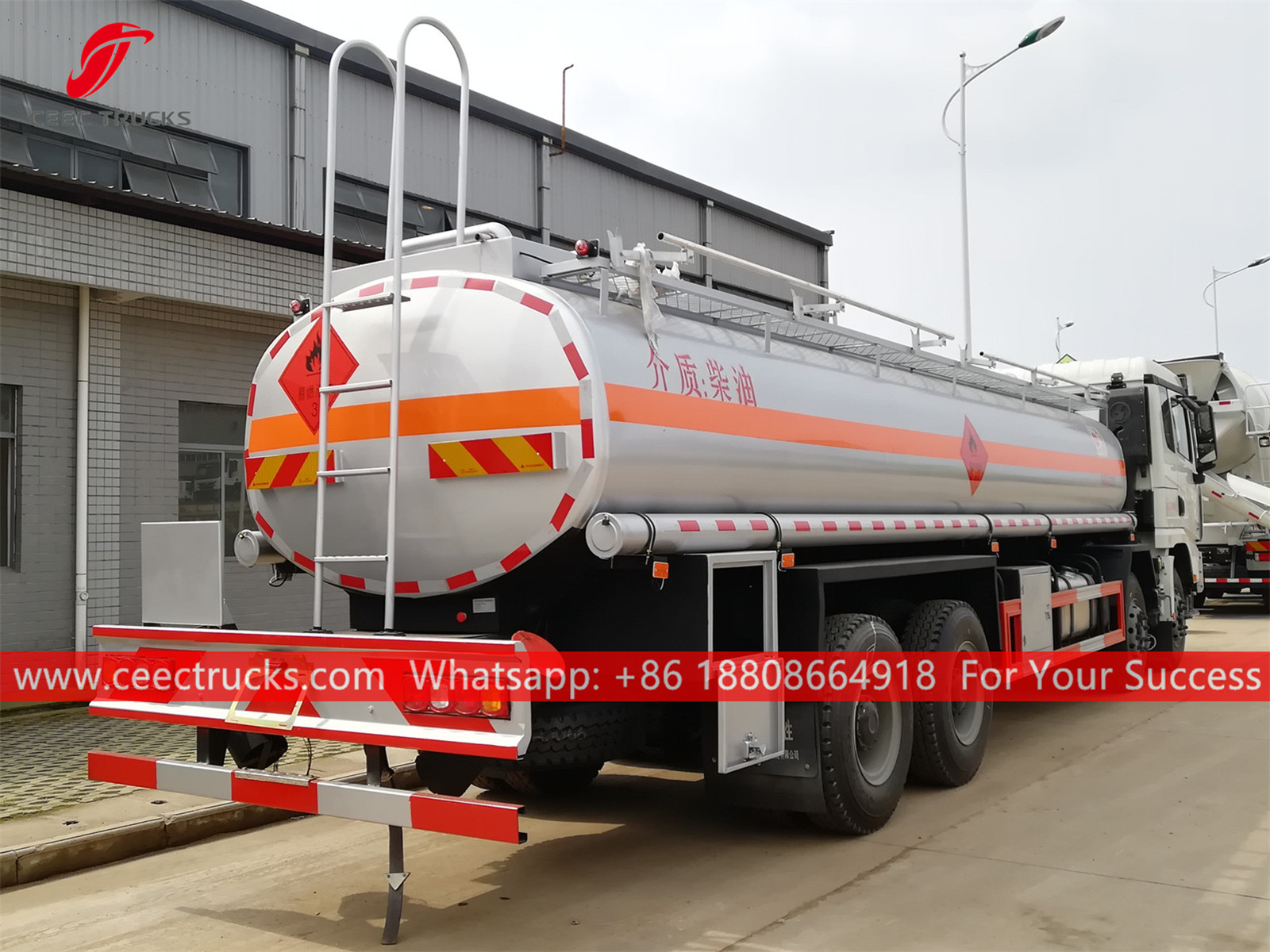

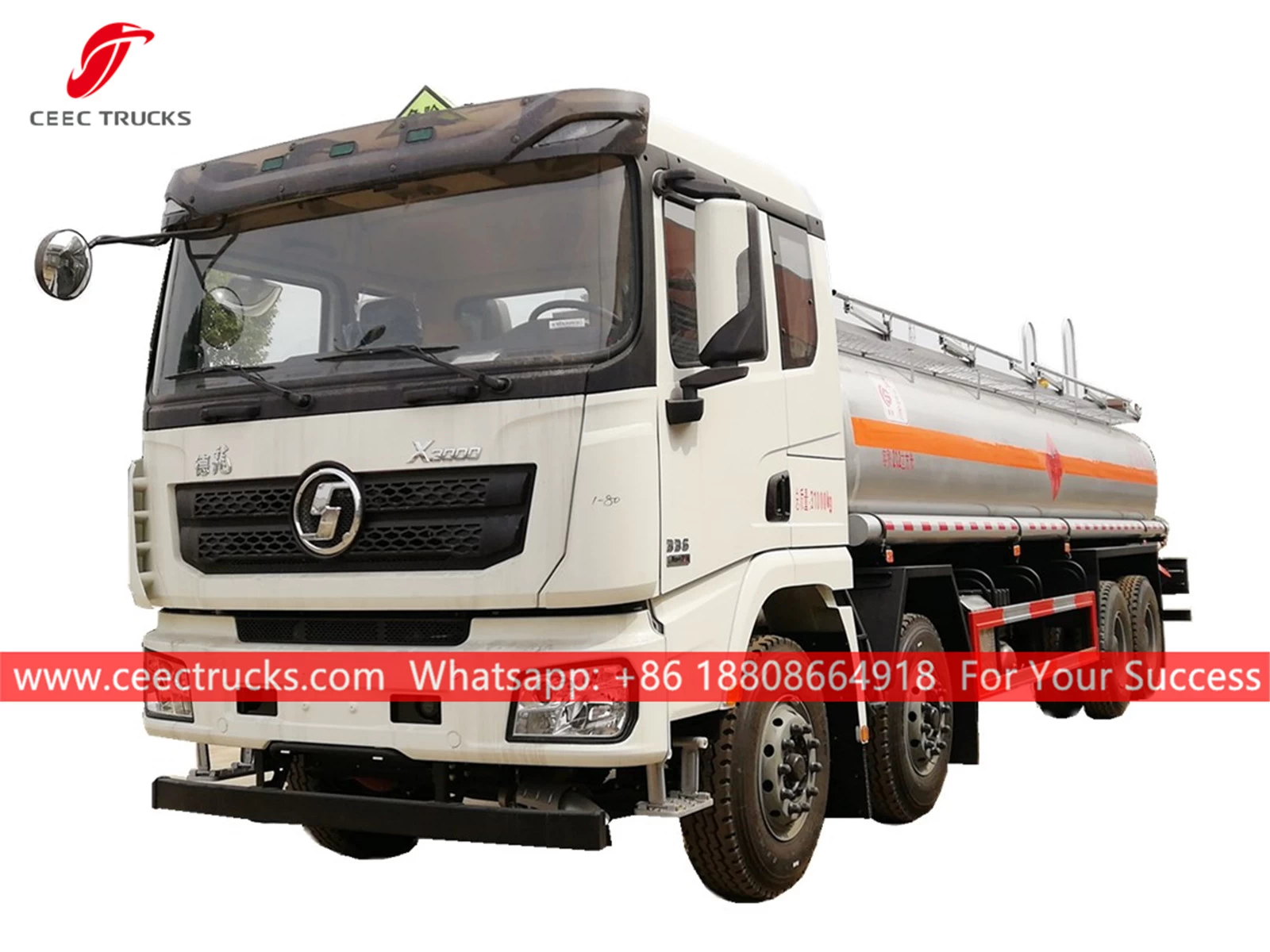

Oil Bowser vehicle Shacman (21,200 L)
|
|
General
|
Vehicle Brand
|
CEEC TRUCKS
|
|
Chassis Brand
|
Shacman
|
|
Overall Dimension
|
11990 * 2500 * 3500 mm
|
|
GVW / Kerb Weight
|
31,000kg / 14,035kg
|
|
Cab
|
Cab Capacity
|
2 persons allowed
|
|
Air Conditioner
|
Heating/cooling air conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
WEICHAI
|
|
Power
|
300 HP (220 KW)
|
|
Displacement
|
7470 ml
|
|
Emission Standard
|
Euro 5
|
|
Chassis
|
Drive Type
|
8X4 (left hand drive)
|
|
Transmission
|
FAST 12 speed levers with 2 reverse
|
|
Wheelbase/No. of axle
|
1800+4375+1350 mm / 4
|
|
Tire Specification
|
11.00R20
|
|
Tire Number
|
12 tires and 1 spare tire
|
|
Max Speed
|
80 km/h
|
|
Paint
|
Metallic paint
|
|
Superstructure
|
Body capacity
|
21,200 Litres
|
|
Tanker Material
|
Carbon Steel
|
|
Pump
|
Fuel pump equipped for overhead delivery
|
|
Suction head
|
6 m
|
|
Hose
|
High quality, wire strengthened hose,
with cooper wire, anti-static
|
|
Refueling Machine
|
Equipped based on customer requirement
|
|
Control panel
|
English or Your language
|
|
All
standard accessories: manhole, ladder, anti-static belt, anti-slip
walkway, handrail, fire extinguisher, inlet, discharge, reflective
stickers...
|
|
Optional
|
** Tank material could be carbon steel, stainless steel, aluminum (Aluminum tanker).
** It can be divided into many compartments.
** Imported American pump as optional.
** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge, etc
** Heat preservation & heating system could be added.
** Bottom loading system can be equipped.
|
