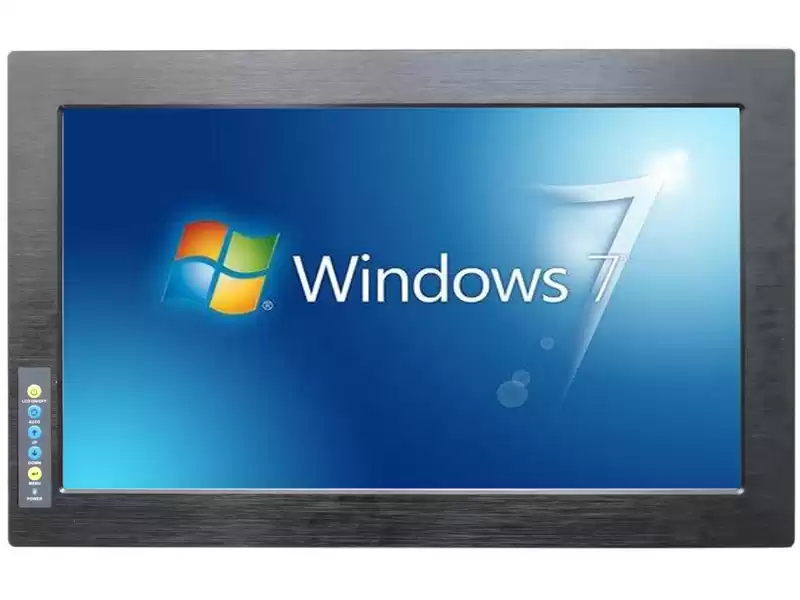

21.5-inch Touch Industrial Panel PC with I3/I5/I7 series desktop CPU
Product Introduction
This Industrial Touch Panel PC powered by Intel's robust i3, i5, or i7 series desktop CPUs, this industrial panel PC combines processing power with reliability. The expansive 21.5-inch touch display ensures intuitive and responsive user interaction, making it ideal for applications requiring precise control and monitoring. Housed in a rugged industrial-grade enclosure, this panel PC is built to withstand challenging environmental conditions, providing durability and longevity. With features such as an industrial-grade motherboard, ample RAM, and a high-quality SSD for storage, our 21.5-inch Touch Industrial Panel PC offers a comprehensive solution for industrial automation, control systems, and various other applications.
Product Features
■ 1 PCI or PCIEx16 expansion
■ Aluminium alloy brushed panel with OSD menu
■ H61/B75/H81/H110/H310 and other motherboards to choose from
■ 2LAN, 6COM and 6USB as standard, up to 10 COM
■ IP65 waterproof panel
■ Various mounting options
■ Resistive touch screen, OEM capacitive screen is available.
| Specification |
Optional Configurations |
| Panel |
Aluminium top, brushed oxidised black |
Available in natural or other colours with optional sandblasted finish |
| Rear chassis |
1.2mm steel plate, black |
Available in silver, or other colours |
| Adaptive Main Board |
ATX powered ITX motherboards |
All Yanyue ATX-powered ITX motherboards are available! |
| LCD |
21.5" TFT, LED backlight; Resolution 1920*1080; Dot Matrix: 0.248*0.248; Maximum Colour: 16.7M; Brightness: 250cd/㎡; Contrast Ratio: 1000:1; Response Speed: 35ms; MTBF: 30,000h Viewing Angle: (+85° ~ -85°) (+80 ° ~ -80°) |
| Touchscreens |
5-wire resistive screen |
Customisable capacitive screen |
| CPU/GPU |
Intel i3 2120 |
Support all generations of i3/i5/i7 series CPUs |
| Memory |
4G DDR3 |
Optional 2G/8G/16G laptop memory |
| Hard drive |
128G MSATA |
Optional 32G/64G/256G Msata SSD; 2.5" 500G/1T/2T Mechanical HDD & 512G/1T SSD |
| Interface |

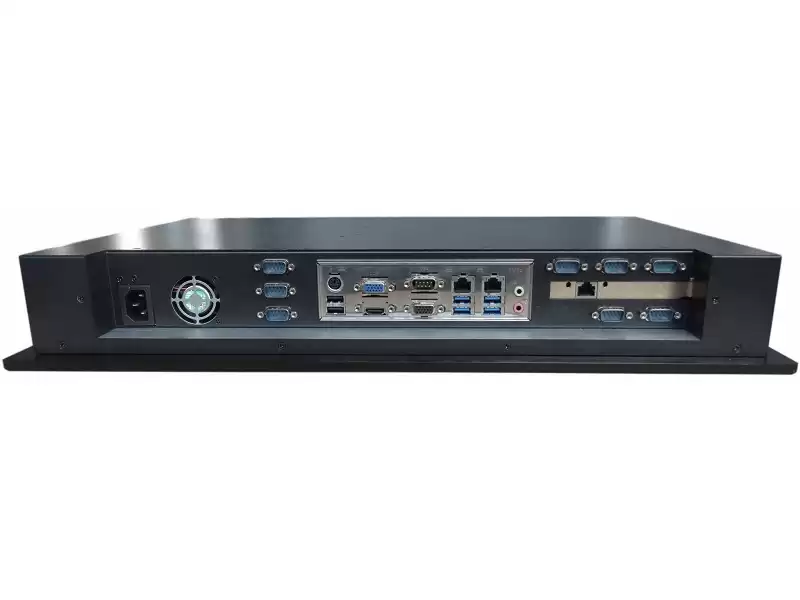

AC Input; 6USB; 2RJ45(Gigabit); VGA; HDMI,Audio Output; MIC Input; 6COM |
Optional 10 serial ports or customised 8USB or 1LPT |
| Size |
555mm (length) * 352mm (width) * 79.5mm (thickness) |
N.W/G.W |
10/11KG |
| Power supply |
200W 1U ATX power supply |
|
| Installation |
Flush Screw Mount; Flush Hook Mount; VISA Wall Mount |
| Work and environment |
| operating temperature |
0～60℃ |
Storage temperature |
-40～75℃ |
Environmental humidity |
0~90% air humidity, non-condensing |
| IP rating |
Panel IP65 |
Vibration |
5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration |
| EMC |
GB9254-2008 class A |
Shock |
10g acceleration, 11ms duration |

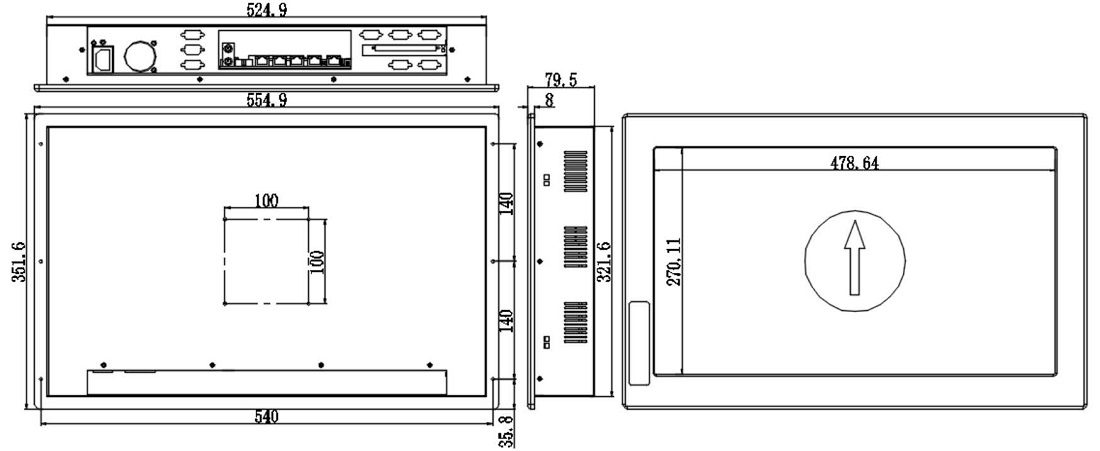

Mounting Dimension Drawing
Our Advantages
1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.
