Part Number: 21000-28-05-35-020-04-02

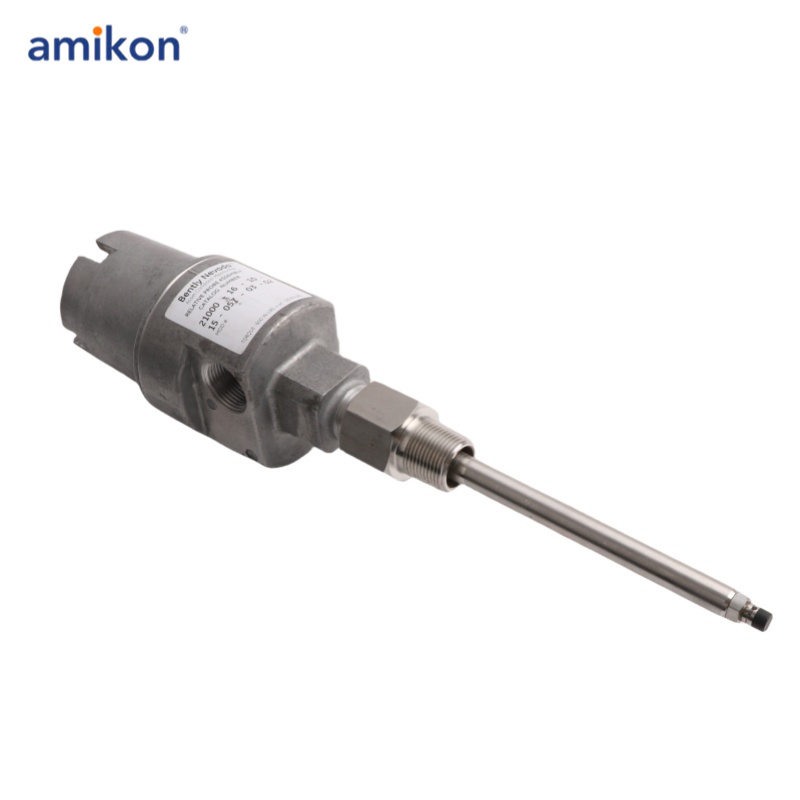

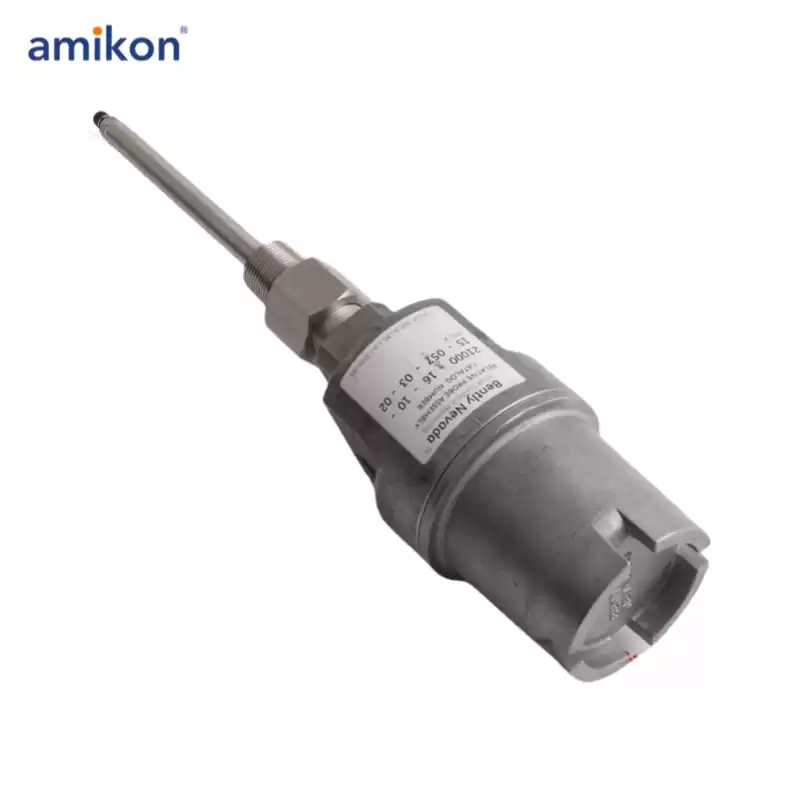

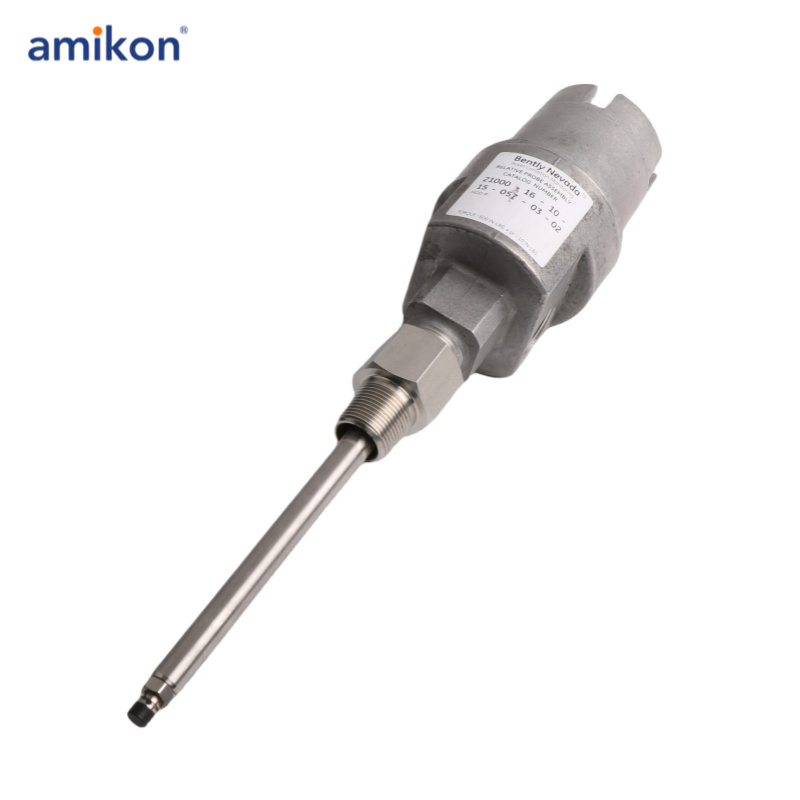

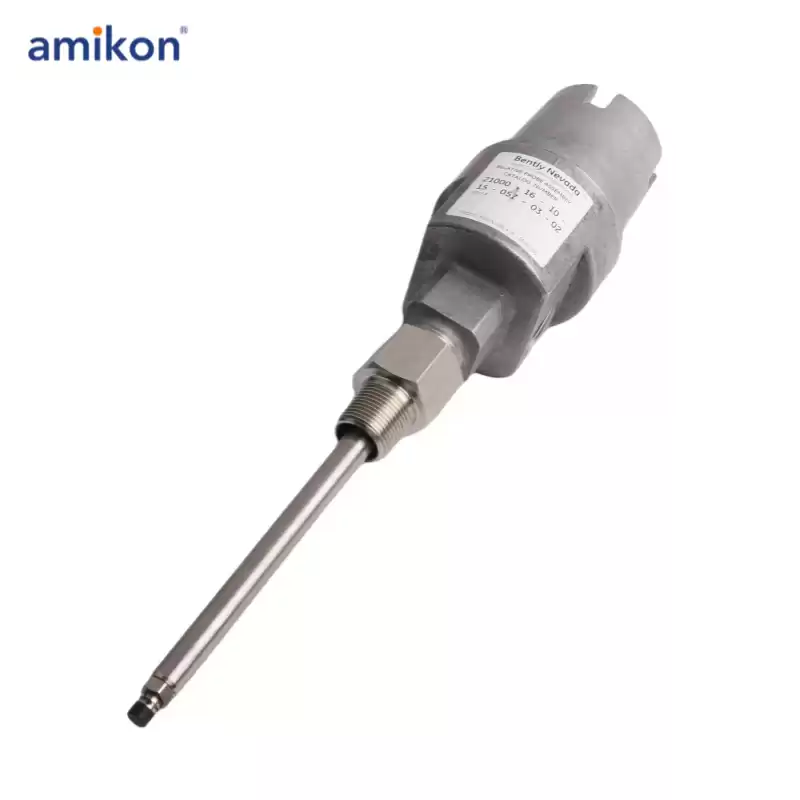

Model: 21000 Proximity Probe Housing Assemblies
Manufacturer: Bently Nevada
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
|
Model
|
21000
|
Proximity Probe Housing Assemblies
|
|
Probe with connector
|
28
|
3300 XL 8 mm probe, selectable hazardous area approvals
|
|
Probe cable length
|
05
|
0.5 m (20 in)
|
|
Standoff adapter (Option C Dimension)
|
00
|
No standoff adapter
|
|
Probe penetration (Option D Dimension)
|
057
|
5.7 in.
|
|
Fittings
|
04
|
One 3/4-14 NPT plug only
|
|
Mounting Thread
|
02
|
3/4-14 NPT
|
Bently Nevada offers two all-metal Proximity Probe Housing Assemblies for external mounting of proximity probes: the 21000 aluminum probe housing assembly, and the 24701 stainless steel probe housing assembly. These housings consist of a dome cover that screws into the body of the housing, threaded ports for conduit connections, a probe sleeve of optional length, 0- rings, a reverse mount proximity probe, a thread seal, optional conduit fittings and an optional standoff adapter. Use of a proximity probe housing allows external access to the proximity probe and its extension cable, permitting gap adjustment or probe replacement without disassembly of the machine.
