Product Details

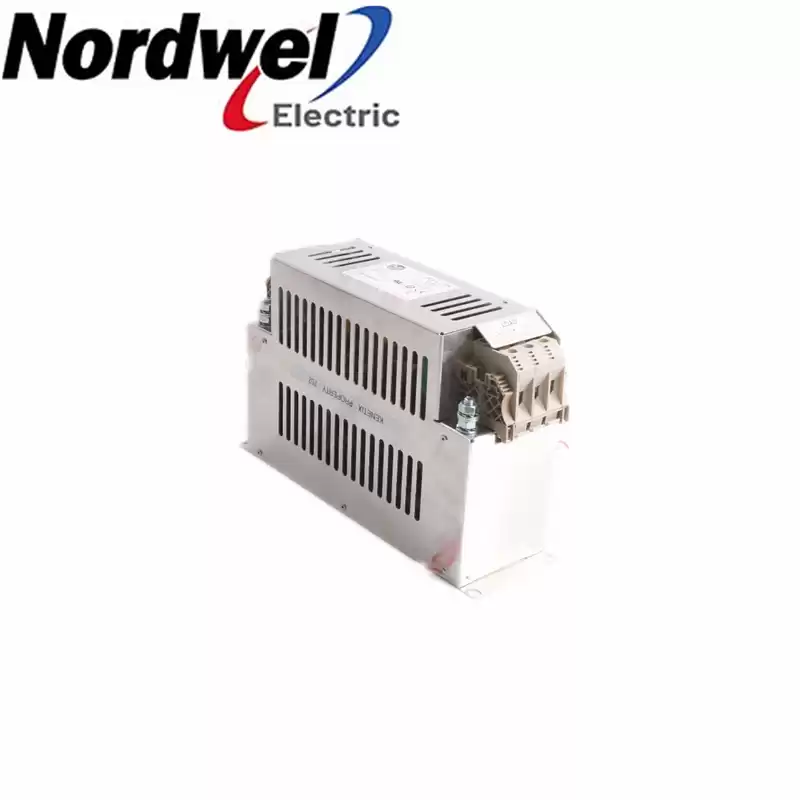

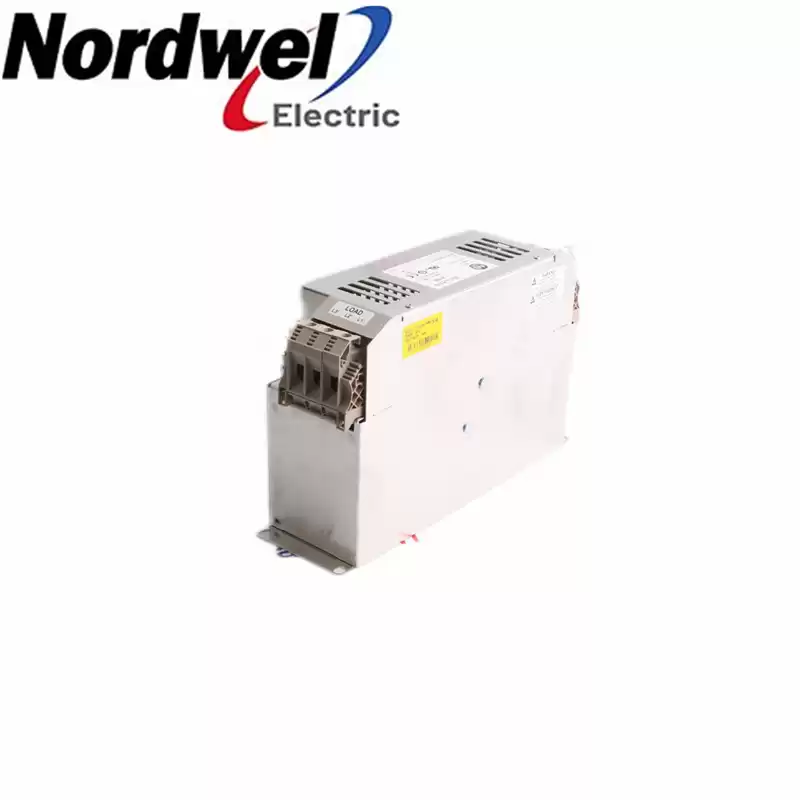

Minimum clearance on either side of the Bulletin 2198 AC line filters is 50 mm (1.97 in.). When
line filter units are positioned side-by-side on the panel, only 50 mm (1.97 in.) minimum is
required between them.
The shared-bus connection system is composed of three components:
• Input wiring connectors that plug into the leftmost drive and receive input wiring for mains AC
and 24V DC.
• AC bus, DC bus, and 24V DC T-connectors that plug into the drives downstream from the first
where AC, DC, and/or 24V control power is shared. DC bus T-connectors also plug into the first
drive where DC-bus power is shared.
• Bus bars that connect between drives to extend the mains AC bus, DC bus, and 24V DC control
power from drive-to-drive.
