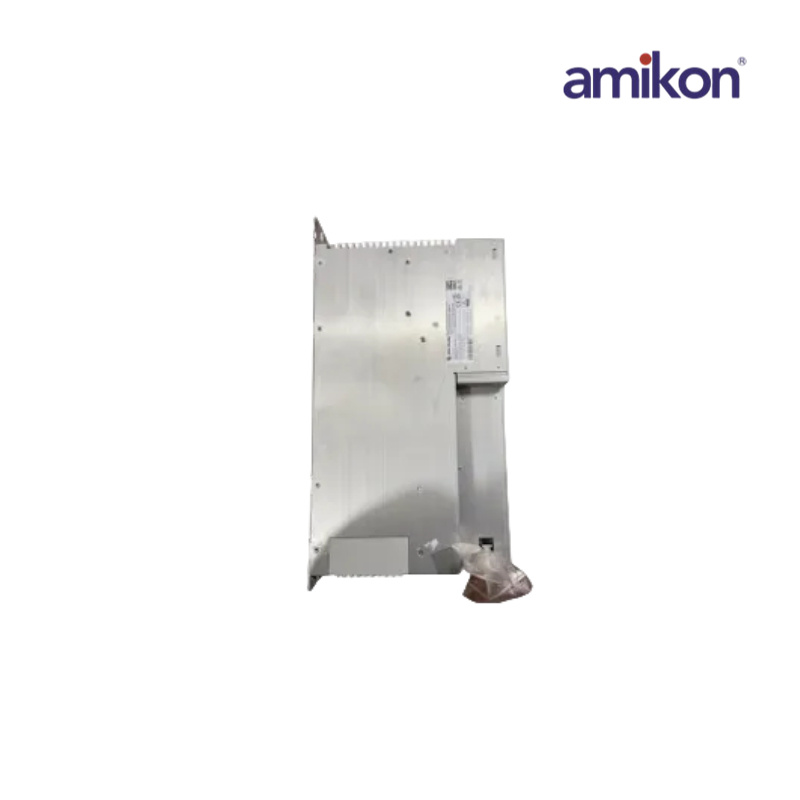

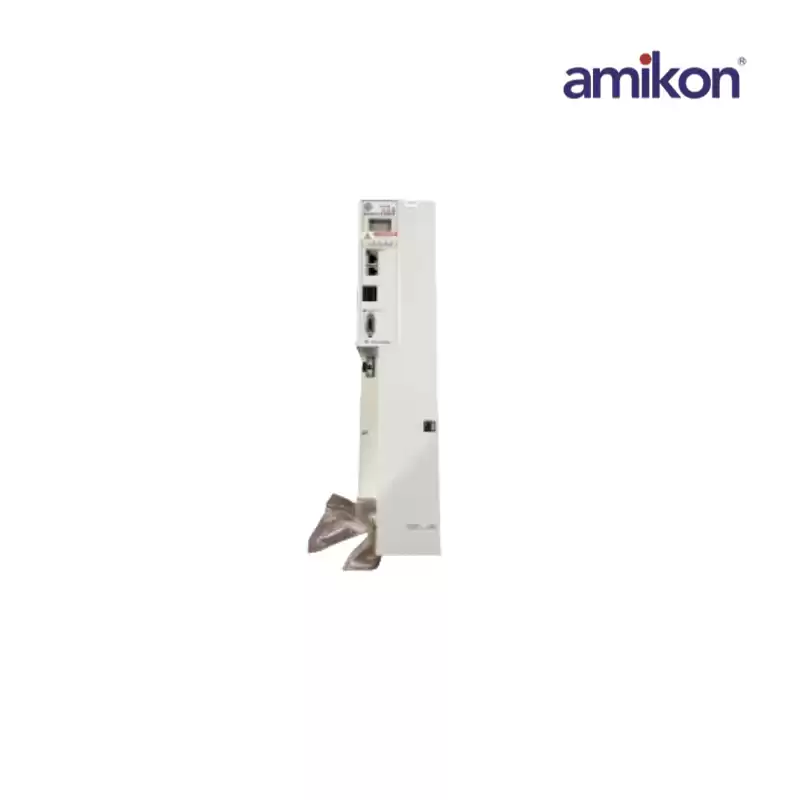

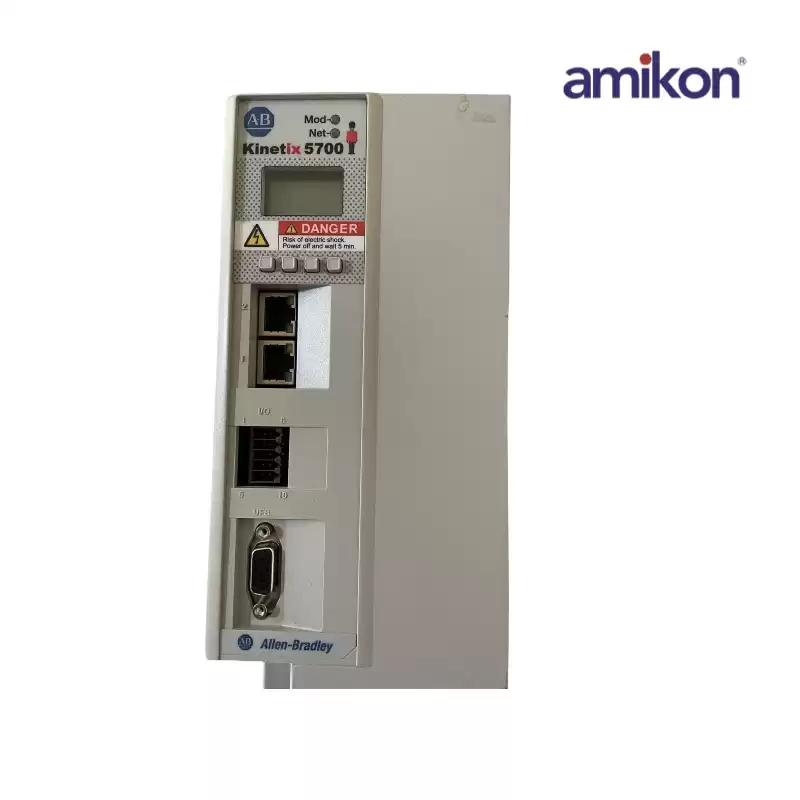

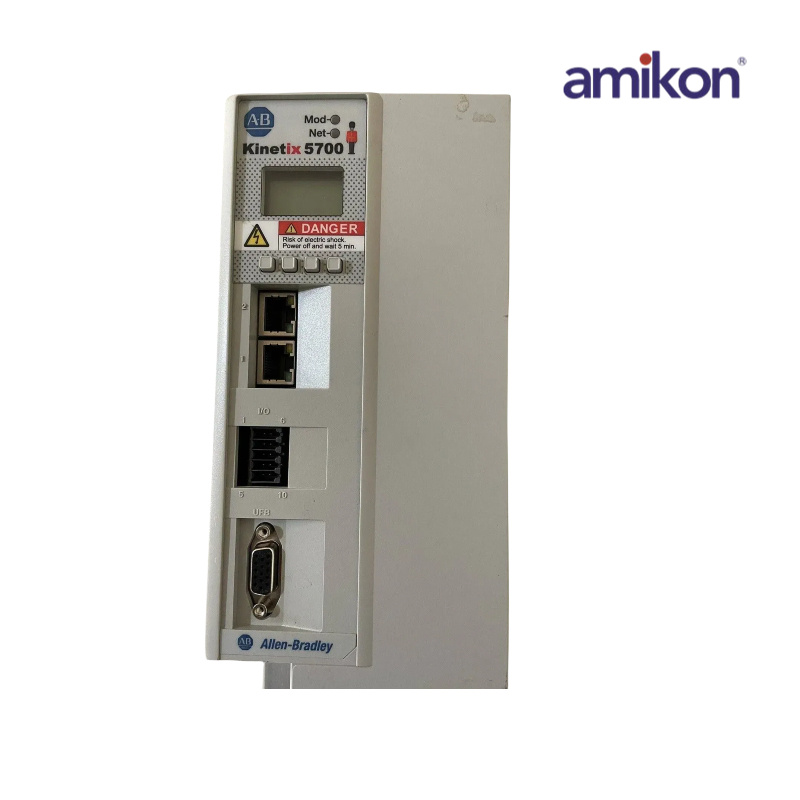

2198-S160-ERS3
|
|
Dimensions ：
|
28cmx13.2cmx5.2cm
|
Weight：
|
0.3KG
|
|
The 2198-S160-ERS3 has a 0-50 °C (32-122 °F) operational temperature range, at 5-95% non-condensing relative humidity and it has a storage range of -40-70 °C (-40-158 °F). It has an installation height of 1500m (4921ft) without de-rating, and it can withstand an operational shock of 15G and a vibration of 2G at 55-500Hz. It is c-UL, CE, KC, C-TICK, ODVA, and OSHA-certified, and it has an IP20 rated protective enclosure.
The 2198-S160-ERS3 has a three-phase power output of 60.1KW, with an internal capacitance of 1120μF and requires an input current of 92.3A¬DC at 458-747V DC. The inverter has 4.6A control current at 24V DC power supply when the servo motor connected to it has no holding brake option and a control current of 9.6A also at 24V DC with brake enabled servo motor, and will receive an inrush current of 4A at 24V DC.
|
|
