Technical Specifications for 2198H003ERS
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Input Frequency
|
300 Hz
|
|
Part Number/Catalog No.
|
2198H003ERS
|
Input Voltage
|
324-524 Volts AC rms
|
|
Module Type
|
Servo Drive
|
Power Dissipation
|
30 W
|
|
Manufacture Year
|
2022
|
Output Current
|
2.5 A
|
|
Product Package
|
Original Package
|
UPC
|
884951282780
|

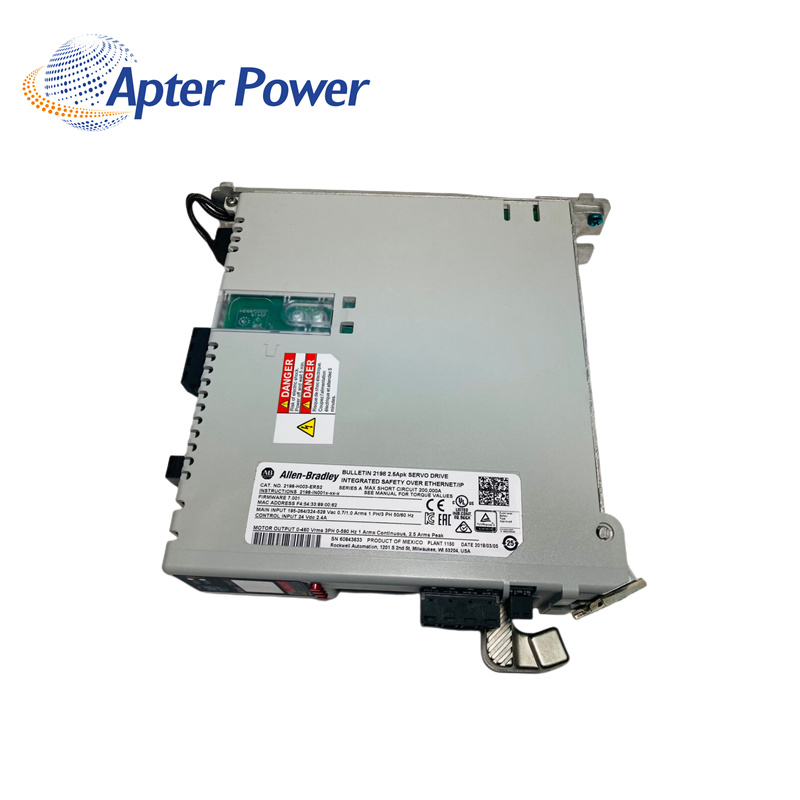

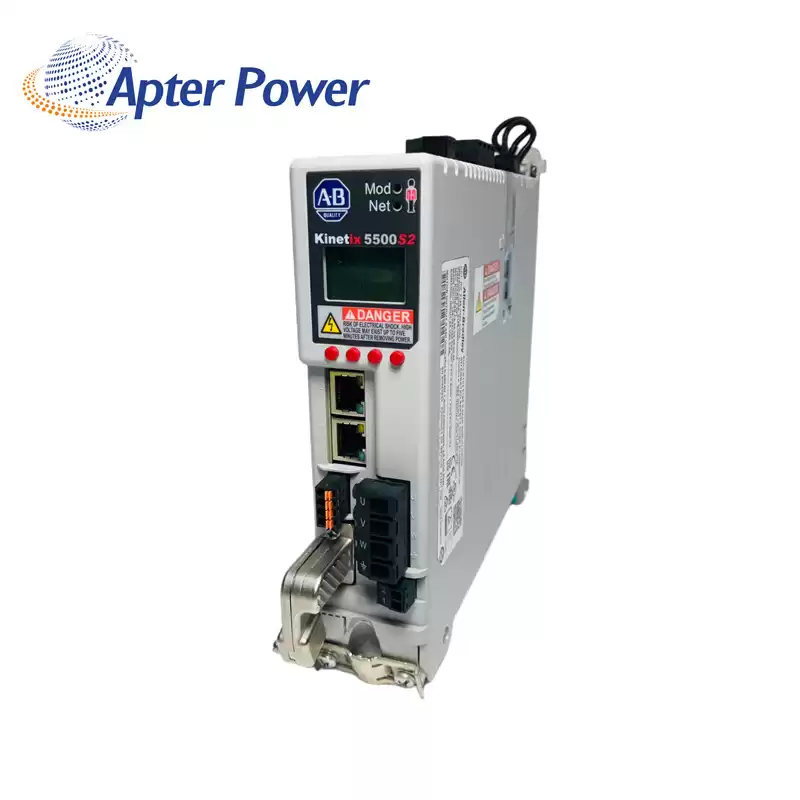

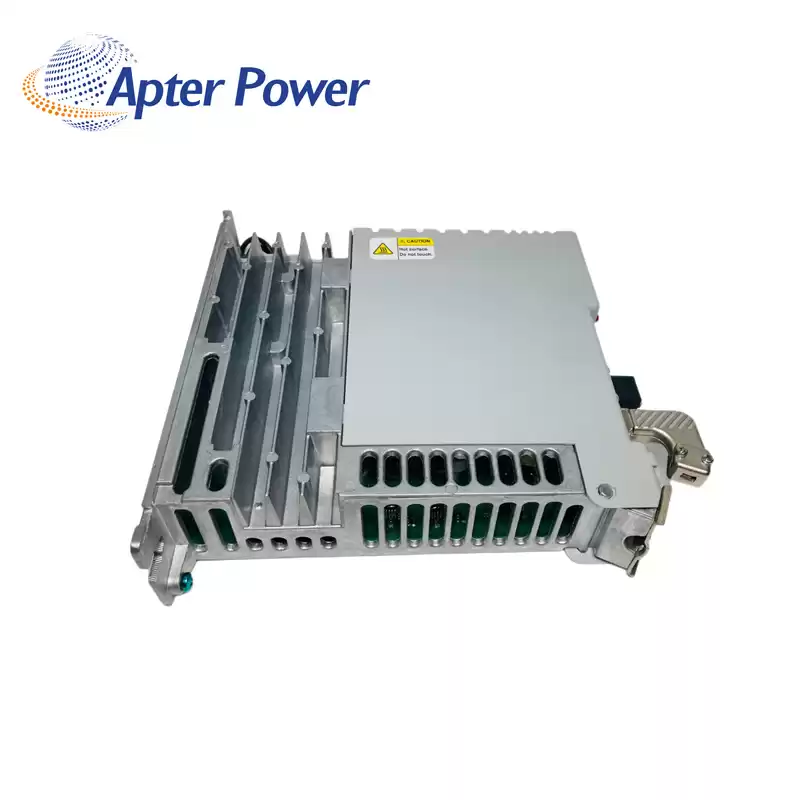

About 2198H003ERS
|
The 2198-H003-ERS supports hardwired Safe Torque-Off (STO) functionality. This safety feature is certified ISO 13849-1 PLd/SIL2, allowing this drive to be installed in application areas that require compliance to this safety standard.The 2198-H003-ERS is a single axis drive that is provided with a variety of terminal strips installed to its front panel that are individually separated by function.
The 2198-H003-ERS servo drive has single-phase and three-phase 195 to 528 Volts AC input voltage with 47 to 63 Hertz frequency. With 97% efficiency and 11.54 J Capacitive energy absorption, it has Continuous and Peak output current of 1.0 A and 2.5 A for RMS values, and 1.4 A and 3.5 A for 0 to peak values respectively. This unit contains an internal shunt resistance of 100 Ohms and internal shunt power of 30 Watts.
|
