Description

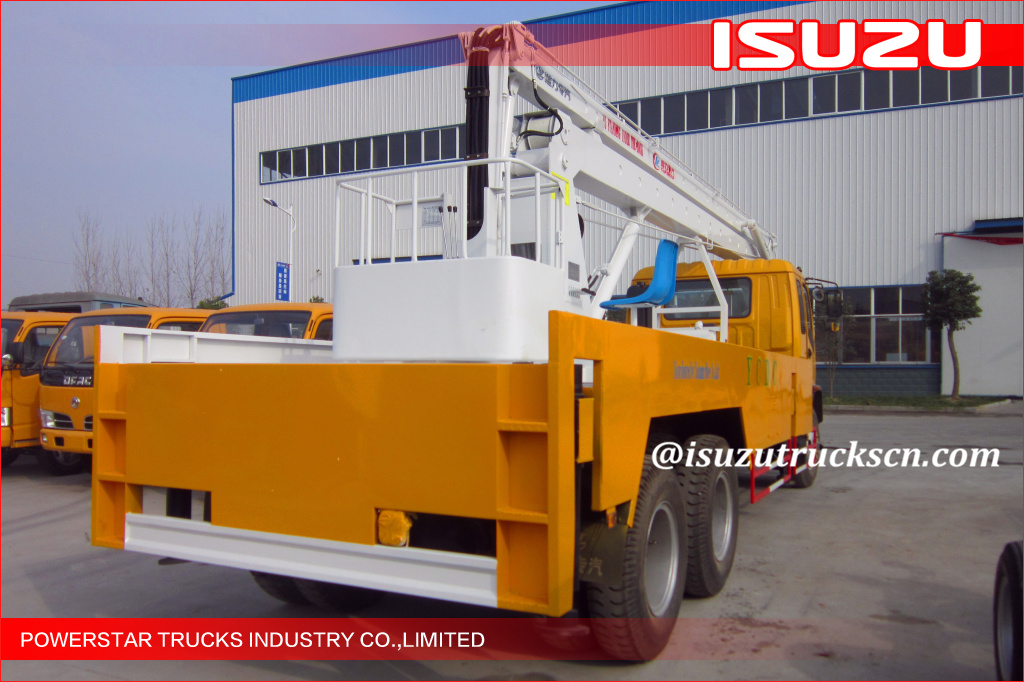

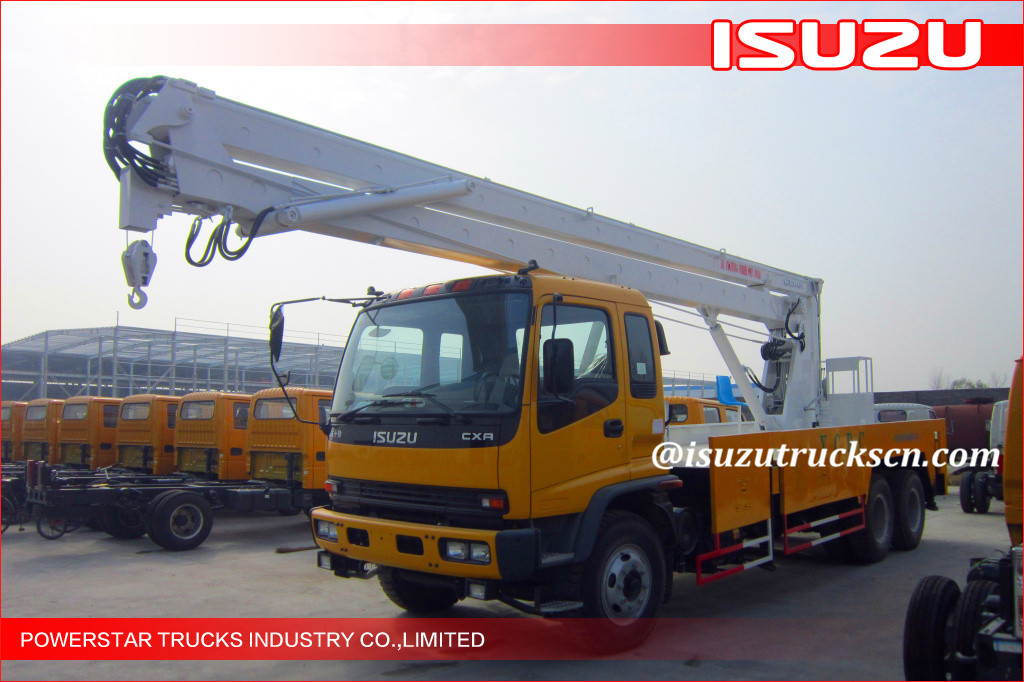

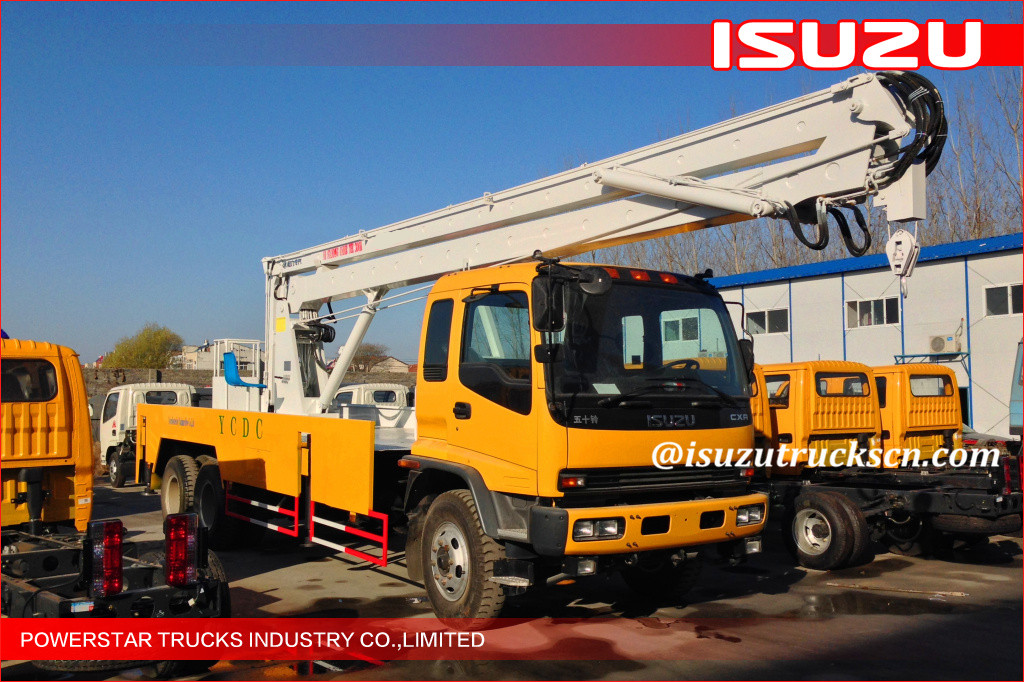

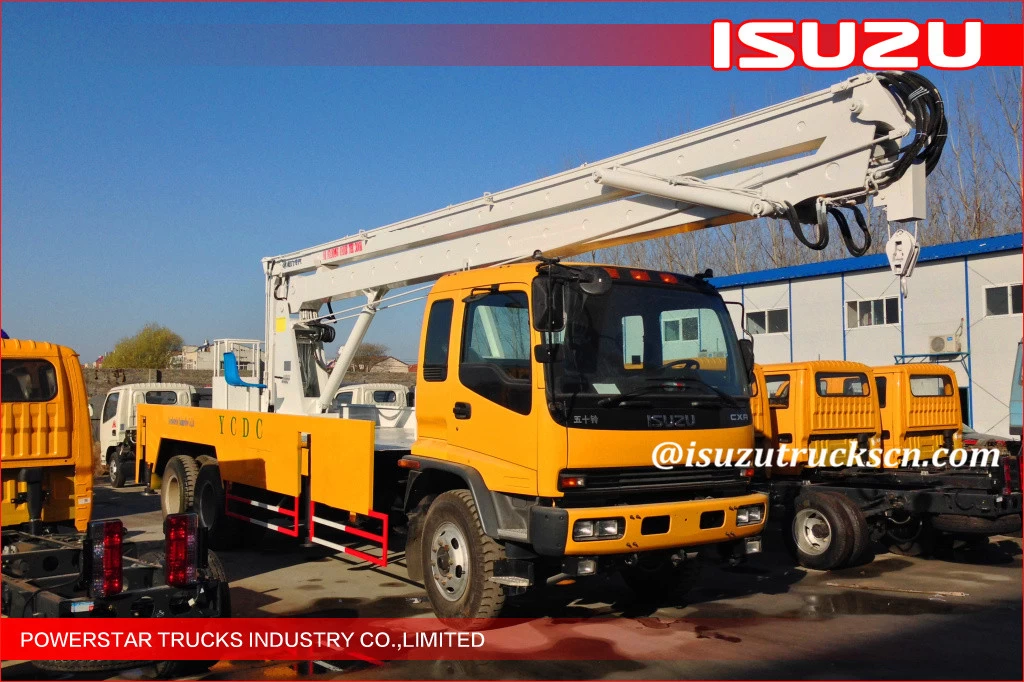

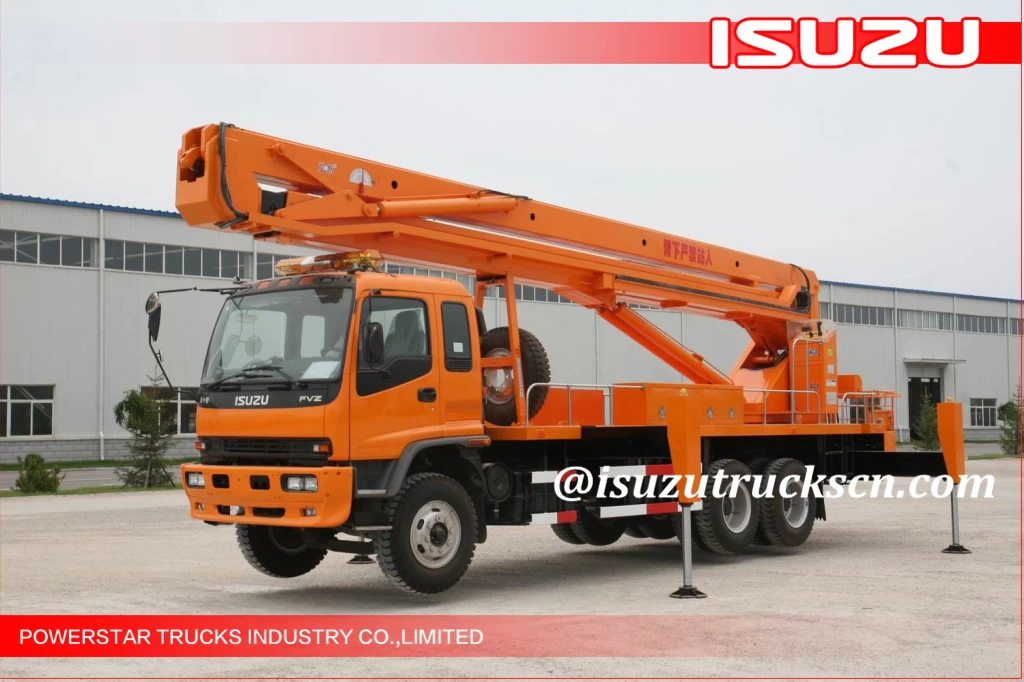

22m Egypt Isuzu Truck High altitude Operation Vehicle

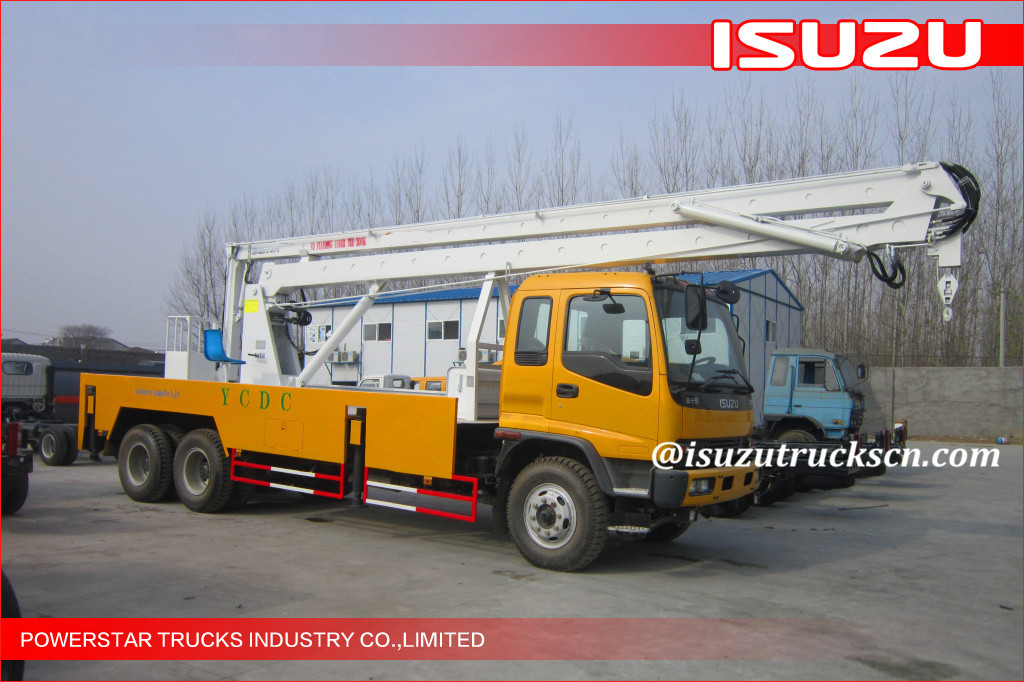

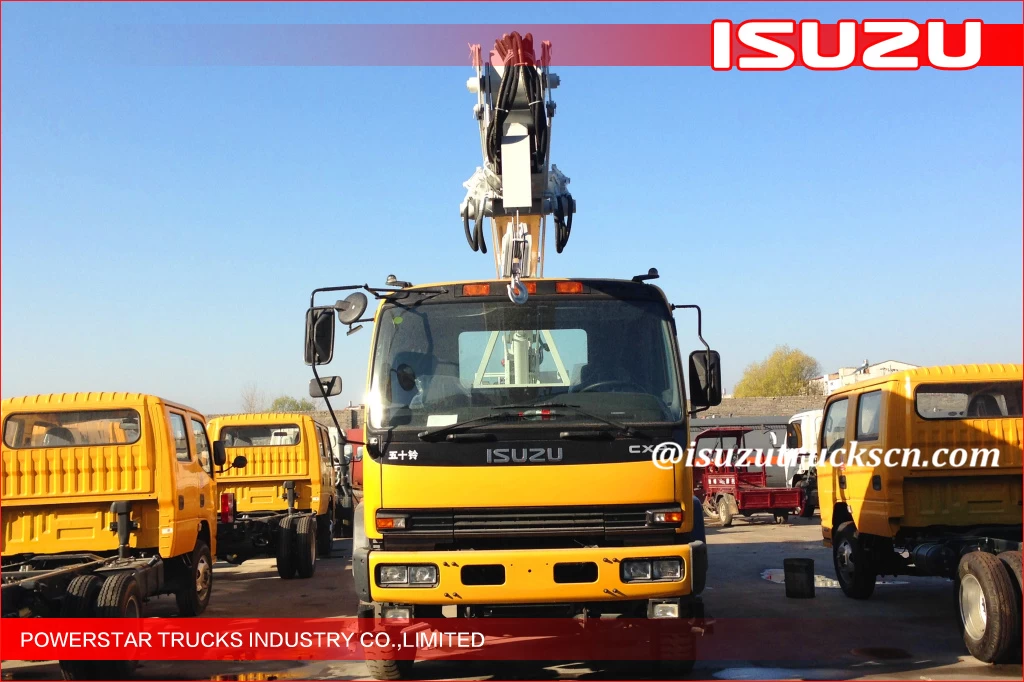

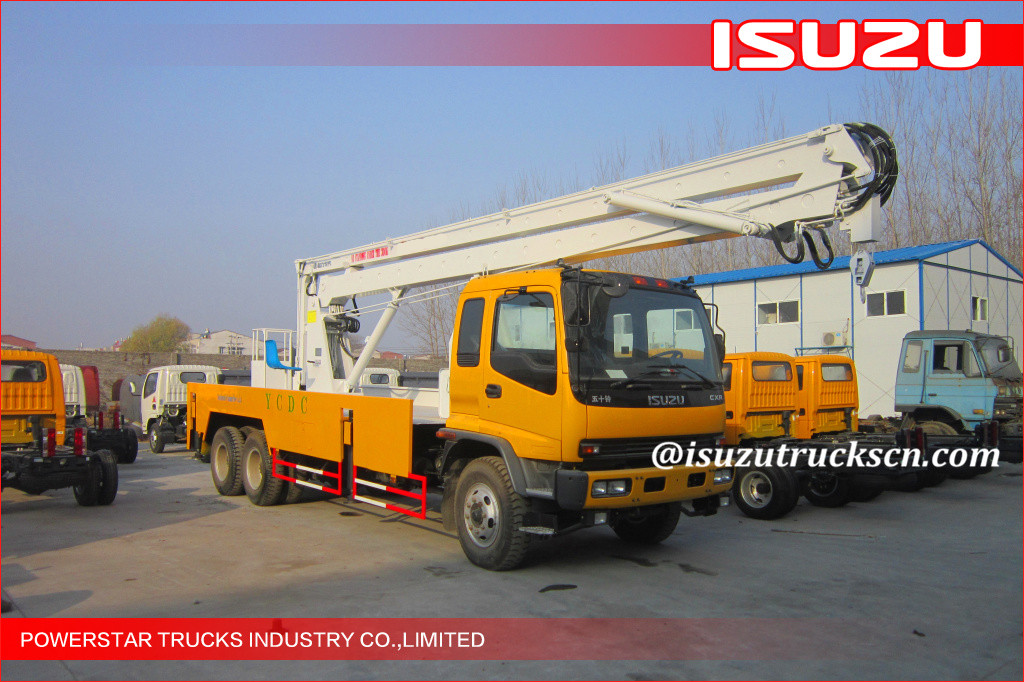

22-26m 6*4 Isuzu Truck High altitude Operation Vehicle

Isuzu Aerial Working Platform can be applied in various conditions for aerial working, such as urban road, suburban road, highway, airport, bridges and culverts and so on.

Key Features:

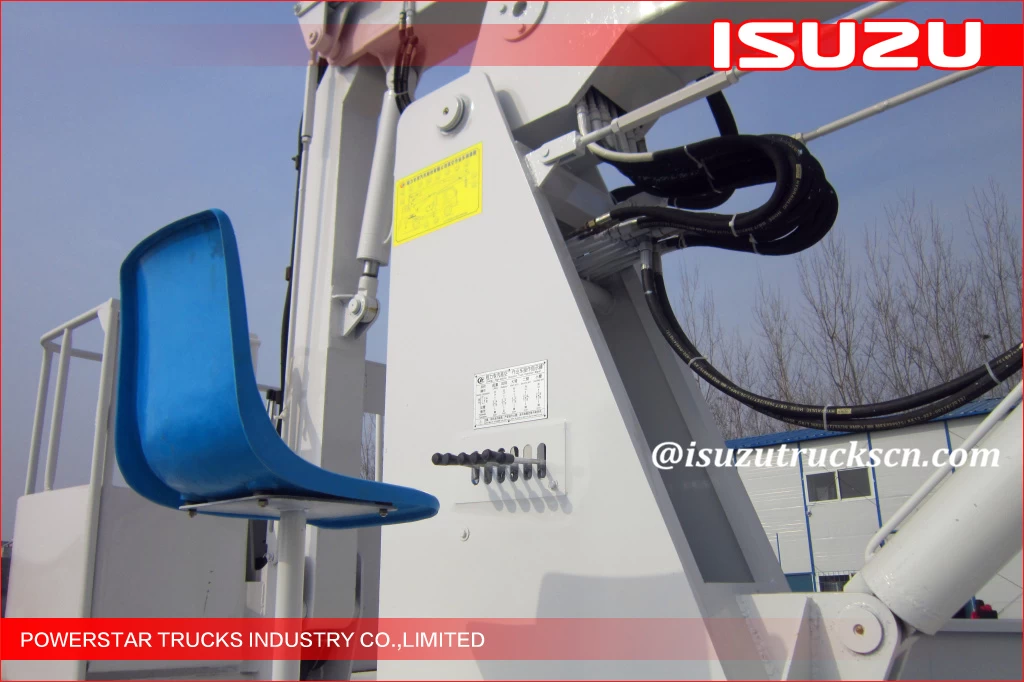

◆ Can be operated at both turret and platform

◆ Step less speed regulation

◆ Imported key components, higher reliability, excellent property and long life-span.

◆ Larger span of trigger, higher stability

◆ Urgent power for emergency

◆ Operation height : 12M, 14M, 16M, 18M, 20M, 22M

Main specifications:

Model	PT5250JGK
Driving Type	6x4 (Left hand drive)
Wheelbase	4350+1300mm
Engine	205 kw (280hp)

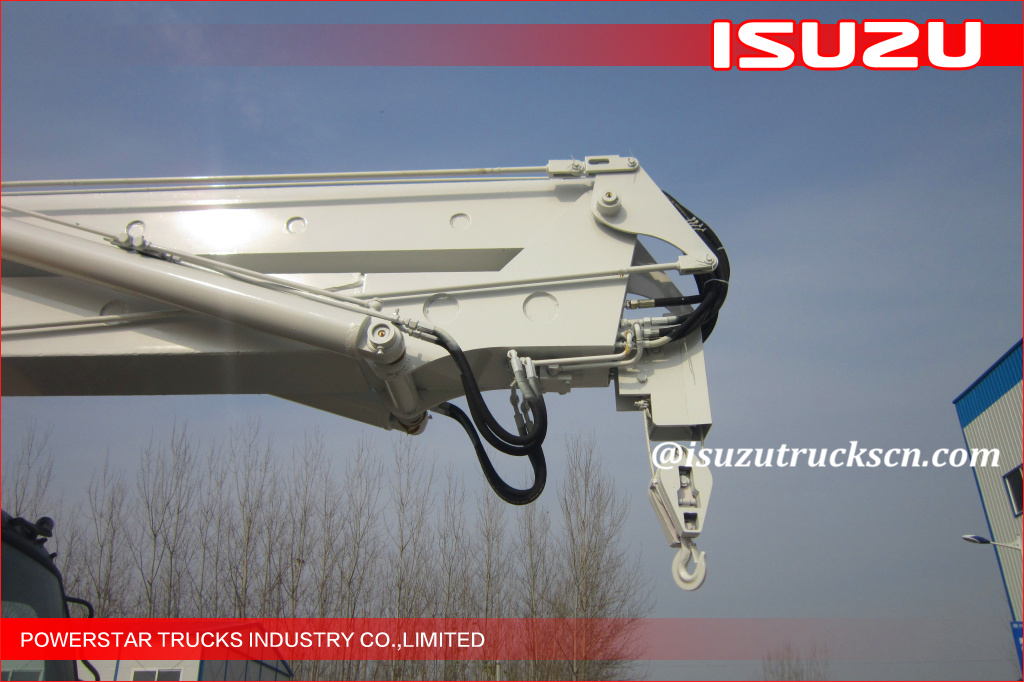

Structure type	Three-section articulated boom

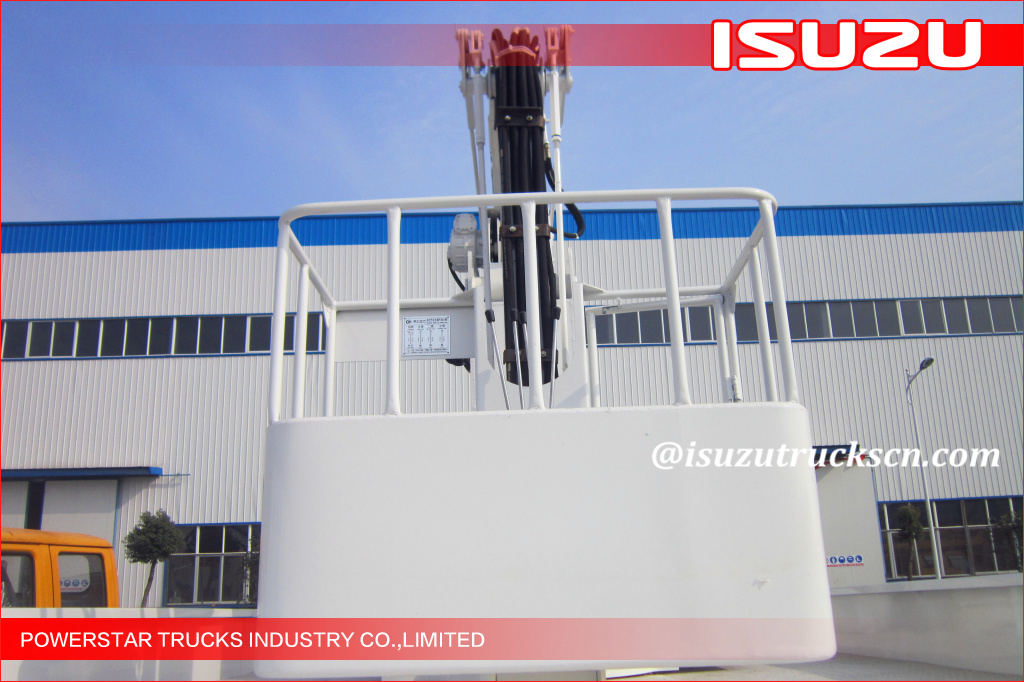

Working Platform	Internal size	1100×600×1100 mm
	Rated loading	200kg (or 2 persons)

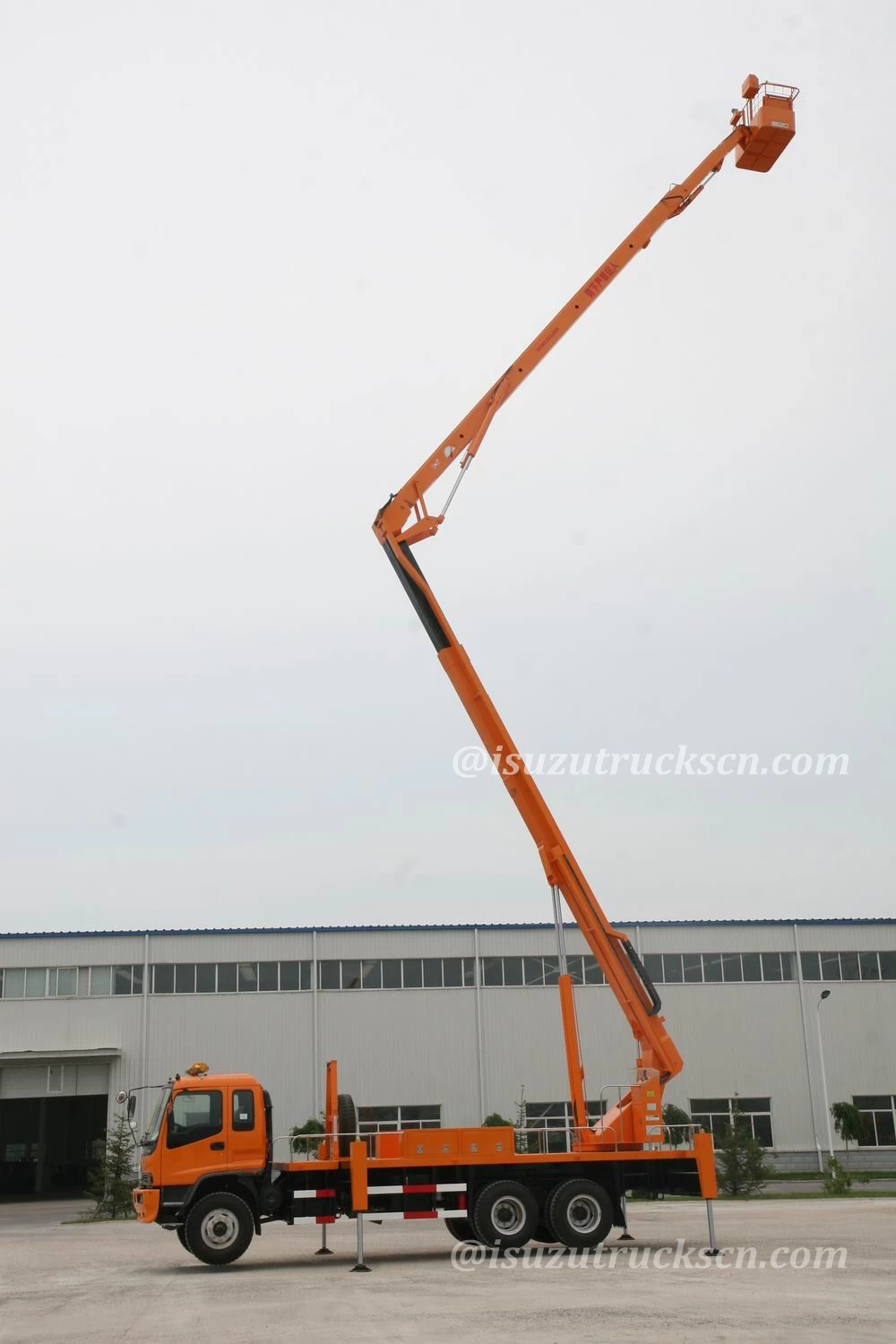

	Max. Working height	22 M
	Max. Height from ground	12300 mm
	Max. Working radius	7700 mm
	Working radius when doing the highest height	2950 mm
Working Boom	Max. Raising angle of lower boom	70 º
	Max. Raising angle of upper boom	70 º
	Max. Raising angle of jib	90 º
	Boom rack ration angle	360 º

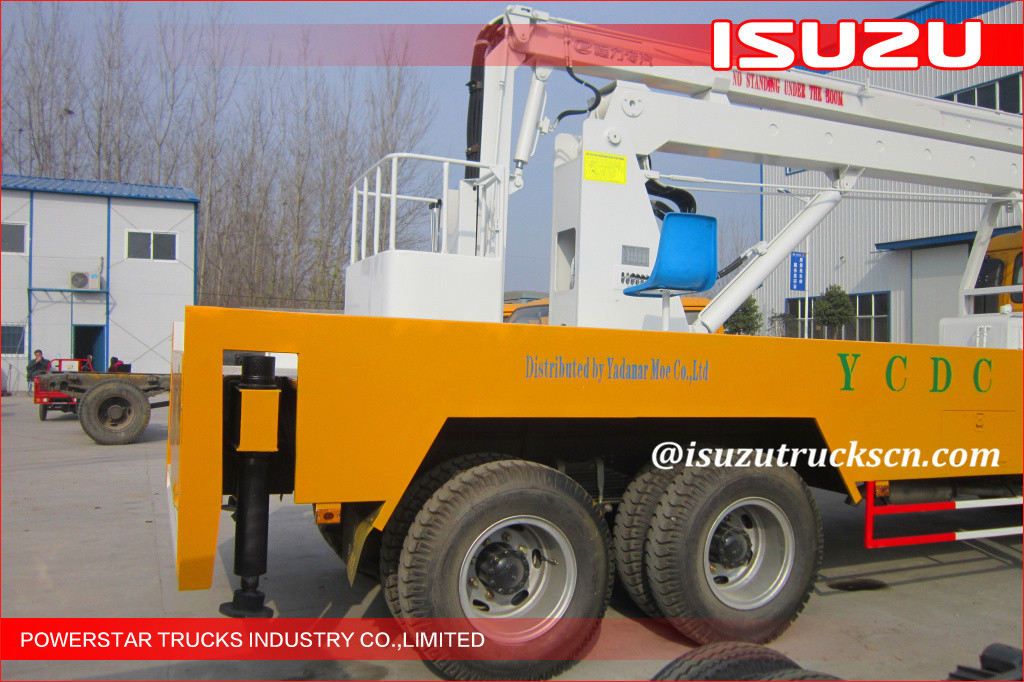

Outrigger	Vertical span	3200 mm
	Horizontal span	3600 mm
	Traveling of vertical outrigger	450 mm
	Adjustment	Single adjustable
Color	Yellow (Any color & logos up to wish)

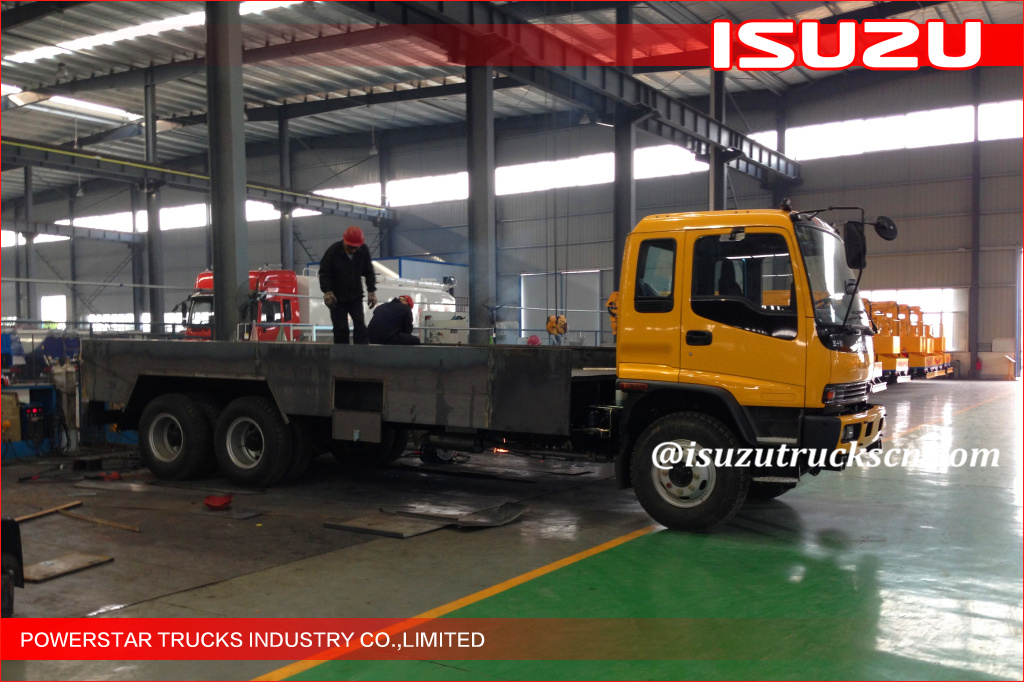

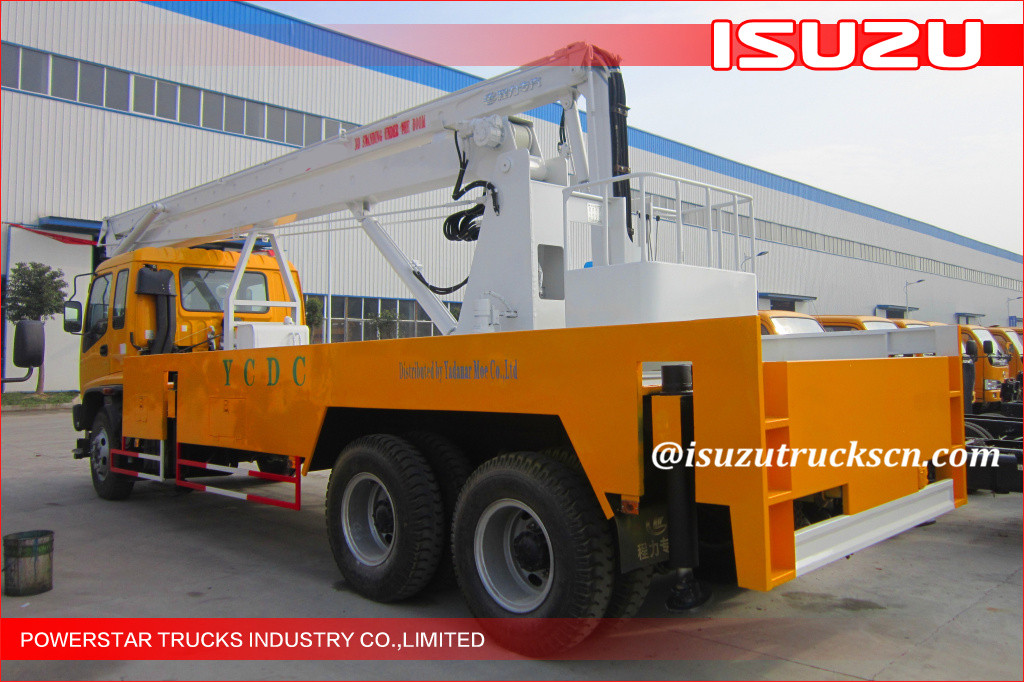

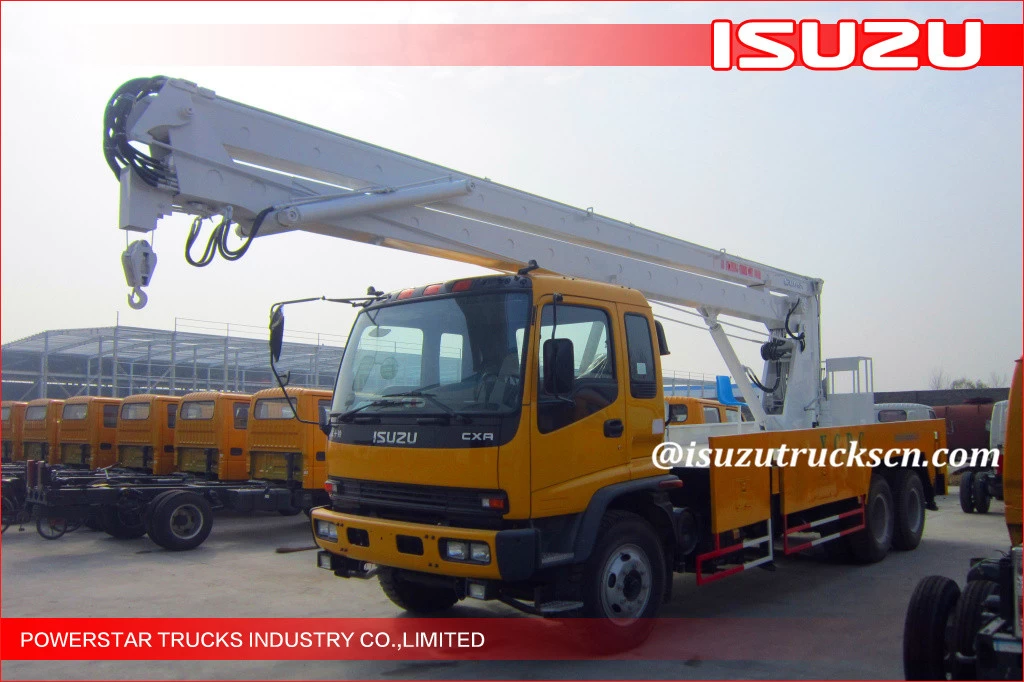

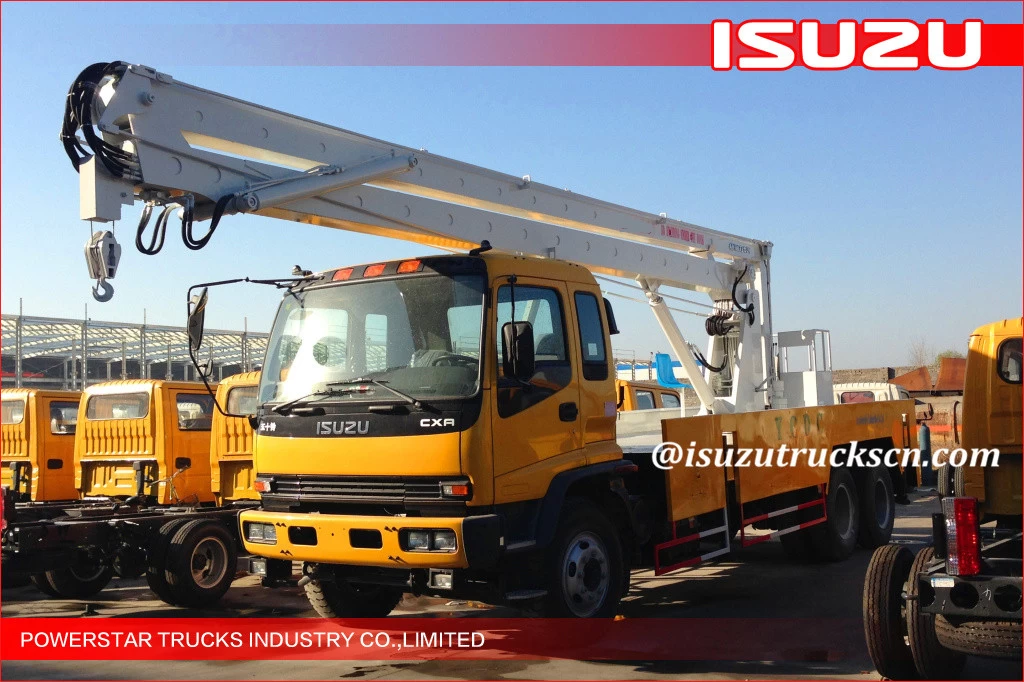

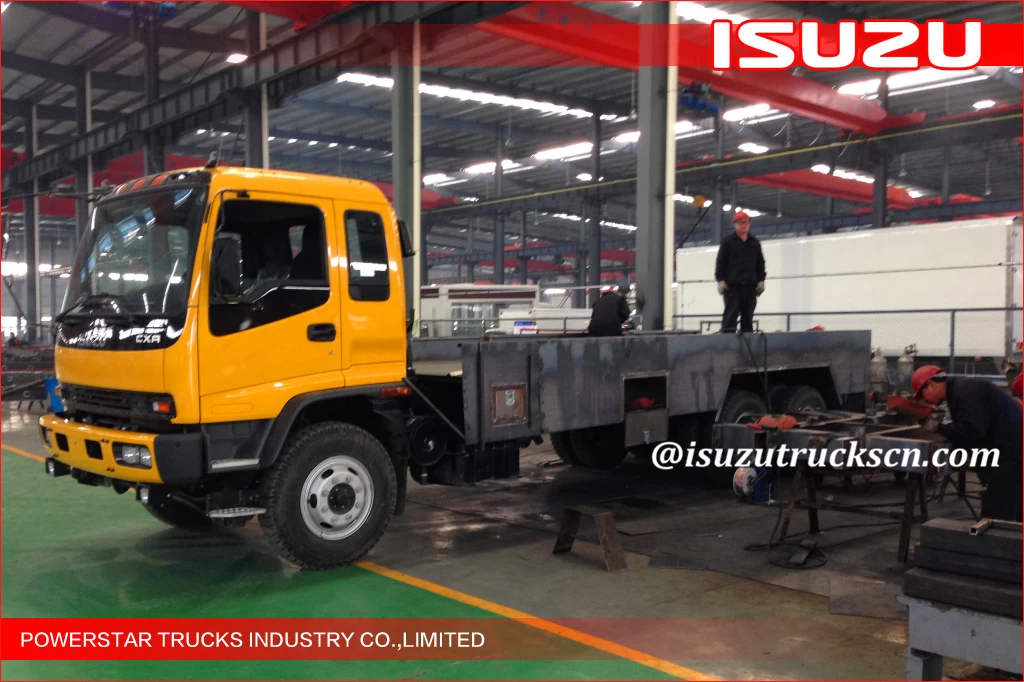

Recently Built Aerial Working Platform Truck:

22-26m 6*4 Isuzu Truck High altitude Operation Vehicle
