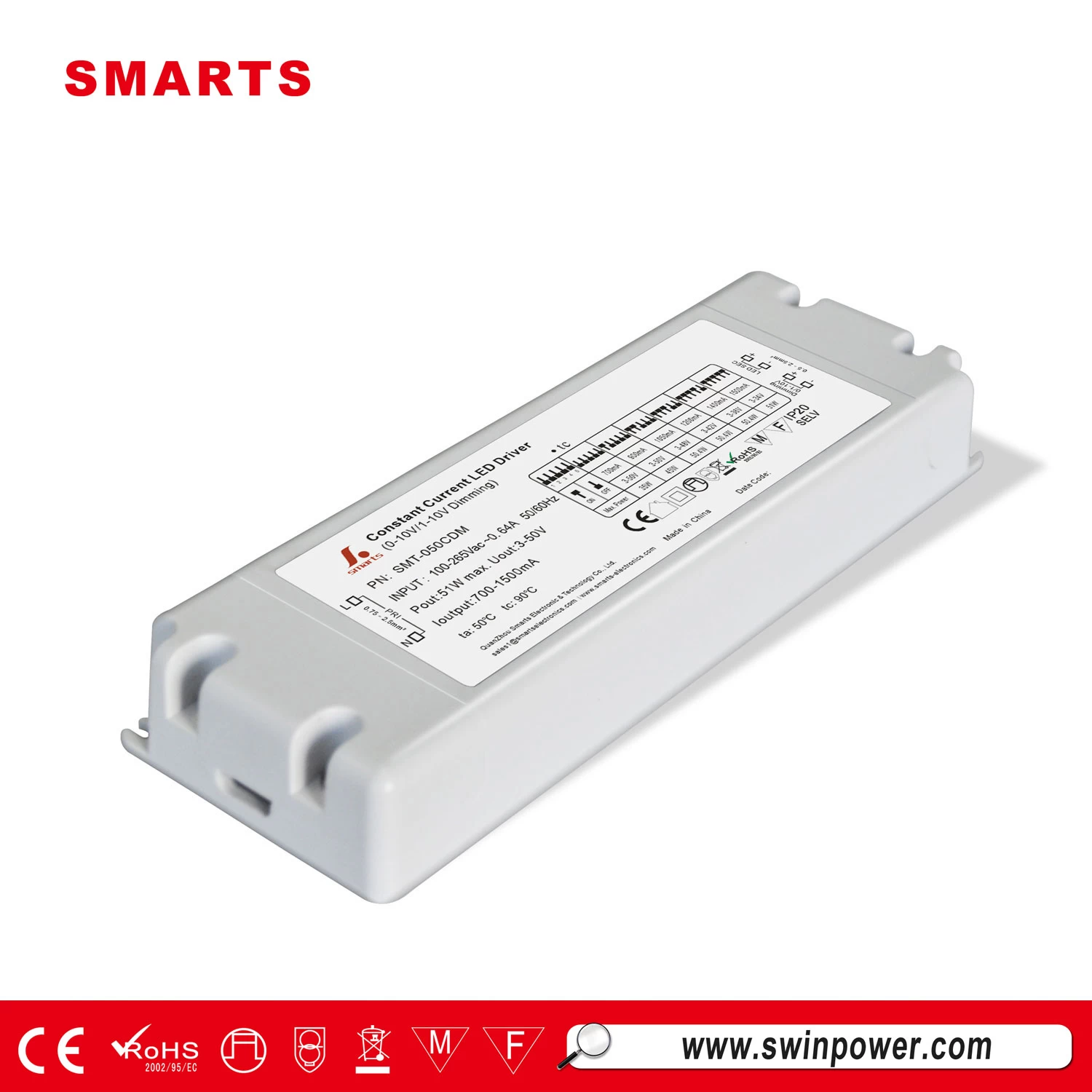

220v 700ma PWM LED Power Driver Transformer Lighting

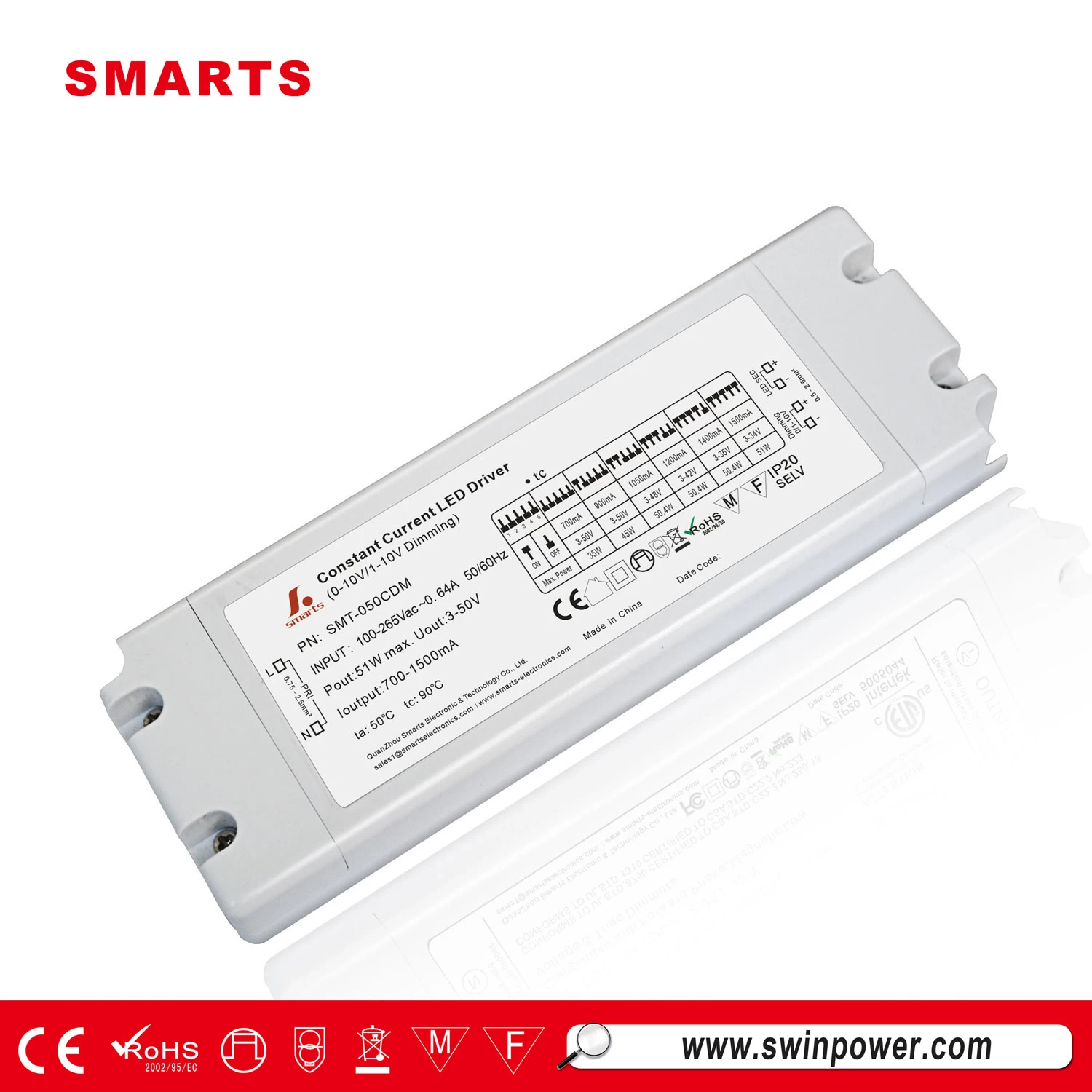

Including Class III design (no FG), short circuit and over temperature protections and certification to UL8750, ENEC EN61347-2-13, and EN62384 international lighting safety regulations. SMT-050CDM is a 50W LED power supply with multi-stage constant current output; allowing a single unit to be used for applications with potential for multiple current levels, such as project style lighting designs. The current levels, 700mA, 900mA & 1050mA, 1200mA, 1400mA, 1500mA are easily switched by adjusting the built-in DIP switch.
What LED Driver Power Supply Smarts Electronics do?
Answer:
LED Lighting Power Supplies from Smarts Electronics are available in ranges from 6W to 600W and come in many different forms for both indoor and outdoor LED lighting installations. Our Constant Current LED Lighting Power Supply range offers currents from 300mA to 2100mA; whilst the Constant Voltage LED Lighting Power Supply range starts at 5V going through to 48V.
Cannot see the LED Lighting Power Supply that you are looking for? Use the product code search at the top of the site to search by a specific part or use our advanced product search to enter specific specification requirements.
Futures for LED power driver :
·Output constant current type 0/1-10V dimmable led driver
·Input range : 100-265VAC
·Efficiency > 83%
·Protections:short circuit /over load/ over current
·Fully isolated plastic case, IP20 design solution
·Easy installation, suitable for dry location
·Cooling by free air convection
·Dimming function: 0-10V/1-10V/10V PWM dimmable
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·3 years warranty
|
Model
|
SMT-050CDM
|
|
Output
|
Rated current
|
1500mA
|
1400mA
|
1200mA
|
1050mA
|
900mA
|
700mA
|
|
Current Tolerance
|
±5%
|
|
DC Voltage
|
3-34V
|
3-36V
|
3-42V
|
3-48V
|
3-50V
|
3-50V
|
|
Rated power
|
51W
|
50.4W
|
50.4W
|
50.4W
|
45W
|
35W
|
|
Input
|
Rated Input Voltage
|
100-265VAC
|
|
Rated Frequency:
|
47-63HZ
|
|
Power Factor
|
PF≥0.99/100VAC PF≥0.92/230VAC PF≥0.87/240VAC(Full loading)
|
|
Full Load Efficiency(Typ.)
|
>81%
|
>81%
|
>82%
|
>83%
|
>83%
|
>82%
|
|
AC Current(Max.)
|
0.64A
|
0.64A
|
0.64A
|
0.60A
|
0.55A
|
0.44A
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed
|
|
Output No-Load Voltage
|
52-60V
|
|
Over Load
|
≤120%
|
|
Protection Class:
|
II
|
|
Environ-
ment
|
Working TEMP.
|
-40-+60℃
|
|
Working Humidity
|
20-95%RH,non-condensing
|
|
Storage TEM. Humidity
|
-40-+80℃,10-95%RH
|
|
TEMP. coefficient
|
±0.03%/℃(0-50℃)
|
|
Vibration
|
10-500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes
|
|
Safety & EMC
|
Safety standards
|
EN61347-1 EN61347-2-13
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
EN55015, EN61000-3-2,3 (≧50% load)
|
|
EMC IMMUNITY
|
EN61000-4-2,3,4,5,6 ,11, EN61547,A light industry level
|
|
Others
|
Weight
|
0.32Kg
|
|
Size
|
178*61*24mm(L*W*H)
|
|
packing
|
185*65*28mm inner box 290*215*240mm outside carton 20PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC & 230VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set us tolerance, line regulation and load regulation .
|

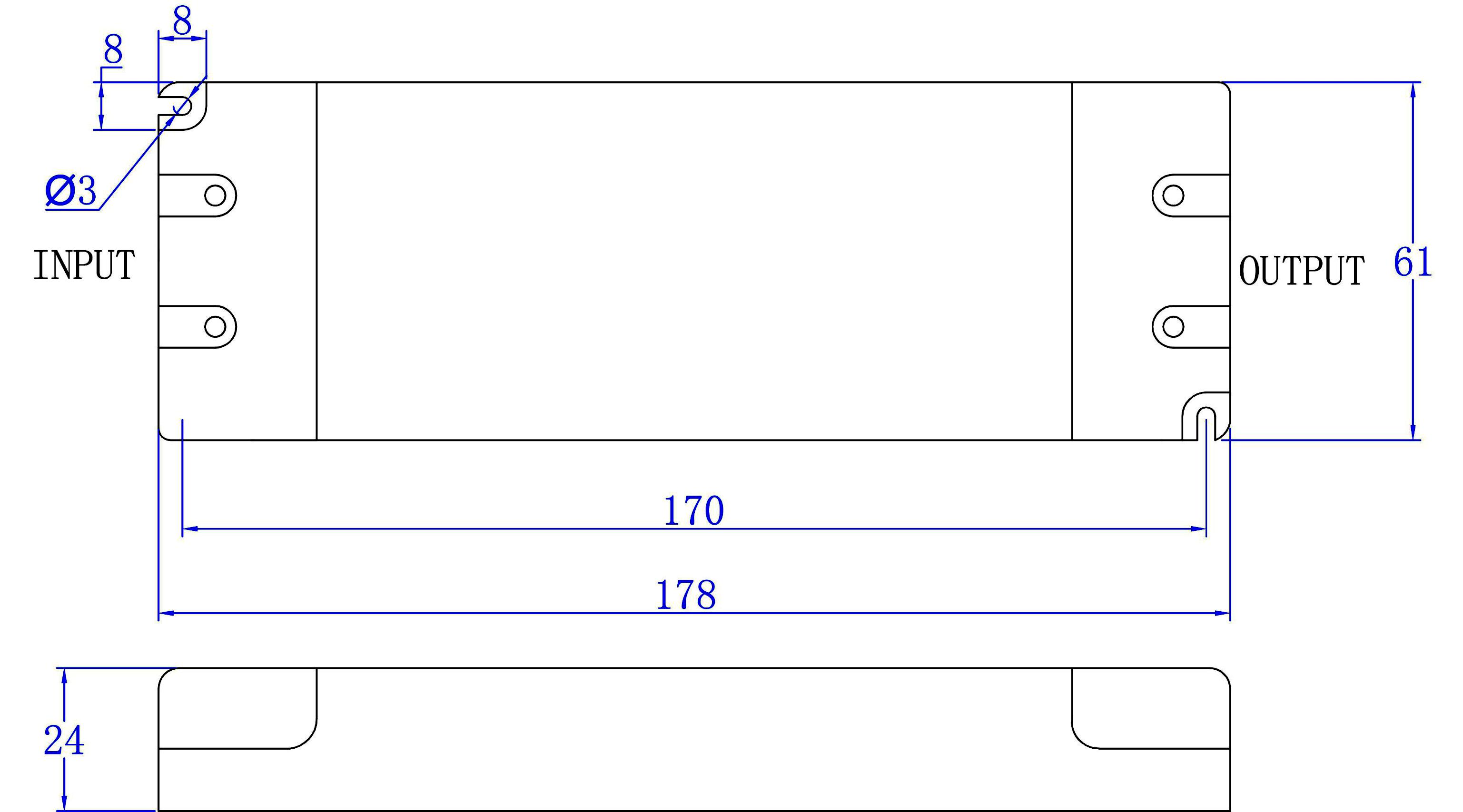

50W triac dimmable LED driver Mechanical Specification:
- Input with Live Wire AC (L), Neutral Wire AC(N)
- Output LED SEC output Positive (LED+) , output negative(LED-). Connected to LED Lamps.
- Signal dimming:0-10V or 1-10V (DIM +) ,(DIM +) To be connected to 0-10V or 1-10V dimmer or system.
- Suggested wire diameter:Input 0.75-2.5m㎡; Output:0.5-2.5m㎡.
Note: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged

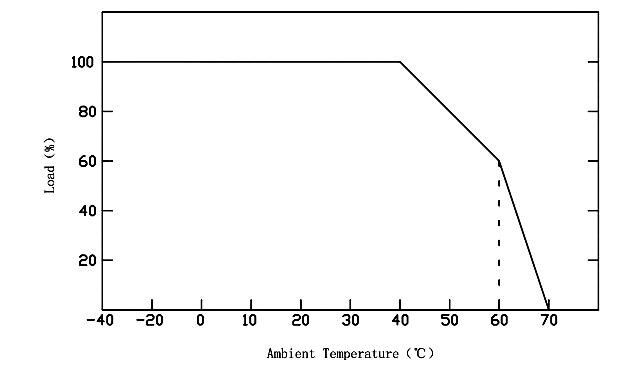

Derating Curve for led driver transformer:

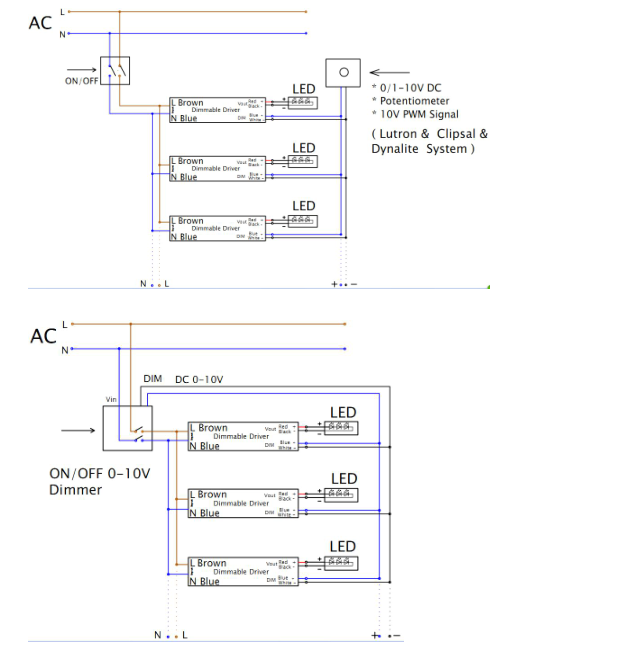

0-10V Dimmable LED Driver multiple Connection
