For non-fermented tea such as green tea: evaporate water, tighten the tea, make the tea fully dry, divergent to remove the grassy taste, enhance the aroma of the tea.
For fermented tea such as black tea: the activity of the enzyme is destroyed by high temperature, the enzymatic oxidation is interrupted, and the quality of the tea is maintained.
Evaporate the water in the tea leaves, so that the tea leaves are fully dried, divergent to remove the grassy taste, and enhance the aroma of the tea leaves.
For herbal tea: Evaporate water, tighten flowers and plants, and keep the original color and original aroma
Tea leaf drying machine can process almost all tea: such as black tea, green tea, oolong tea, and herbal tea.
1. Unique air duct design, the air is more uniform and the noise is lower;
2. Rotary drying tray structure, drying more evenly;
3. Excellent heat insulation, heat preservation and energy saving;
4. The use of calcium silicate board increases the insulation effect;
5. Intelligent temperature control system, easy to operate and precise control;
6. Double temperature control design, protection is more in place.
This tea baking dehydrator dryer drying area is 5.38m², use 220V 50HZ electric, total power is 9.0kw, it can process 60kg wet tea leaf prt time, can out put about 17kg dried tea.

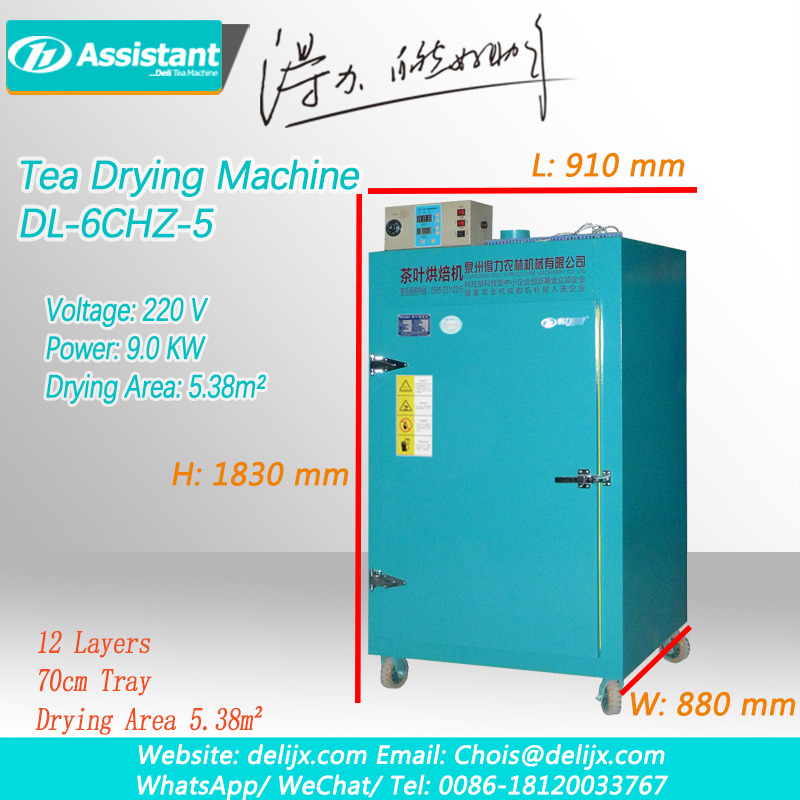

DL-6CHZ-5 tea leaf baking machine specification:
|
Model
|
DL-6CHZ-5
|
|
Dimension
|
910×880×1830 mm
|
|
Voltage
|
220/50 V/Hz
|
|
Heating element
|
Electric heating wire
|
|
Total heating power
|
9 kw
|
|
Heating element group
|
2 Group
|
|
Fan motor
|
Power
|
0.55 KW
|
|
Speed
|
1400 rpm
|
|
Rated voltage
|
220 V
|
|
Pallet rotary motor
|
Power
|
30 W
|
|
Speed
|
1250 rpm
|
|
Rated voltage
|
220 V
|
|
Pallet rotary speed
|
6 rpm
|
|
Pallet type
|
Round
|
|
Drying pallet diameter
|
70 cm
|
|
Effective drying area
|
5.38 m2
|
|
Number of drying pallet
|
12
|
|
Efficiency
|
60 kg/h
|
The above data is based on fresh tea leaf water content of 75-80%.

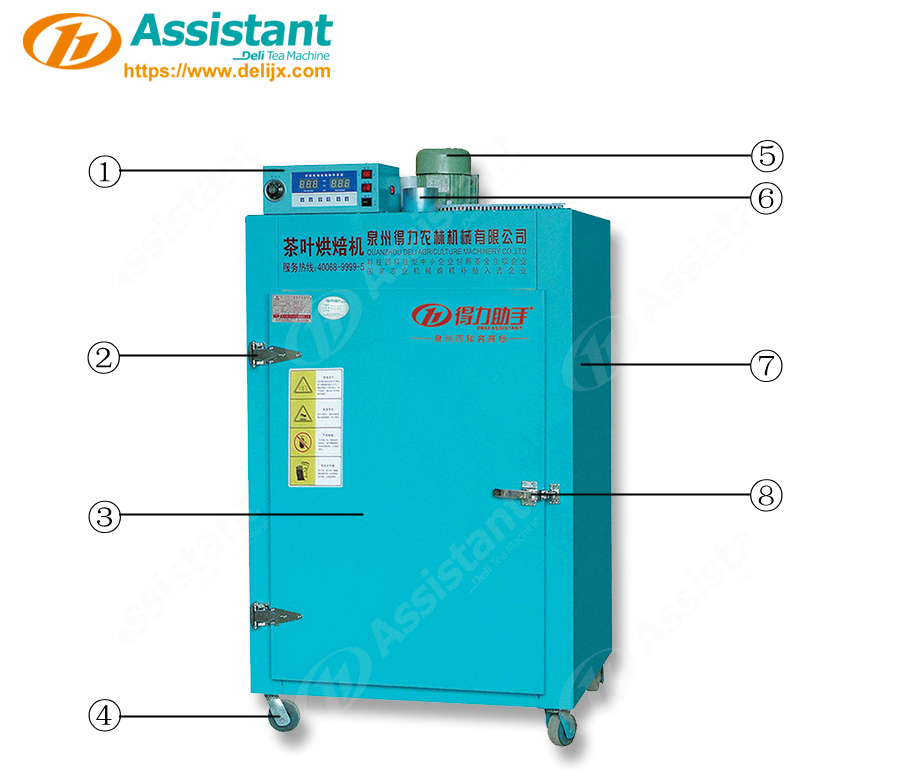

DL-6CHZ-5 tea baking dehydrator dryer machine decomposition diagram:
|
①
|
Electric control panel
|
②
|
Hinge
|
③
|
Door
|
④
|
Nylon wheel
|
⑤
|
Drive motor
|
⑥
|
Exhaust vent
|
⑦
|
Tank body
|
⑧
|
Handle
|
We also can provide stainless steel type dryer
|

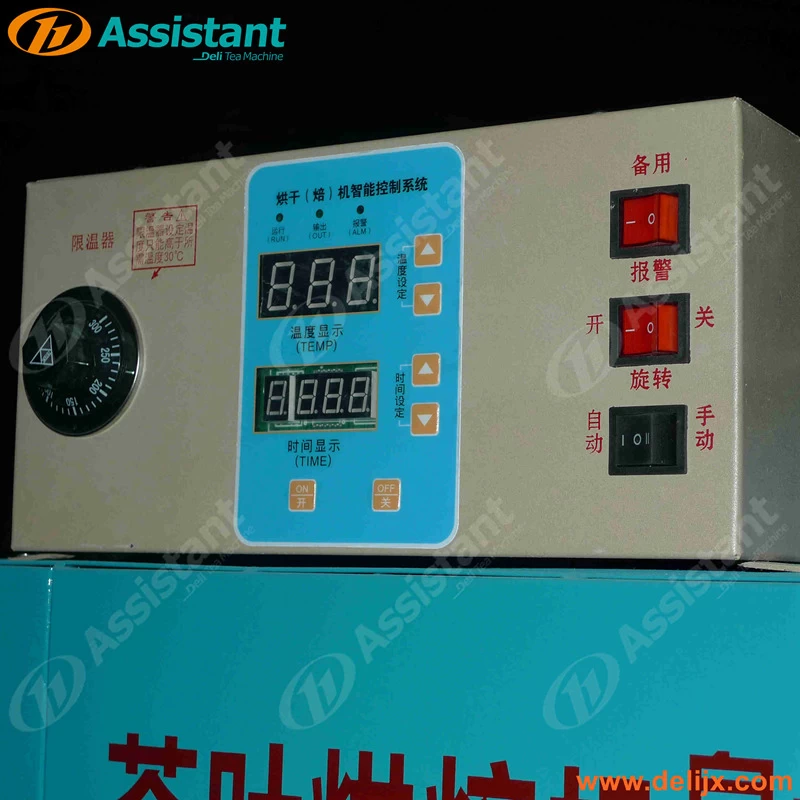

Intelligent temperature and time control system
Add mechanical temperature limiting module to ensure precise temperature control.
|
|
|
|
|

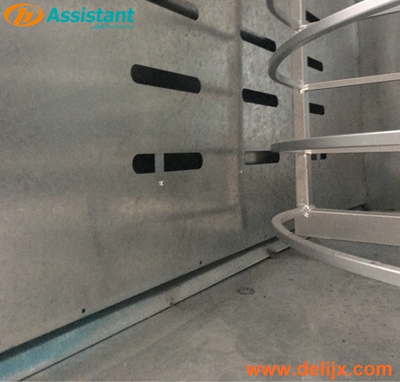

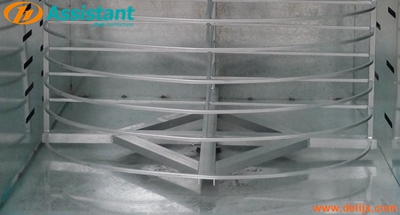

Patented hot air duct design
|

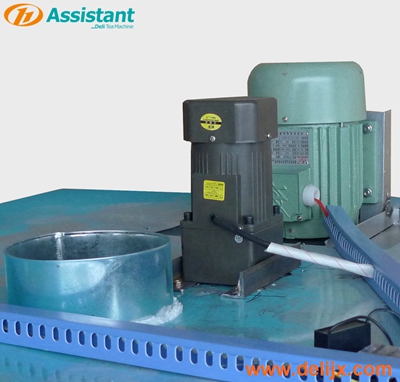

Copper core driving motor on the top
|
Galvanized sheet and calcium silicate board insulation system
|
|
|

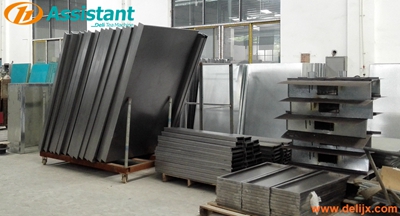

Tea drying machine modular design
|

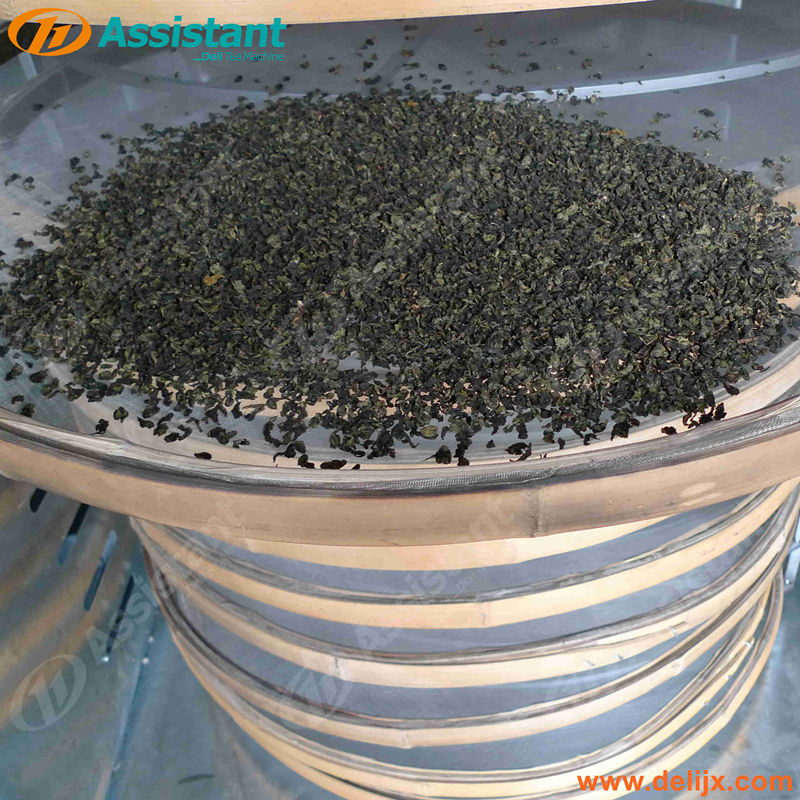

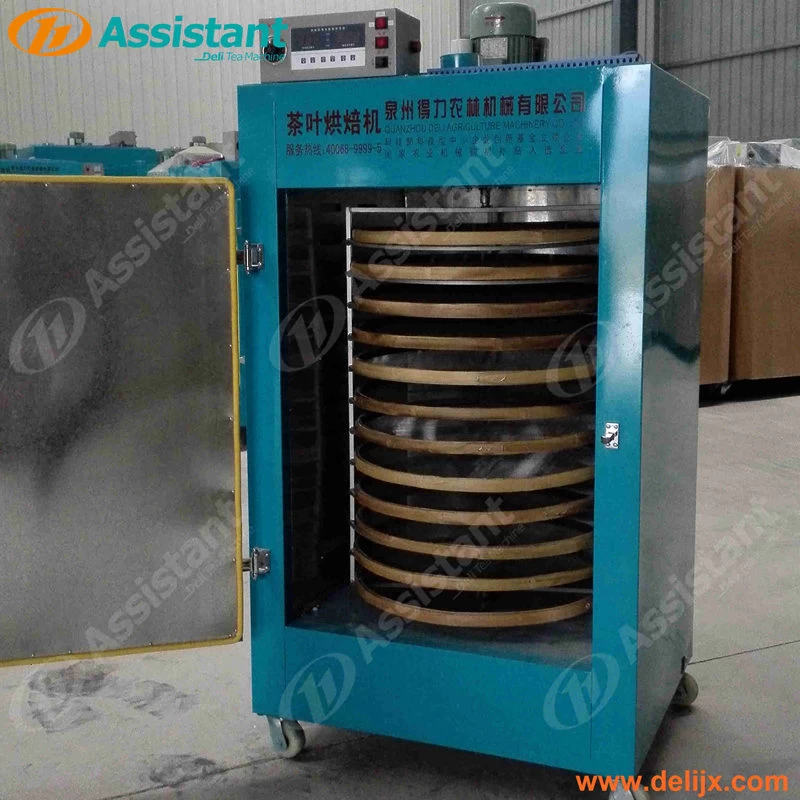

Rotary drying method for tea
|
|

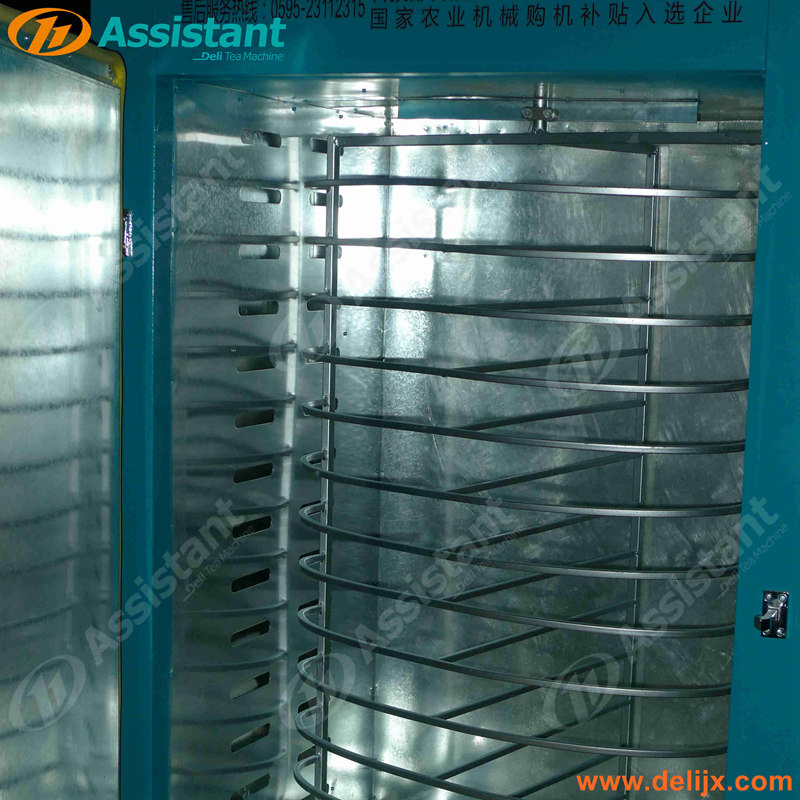

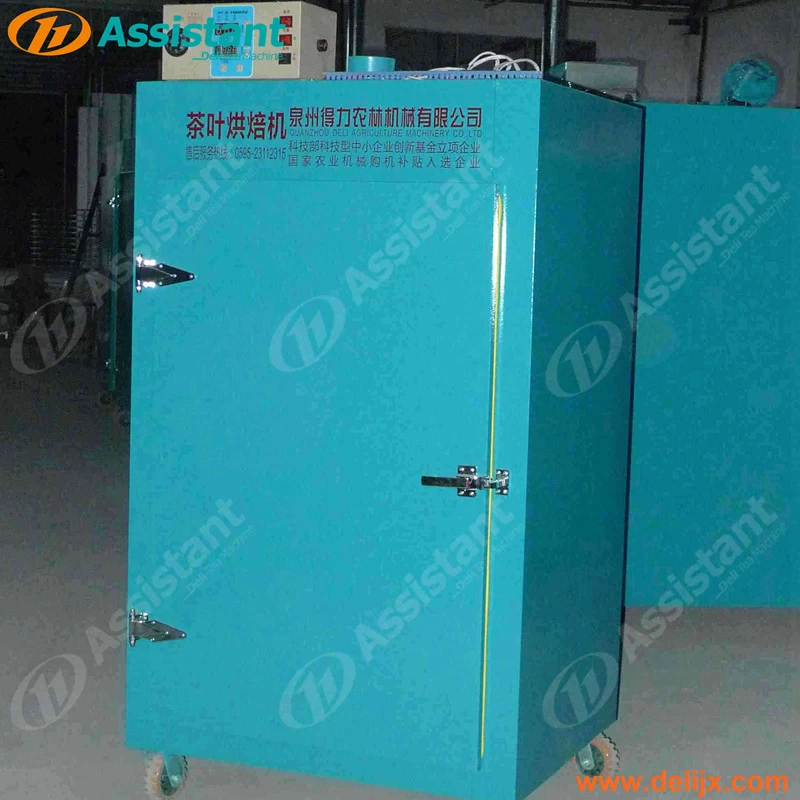

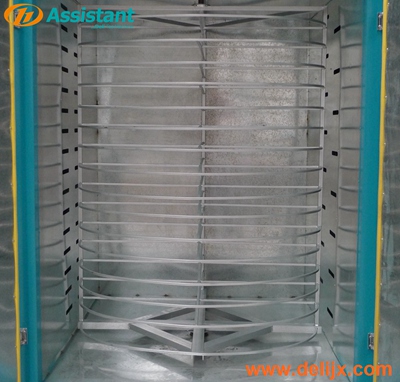

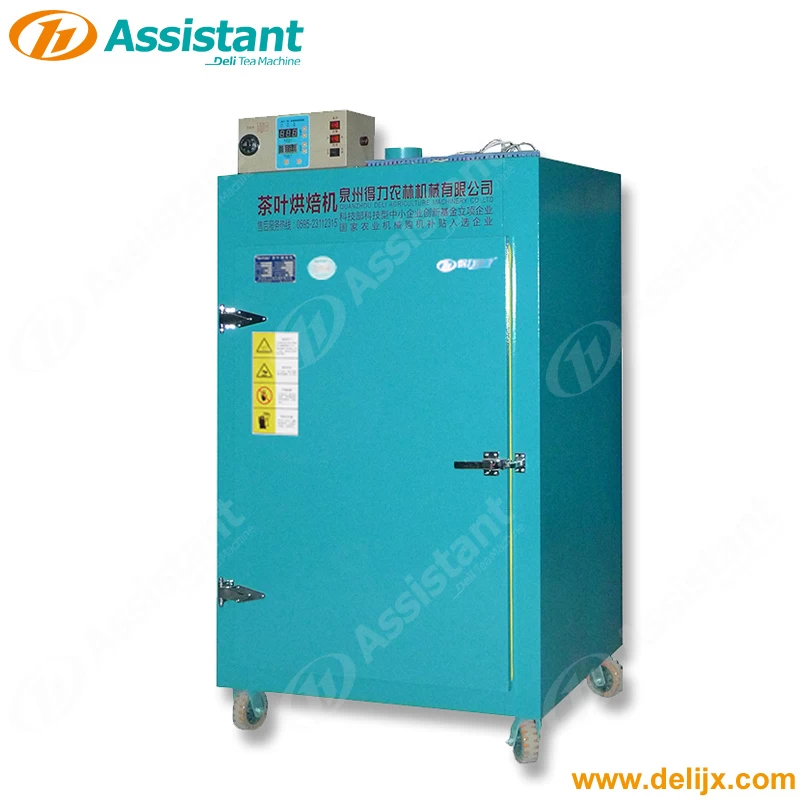

DL-6CHZ-5 tea leaf baking dryer machine photos:
|
