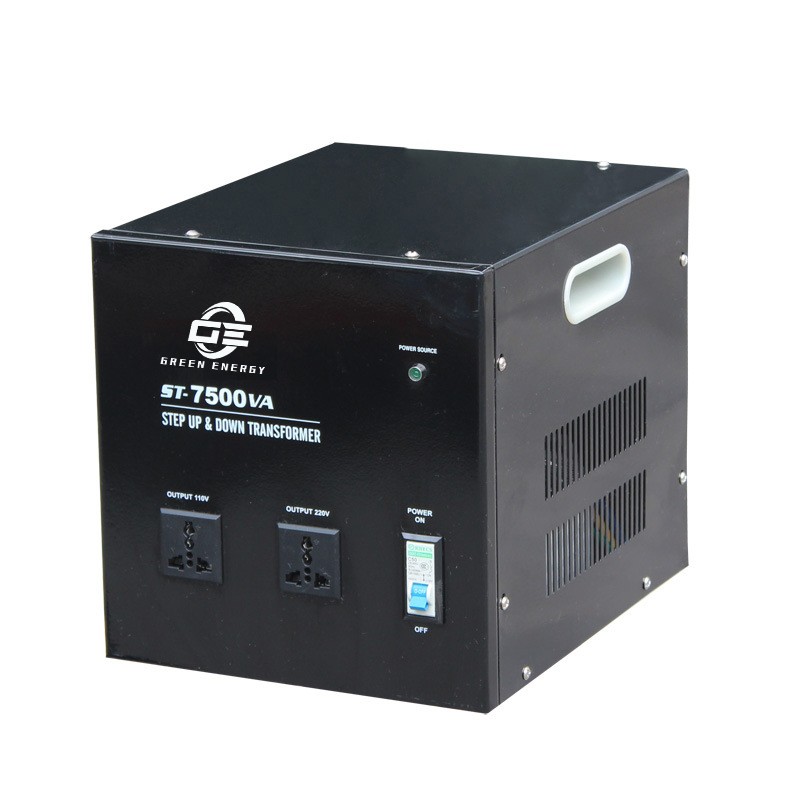

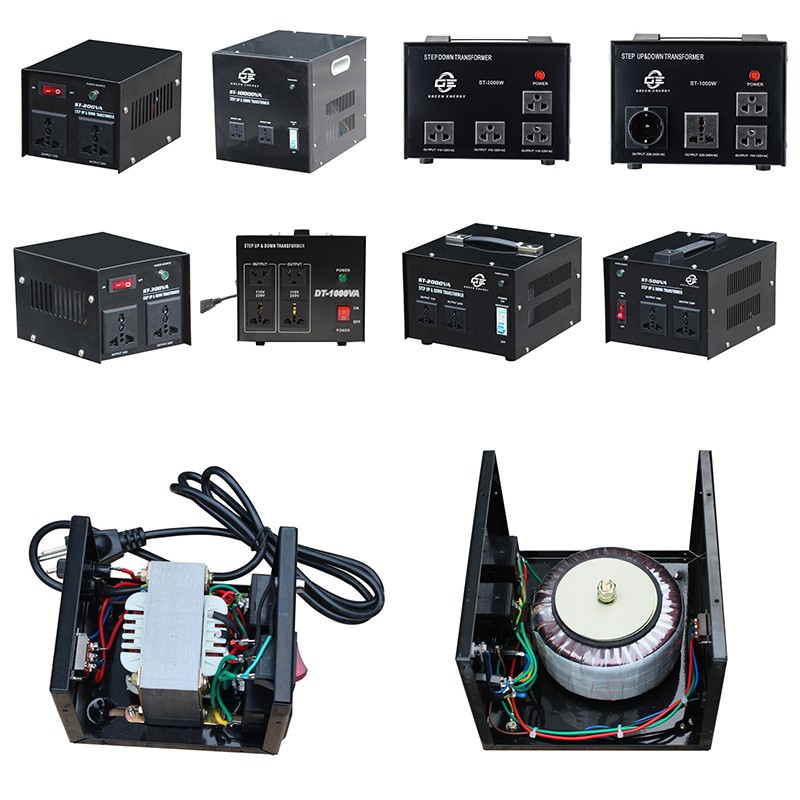

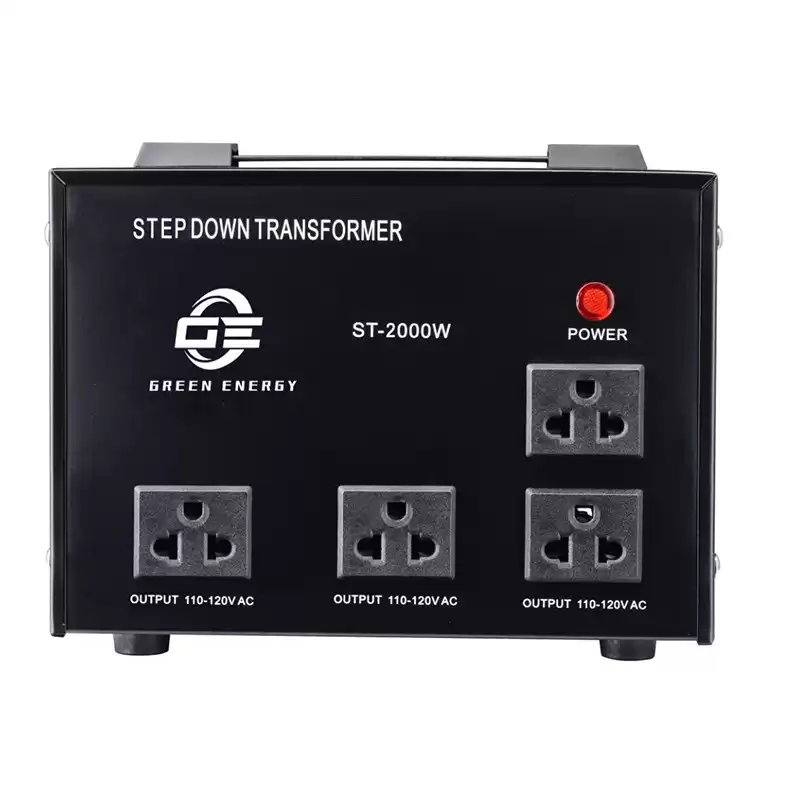

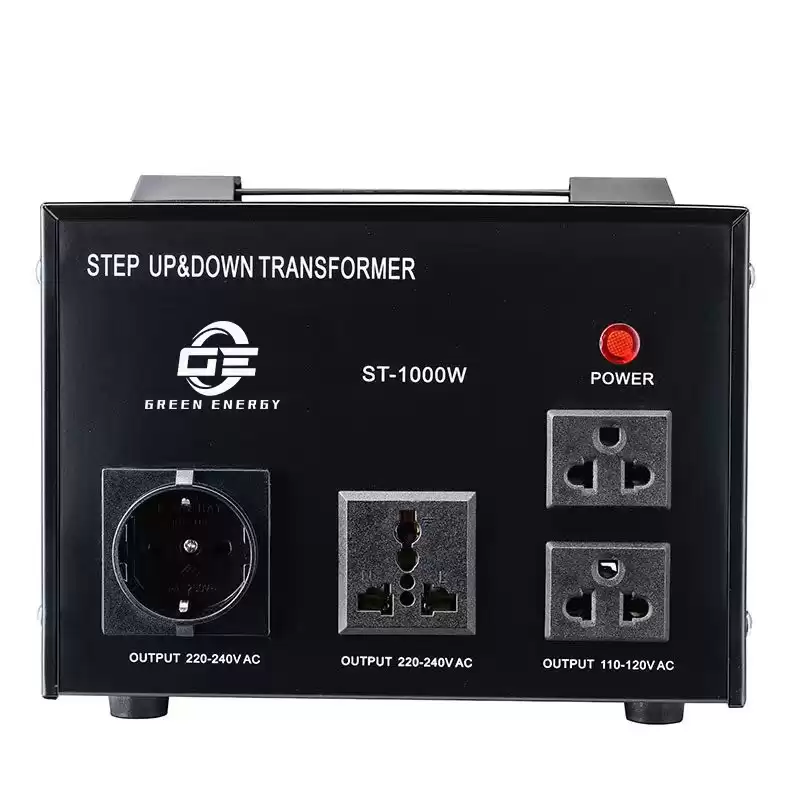

220V to 110V 100VA-5000VA Voltage Converter Step Up & Down Transformer
⇒ PRODUCT DESCRIPTION
Output: 110V & 220V
Input: 110V / 200V / 220V / 240V / Customized
Frequency: 50 / 60 Hz
Capacity: 100VA / 200VA / 300VA / 500 / 750VA / 1000VA / 1500VA / 2000VA / 3000VA / 5000VA / Customized

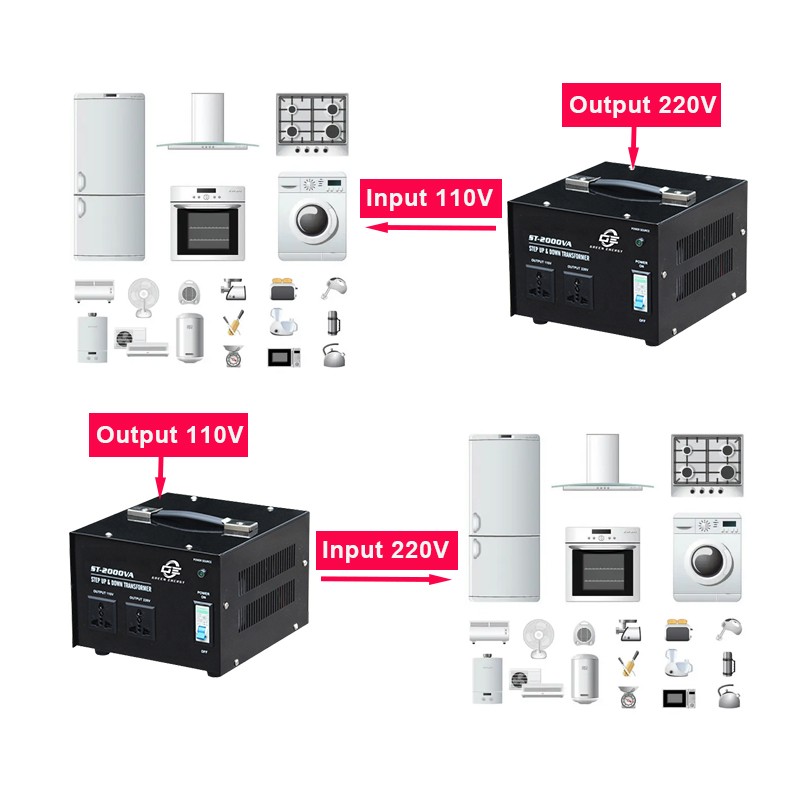

Application:
▶Television
▶Water Dispenser
▶Personal Computer
▶Rice Cooker
▶Mini Home Theater
▶Electric Fan
▶Fax Machine
▶Printer
OPERATING INSTRUCTIONS
♦Read the User's Manual carefully before using the unit
♦STEP UP & DOWN TRANSFORMER unit should be placed in a dry and well ventilated area at all times

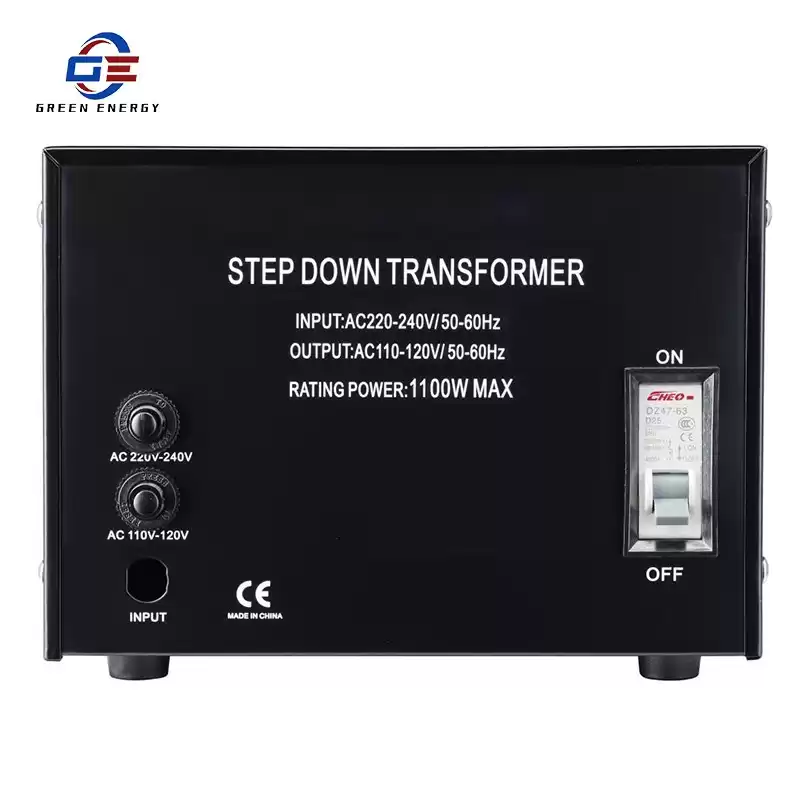

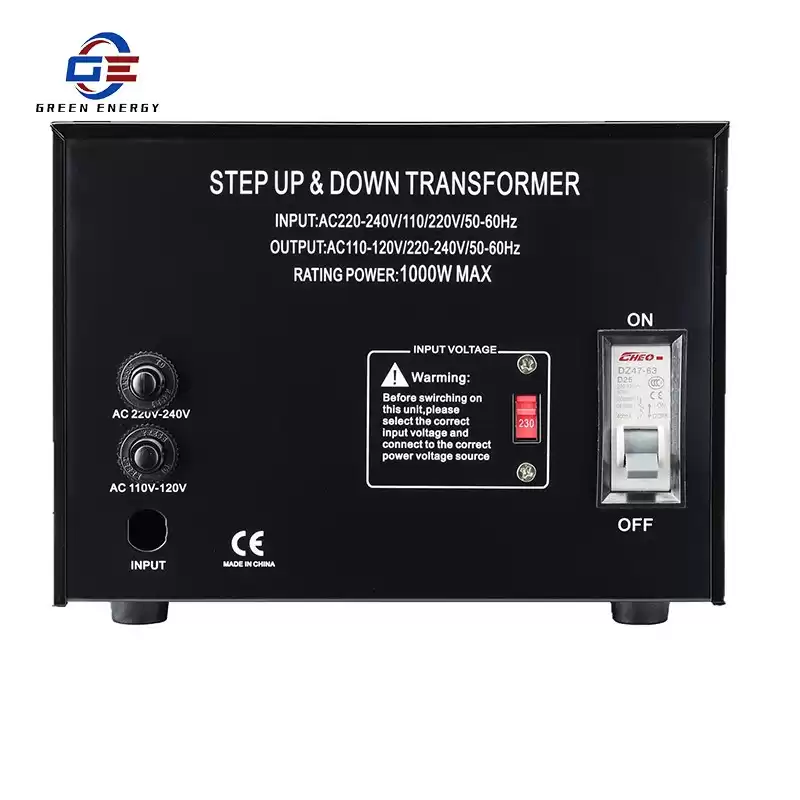

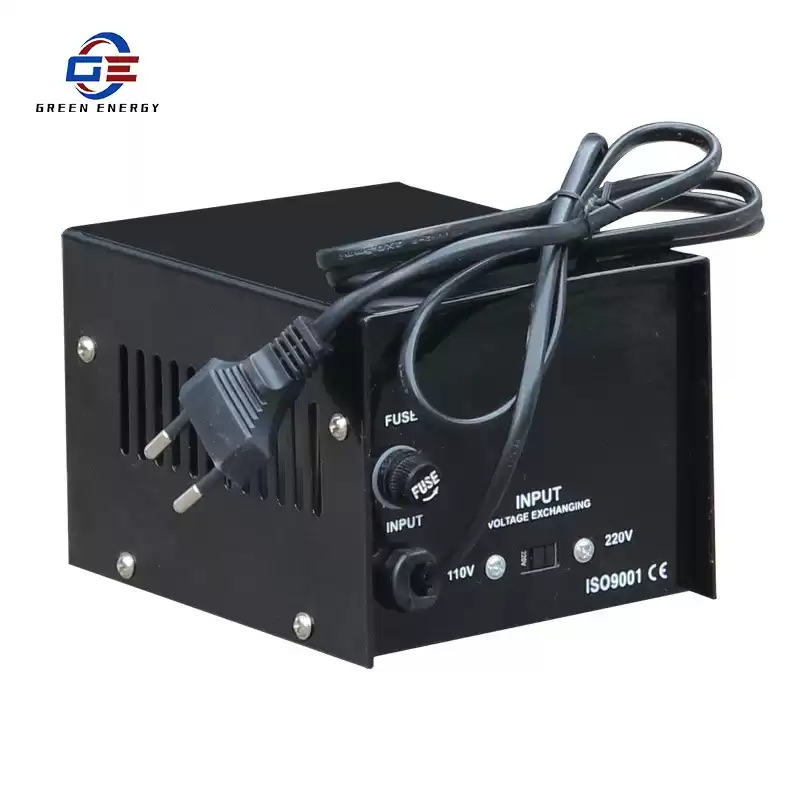

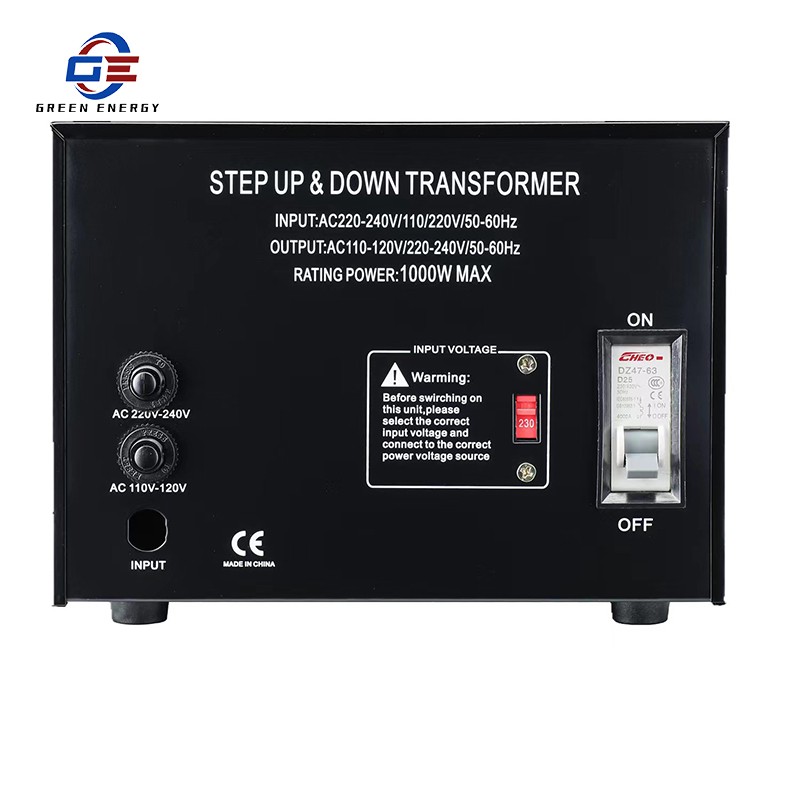

♦STEP UP & DOWN TRANSFORMER have an input voltage selector located at the back of the unit wherein the user can select either 115 Volts or 230 Volts depending on the available rated voltage source (Please note to select the correct input voltage before using)
♦For appliances with inductive load (such as personal refrigerators, mini are condition, industrial fan, etc)
♦It is recommended to use a TRANSFORMER that has rated power capacity of 3 to 5 times of the load power because the start up current of these appliances are very high.
♦For capacitive load, just leave enough allowance on the rated power capacity of the unit to avoid overloading.
♦Check your appliances for the rated power consumption to avoid overloading the unit. ♦Make sure that appliances are switch OFF before turning on the STEP UP & DOWN TRANSFORMER Unit.

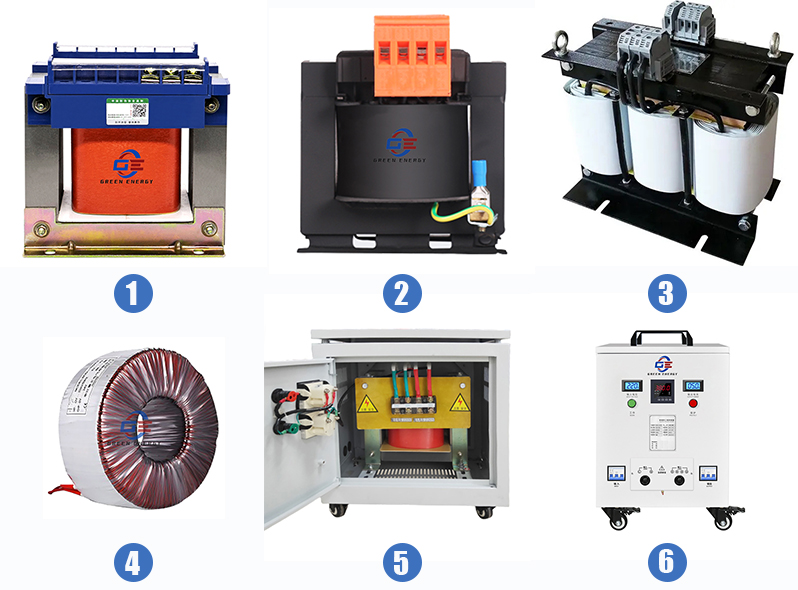

⇒ RELATED PRODUCT
