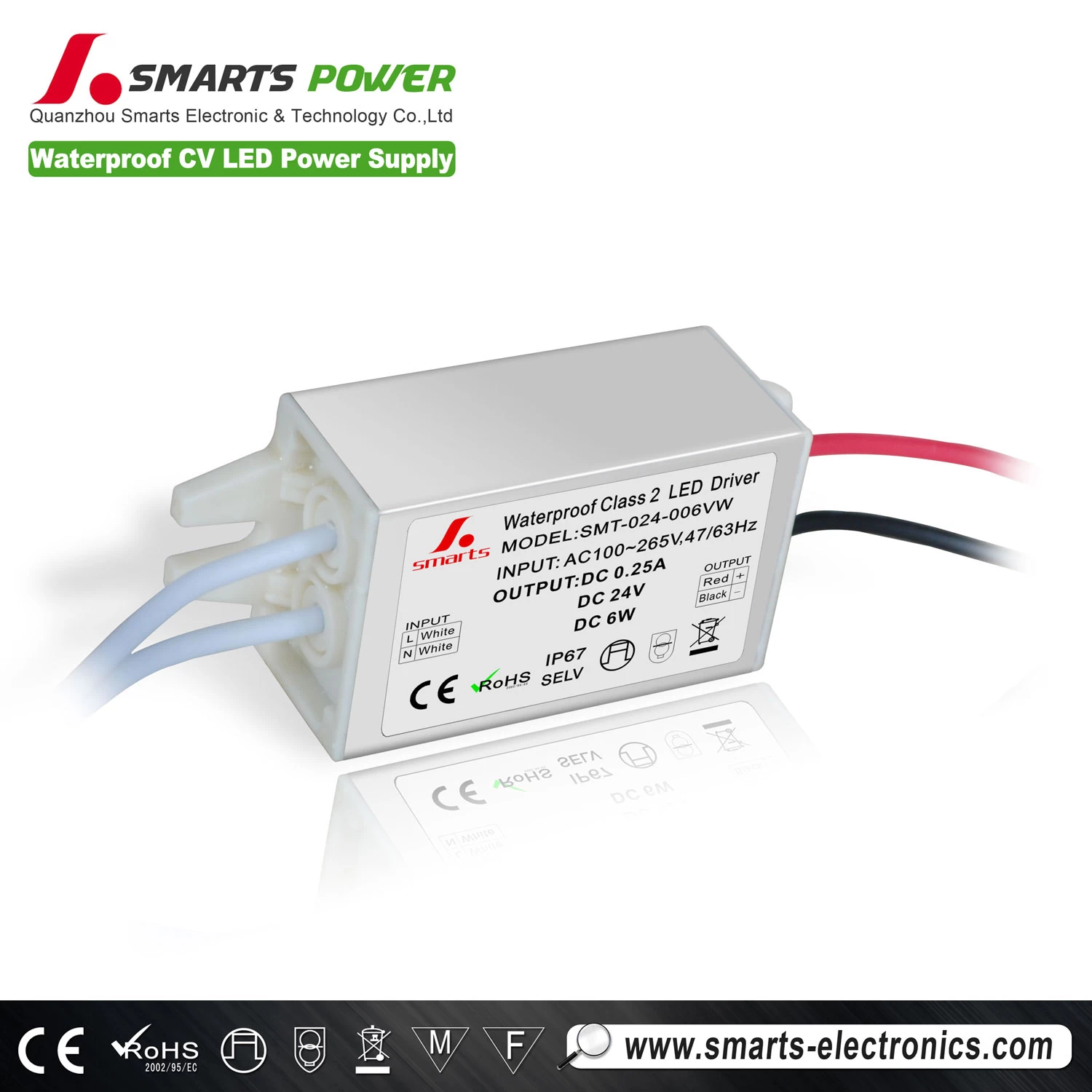

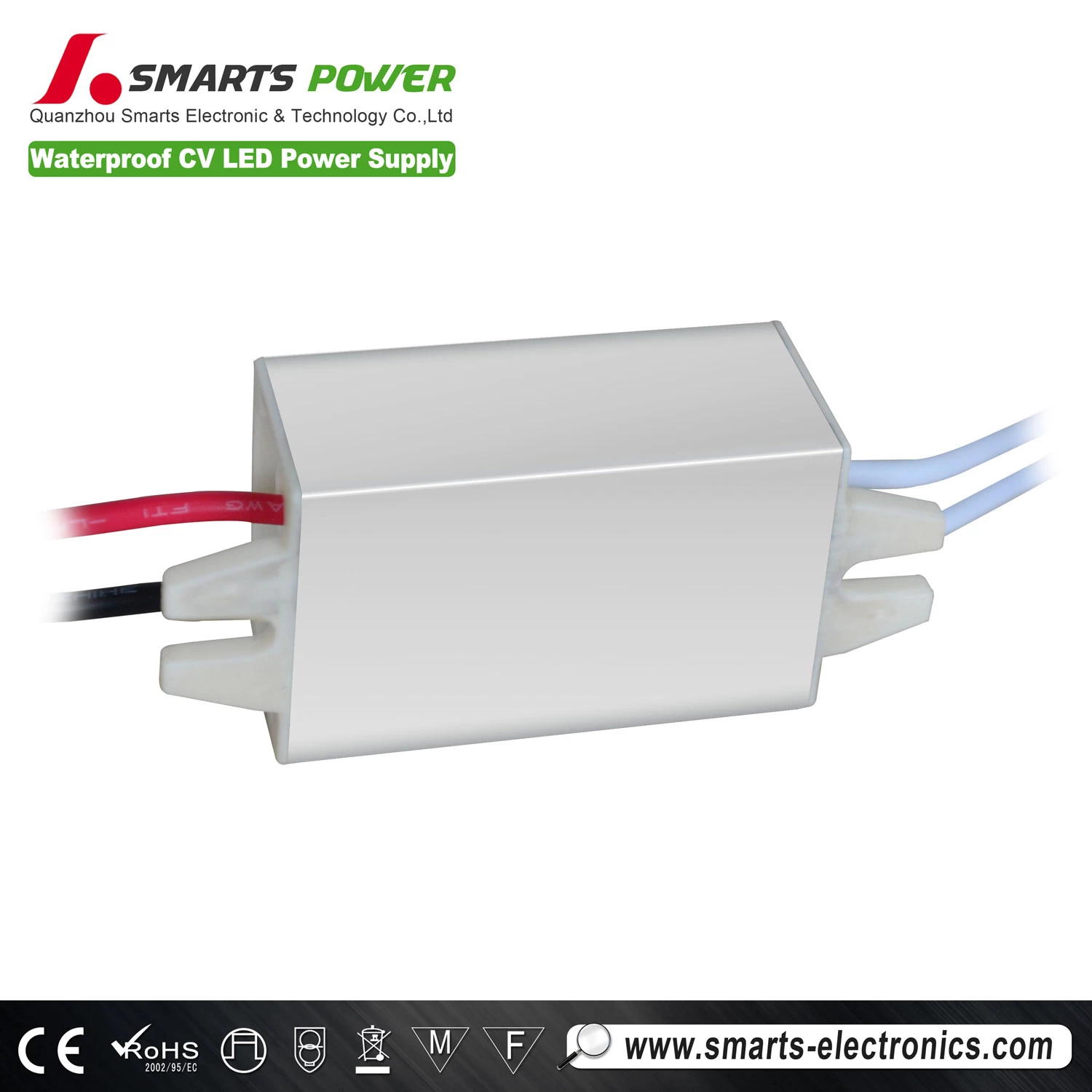

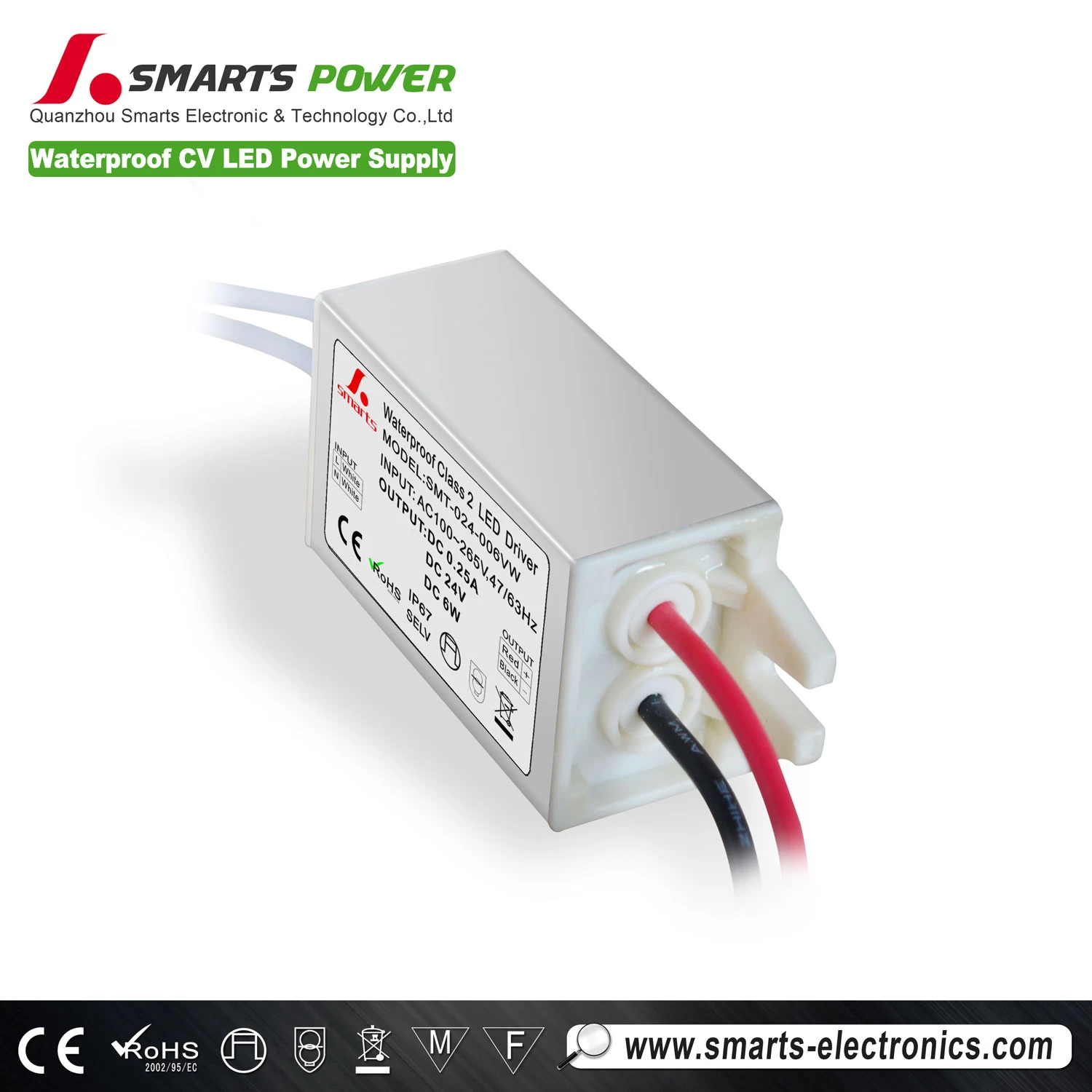

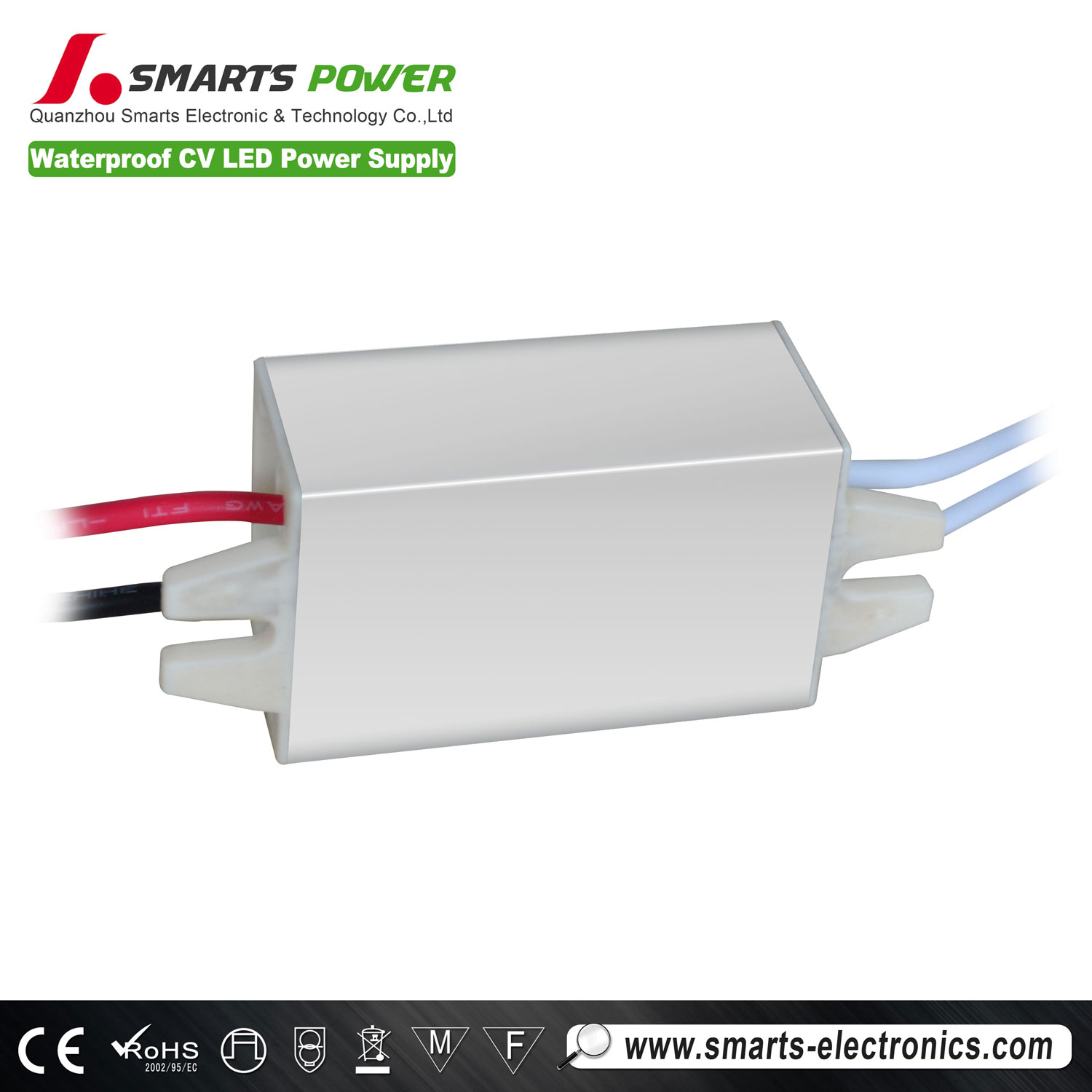

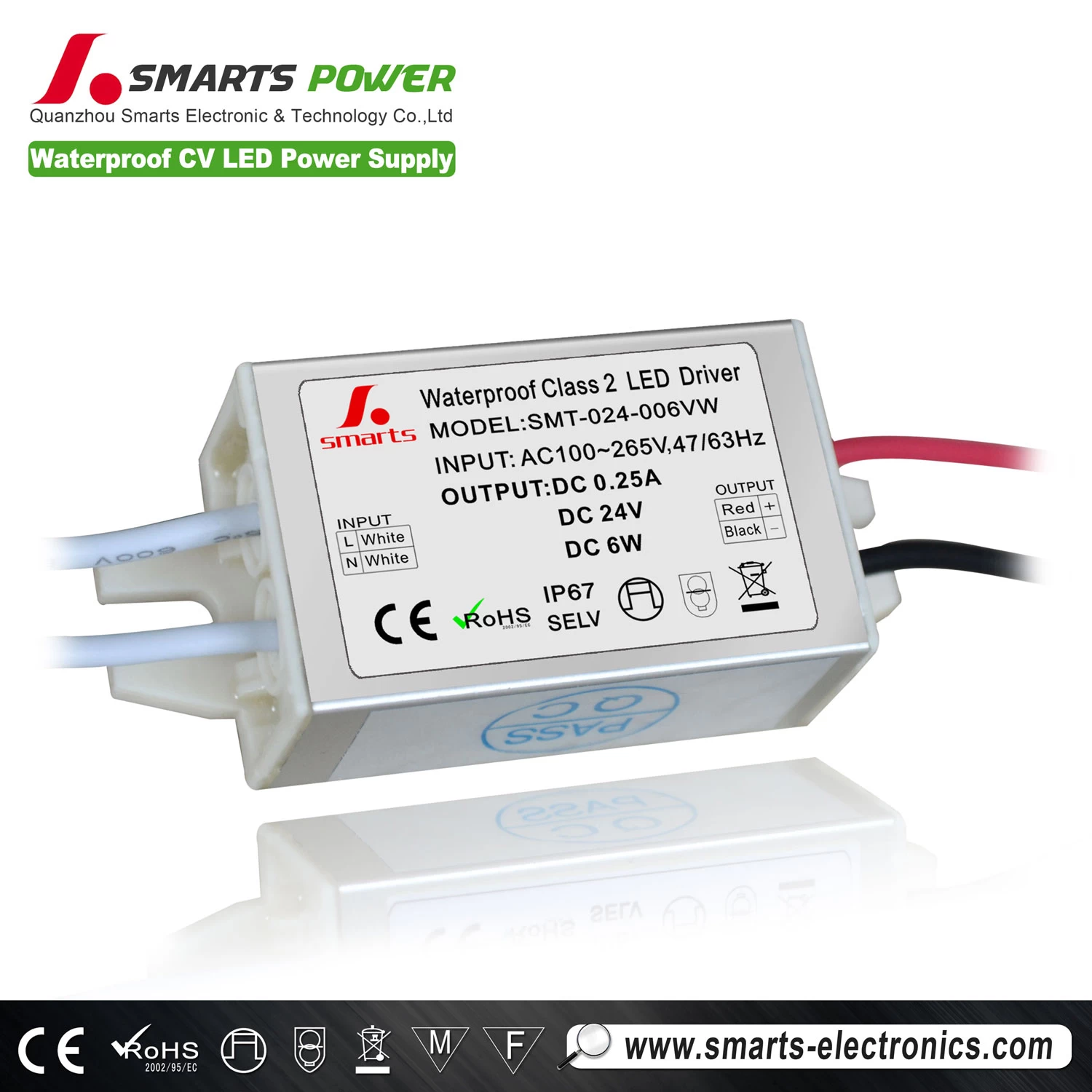

220v waterproof 24V 6W Constant voltage LED driver for light bar
Product parameters:
|
Model
|
Input voltage(AC V)
|
Working Frequency
(Hz)
|
Output voltage
(DC V)
|
Output Current
|
Output power(DC W)
|
Working Temp.
|
Protection grade
|
|
SMT-012-006vw
|
100-265V
|
47~63HZ
|
12v
|
0.5A
|
6W
|
-25~50°C
|
IP67
|
|
SMT-024-006vw
|
100-265V
|
47~63HZ
|
24v
|
0.25A
|
6w
|
-25~50°C
|
ip67
|
Specifications
1. Modle: SMT-024-006VW
2. Input: 100~265vAC / 47-63HZ
3. Output : 24V 0.25Amp 6Watt
4. Case material: plastic
5. Waterproof rate: IP20 /IP67
6. Unit weight: 29g

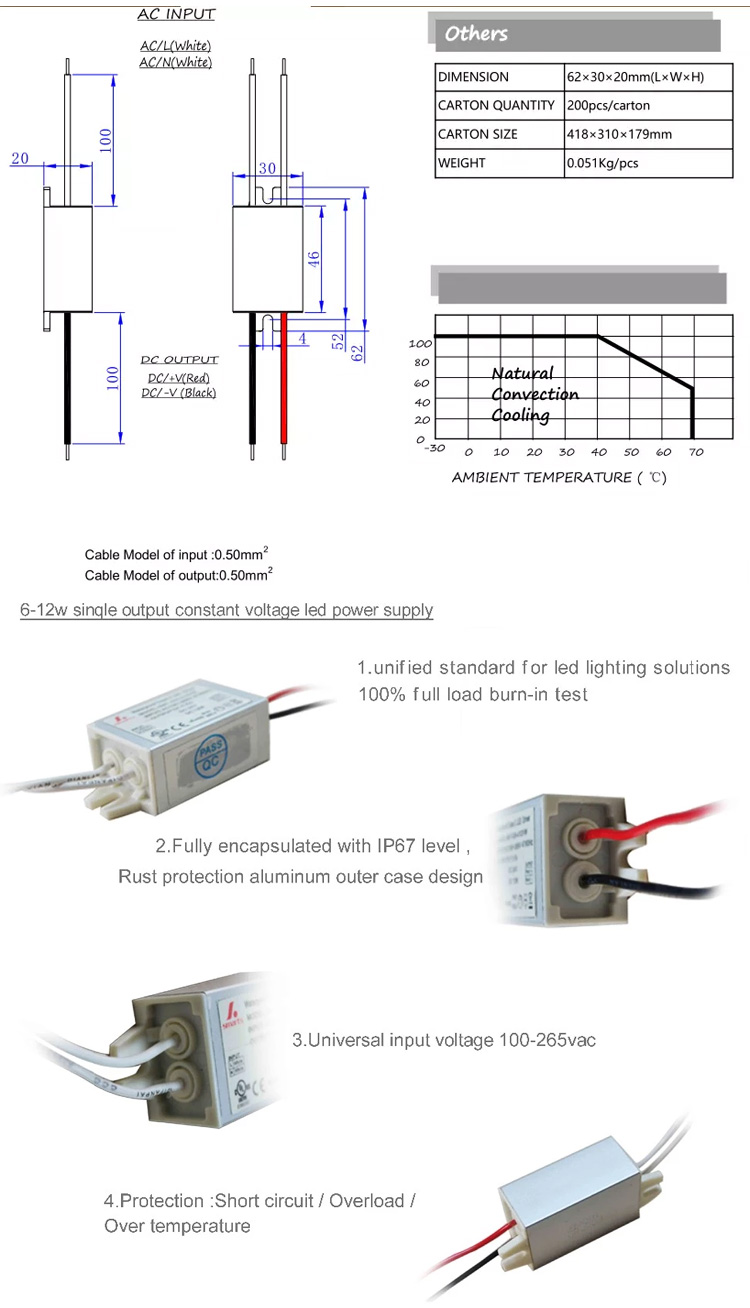

7. Product size: 51*27*23 mm(IP20) / 62*29*20(IP67)
8. Box size: 299*224*176mm
9. Pack qty: 200pcs/ctn
10.Pack weight: 6kg/ctn
11.Produt cord: 18AWG*20CM
13.2 years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)
Features
1. High efficiency,save energy ,protected environment.
2. High stability and low ripple, increase light efficiency and decrease light attenuation.
3. Meet to safety standard and EMC
4. Assure LED stability long lift and light efficiency by constant voltage.
5. Integrity protection,over loading, over voltage ,over current.
6. Protections:Short circuit/Overload/Over temperature
7. Cooling by free air convection
8. 100% full load burn-in test.
9. Suitable for LED lighting
constant voltage power supply 24 vdc 6w with mini size
Applications
Our products are widely used in various industries, such as
* indoor LED illuminating lights
* LED Neon
* LED urban Decoration
* LED Lighting Advertising,
* LED Display
* Safety Protection Apparatus
* Telecommunications
* Networks
* Vehicle Lights Controller Panels，etc.
