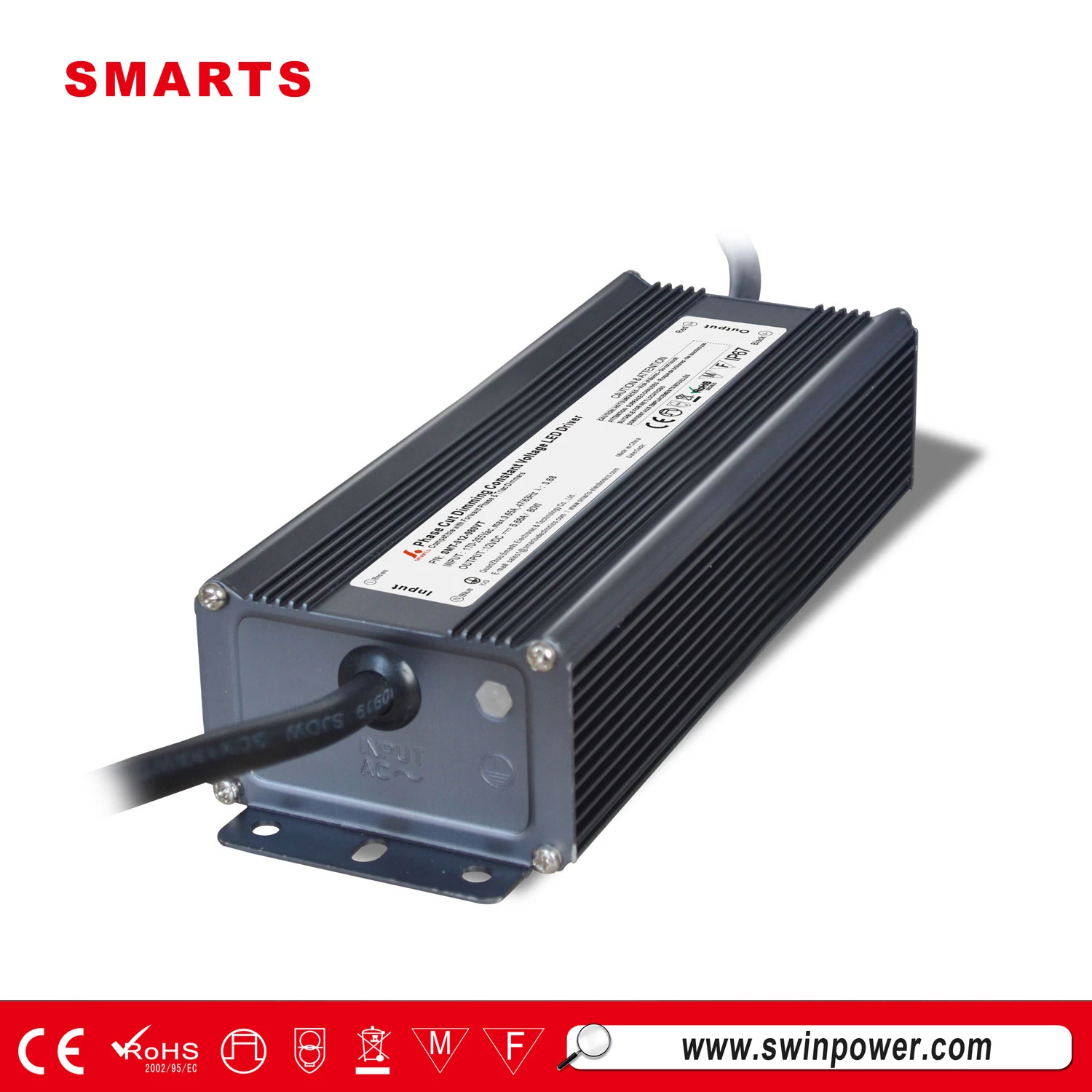

220VAC 12volt 80W strip light triac dimmable driver

Smarts;s PWM output 24W-200W series of Constant Voltage triac led driver give outstanding LED dimming performance, continuous smooth full range dimming, and work with leading edge TRIAC dimmers, such as Lutron, Leviton etc...


  • Certification CE, ROHS
  • SizeL230*W68*H46mm
  • Dimming modetriac dimmable
  • Working Modeconstant voltage
  • Output Current6.67A
  • Output Voltage12V
  • Input Voltage170-265vac

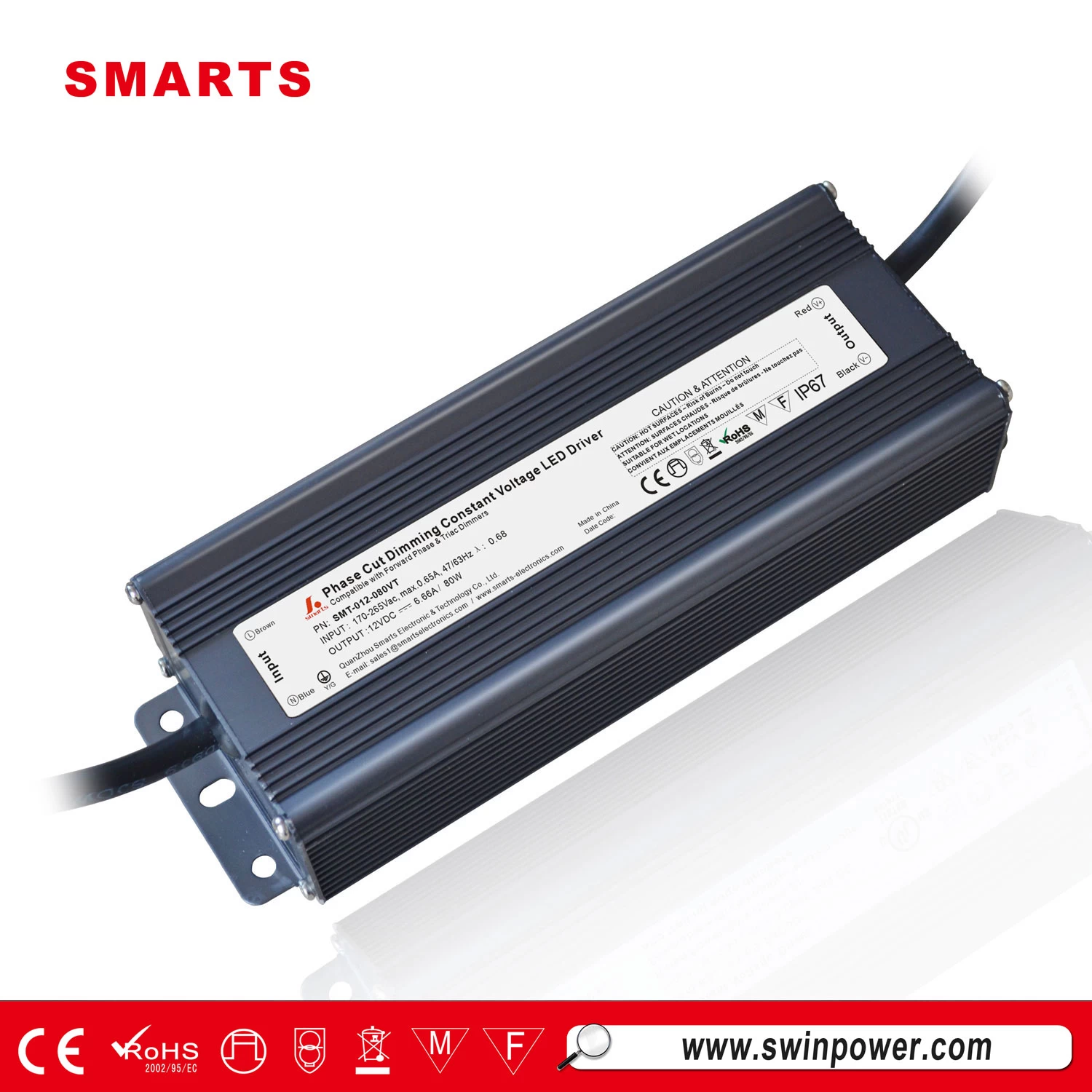

220VAC 12volt 80W strip light triac dimmable driver


SMT-012-080VT triac dimmable strip light power supply, 200~220v input voltage for EU market with competed prices, without minimum loading limitation, you can loading 1W~80w LED with one 80w driver,  smooth dimming effect.



Specification

model

SMT-012-080VT

SMT-024-080VT

Output

DC Voltage

12V

24V

Voltage Accuracy

±0.5V

±0.5V

Rated current

6.66A

3.33A

Rated power

80W

Input

Voltage Range

100~130V AC/170265V AC

Frequency Range

4763HZ

Power Factor ( Typ.

PF≧0.70/110V,PF≧0.70/170V,PF≧0.70/220V,PF≧0.70/265V

Full Load EfficiencyTyp.

>84%

>84%

AC CurrentTyp.

1.24A/110VAC  0.80A/170VAC  0.62A/220VAC  0.51A/265VAC

Leakage current

0.25mA/110V/220VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over voltage

140VAC(90~135V) , ≦270VAC(170~265V)

Environment

Working TEMP.

-40+60℃

Working Humidity

2090%RH,non-condensing

Storage TEM.,Humidity

-40+80℃1095%RH

TEMP.coefficient

±0.03%/℃050℃

Vibration

10500Hz2G 10min./1 cycleperiod for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

EN-60950-1, EN61347-1/-2/-13

Withstand voltage

I/P-O/P:3.75KVAC

Isolation resistance

I/P-O/P100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance toEN55015,EN61000-3-2 (≧50%load)

EMC IMMUNITY

Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11,EN61547

Alight industry level surge4KV

Others

Weight

0.99Kg

Size

210*68.5*43mmL*W*H

packing

324*298*176mm

Notes

1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and

25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted

 pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3.Tolerance:includes set us tolerance,line regulation and load regulation .

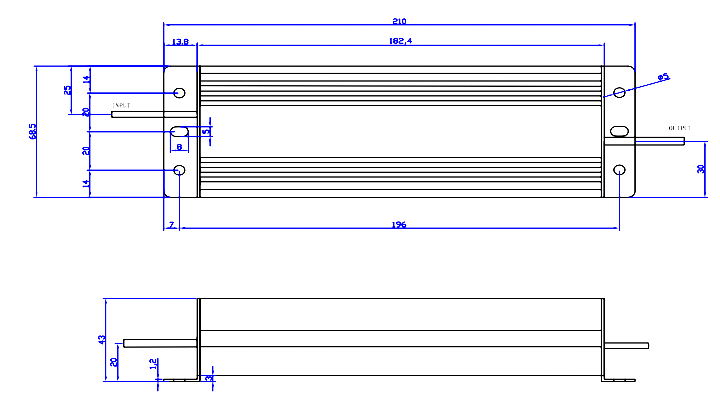

Mechanical Specification

12 volt led driver


Input with AC (L), (N), earth wire(G)

Output cord: Red isDIM+,Black isDIM-


Derating Curve


12v dc power supply


 Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the service life



Dimming Operation

  1. Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
  2. Compatible with Leading edge or tailing edge triac dimmers.
  3. please try to use the small power dimmers, which have access to a wider dimming range, high-power dimmer is difficult to achieve the output current to zero
