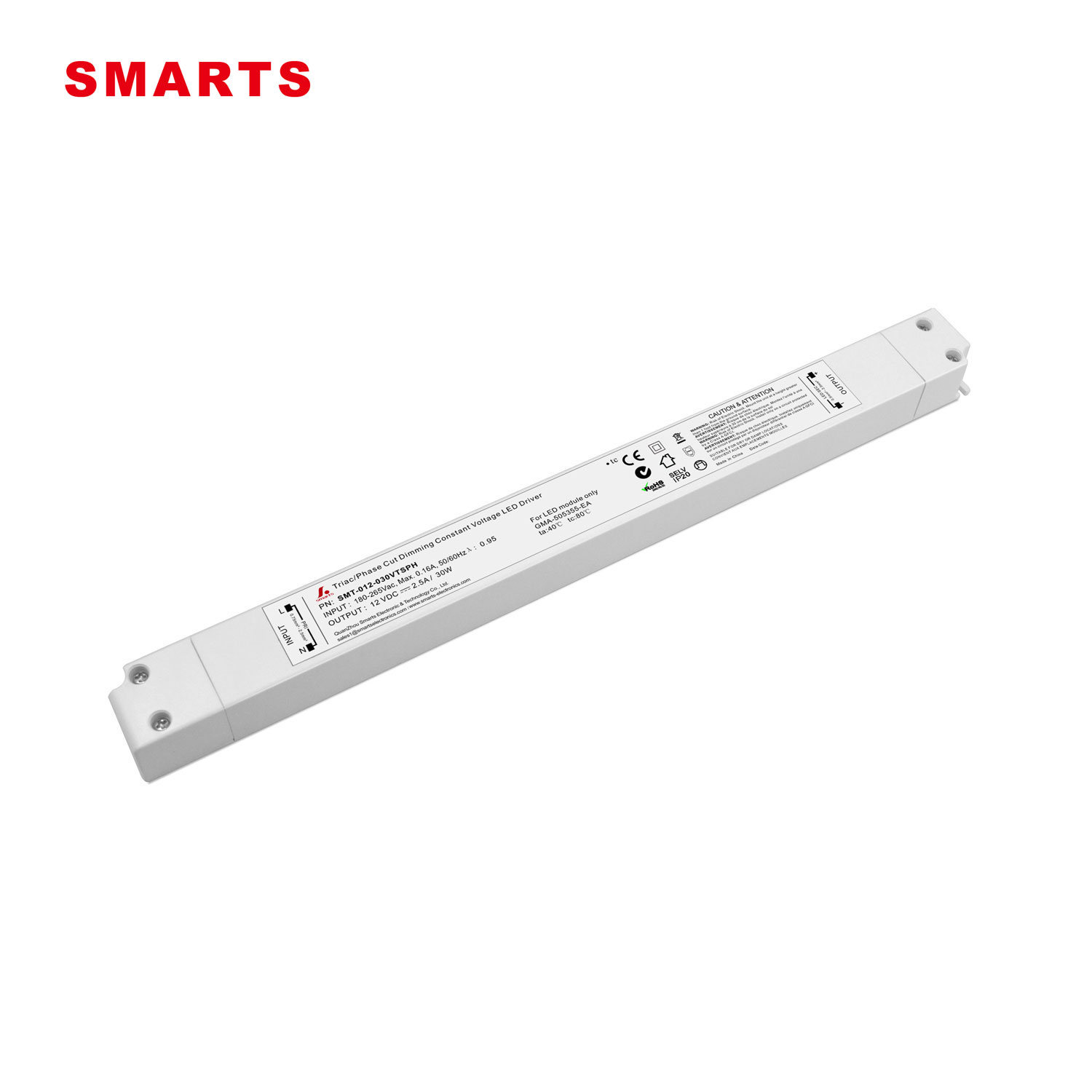

220vac to 12vdc ultra slim plastic led power supply 12v 30w with SAA

It's 220vac input voltage to 12vdc single output ultra slim led driver. It's a triac dimmable led driver which has got SAA approval, suitable for Australian market.


  • CertificationCE, ROHS,SAA
  • Size260*30*18.5mm
  • Dimming modeTriac dimmable
  • Working ModeCV
  • Output Current2.5A
  • Output Voltage12VDC
  • Input Voltage200-240VAC

220vac to 12vdc ultra slim plastic led power supply 12v 30w with SAA


Available as 12vdc or 24vdc in power ratings from 30W to 100W. Constant voltage outputs. Ultra slim size: 260*30*18.5mm, plastic housing. IP20 design for indoor dry or damp environment installations. A kind of triac dimmable led power supply which dimming range: 0~100% and load:10~100%.


  Specification


model

SMT-012-030VTSPH

SMT-024-030VTSPH

Output

DC Voltage

12VDC

24VDC



Voltage Accuracy

±5%

±5%



Rated current

2.5Amp

1.25Amp



Rated power

30W

30W



Voltage Regulation

±0.5%



Load Regulation

±1%

±1%

Input

Voltage Range

200-240 VAC



Frequency Range

47~63HZ



Power Factor ( Typ.)

PF≧0.99/110V ;  PF≧0.98/277V



Full Load Efficiency(Typ.)

>79%

>81%



AC Current(Typ.)

0.5A/100VAC  /  0.13A/277VAC



Inrush Current(Typ.)

7A, 50%, 420us



Leakage current

<0.27mA/110VAC; ﹤0.25mA/277VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.



Over Loading

≤120% shut down o/p voltage, re-power on to recover



Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.



Environment

Working TEMP.

-40~+60℃



Working Humidity

20~90%RH,non-condensing



Storage TEM.,Humidity

-40~+80℃,10~95%RH



TEMP.coefficient

±0.03%/℃(0~50℃)



Vibration

10~500Hz,2G 10min./1 cycle,period for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

UL8750+UL1310



Withstand voltage

I/P-O/P:2KVAC



Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH



EMC EMISSION

FCC Part 15 B



EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,,11, ,

Alight industry level



Triac dimmable led driver
dali led power supply
0-10v led driver
slim size led driver


SLIM LED DRIVER

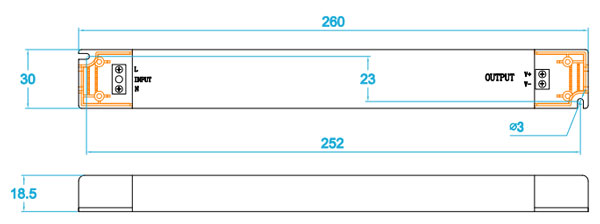

  Mechanical Specification





triac dimmable eld driver








  Dimming Operation


※Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
※Compatible with Leading edge or trailing edge triac dimmers, but trailing edge dimmers work better..
※Please try to use dimmers with power at least 1.5 times as the output power of the driver.


  Derating Curve

triac dimmable constant voltage LED driver


  Certifications

triac dimmable constant voltage LED driver
