Charging current 5A 25.2V lithium battery charger 120W
Description:
60V 400W switching power supply,it is the ultra-thin power supply,the temperature is controlled by the cooling fan,now it widely used for driving the motor.
Features:
1,400W AC DC power supply;
2,International universal full voltage input;
3,Overload, short circuit, reverse connection and other protection;
|
Parameter |
||
|
Item NO. |
KH-400A60 |
|
|
Output |
Output voltage |
60V |
|
Output current |
6.7A |
|
|
Output current range |
0-6.7A |
|
|
Rated power |
402W |
|
|
Ripple |
600mVp-p |
|
|
Output adjustable range |
±10% |
|
|
Output Accuracy |
±1% |
|
|
Line Regulation |
±0.5% |
|
|
Load Regulation |
±0.5% |
|
|
Set up,Rise,Keep up time |
2s,50ms,20ms |
|
|
Input |
Input Voltage range |
176~264V AC,200~360VDC |
|
Input current |
5A/230Vac |
|
|
Input frequency |
47~63Hz |
|
|
Efficiency |
>88% @ 220V AC |
|
|
Inrush current |
COLD START 30A/230V |
|
|
Leakage Current |
<0.75mA/240VAC |
|
|
Protection |
Over load protection |
120~300%,delay 0.3S to turn off the output,and recovery automatically;>300% shut down fast,and automatic recovery |
|
short circuit protection |
Snoring protection,automatic recovery |
|
|
Environment |
Working Temp.,Humidity |
-20~60℃，10~90% RH，No condensation |
|
Storage Temp.,Humidity |
-20~85℃，10~95% RH |
|
|
Temp.,Drift |
±0.03%/℃(0~50℃) |
|
|
Vibration |
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES |
|
|
Satery&EMC standards |
Safety standards |
GB4943,EN60950-1 |
|
withstand voltage |
I/P-O/P:1.5KV; I/P-FG：1.5KV；O/P-FG:0.6KV AC 1min.
|
|
|
Insulation resistance |
I/P-O/P, I/P-FG,:500VDC / 100M Ohms |
|
|
EMC standards |
GB9254 Class A |
|
|
Others |
Dimension |
215*115*30mm(L*W*H) |
|
|
Weight |
0.6Kg |
|
Note |
1. All parameters 220VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity; 2. Accuracy: includes set up tolerance, line regulation, load regulation and so on; 3. Ripple Test: 30cm long strands connect the power supply and the load, the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end; 4. Line regulation: at rated load conditions, the input voltage changes from low to high measured; 5. Load regulation: the measured output load from 0 to 100% load change measured. |
|

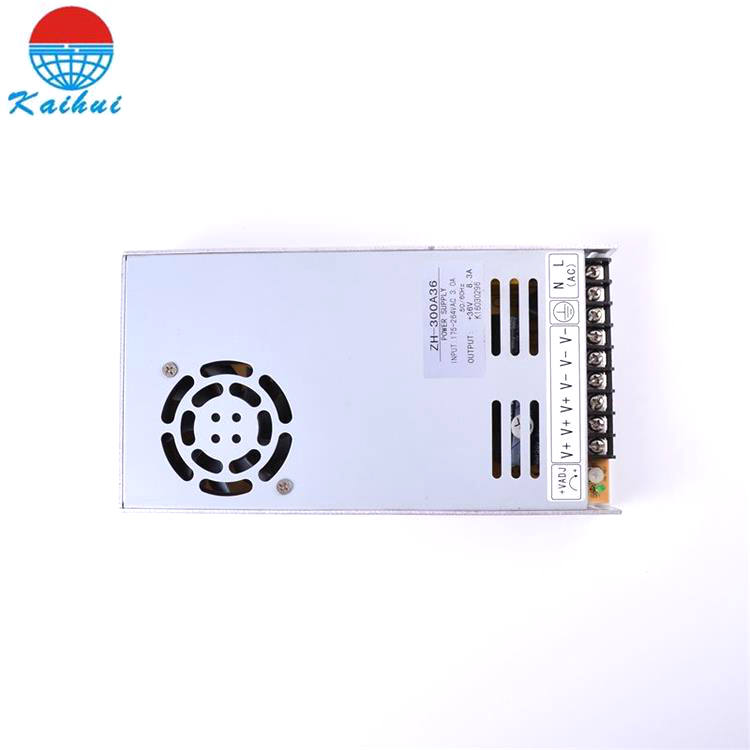

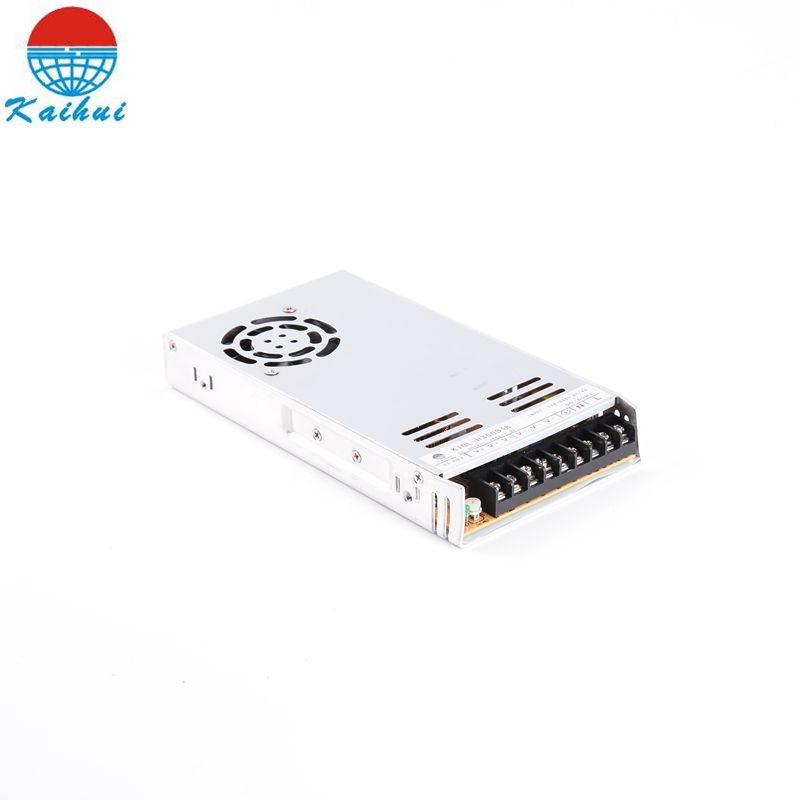

Product picture:
