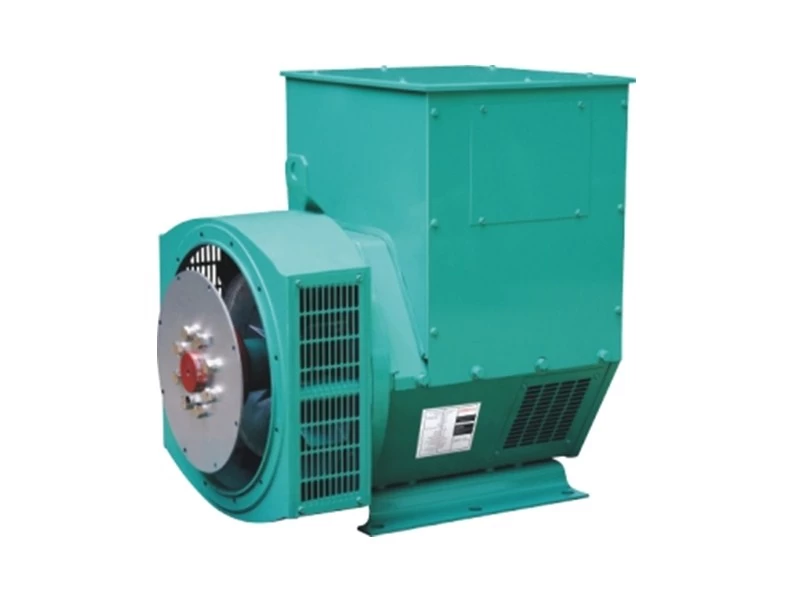

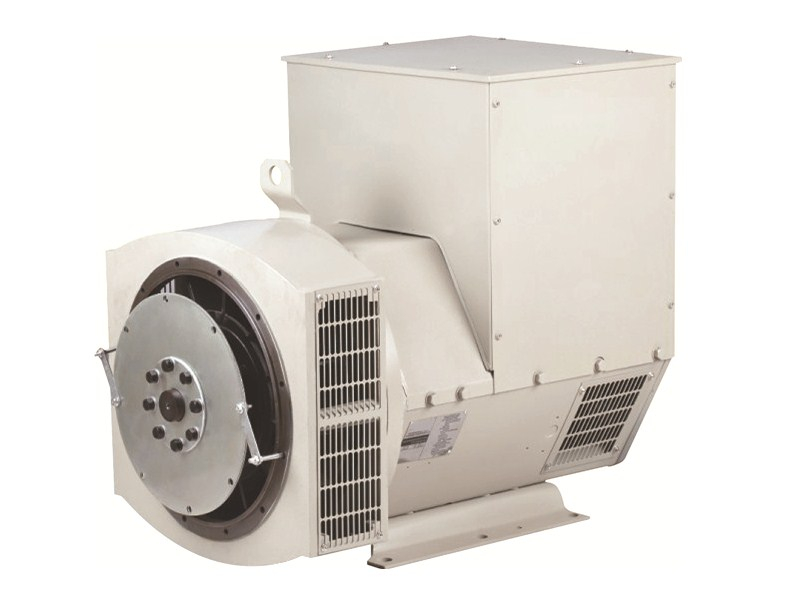

FMW generator alternator are so designed
that they obviously eliminate triple harmonics on the voltage waveform and are
optimally designed for trouble-free supply of non-linear loads. The brushless generator is invented to
avoid excessive neutral currents when in parallel with the mains. A fully
connected damper winding reduces oscillations during paralleling. This winding
with the pitch and carefully selected pole and tooth designs ensures very low
waveform distortion. The main stator supplies power via the Auto Voltage
Regulator (AVR) unit to the exciter stator with a self-excited control system.
This exciter rotor output is fed to the main rotor through a three phase full
wave bridge rectifier, which is protected by a surge suppressor against surges
caused by short circuit. The insulation system or temperature-rise of the
alternator is Class H.

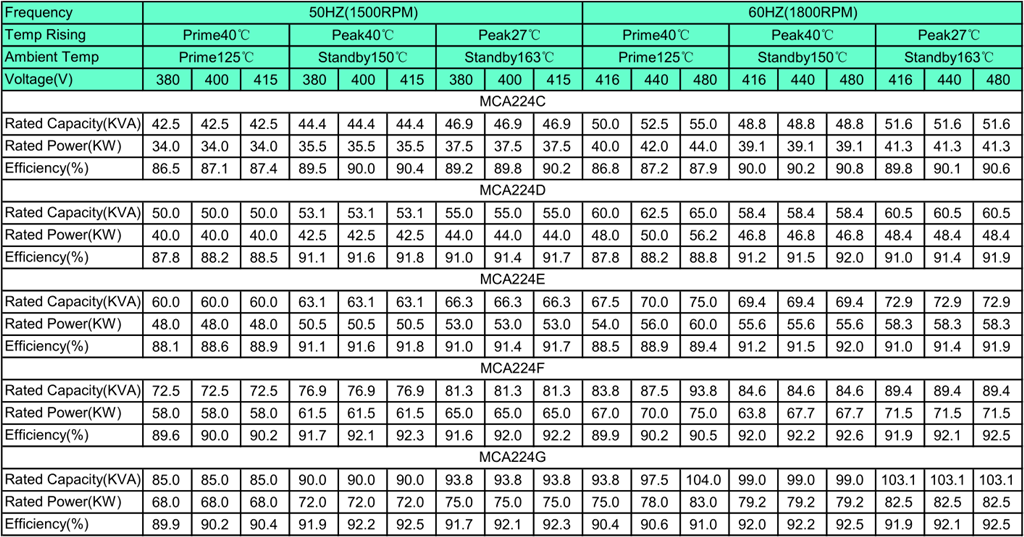

1.Generator Alternator Technical Data(34kw To 83kw)
2.Criterion And Certificate

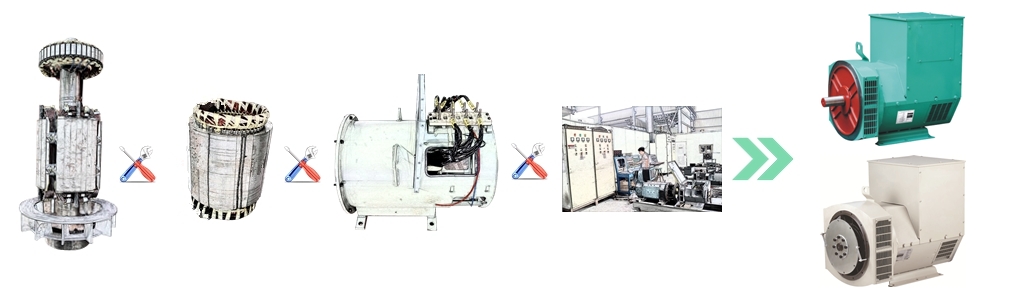

3.Advantage Of Our Generator Alternator
①Advantages:
● Standard 2/3 pitch windings for stator.
● Automatic brushless excitation system.
● Computer-Balanced rotor.
● Class H insulation by special varnish and colophony materials with advanced immersion lacquer technology and devices. 180℃ heat-endurance.
● Special windings design can effectively avoid the third harmonic wave(3rd, 9th, 15th ) of the voltage so it is the best design of UPS of nonlinear load.
● Advanced quality design AVR ensures low radio interference in transmission.
● The standard protection IP23 can prevent from destroy of water drops.
● Working well under 95% relative humidity but clean environment.
● Convenient installation and maintenance.
②Performance:
●10﹪overload for 1 hour work and 100﹪ load for continuous work
●Alternator materials: 100﹪ copper wire, entire cold-rolling steel, H immersion lacquer
●Free-Load voltage setting range≥(95-105)%Un
●Steady-State voltage regulation rate≤±1.0﹪
●Transient-State voltage regulation rate≤+20﹪/-15%
●Voltage recovery time≤1.0S
●Voltage fluctuation ratio≤±0.5﹪
●Steady-State frequency regulation rate≤±5﹪
●Transient-State frequency regulation rate≤±10﹪
●Frequency fluctuation ratio≤0.5﹪
●Cold/Heat-State voltage ratio≤2﹪
●Insulating resistance tested in accordance with GB5226.1-2002-19.3
●Withstand-Voltage tested in accordcance with GB755-2000-8.1(with 1500V by 60S)
●All electric spares tested in accordance with GB5226.1-2002-19.6
●Mechanical security tested in accordance with GB/T820.8-2002-6.3
●Stand-Fire/Fireproofing tested in accordance with GB/T2820.8-2002-6.4/6.5
●Whole production standards: GB755,THIRD PART OF BS 5000,VDE 0530,NEMA
MG1-22,IEC34,CSA C22.2-100 AND ASB59
