Technical Specifications for 22A-D6P0N104
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Input Frequency
|
47 to 63 Hertz
|
|
Part Number/Catalog No.
|
22A-D6P0N104
|
Input Voltage
|
380-480VAC
|
|
Module Type
|
AC drive
|
Power Dissipation
|
2.2kW
|
|
Manufacture Year
|
2022
|
Output Current
|
4…20 mA
|
|
Product Package
|
Original Package
|
UPC
|
820919785184
|
About 22A-D6P0N104
|

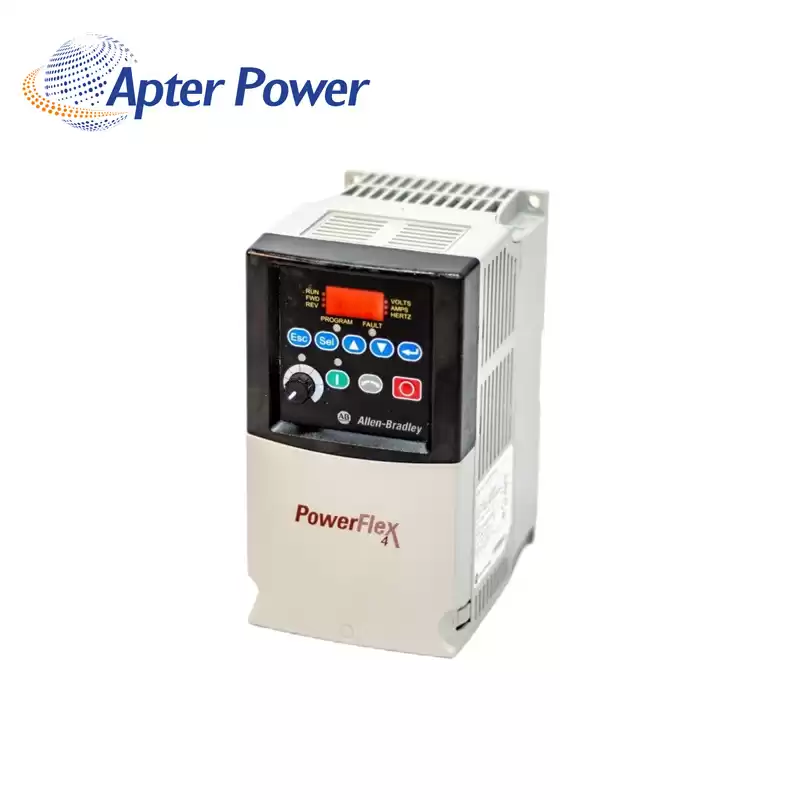

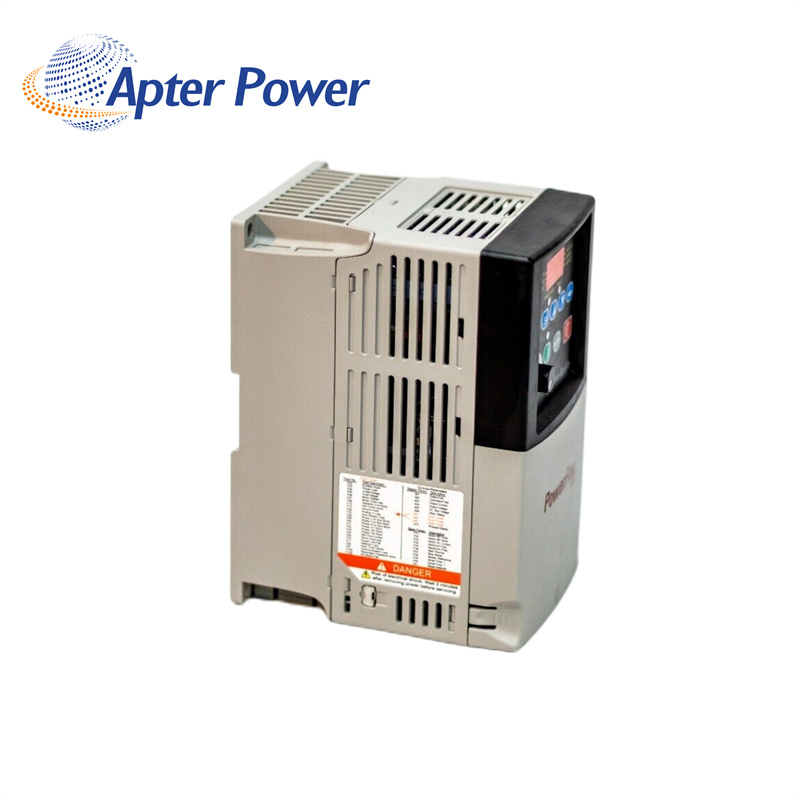

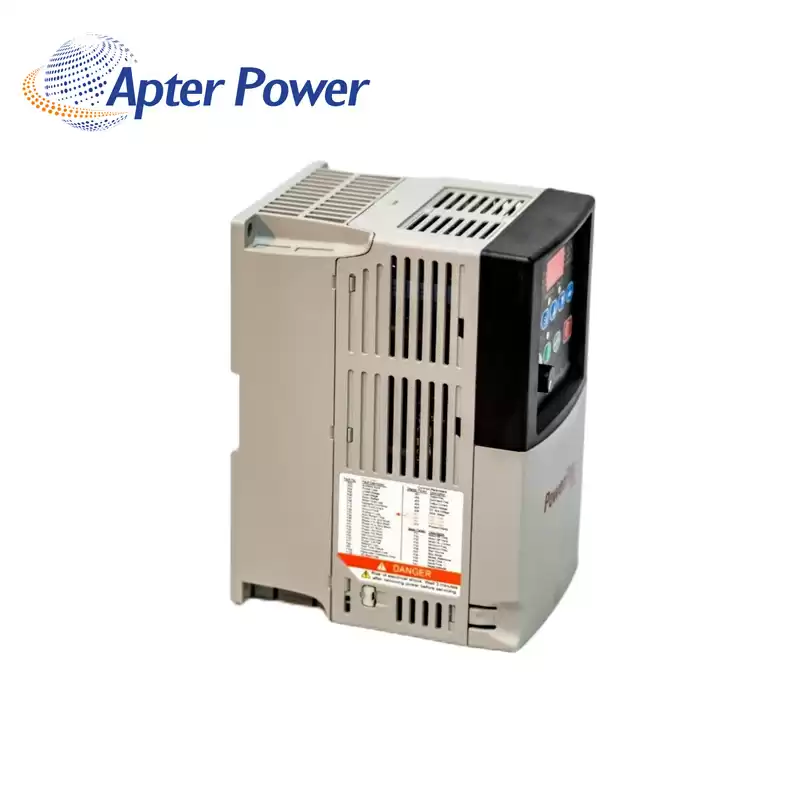

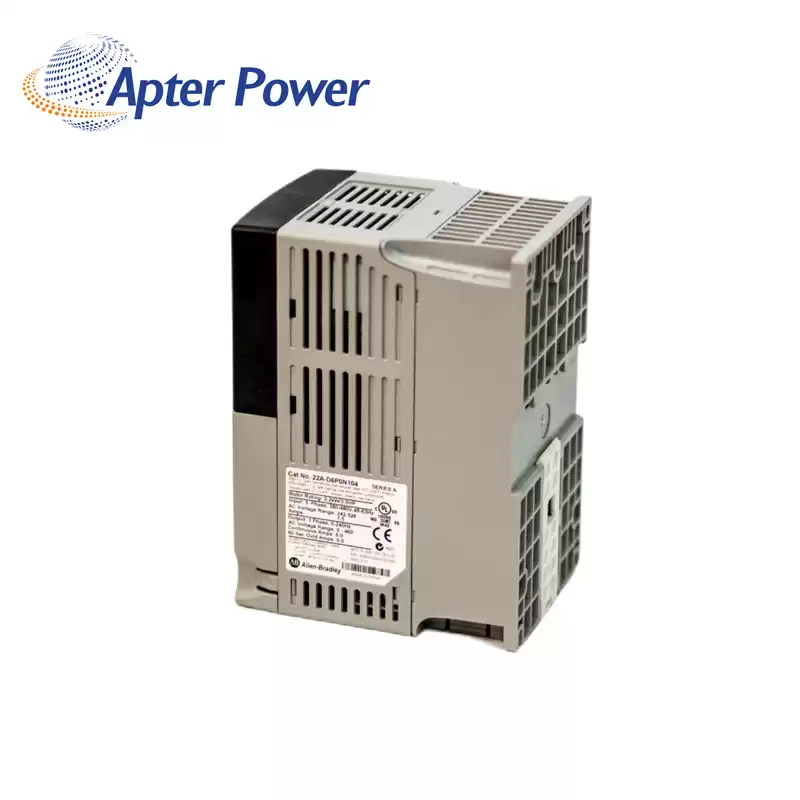

The 22A-D6P0N104 is a PowerFlex 4 drive that is used to modulate the speed of industrial AC motors for used in wide variety of applications such as fan and pump control. This drive features a 3-Phase, 380-480VAC voltage supply with an output voltage of 0-460VAC, 3-Phase and frequency of 0-240Hz.
The 22A-D6P0N104 also offers overcurrent protection and over and under voltage protection, and it has a voltage tolerance of ±10%, a frequency tolerance of 47 to 63 Hertz, a power factor of 0.98 across the entire speed range, and a maximum short-circuit rating of 100,000A (Symmetrical). It comes with a dynamic IGBT internal braking system, and it supports panel mounting.
|
