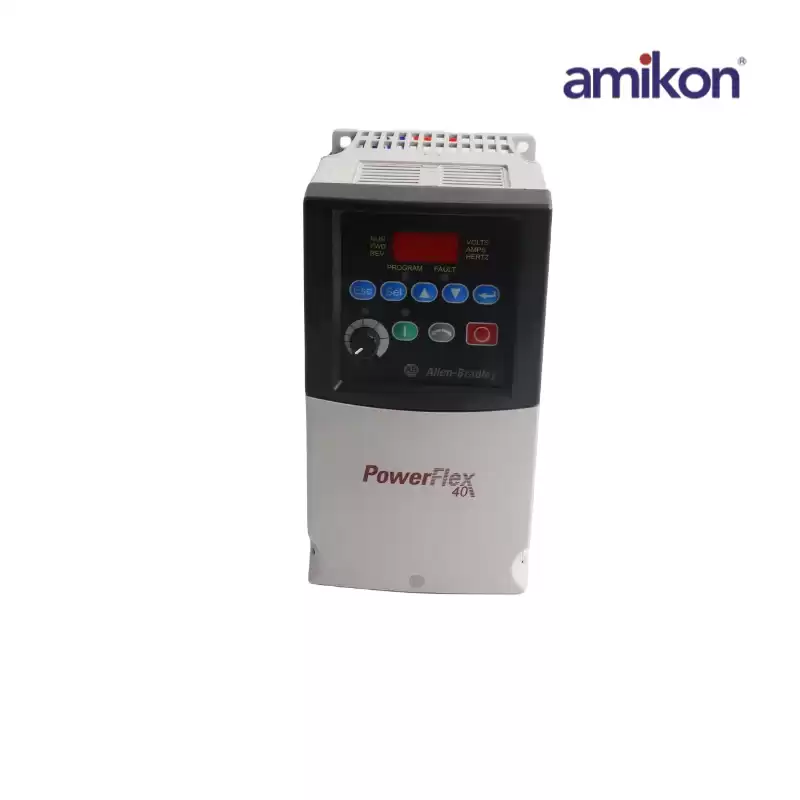

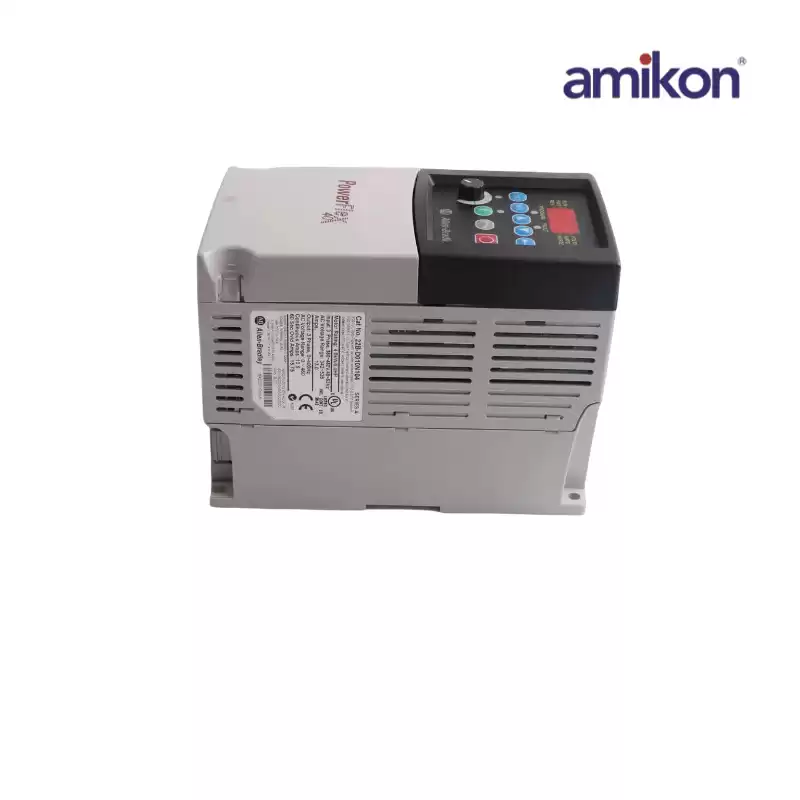

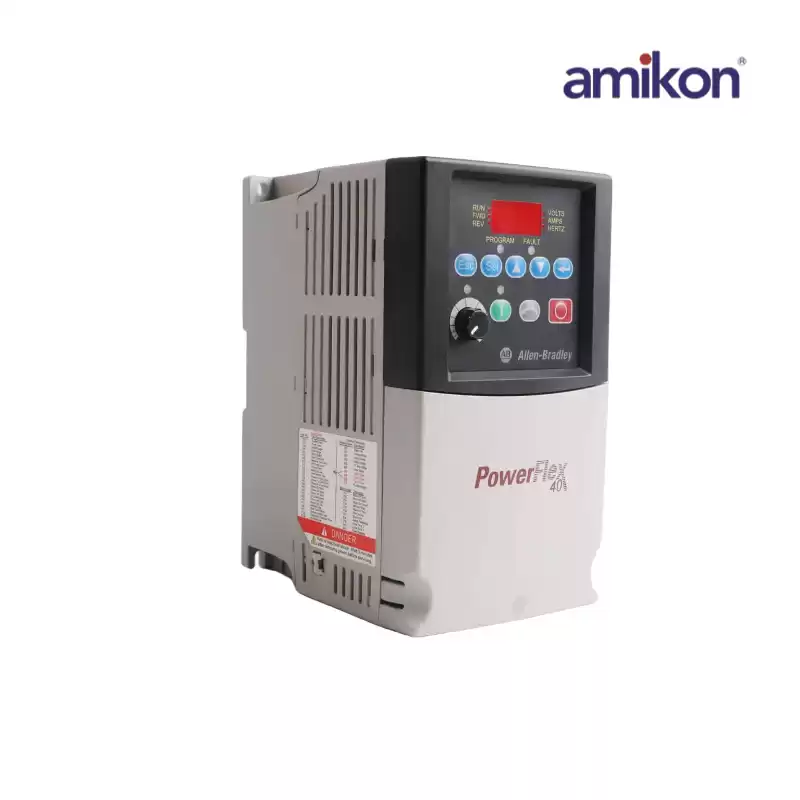

22B-D010N104
|
|
Dimensions ：
|
13cmx17.5cmx26.2cm
|
Weight：
|
1.68KG
|
|
The 22B-D010N104 has an output programmable frequency range of 0 to 400 Hertz and an operational efficiency of 97.5%. It has a digital input voltage at SRC of 18 to 24 Volts in the on state, and 0 to 6 Volts in the off state. It also has a 0 to 6 Volts off sink mode and an 18 to 24 Volts on sink mode.
The 22B-D010N104 drive features integral RS-485 communication and it is compatible with PC tools that assist with monitoring, troubleshooting, and programming. This PowerFlex 40 drive is equipped with sensorless vector control, which allows the drive to automatically provide auto-boost and slip compensation.
|
|
