Model Number
|
22B-D6P0N104
|
Product Origin
|
USA
|
|
Dimensions
|
145 mm x 35 mm x 140 mm
|
Lead Time
|
IN STOCK
|
|
Weight
|
0.59 kg
|
Payment
|
T/T Bank Transfer
|
|
Quality
|
Brand New & Original
|
Service
|
One-stop Service
|
|
Shipping By
|
DHL UPS TNT FEDEX ARAMEX
|
Shipping Port
|
XIAMEN
|
Contact Information!
Discuss pricing and delivery time with a sales representative
sales7@amikon.cn
86-18965423501
86-18965423501
AMKPLC
The technical specifications for the 22B-D6P0N104 AC Drive :

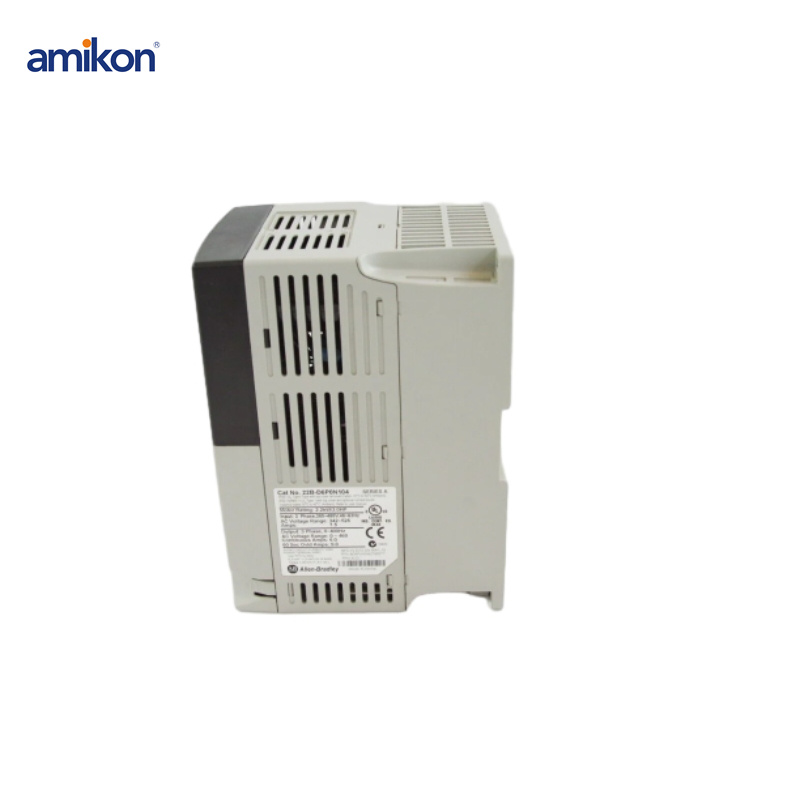

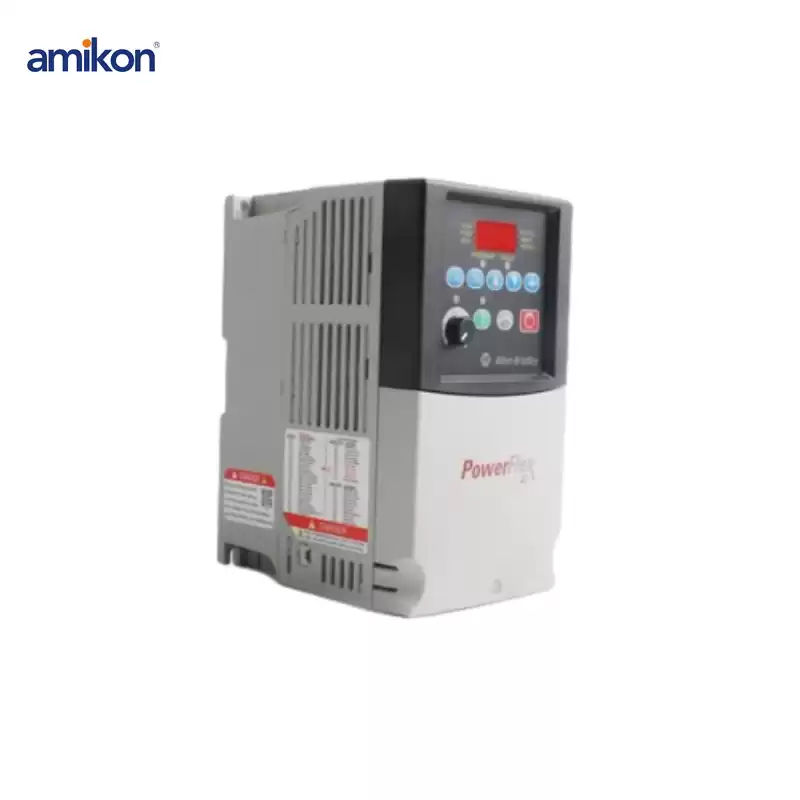

The PowerFlex 4M 22B-D6P0N104 AC Drive is a compact and versatile variable frequency drive (VFD) designed for controlling three-phase induction motors in a variety of industrial applications.
With its small size and robust functionality, the PowerFlex 4M series is ideal for machine-level speed control, offering cost-effective performance in compact spaces. It features flexible installation options, simple programming, and a range of built-in features for enhanced motor control and energy efficiency.
Electrical Specifications
Input Voltage: 380-480V AC ±10%, three-phase
Input Frequency: 47 to 63 Hz
Motor Power Rating: 3 HP (2.2 kW)
Output Voltage: Adjustable from 0V to input voltage
Output Current: 6.0A
Frequency Range: 0 Hz to 400 Hz
Control Features:
Control Method: V/Hz Control, Sensorless Vector Control (SVC)
Frequency Accuracy: ±0.5% of set speed
Speed Control Range: 20:1 with V/Hz and 60:1 with SVC
Starting Torque: Up to 150% at 1 Hz
Acceleration/Deceleration Time: Adjustable from 0 to 600 seconds
