22kw Turbo Blower High Efficiency Motor

MC Motor design and manufacture high speed motor for BDIT the blowers which is high speed PMSM -permanent magnet synchronous motor with easily achieve rotation speed more than 20000 rpm making the blower/fan is much more efficient than other type of blowers.


We can provide customers with customized services, according to your motor application scenarios and needs, thus providing the best solution at a competitive price.


  • Model NO.:SRPM130H4F22

22kw Centrifugal Blower High-pressure 95.5% Efficiency PM Motor


Product Feature
1.This product can be widely used in aquaculture, data center, sewage treatment, material transportation, food and medicine, cement papermaking, steel and petrochemical, desulfurization and denitration, textile printing and dyeing and other industries, with remarkable energy-saving effect.
2.Reserve a large margin of security
3.High pressure 30kpa &High flow rate 34~36 m³/min
4,High power 22KW & high speed 20000~24000rpm
5.High efficiency 95.5%
6.Small size
7.Low noise low vibration

8.Environmentally Friendly.


Specifications
Model type: SRPM130H4F22
Voltage: 380V AC
Rated Power: 22KW

Rated speed: 20000rpm

Torque:10Nm

Efficiency: 95.5%
Isolation: H/F

Water/dust Proof: IP54(IP67 option)

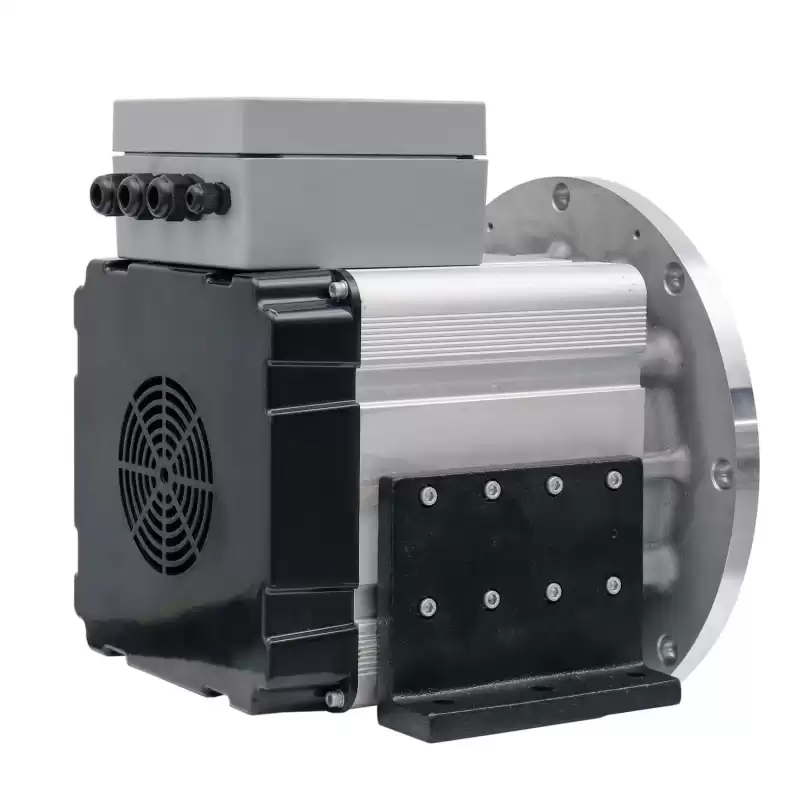

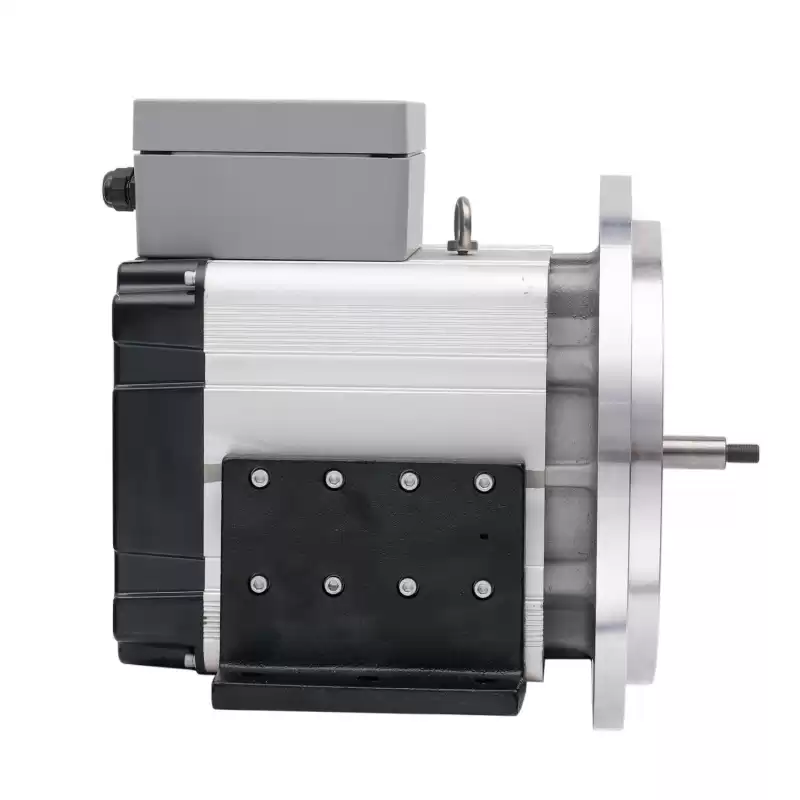

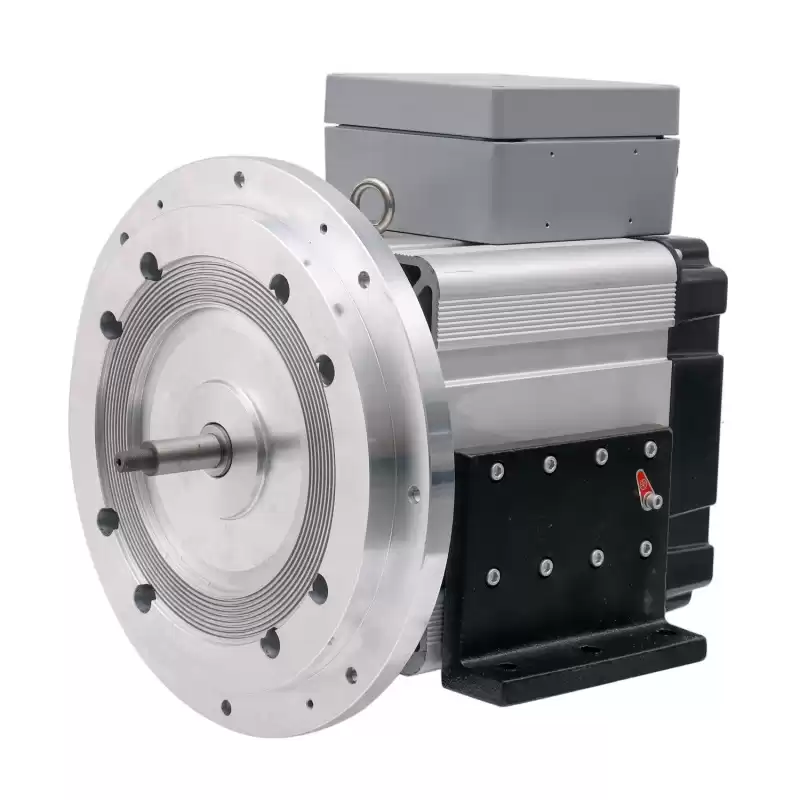

Details Show



Main Service
We can provide customers with customized services, according to your motor application scenarios and needs, thus providing the best solution at a competitive price.


Customizing Range:

Power: 5KW-2MW
Speed: 2500rpm-100000rpm
Voltage: 110v-690v

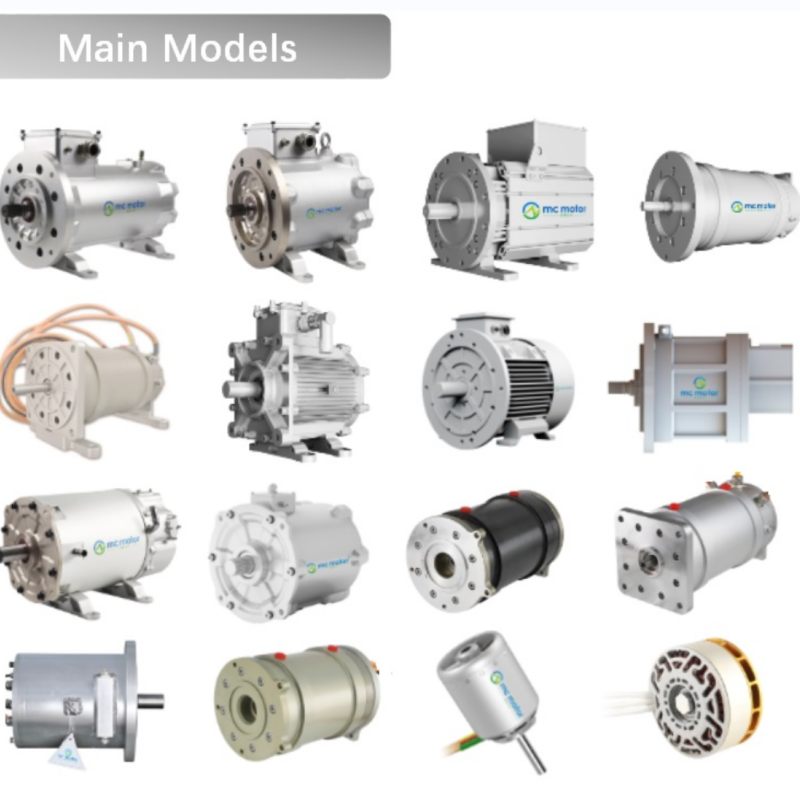

Main Proudcts Family
