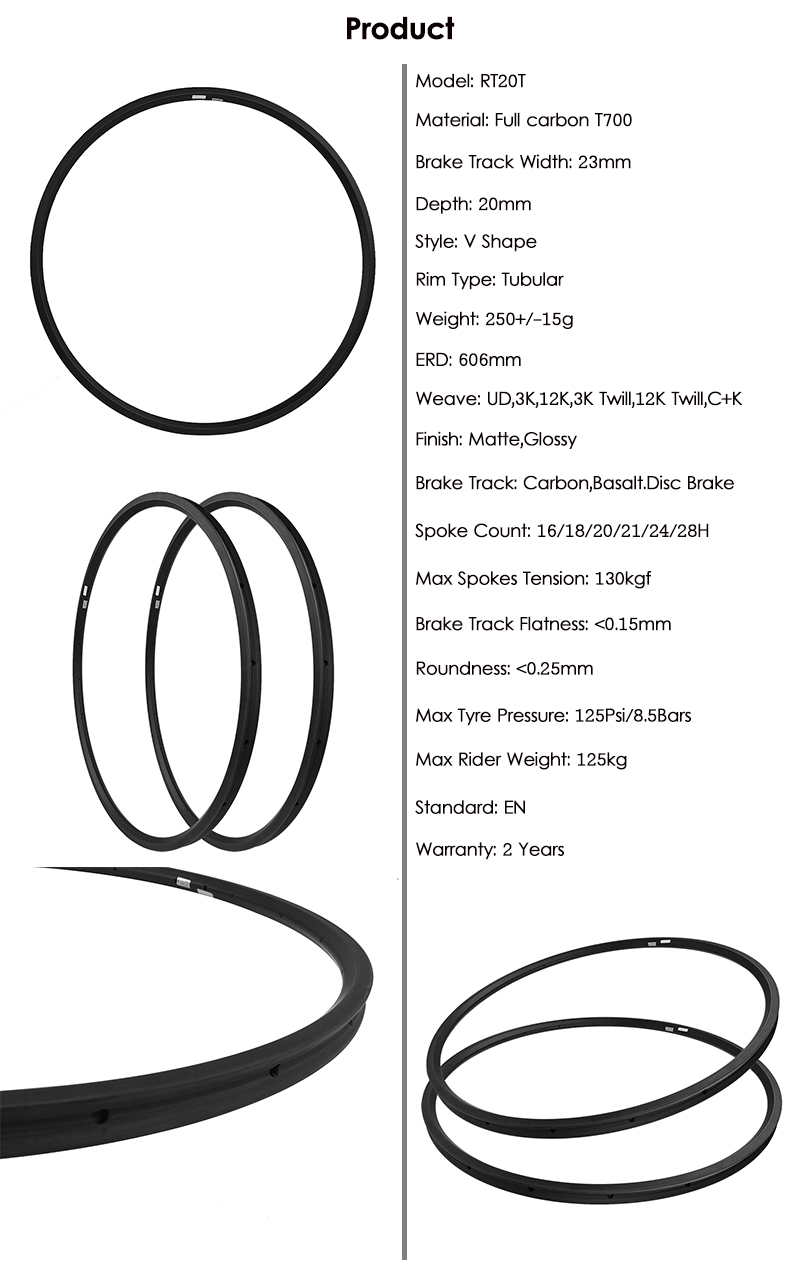

Model: RT20T
|
Size: 700C
|
Material: Carbon T700+30%T800
|
Brand Name: Superroad
|
Brade Track Width: 22mm
|
Drilling: Traditional/Internal
|
Rim Depth: 20mm
|
Spoke Hole: 16/18/20/21/24/28H
|
Rim Type: Tubular
|
Brake Track: Carbon,Basalt,3K,12K,Twill
|
Weight: 250+/-15g
|
Weave: UD/3K/12K,3K+Twill,12K+Twill
|
ERD: 606mm
|
Finish: Matte/Glossy
|
Max Spokes Tension: 130kgf
|
Max Tyre Pressure: 125Psi/8.5Bars
|
Brake Track Flatness: <0.15mm
|
Roundness: <0.25mm
|
Decal: Customized
|
Max Rider Weight: 125kg
|
Business: OEM&ODM
|
Standard: EN
|
Port: Xiamen
|
Warranty: 2 years warranty with crash replacement policy
|
Description Of 20mm Tubular Carbon Rim

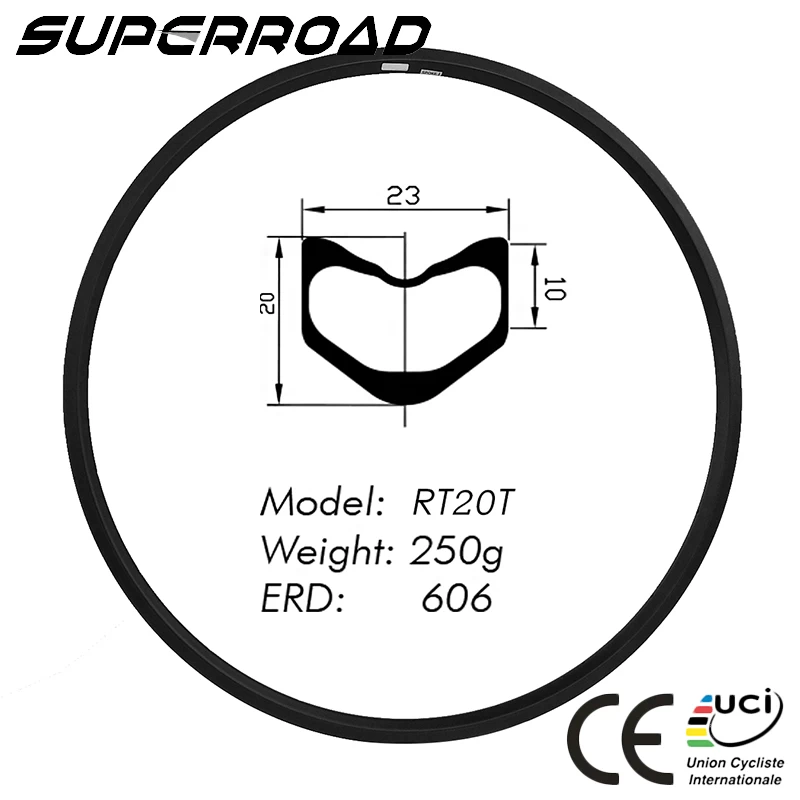

Full carbon 22mm wide 20mm tubular carbon rims. As we know, the V shape rims is lighter than U shaped rims.
High tg 210℃ for our tubular rims, it is difference for 180℃ version from other supplier.The best choise is build climbing super light weight wheelset.
700C bicycle with 20mm tubular carbon rims, better durability and great aerodynamic over the rims side of the wheelset.
If you are stronger person about the weight of 100kg to 125kg, Building more stronger wheels will be needed, choice T800 material for this rims of my opinion.
Here is the recommendation of climbing wheelset with 20mm tubular carbon rims,extralite hub made in italy and sapim cx-ray spokes. Total weight is 900+/-20g for complete wheels.
T800 carbon rims provide more rigid for wheels , what’s more,V shape rims provide better aerodynamics If you are interested in this product,please message us.
We can provide any decals you need. If you have any requestment for decals, please feel free to contact us.

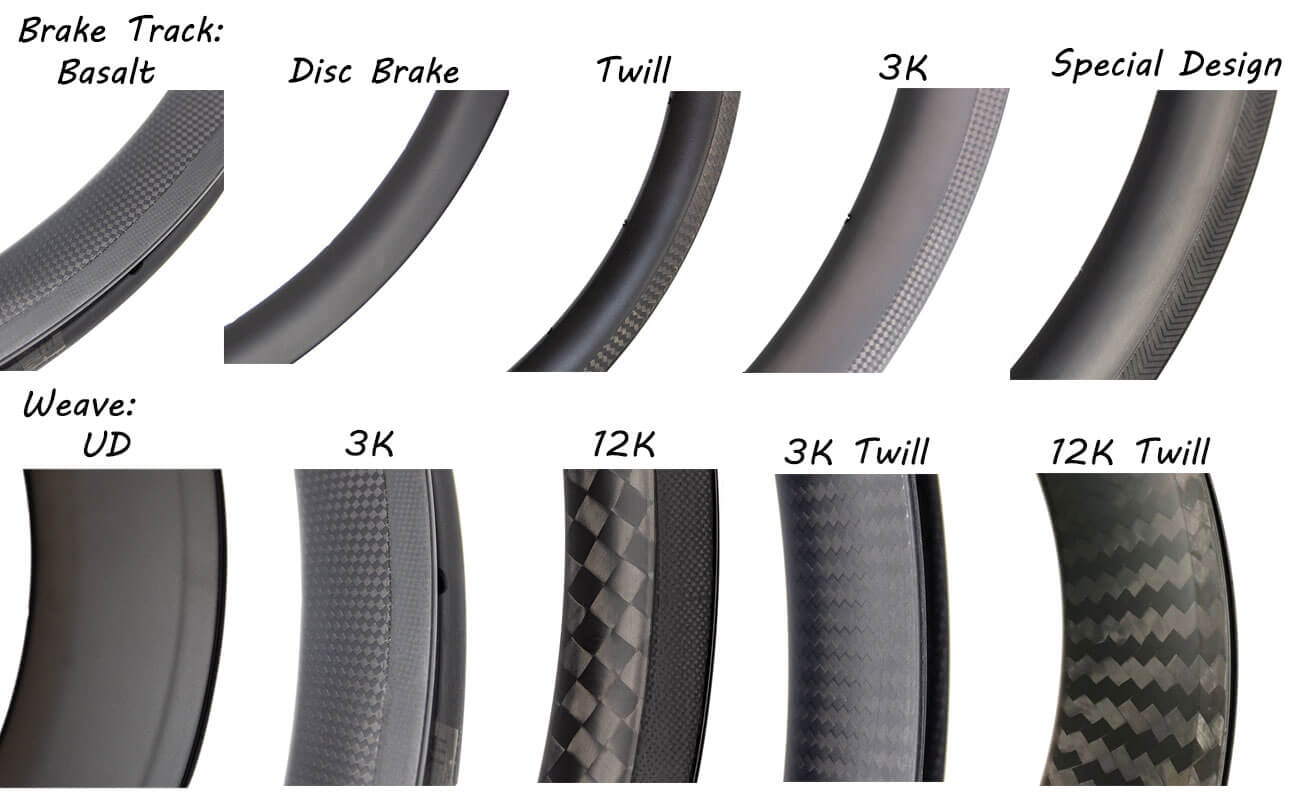

Here is the brake track and weave. You can choose you wanted.
FAQs
1. What kinds of test for our product?
Our product according to EN standard, pass UCI and CE.
2. Braking surface
High TG 240 for our clincher rim, and high TG 210 temperature resin for our tubular rims. If you need more stronger brake track,
we also can provide high TG 255 temperature resin brake surface.
3. What are the recommended rider weight limits for superroad wheels?
recommended maximum weight for different rim/wheel, please check the specification of product.
4. Why carbon rims?
Lighter, stronger and stiffer. Why not carbon rims?
