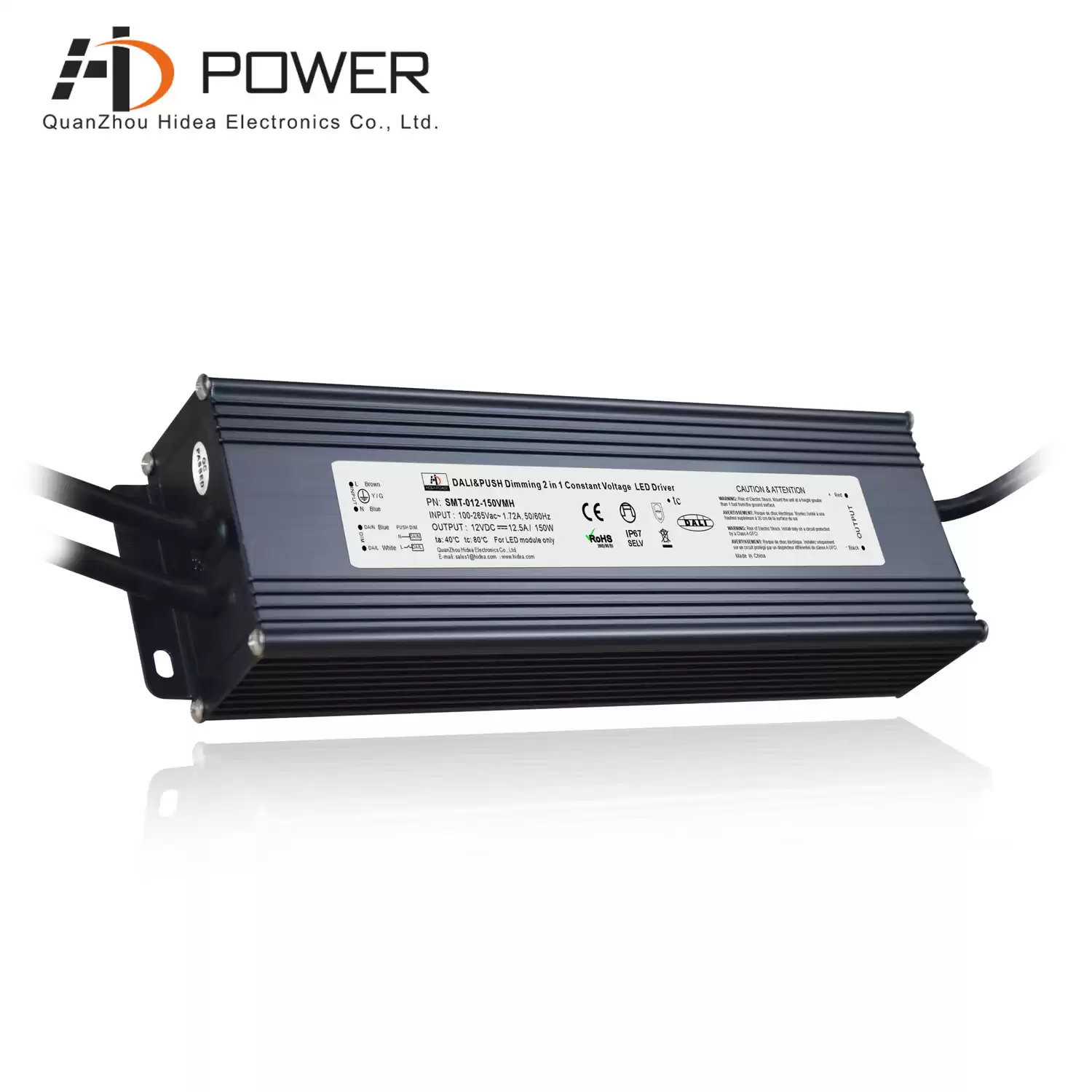

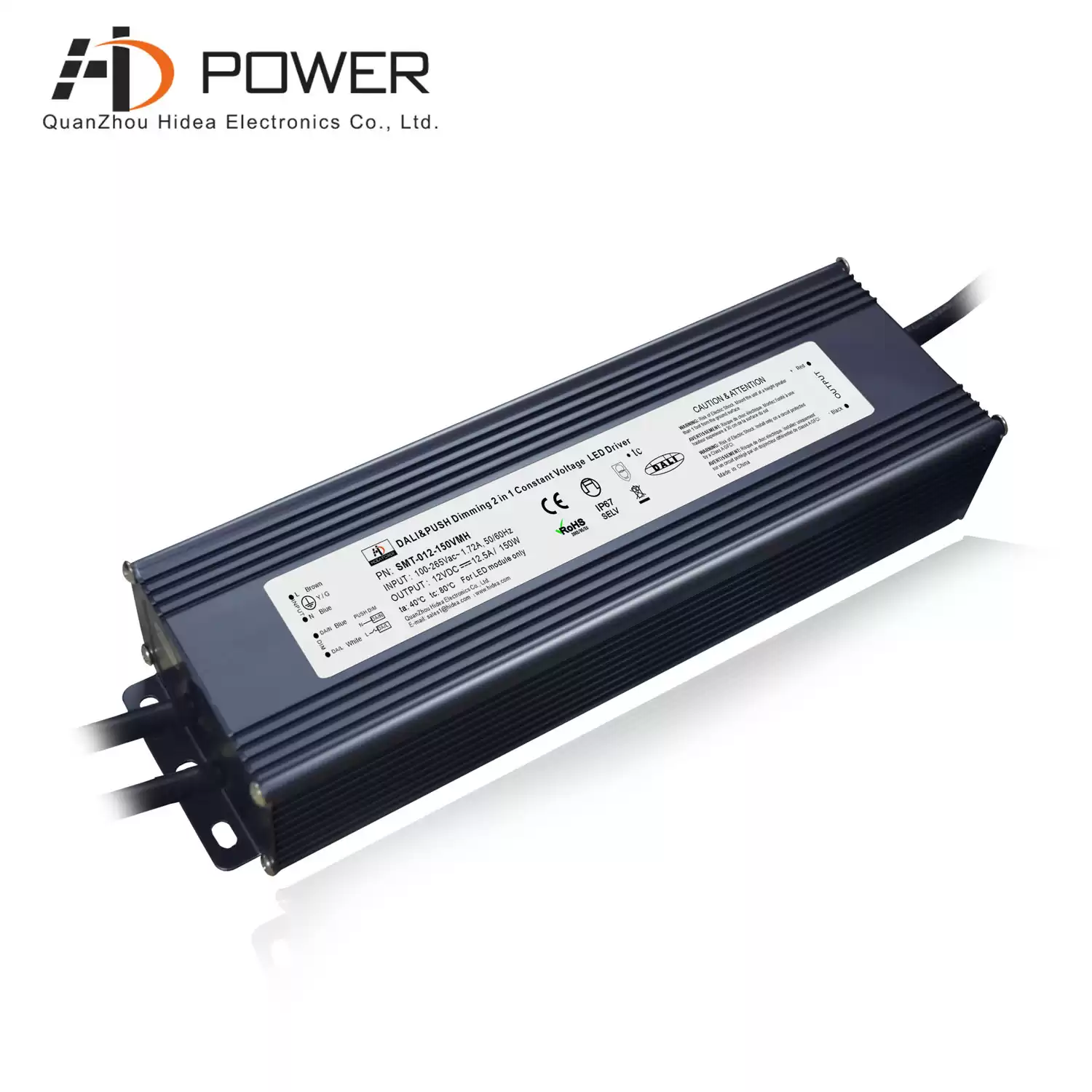

24 volt 150W constant voltage DALI dimming led driver power supply for led lights
This dali dimmable 24v 150W led driver works in constant voltage mode, with an operating efficiency of up to 88%. It is designed with an aluminum casing and has a waterproof rating of IP67. It is effectively waterproof and dustproof, providing stable protection for lamps and power supplies.
Specification
|
Model
|
SMT-012-150VMH
|
SMT-024-150VMH
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Rated current
|
12.5A
|
6.25A
|
|
Rated power
|
150W
|
|
Load Regulation
|
±0.2%
|
|
Input
|
Voltage Range
|
100-265VAC
|
|
Frequency Range
|
47 - 63Hz
|
|
Power Factor(Typ.)@ full load
|
PF≥0.99 / 120VAC PF≥0.96/ 230VAC (Full loading)
|
|
THD(Typ.)@ full load
|
<20%
|
|
Efficiency(Typ.)@ full load
|
88%
|
88%
|
|
AC Current(Max.)
|
1.72A
|
1.72A
|
|
Inrush Current (Typ.)
|
16A/120VAC 56A/230VAC
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Short Circuit
|
constant current mode, recover automatically after fault condition is removed
|
|
Over Load
|
≤120% constant current limiting, recover automatically after fault condition is removed
|
|
Over temperature
|
100℃±10℃ Shut down o/p voltage, recovers automatically after temperature goes down
|
|
Protection Class
|
Ⅰ
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20 - 95%RH ,non-condensing
|
|
Storage TEM.,Humidity
|
-40 - +80℃,10 - 95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0 - 50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13 IP67
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
Isolation resistance
|
I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
|
|
EMC Emission
|
EN55015 EN61000-3-2 ,EN61000-3-3
|
|
EMC Immunity
|
EN61000-4-2,3,4,5,6 ,11, EN61547
|
|
Others
|
Weight
|
1.2Kg
|
|
Dimension
|
245*70*43mm(L*W*H)
|
|
packing
|
320*270*170mm/10pcs /CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
|
|
2. Tolerance: includes set up tolerance, line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Compatible Light Type

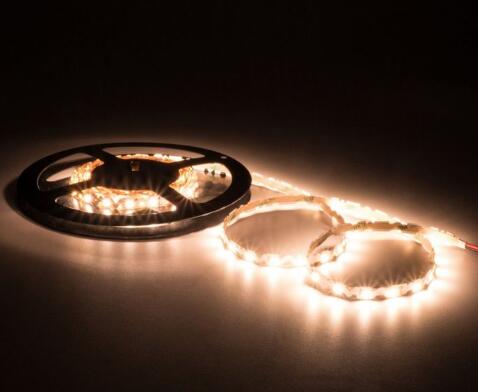

AspectLED's standard bright B-Series (bendable) flexible LED strip lights are made with wire leads on both ends of each 16.4' reel and can be cut every 2", allowing users to cut pieces to the exact length that required, can be controlled by Hidea's dimmable led strip driver.
Related Products
|

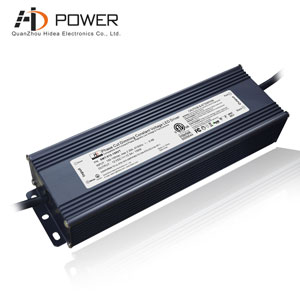

This triac dimmable led driver 150W waterproof ip67, aluminum shell, good heat dissipation, easy and fast installation, suitable for indoor and outdoor dimmable lighting projects, with 5-year warranty
