24 volt 300W constant voltage triac & 0 10v pwm dimmable led driver strip lights

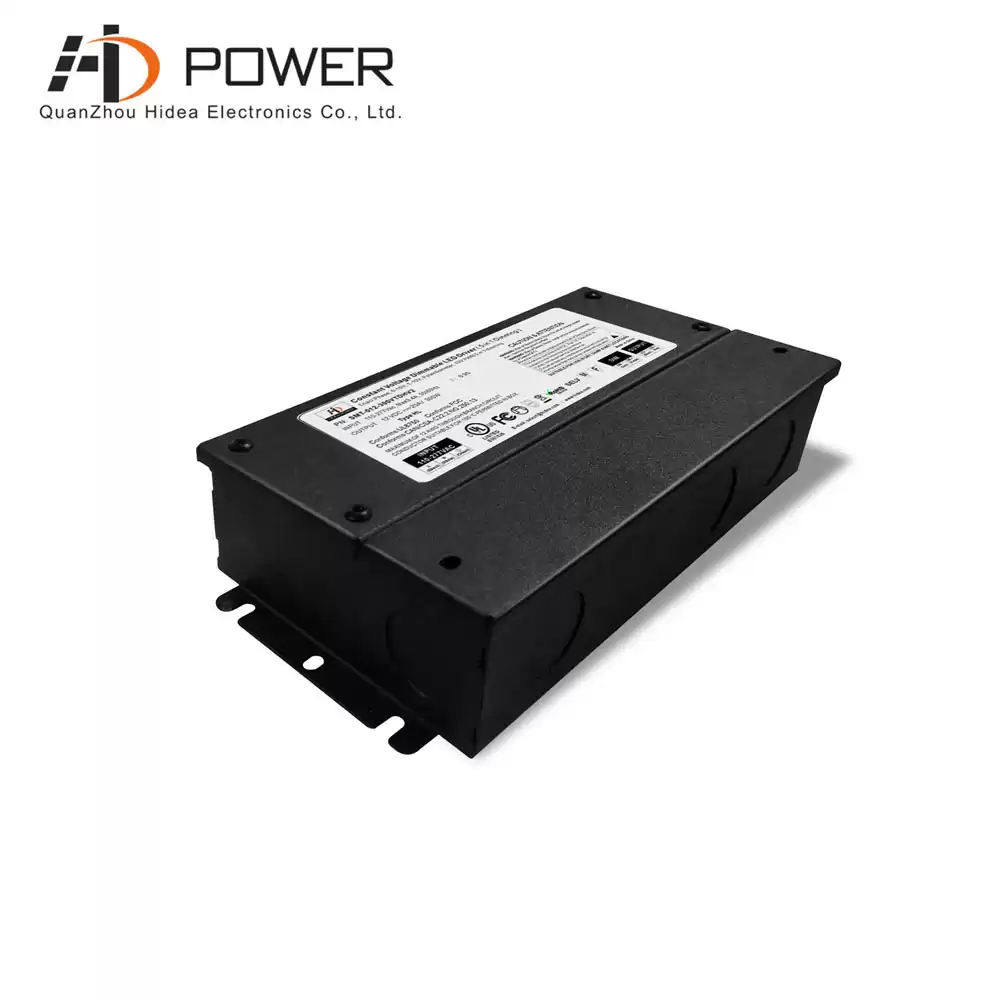

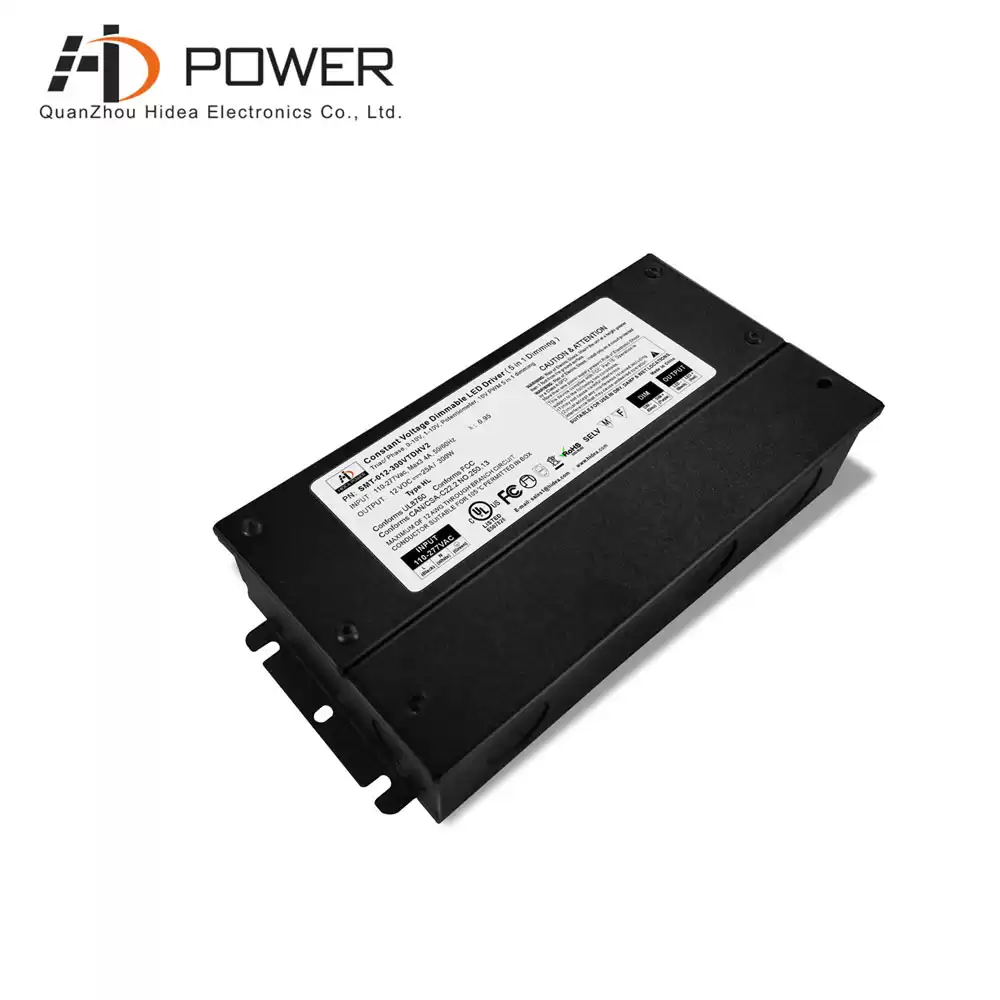

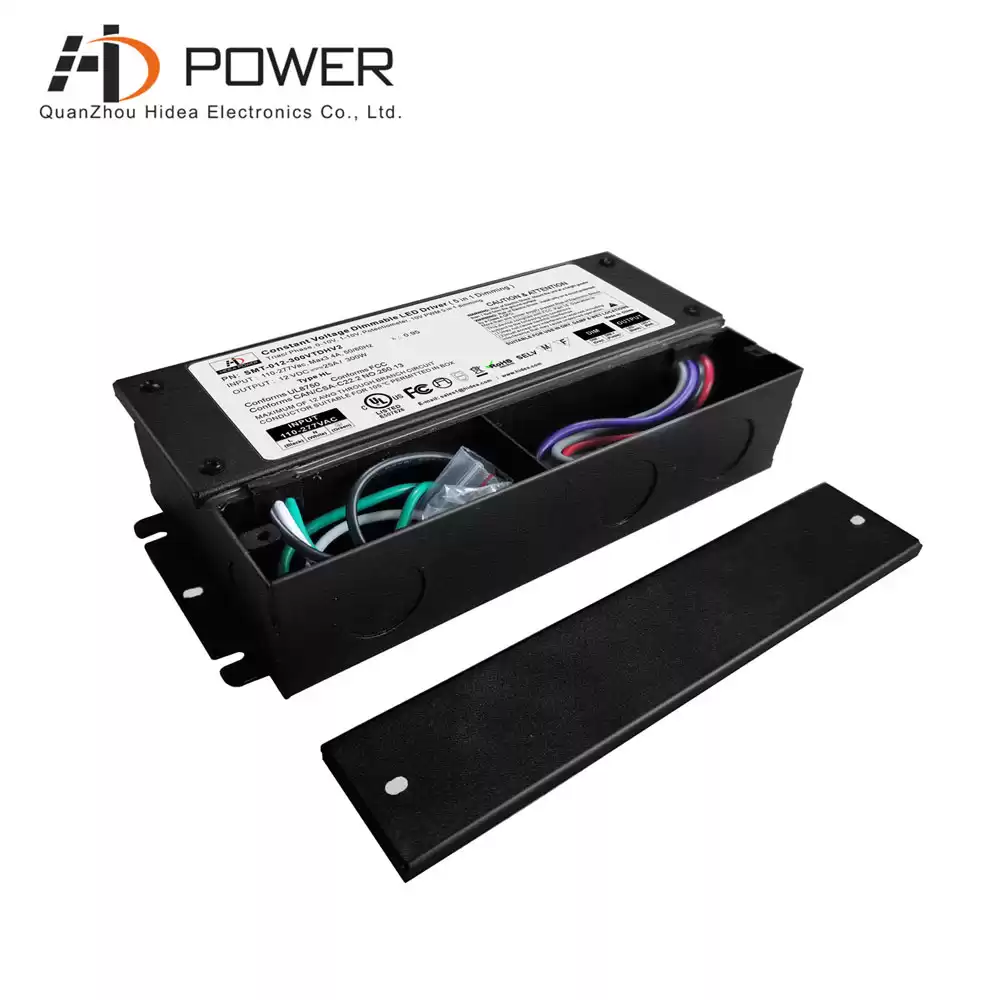

300W TRIAC & 0-10V dimmable constant voltage led driver metal shell design, 100-277vac input voltage, with ultra-low load requirements, capable of working perfectly at 10-100% load, compliant with global safety lighting laws, with 7-year warranty
Specification
|
model
|
SMT-012-300VTDHV2 (1.0 version)
SMT-012-300VTDHWV2(2.0version)
|
SMT-024-300VTDHV2 (1.0 version)
SMT-024-300VTDHWV2(2.0version)
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Rated Current
|
25A
|
12.5A
|
|
Rated Power
|
300W
|
300W
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±2%
|
±1%
|
|
Input
|
Voltage Range
|
110-277VAC
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor@ full load
|
0.99@120VAC 0.97@277VAC
|
0.99@120VAC 0.95@277VAC
|
|
THD(Typ.)@ full load
|
<20%
|
|
Efficiency @ full load
|
86% @120Vac 88%@277Vac
|
88% @120Vac 92%@277Vac
|
|
AC Current(Max.)
|
3.4A@100Vac
|
|
Inrush Current (Typ.)
|
20A, 50%, 1.9ms @120Vac 35A, 50%, 1.9m,s @277Vac
|
|
Leakage current
|
<0.50mA
|
|
protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Loading
|
≤120% Hiccup mode,recovers automatically after fault condition is removed
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
About 2.0Kg
|
|
Size
|
1.0 version: 278*110*45mm / 2.0 version: 278*110*45mm
|
|
packing
|
10PCS/CTN (L*W*H)
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible Light Type
UL listed 12v 24v led driver 300 watt, it's Triac/0-10V/1-10V/Potentiometer/10V PWM (5 in 1) Dimmable, constant voltage, compliance to worldwide safety regulations for lighting if working with Diode Led led strip lights single power feed.
