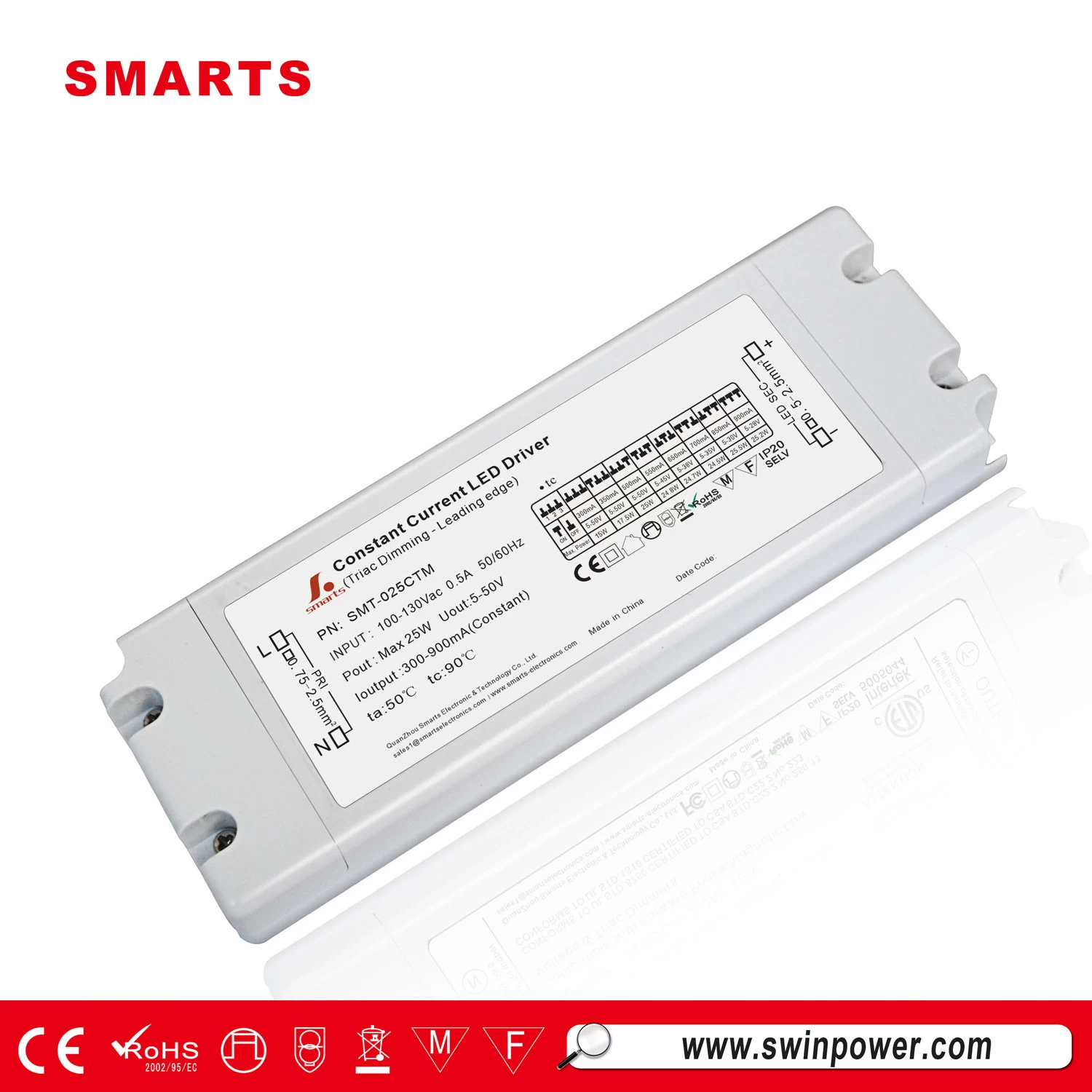

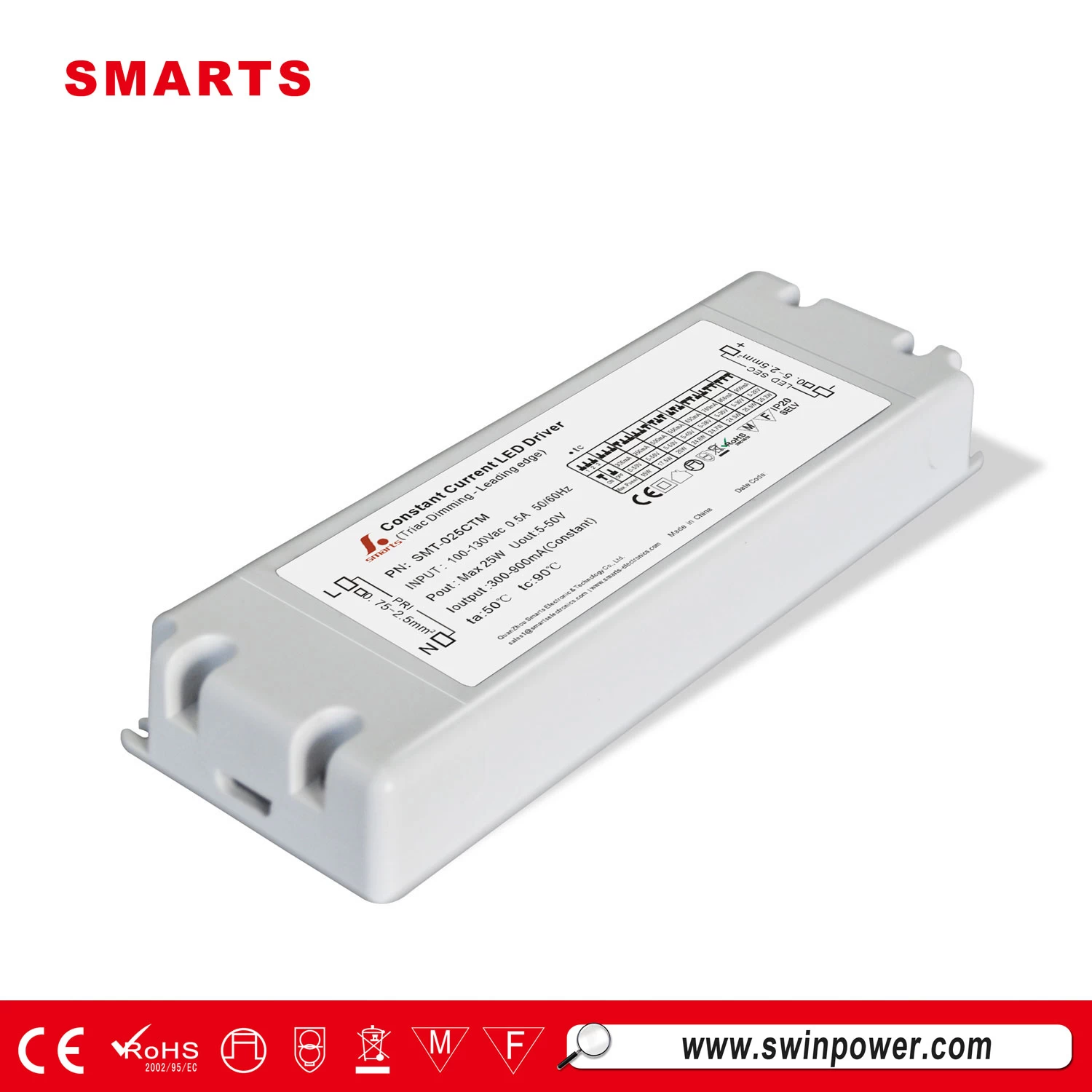

240 volt LED Light Power Supply Transformer Constant Current Circuit
SMT-025CTM, with 170~265VAC input voltage and built-in two stage PFC function. Suitable for use in a range of suitable commercial and domestic lighting applications, SMARTS's led power supply constant current can prove to be the perfect solution for signage, safety, architectural and security lighting opportunities. Multi-current DIP Adjustment output,15W/25W/50W available.
Futures for led light power supply:
·Output constant current type Triac dimmable led driver
·Input range : 170-265VAC
·Efficiency : 83%
·Protections:short circuit /over load/ over current
·Fully isolated plastic case, IP20 design solution
·Easy installation, suitable for dry location
·Cooling by free air convection
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications
·Dimming range: 0% ~ 100%
·Dimming function: Triac dimmable Phase cut dimmable
·Compliance to worldwide safety regulations for lighting
·3 years warranty
If we found any defective products within warranty ,what Smarts should us do for the defective product ?
Answer: We give 3 years warranty for our Multi-current DIP Adjustment output. If clients use properly, hardly any of feedback from our clients about the led drivers can not work or damaged during warranty time. We do not make up for new replacement if we find damage cames from inappropriate use of clients, But if confirm that damage cames from dimmable led driver itself, we will make replacement with next order.
|
Model #:
|
SMT-025CTM
|
|
Output
|
Rated current
|
900mA
|
850mA
|
700mA
|
650mA
|
550mA
|
500mA
|
350mA
|
300mA
|
|
Current Tolerance
|
±5%
|
|
DC Voltage
|
5-28V
|
5-30V
|
5-35V
|
5-38V
|
5-45V
|
5-50V
|
5-50V
|
5-50V
|
|
Rated power
|
25.2W
|
25.5W
|
24.5W
|
24.7W
|
22.5W
|
25W
|
17.5W
|
15W
|
|
Input
|
Rated Input Voltage
|
170-265VAC
|
|
Rated Frequency:
|
47-63HZ
|
|
Power Factor
|
PF≥0.65/180VAC PF≥0.65/230VAC PF≥0.65/240VAC(Full loading)
|
|
Full Load Efficiency(Typ.)
|
81%
|
81%
|
82%
|
82%
|
82%
|
82%
|
81%
|
80%
|
|
AC Current(Max.)
|
0.50A
|
0.50A
|
0.48A
|
0.48A
|
043A
|
0.48A
|
0.34A
|
0.29A
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed
|
|
Output No-Load Voltage
|
52-60V
|
|
Over Load
|
≤ 120%
|
|
Protection Class:
|
Class II
|
|
Environ-
ment
|
Working TEMP.
|
-40-+60℃
|
|
Working Humidity
|
20-95%RH,non-condensing
|
|
Storage TEM. Humidity
|
-40-+80℃,10-95%RH
|
|
TEMP. coefficient
|
±0.03%/℃(0-50℃)
|
|
Vibration
|
10-500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes
|
|
Safety & EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1500KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
EMC IMMUNITY
|
EN61000-4-2,3,4,5,6 ,11, EN61547,A light industry level (surge 4KV)
|
|
Others
|
Weight
|
0.21Kg
|
|
Size
|
155*54*20mm(L*W*H)
|
|
Inner box & carton packing
|
Inner box: 160*60*23mm Carton size: 350*240*130mm 40PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set us tolerance, line regulation and load regulation .
|

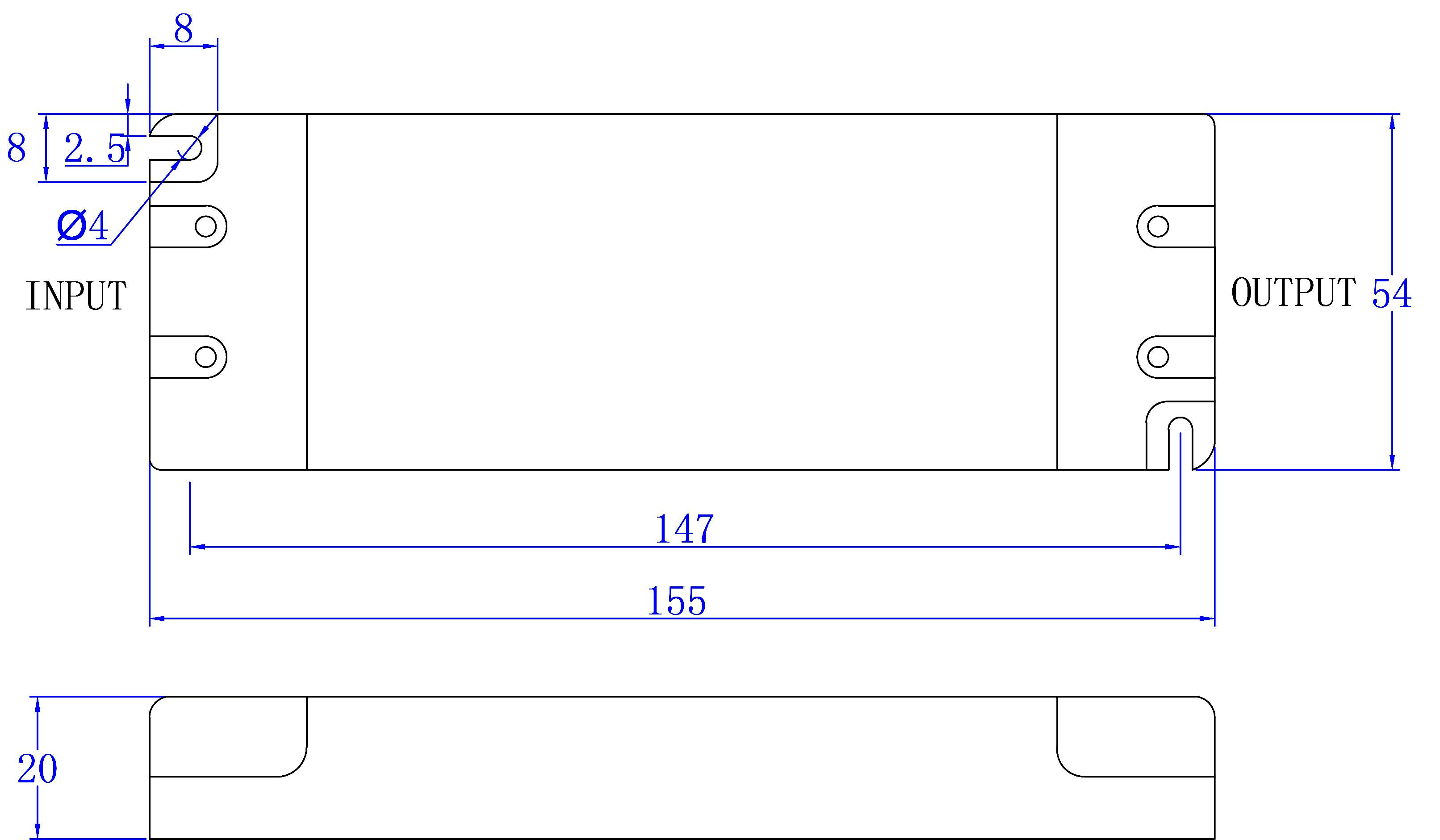

25W triac dimmable LED driver Mechanical Specification:
Ø Input with Live Wire AC (L), Neutral Wire AC(N)
Ø Output LED SEC output Positive (LED+) , output negative(LED-). Connected to LED Lamps.
Ø Suggested wire diameter:Input 18-14AWG; Output: 20-14AWG
Note: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged

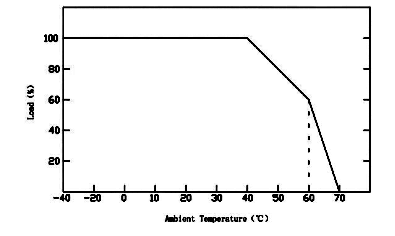

Derating Curve for led power transformer:
Ø To extend their life, please refer to the Derating Curve and derate according to the temperature.
Triac Dimmable LED Driver Connection Diagrams for led power supply constant current:
