2402 Character LCD Display with STN POSITIVE Y-G TRANSFLECTIVE

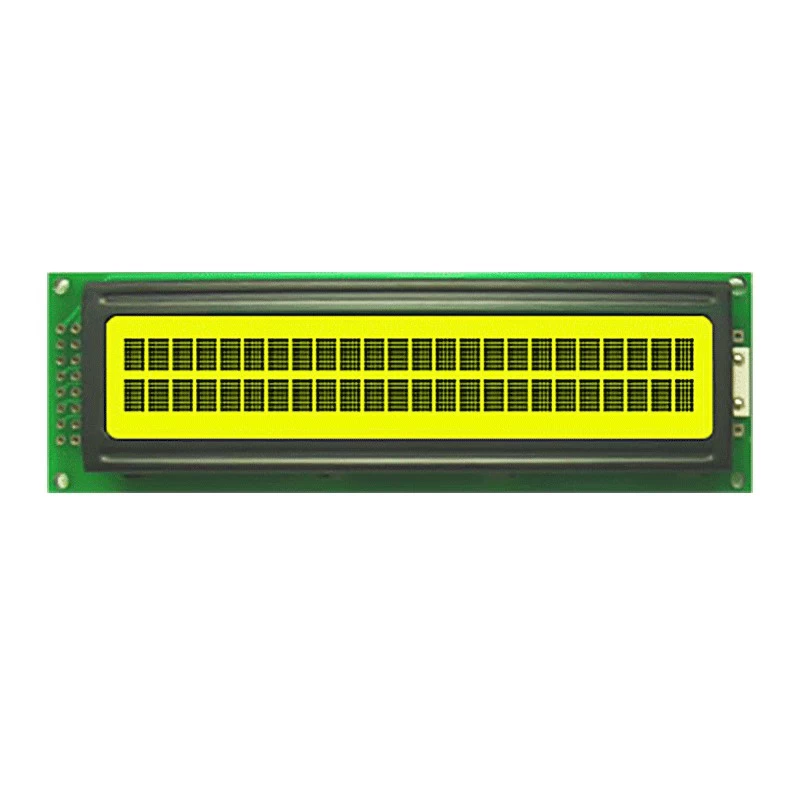

SC2402001-V01 is a Character LCD Display with 24*2 resolution, it built in with AIP31066 IC, 16 PIN, 6 o'clock View direction.


  • BacklightWhite
  • Driver ICAIP31066
  • Interface8bit MPU interface
  • Viewing Area (mm)94.5*17.8
  • Outline Dimension (mm)118*36*13.1
  • Resolution24*2
  • PIN16
Facebook Twitter Pinterest LinkedIn 分享


Basic Information


LCD Type:                     STN POSITIVE Y-G ,TRANSFLECTIVE

Resolution:                   24*2

Outline Dimension:       118*36*13.1

View area:                     94.5*17.8

Interface:                     8bit MPU interface

Driver IC:                     AIP31066

View Direction:              6 o'clock

PIN:                                16

Backlight:                      SIDE Y G





General Specification


Item Standard Value Unit
 Display Type 24 Characters x 2 Lines Mm
 LCD Type STN,POSITIVE(Y-G),TRANSFLECTIVE Mm
 Driver Condition LCD Module : 1/16 Duty , 1/5 Bias Mm
 Viewing Direction 6 O'Clock Mm
 Backlight Type SIDE Y-G Mm
 Interface 8-bit MPU interface -
 Driver IC AIP31066 -
 Outline Dimension 118(L) * 36(W) * Max 13.1(T) mm
 Viewing Area 94.5(L) * 17.8( W) mm
 Dot size 0.60(W) ´ 0.65(H) mm
 Dot pitch 0.65(W) ´ 0.70 (H) mm
 Character size 3.20(W) ´ 5.55(H) mm



Interface Definition


No. Symbol Function
1 VSS Ground (0V)
2 VDD Supply Voltage for Logic (+5.0V )
3 VO Contrast Adjustment
4 RS Data/Instruction Select
5 R/W Read/Write Select
6 E Enable Signal
7--14 DB0-DB7 Data Bus
15 LED_A LED Power Supply + (5.0V)
16 LED_K LED Power Supply - (0V)
