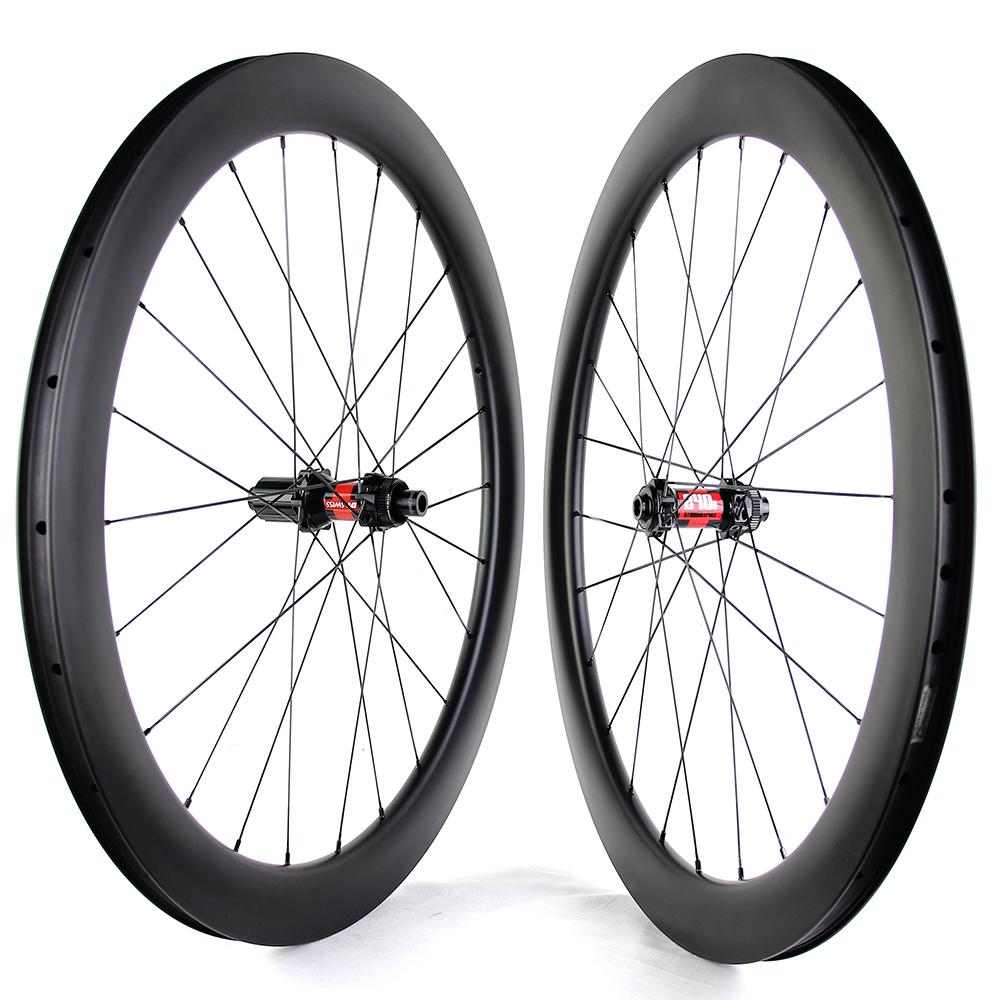

240D Road Disc Brake Bicycle Wheels

carbon disc wheelset 700c

Original DT swiss 240s disc brake Rachet 18T, 12*100mm/12*142mm.

Wheels fully built by hand and precisely trued by Holland Mechanics

Asymmetric rim design for better spoke tension balance and better wheel stiffness.

Mid-hooked bead design to improve strength and for higher tire pressure and safty tire mounting.

Rims profile 33/38/44/50/55 tubular/clincher TLR

Accept customized wheels-built&customized branding.



Facebook Twitter Pinterest LinkedIn 分享

240S Bike Road Disc Brake Carbon Wheels





Key Features  The Most High End Disc Brake Road Wheels

 Road TLR disc brake carbon rims with light weight
 Special layup schedule T700 60% & 40% T800
 Easy tire mount and tubeless ready design
 Asmmetry disc brake profile design
 Top high end disc brake carbon racing wheels





  Carbon road bike wheels



WHEELS SPECS




Rim

700C ASD DISC BRAKE TUBULAR FOR ENDURACE|GRAVEL ROAD BIKES          33/44/55 mm Tubular Carbon Rims
700C ASD DISC BRAKE CLINCHER FOR ENDURACE|GRAVEL ROAD BIKES        33/44/55 mm Clincher Carbon Rims


Hub

240 Disc Brake Straightpull hubs
Front 24h 12/100mm AT or 15/100mm AT                  Rear 24h 12/142mm AT Shimano 11S, Campy 11S

Brake

Center lock system

Spoke

PSR1420/CX-Ray 4.2g/PC

Nipple

External/internal alu nipples or brass nipples

Service Kit

N/A

Max.system weight

110-130 kg

Model (weight with CX Ray Spokes)

                                                                                                                                                                All Weight is w/t 5% tolerance


240S-ASD33T-DISC (1185g)

240S-ASD44T-DISC (1355g)

240S-ASD55T-DISC (1395g)

240S-ASD33C-DISC (1425g)

240S-ASD44C-DISC (1515g)

240S-ASD55C-DISC (1575g)





Hand-built High Precision Carbon Wheels






Wheel Building Technology

All wheels are built in high precision machines via spoke tension trueing by Holland Mechanics Pro Truer.
The perfect allocation of spoke tension in every single spoke in
combination with a comparatively high spoke tension gives many advantages:

- higher radial, lateral and torsional stiffness
- less spoke tension loss over time
- longer durability
- less maintanance efforts like retrueing




Wheel roundness tolerance: ≤0.3mm
Wheel lateral tolerance: ≤0.3mm
Wheel center tolerance: ≤0.3mm
