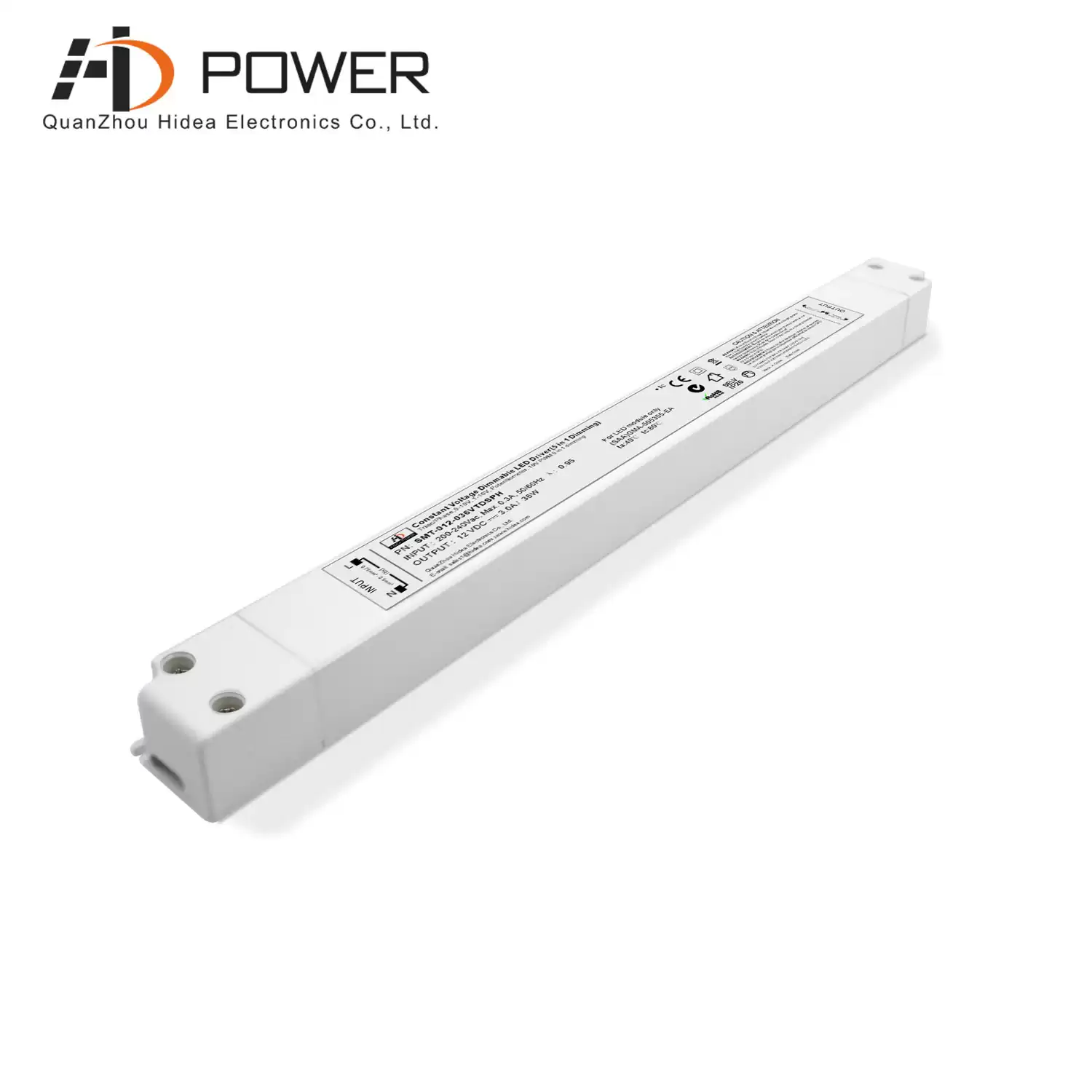

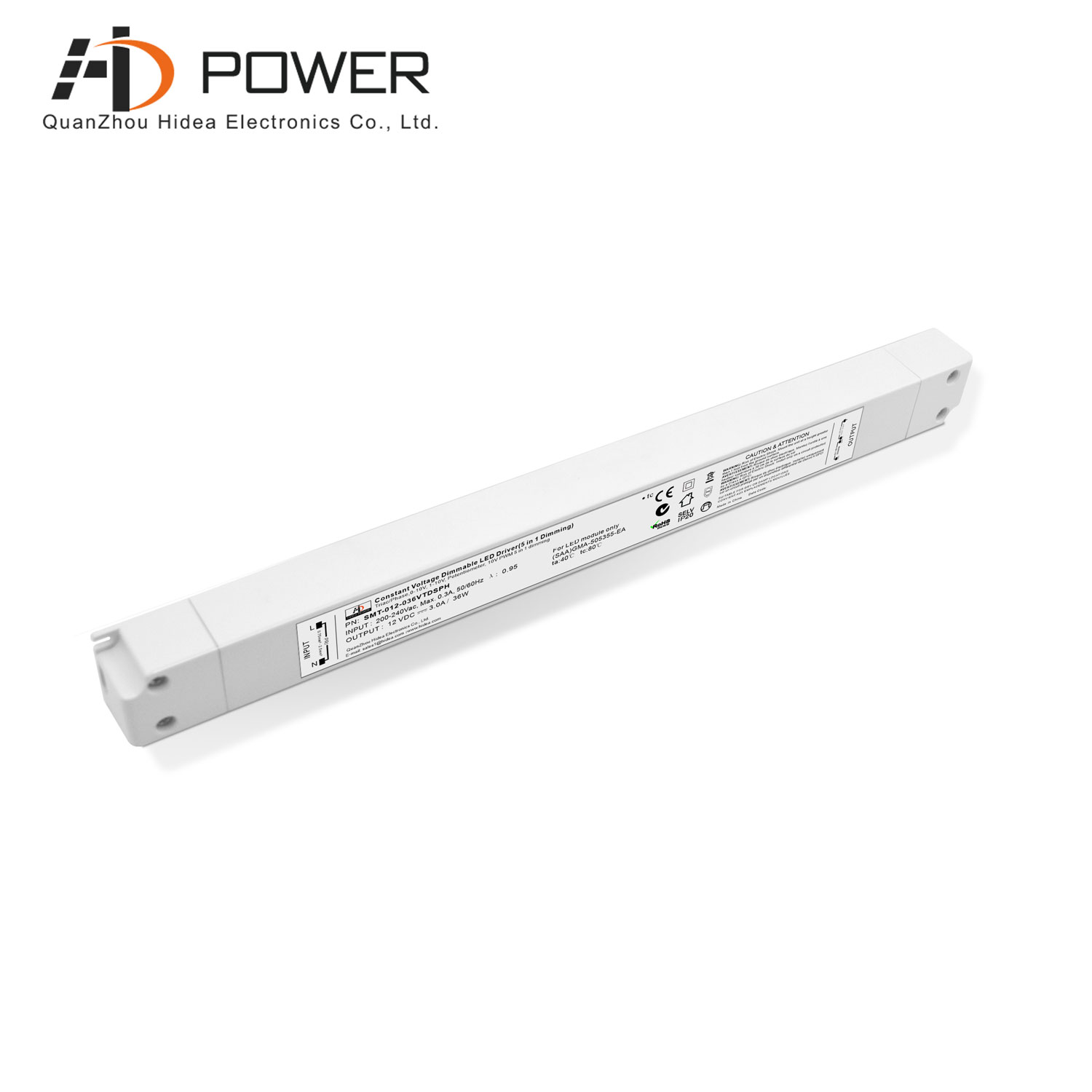

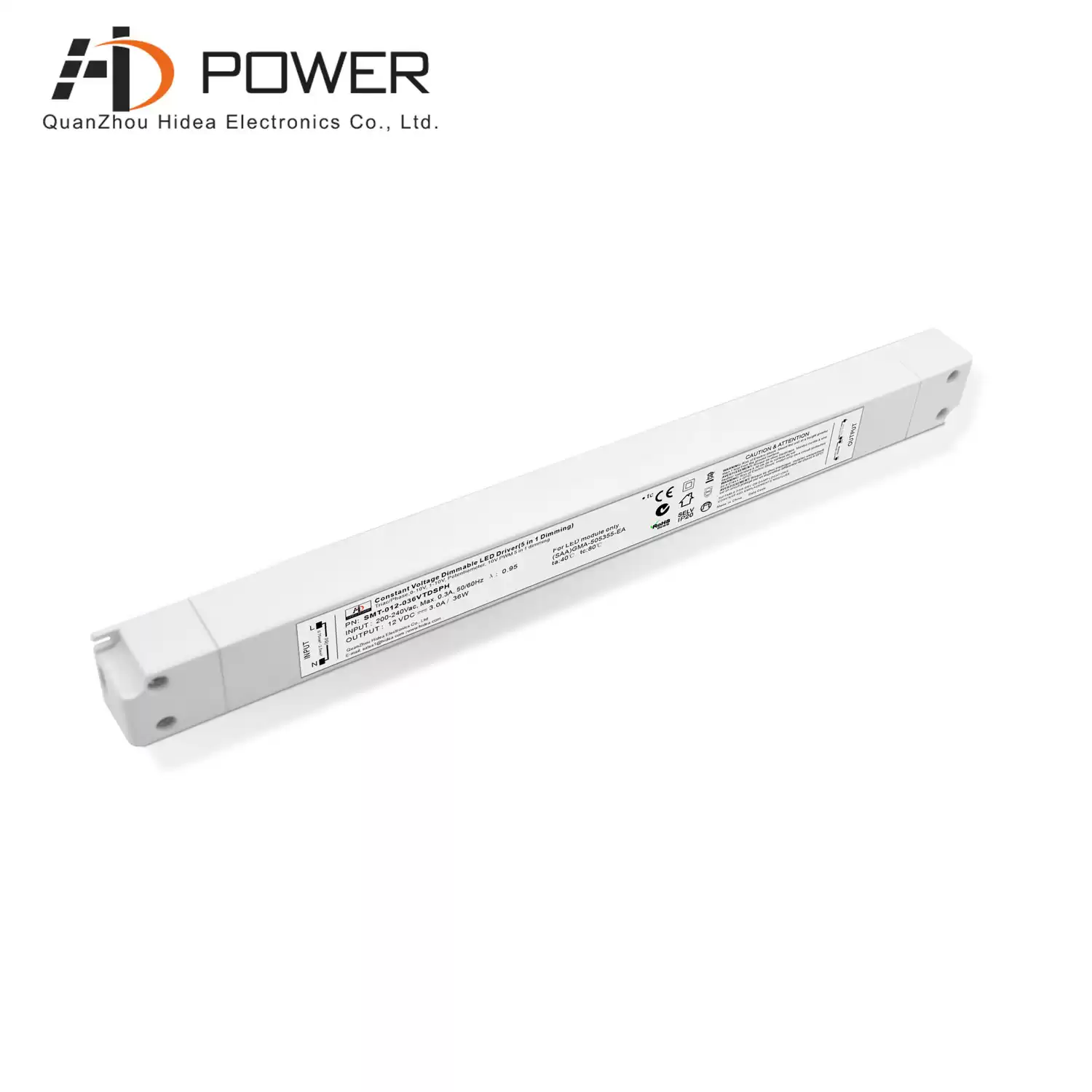

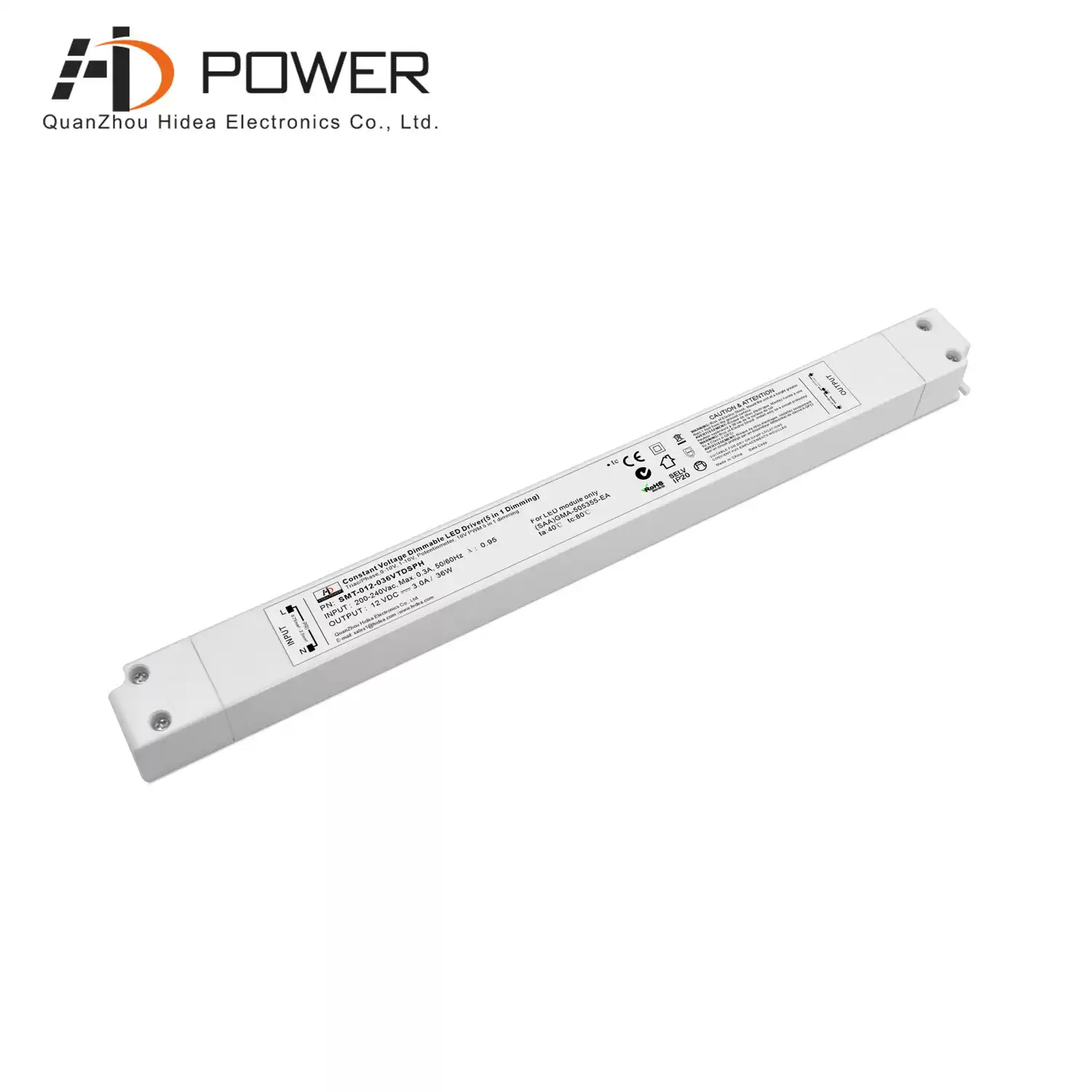

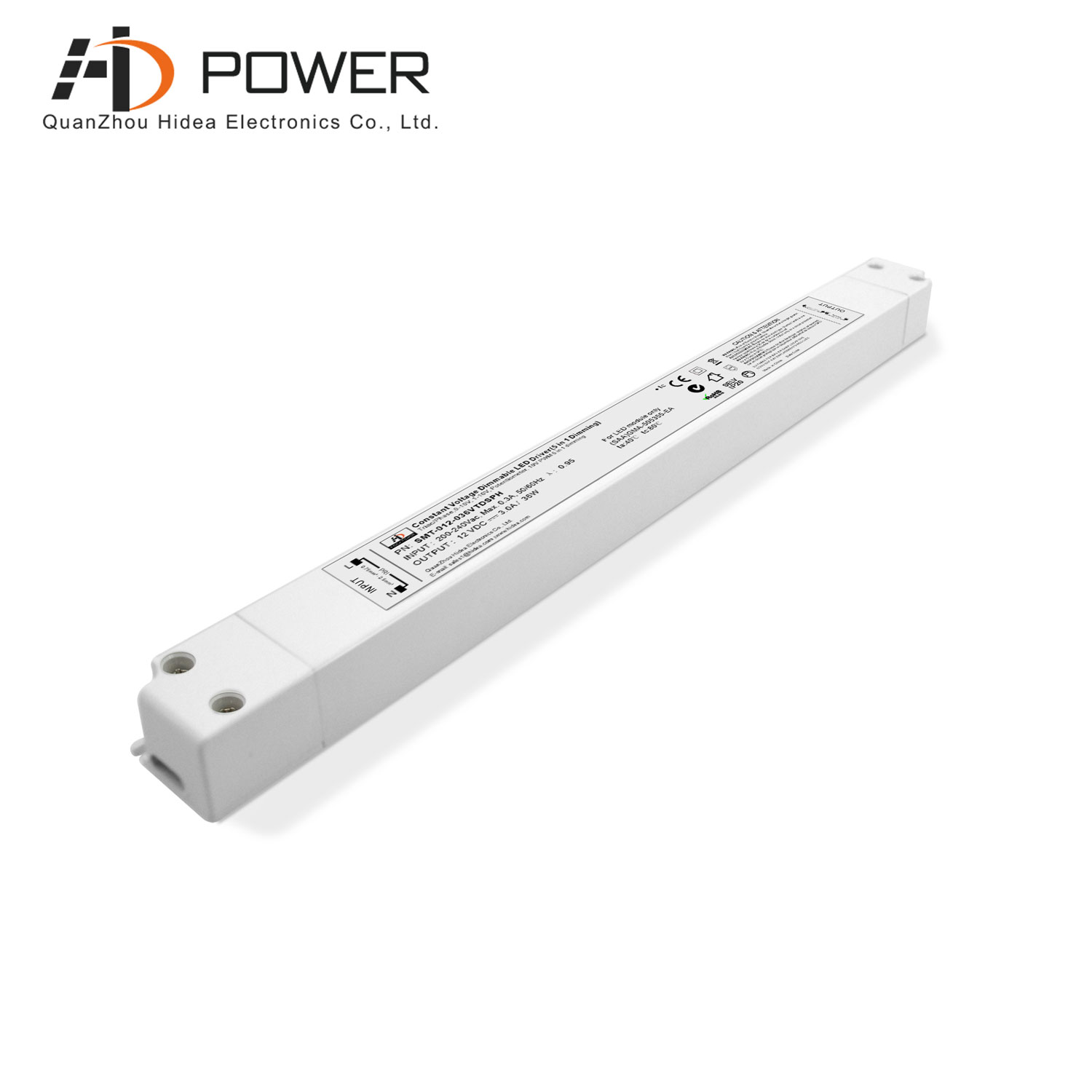

240v to 12v constant voltage ultra slim 5 in 1 dimmable 36W led driver power supply led transformer
The 36W TRIAC&0-10V dimming led driver is compatible with most dimmers on the market to achieve flicker-free dimming, dimming range from 0 to 100%, constant voltage mode, work efficiency >79%
Specification
|
model
|
SMT-012-036VTDSPH
|
SMT-024-036VTDSPH
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Tolerance
|
±0.5
|
|
Rated current
|
3.0Amp
|
1.5Amp
|
|
Rated power
|
36W
|
36W
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
Input
|
Voltage Range
|
200-240VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
PF≥0.96/230VAC
|
|
Full Load Efficiency(Typ.)
|
80%
|
79%
|
|
THD(Typ. ) @ full load
|
< 20%
|
|
AC Current(Typ.)
|
0.3A
|
|
Inrush Current(Typ.)
|
40.8A,50%,102us
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Short Circuit
|
Hiccup mode,recovers automatically after fault condition is removed
|
|
Over Loading
|
≤120% Hiccup mode,recovers automatically after fault condition is removed
|
|
Over temperature
|
100℃±10℃
|
|
Protection Class
|
II
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20 - 95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40 - +80℃,10 - 95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0 - 50℃)
|
|
Vibration
|
10~500Hz,2G10min./1 cycle,period for 60min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13 EN62493
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
Isolation resistance
|
I/P-O/P: 100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
EN55015 EN61000-3-2 EN61000-3-3
|
|
EMC IMMUNITY
|
EN61000-4-2,3,4,5,6,11 EN61547
|
|
Others
|
Weight
|
0.2Kg
|
|
Size
|
260*30*18.5mm(L*W*H)
|
|
packing
|
330*275*130mm/ 50pcs /CTN G.W.: 11KG/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
|
|
2. Tolerance: includes set up tolerance, line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Related Products
|

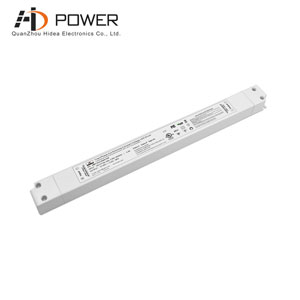

7 year warranty Ultra Thin Size triac dimming led driver, UL certified, suitable for commercial and ultra lighting projects in North America
Mode：SMT-012-036VTSP
Dimming Mode : triac dimming
Output Power : 36W
intput voltage：100-277Vac
Size：260*30*18.5MM L*W*H）
|
