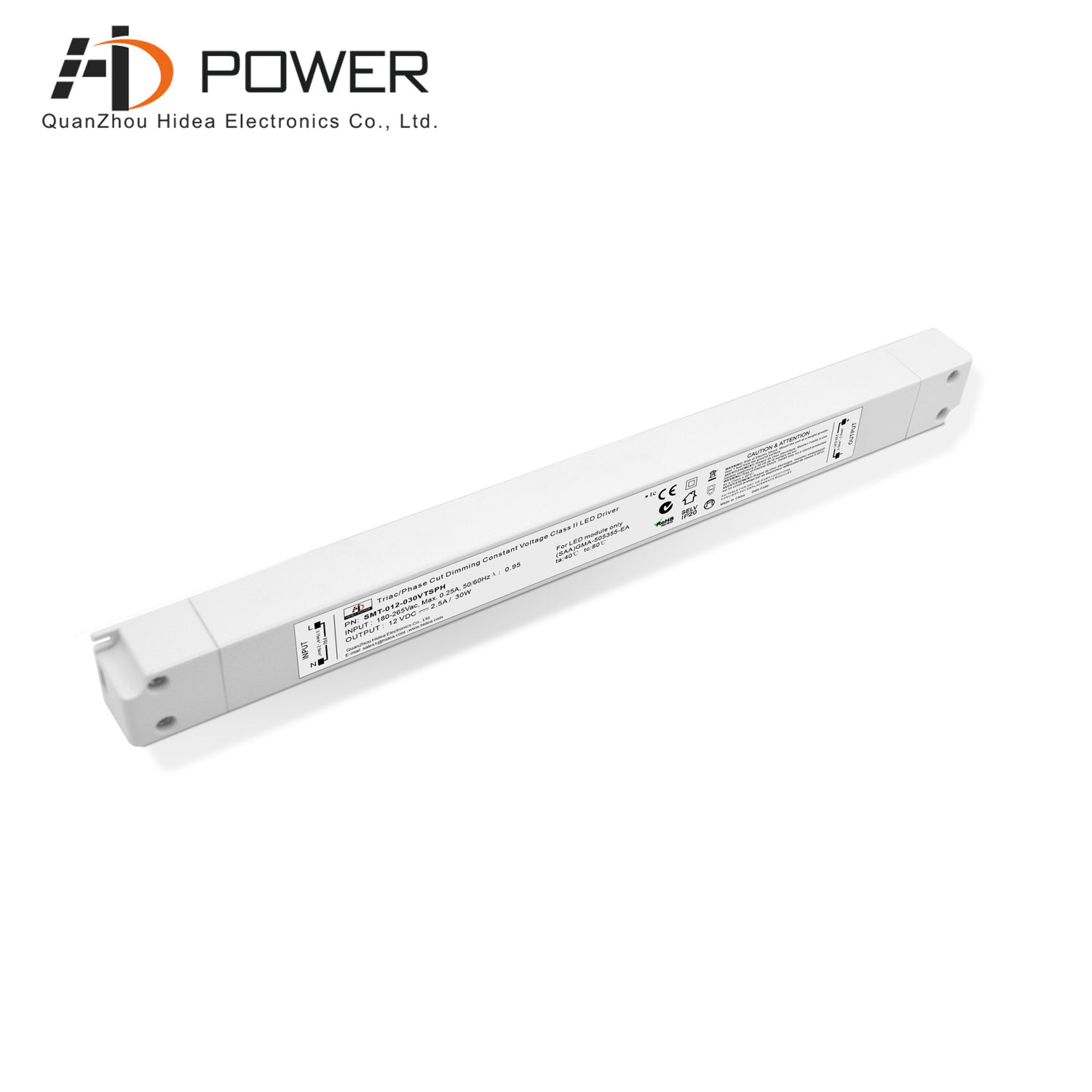

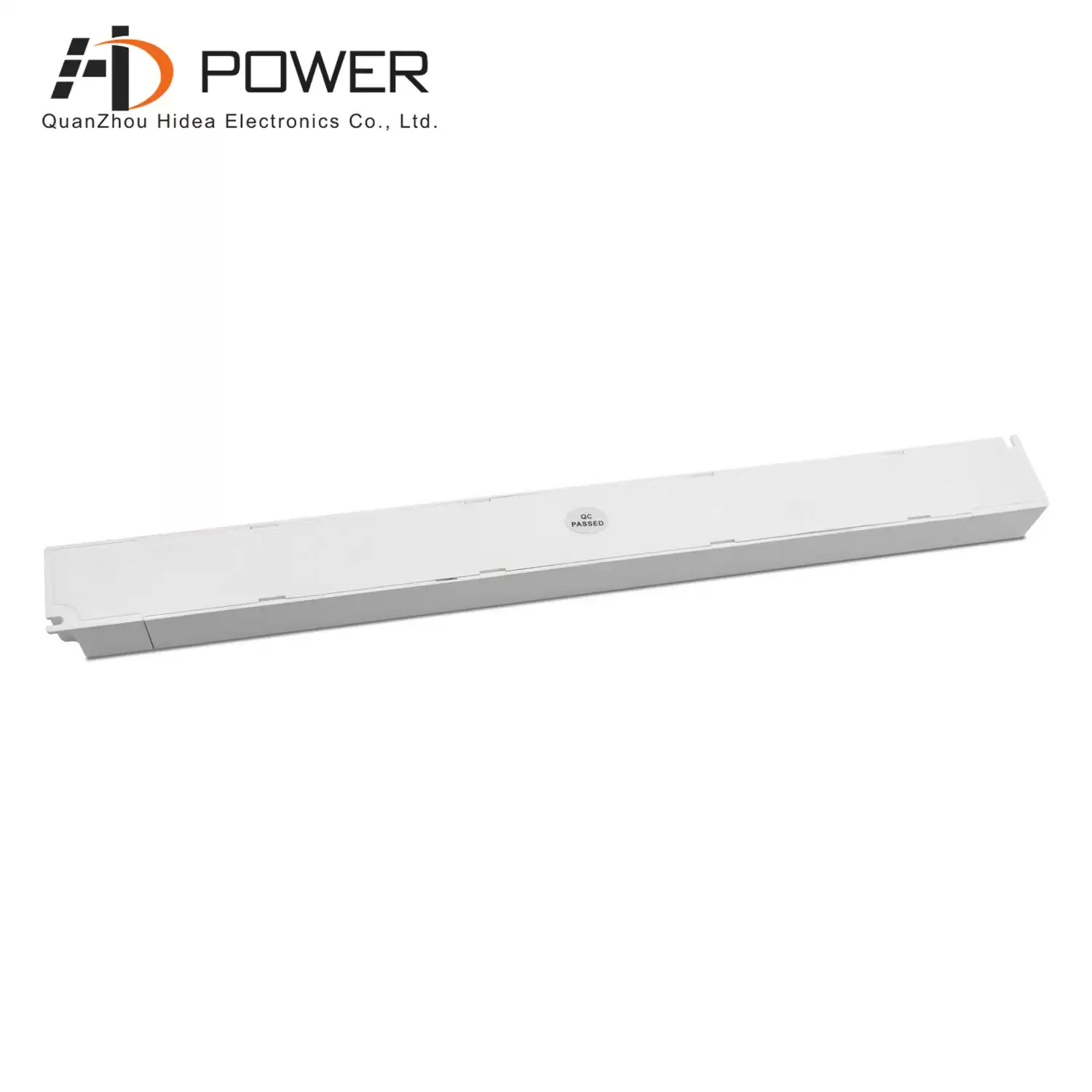

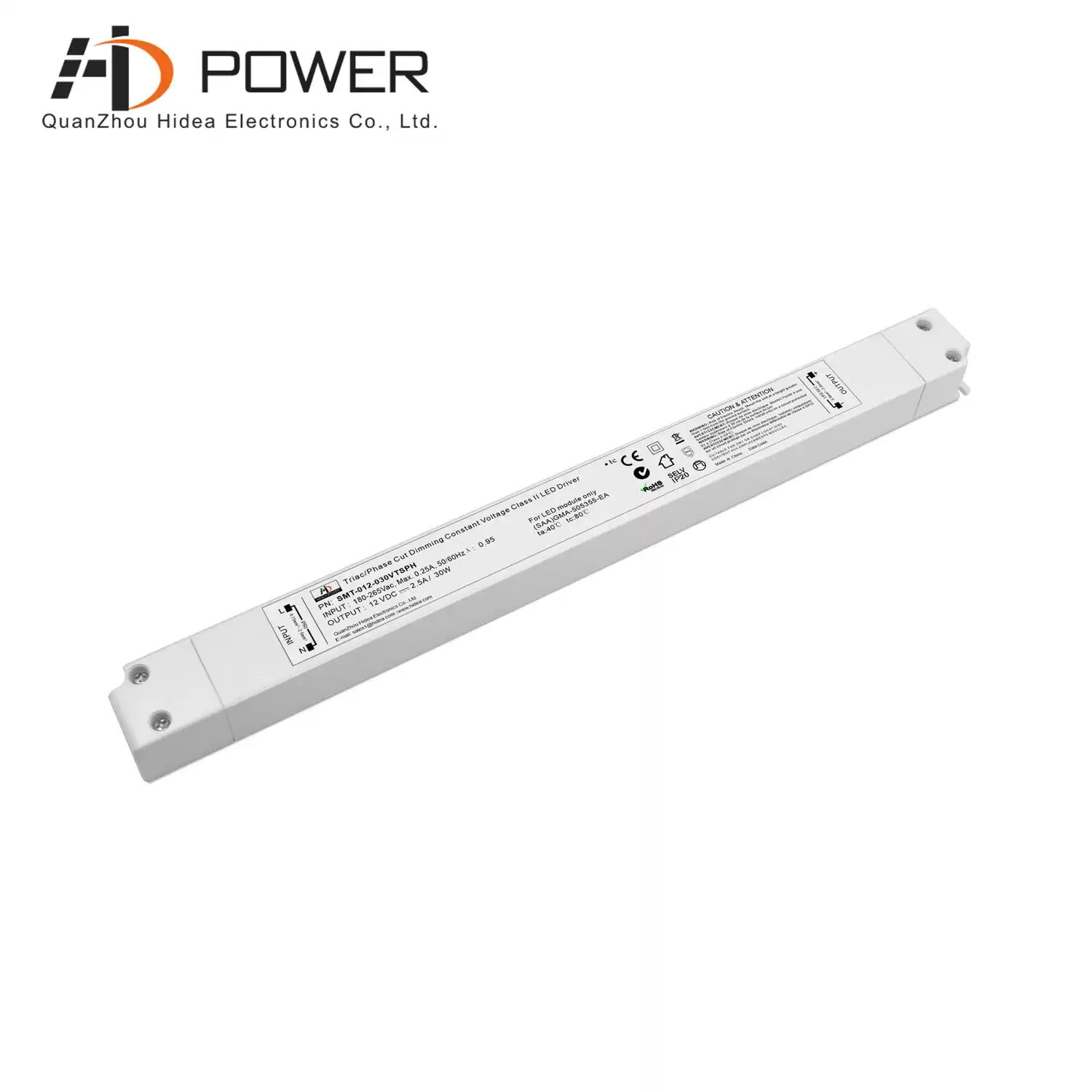

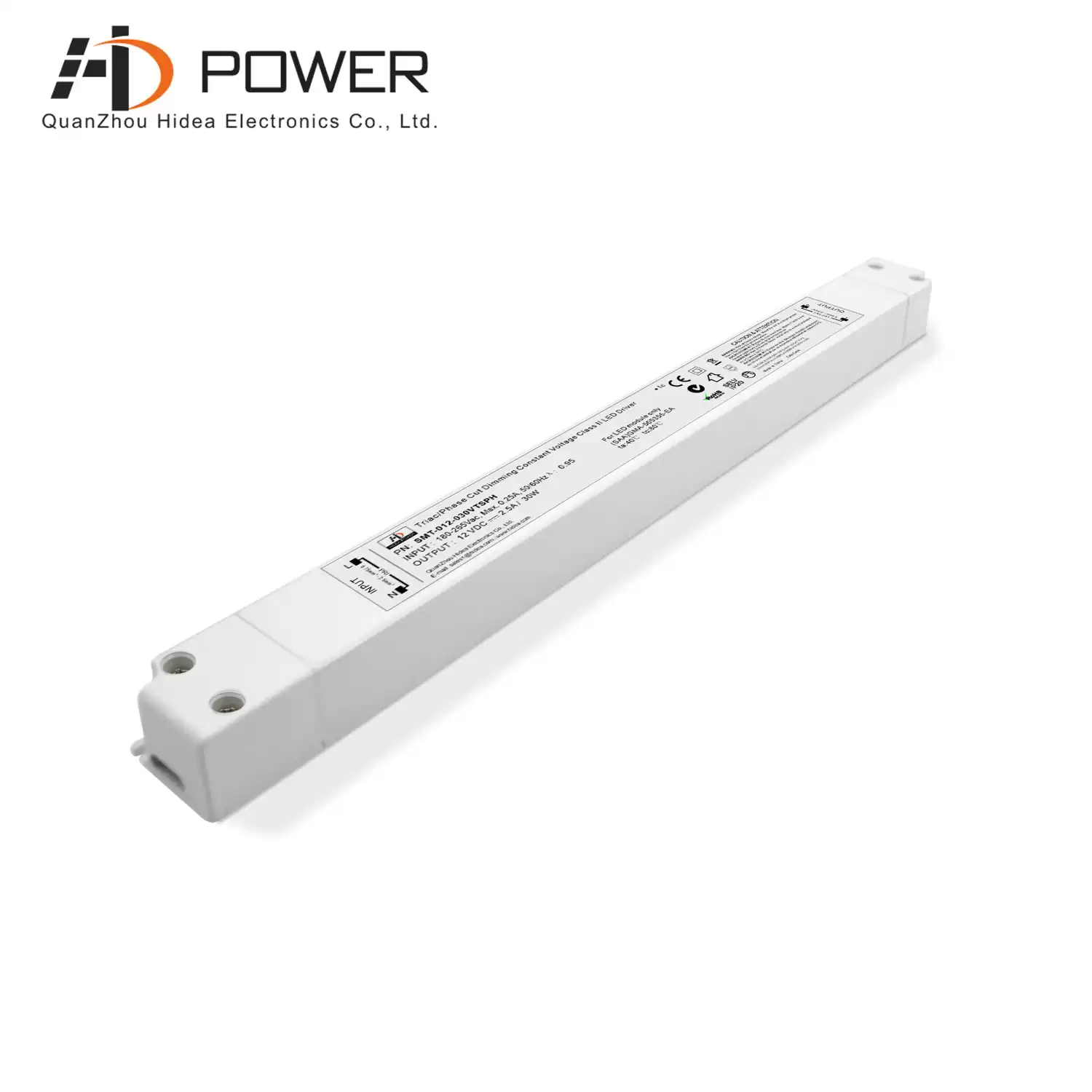

240vac 30w 12v triac dimming led driver constant voltage power supply transformer 24v
240vac plastic enclosure protection, ip20 indoor installed triac dimmable led driver with short circuit, overload, overheat protection, dimming range from 0 to 100%, constant voltage mode, work efficiency >79%
Specification
|
model
|
SMT-012-030VTSPH
|
SMT-024-030VTSPH
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
Rated current
|
2.5Amp
|
1.25Amp
|
|
Rated power
|
30W
|
30W
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±2%
|
|
Input
|
Voltage Range
|
220-240VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
PF≥0.96/230VAC
|
|
Full Load Efficiency(Typ.)
|
>79%
|
>79%
|
|
AC Current(Typ.)
|
0.20A/200VAC
|
|
Inrush Current(Typ.)
|
34A,50%,104us@230VAC
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover
|
|
Protection Class
|
II
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13 EN62493
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
Isolation resistance
|
I/P-O/P I/P-FG O/P-FG: 100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
EN55015 EN61000-3-2 EN61000-3-3
|
|
EMC IMMUNITY
|
EN61000-4-2,3,4,5,6,11 EN61547
|
|
Others
|
Weight
|
0.2Kg
|
|
Size
|
260*30*18.5mm(L*W*H)
|
|
packing
|
50pcs /CTN SIZE: 330X275X130mm
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
|
|
2. Tolerance: includes set up tolerance, line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Related Products
|

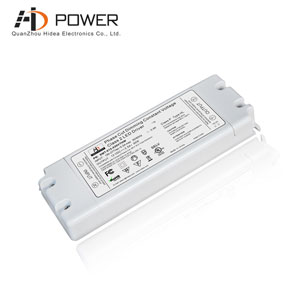

The UL certified plastic case triac dimmable led driver is suitable for indoor lighting projects in North America with input voltages of 100-277vac
Mode：SMT-012-030VTHW
Dimming Mode : triac dimming
Output Power : 30W
intput voltage：100-277Vac
Size：155*54*20MM L*W*H）
|
