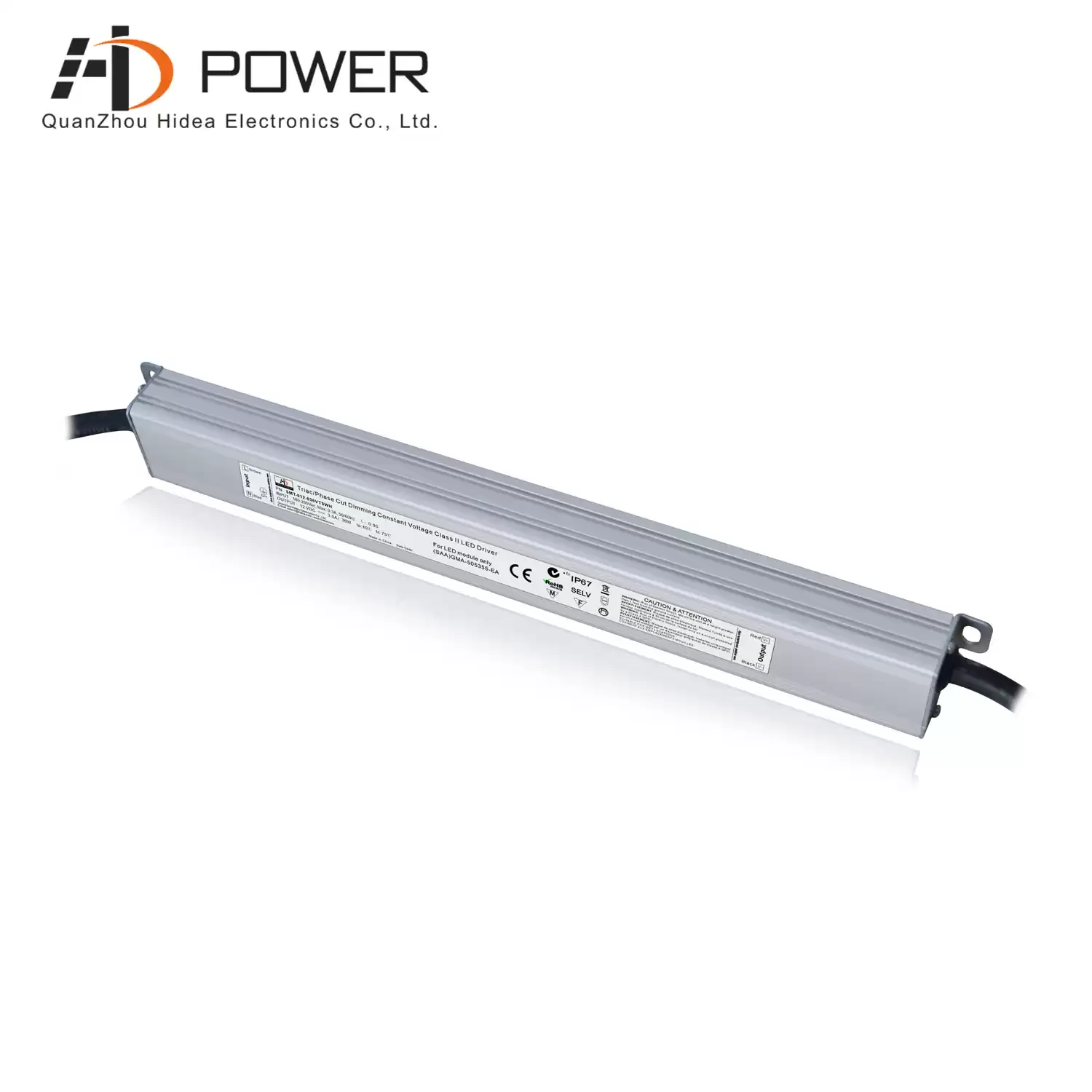

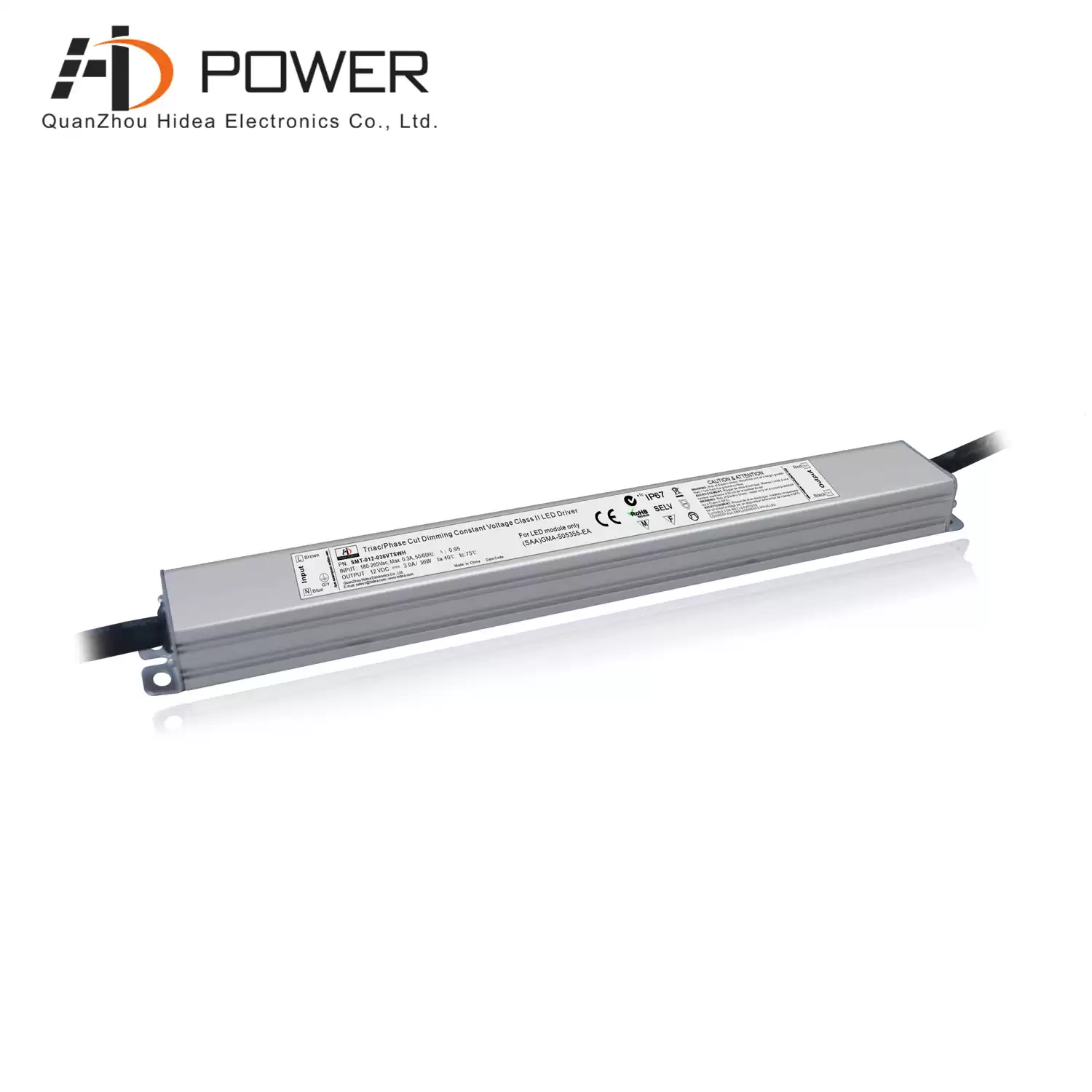

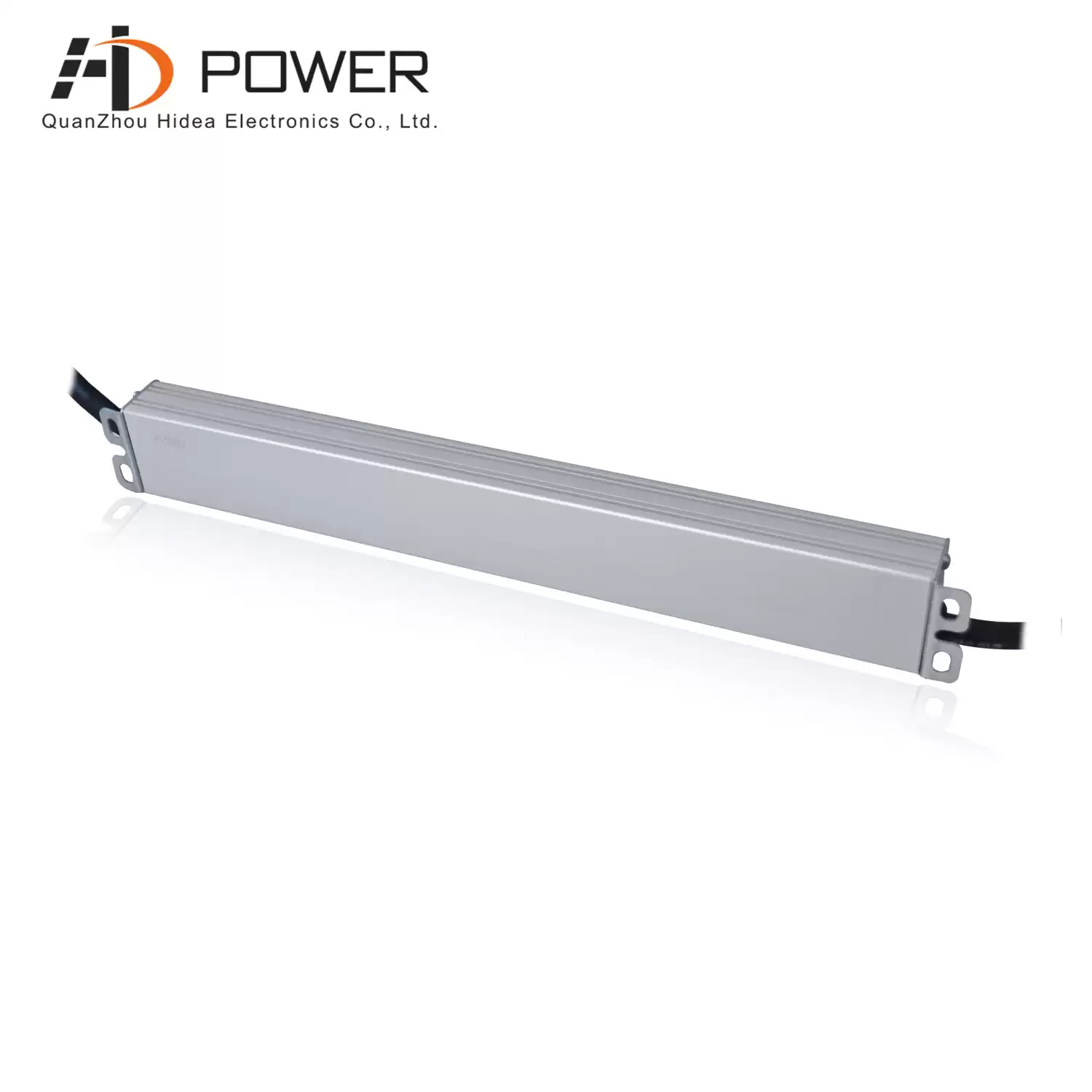

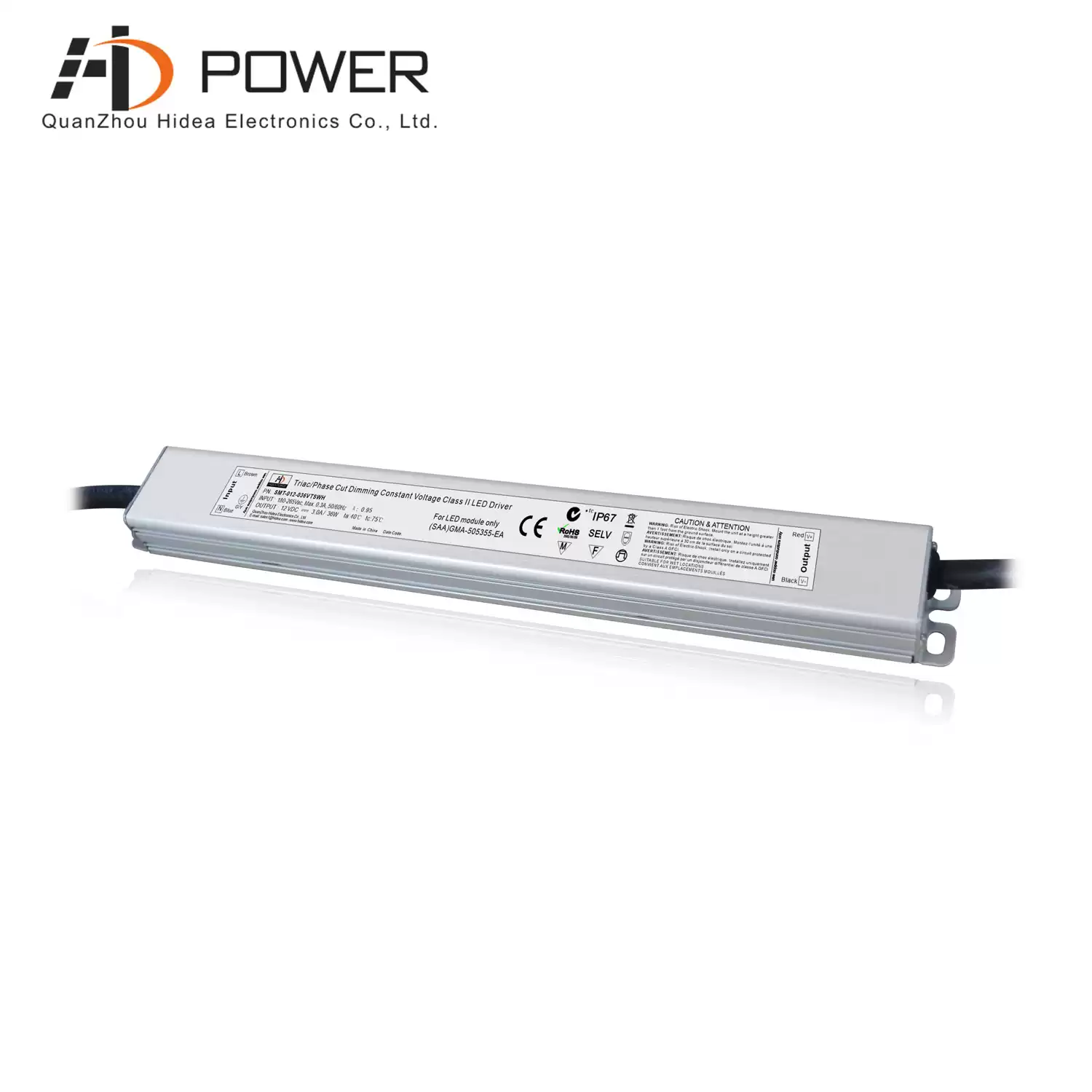

240vac waterproof 12v constant voltage triac dimmable led driver power supply 36w IP67
hidea power 36W LED driver Aluminum enclosure waterproof grade ip67 triac dimming compatibility, in line with global safety regulations, built-in PFC function, PF>0.96, work efficiency >82%
Specification
|
model
|
SMT-012-036VTSWH
|
SMT-024-036VTSWH
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
Rated current
|
3.0Amp
|
1.5Amp
|
|
Rated power
|
36W
|
36W
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±0.5%
|
|
Input
|
Voltage Range
|
220-240VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
PF≥0.96/230VAC
|
|
THD(Typ. ) @ full load
|
<20%
|
|
Full Load Efficiency(Typ.)
|
>80%
|
>80%
|
|
AC Current(Typ.)
|
0.23A/220VAC
|
|
Inrush Current(Typ.)
|
34A,50%,104us@230VAC
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover
|
|
Protection Class
|
I
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13 EN62493
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
Isolation resistance
|
I/P-O/P I/P-FG O/P-FG: 100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
EN55015 EN61000-3-2 EN61000-3-3
|
|
EMC IMMUNITY
|
EN61000-4-2,3,4,5,6,11 EN61547
|
|
Others
|
Weight
|
0.35Kg
|
|
Size
|
260*32*20mm(L*W*H)
|
|
packing
|
30pcs /CTN SIZE: 290X270X160mm
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
|
|
2. Tolerance: includes set up tolerance, line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Related Products
|

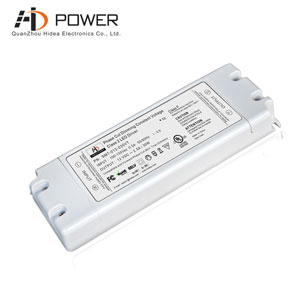

Plastic housing 30W triac dimming led driver ends flexible removable, easy to install, can meet the lighting needs
