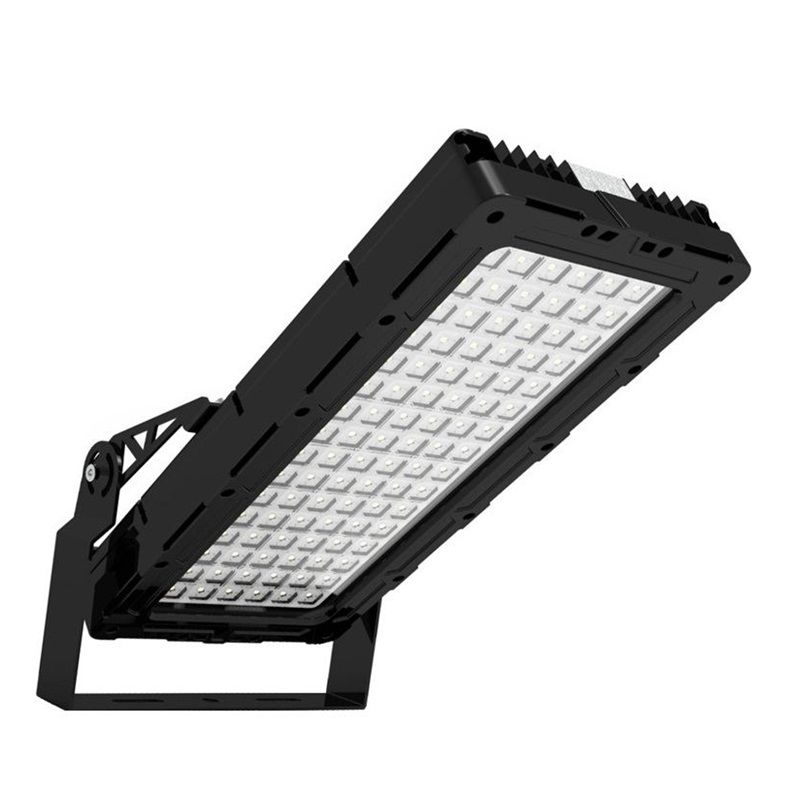

Product Item: 240W Directional LED Floodlights High Mast System For Sports Arena Lighting
Overview:
This series of modular high mast flood lights is an energy-efficient LED lighting fixture designed with aesthetics, ranging from 240W to 2000W. With a single module powered 240W to 320W, it can be grouped as a luminaire in 1-6 modules with full azimuth rotation and tilt function. High lumen output Lumileds LED and Mean Well drivers ensure the high luminous efficacy as high as 130-150LM/W with high stability.
The flexible module angles make the high mast lamp very powerful in various applications. It's widely applied to sports stadiums and arenas, golf courts, soccer fields, hockey pitches, padel tennis courts, ski resorts, etc. The highly ventilated sports track lighting high mast flood lights use excellent heat conductivity aluminum heat sink to ensure great thermal management. Thanks to the exceptional temperature control, the lamp has very low luminous depreciation over its whole lifespan.
Specifications:
|
Model
|
SR-HMAS-240W
|
Power
|
240W
|
Lumen Output
|
33,600lm
|
Light Source
|
LUMILEDS/OSRAM/CREE, etc.
|
Beam Angle
|
30°/60°/90°/TYPE Ⅱ/TYPE Ⅲ(25°/40° available)
|
Driver
|
MEAN WELL/SOSEN, etc.
|
Input Voltage
|
AC 100-305V, 50/60Hz
|
Power Factor
|
>0.95
|
CRI
|
Ra>80
|
CCT
|
3000K/4000K/5000K/5700K/6500K
|
IP Rating
|
IP65
|
|
IK Rating
|
IK08
|
Dimming
|
Dimmable/Non-dimmable
|
Material
|
Die-cast Aluminium, Tempered Glass
|

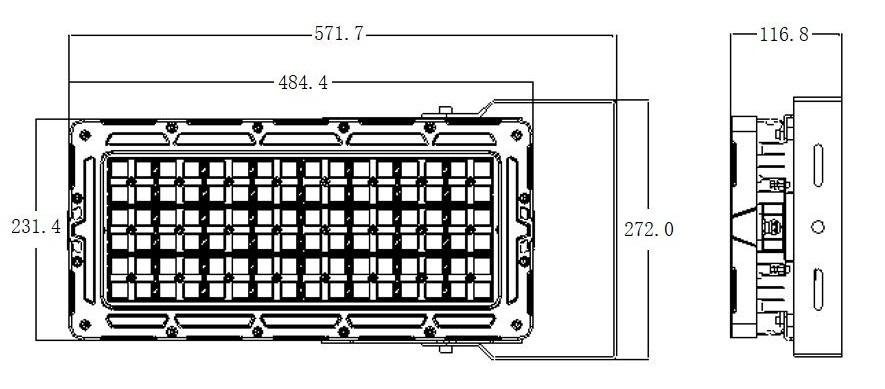

Dimension
|
571.7x272x116.8mm
|
Weight
|
7.5KG
|
Warranty
|
5 years
|
Features:
-

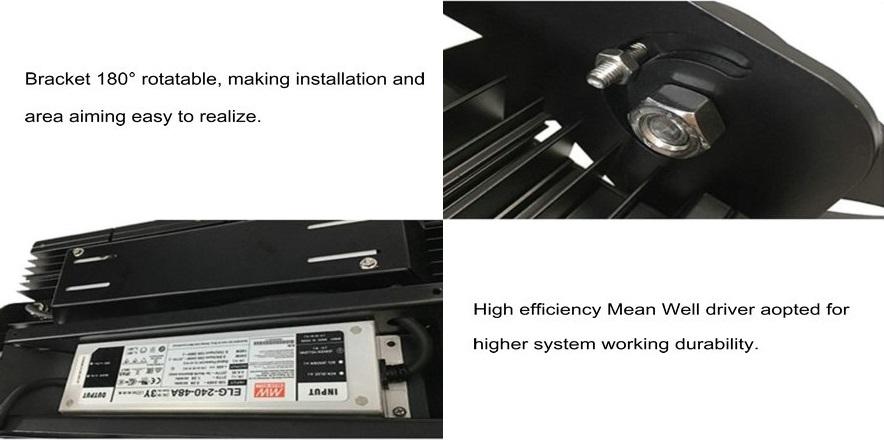

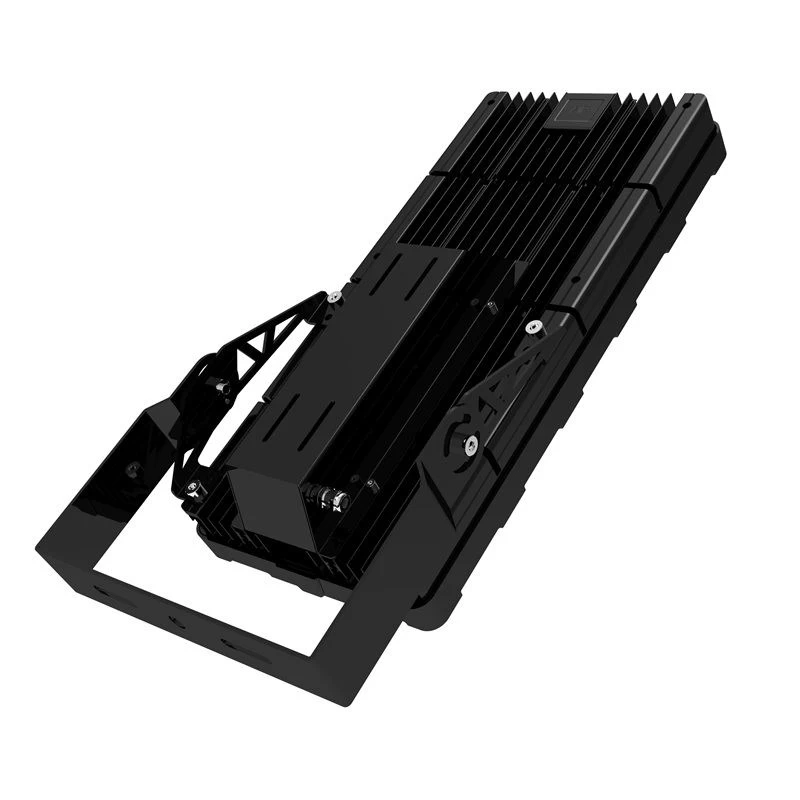

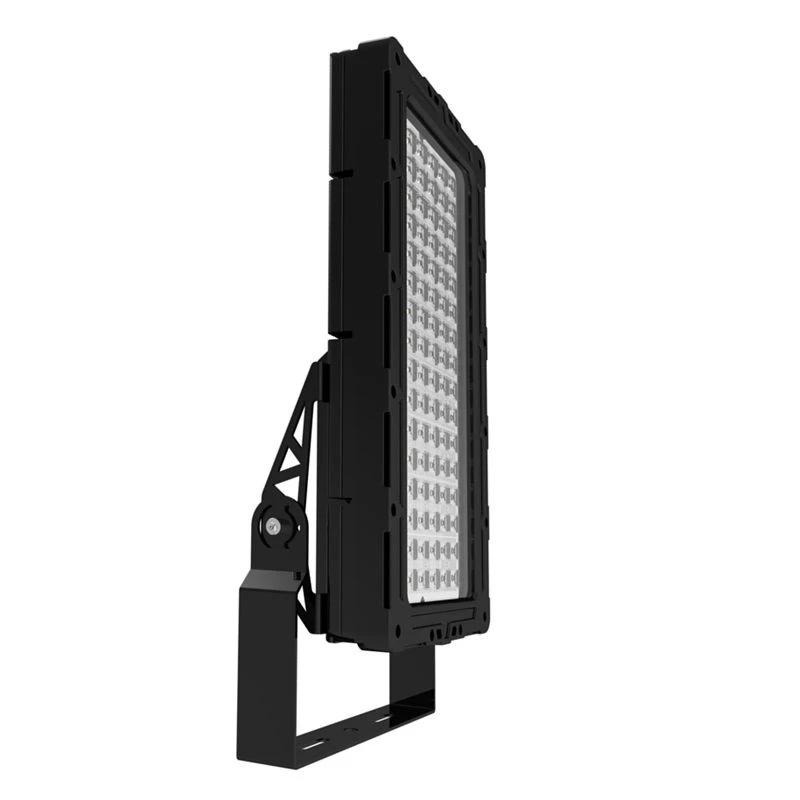

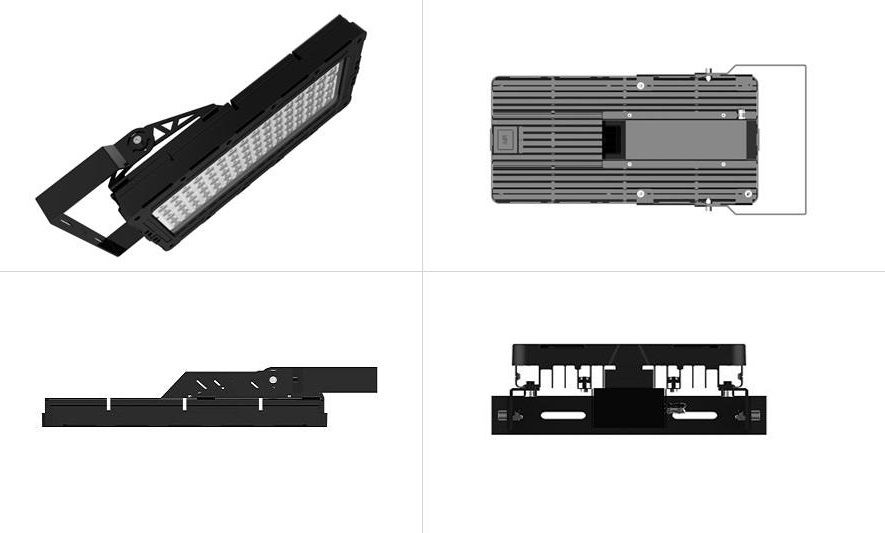

Powerful modular design high mast luminaire, with single module 240W-320W can be tilt on the bracket, each module lighting angle can be rotated freely by adjusting the screws.
-
A wide range of power options: 240W/320W/480W/640W/720W/960W/1280W/1440W/1920W(or customized 300W/600W/700W/900W/1000W/1200W/1500W/2000W)
-

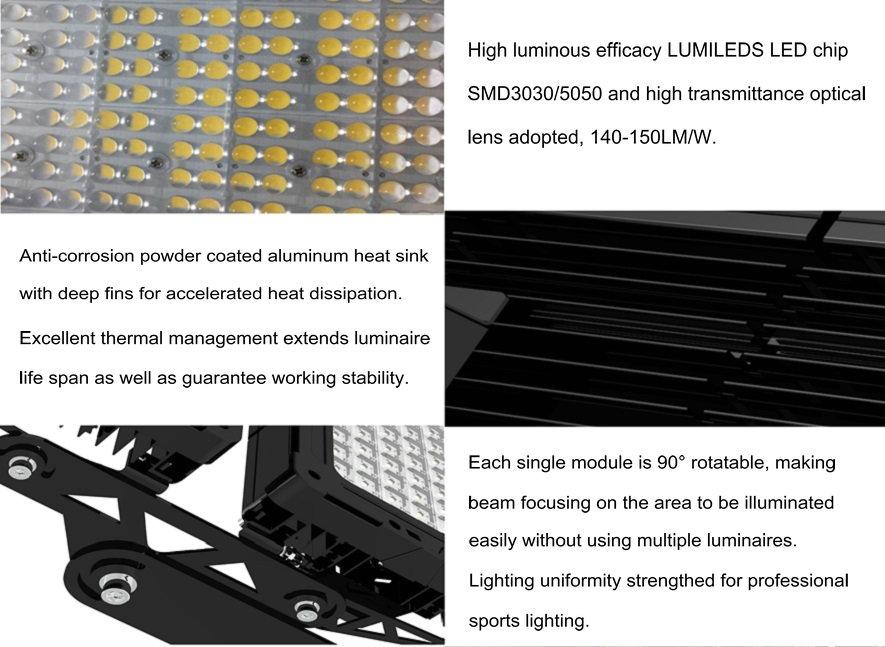

High lumen original Lumileds LED as light source, high transmission polycarbonate lens(transmittance>92%) and tempered glass used, ensuring system luminous efficacy 130-150LM/W.
-
High efficiency Mean Well driver, 6KV shock-proof, other brands driver and 10KV surge protection device(SPD) also available to ensure working stability in harshest environments.
-
Multiple optical lens with beam angle options: Lumileds SMD3030 for 30°, 60°, 90°, Type II, Type III; Lumileds SMD5050 for 25°, 40°, 60°, 90° for various lighting projects application.
-

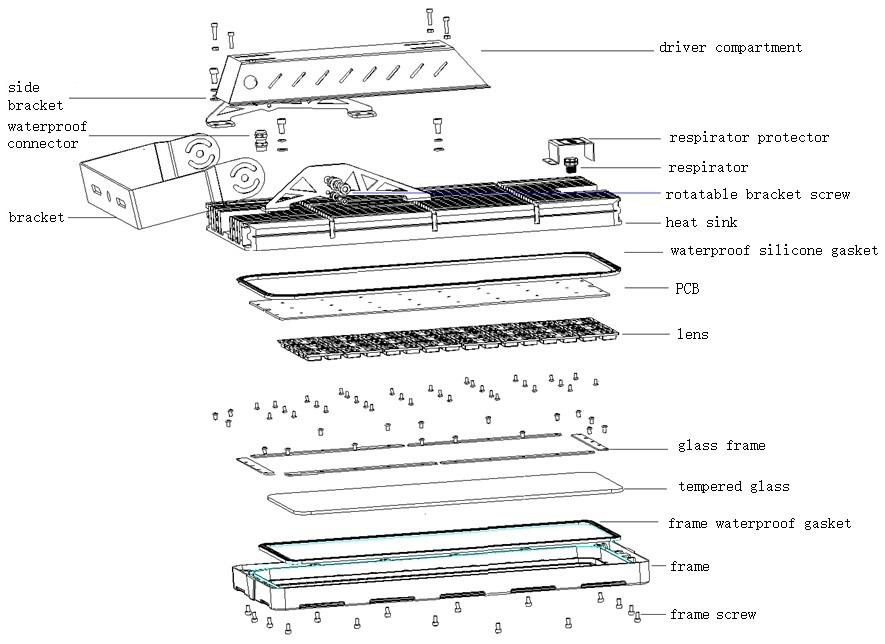

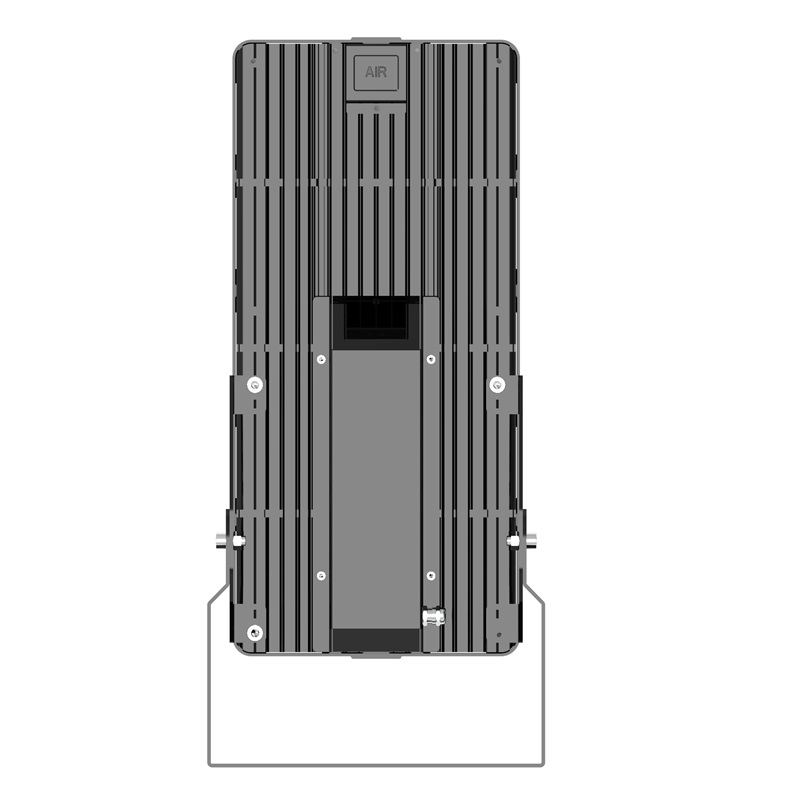

Powder-coated ADC12 aluminum lamp body for best thermal management, highly ventilated lamp body back fin-structure makes the heat generated by LED can be dissipated immediately by airflow, thus to prolong lifespan, and minimize luminous decay.
-
1-10V dimming, DALI dimming, Zigbee wireless control available, and can control the high mast lighting with dimmer or via phone apps.
-
Optional light spill shield available, this glare-free high mast floodlight can effectively reduce spill light while maintaining luminance levels, and reduce the uncomfortable feelings the high mast lamp brings to the athletes and audience.
-
IP65 protection level and IK08 rated, anti-corrosion silicone waterproof gasket ensures excellent sealing, making the lamp moisture-proof and dustproof.
-

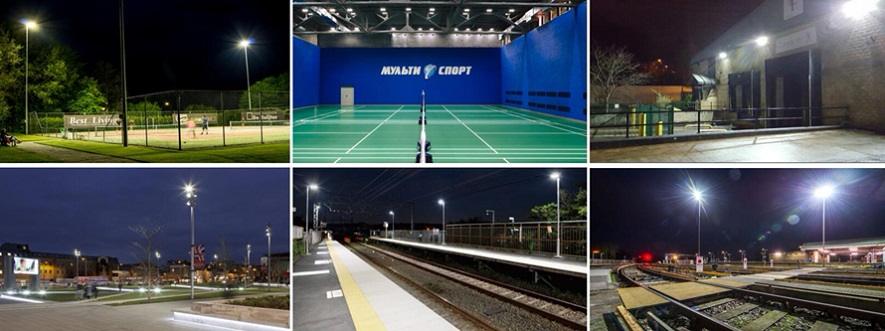

Wide range of high mast lighting applications for all kind of sports fields, football pitches, volleyball courts, paddle tennis courts, dockyards, motorway networks & intersections, airports, etc.
|
|
|
Lighting Distribution:

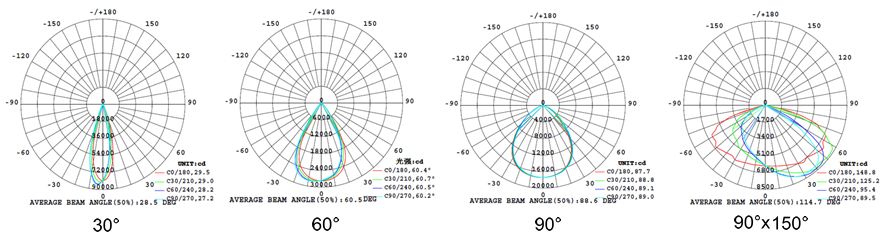

Lumileds SMD3030(recommended): 30°, 60°, 90°, 90x150°

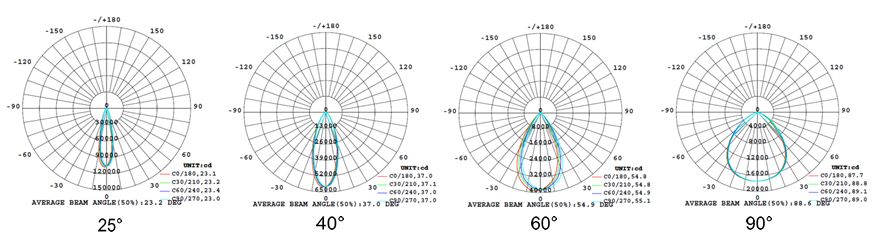

Lumileds SMD5050: 25°, 40°, 60°, 90°
