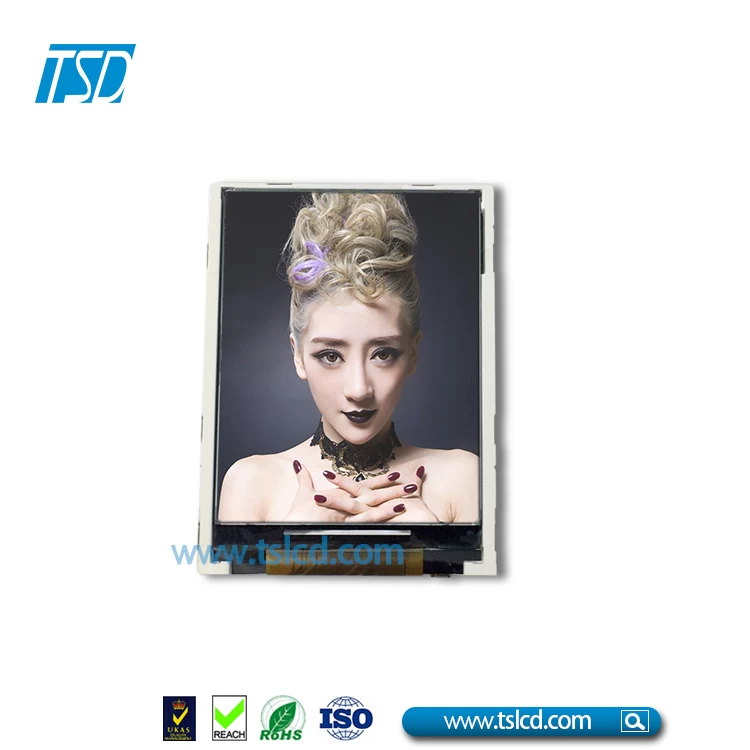

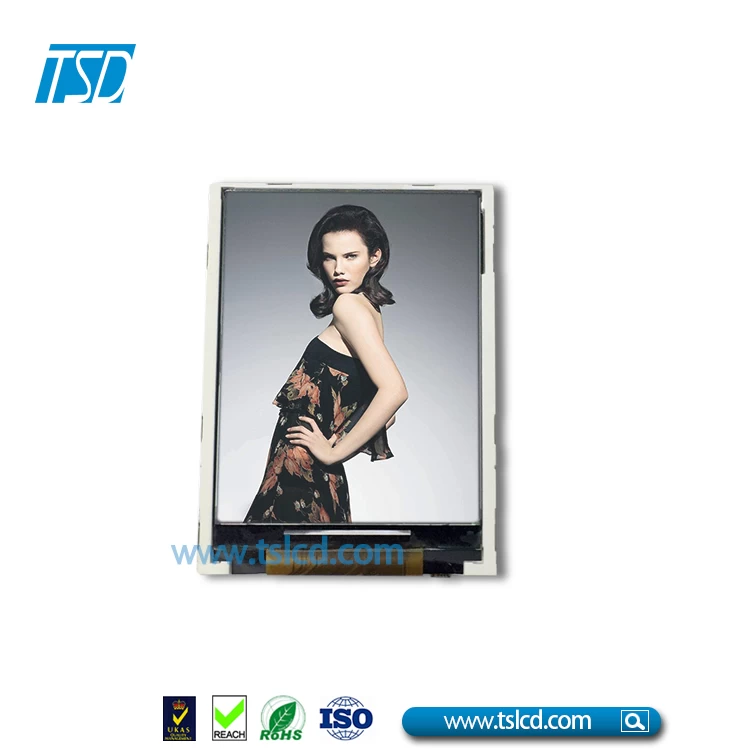

2.0" TFT lcd 240x320 with resistance touch screen
Specification
|
LCD type
|
TFT,Transmissive,TFT color LCD
|
Display type
|
2 inch TFT, 262k color, normal white
|
Description
|
2.0" tft lcd 240x320
|
Driver element
|
a-si TFT Active matrix
|
Outline Dimension(mm)
|
37.88*51.5*2.5mm
|
A.A.(mm)
|
30.6*40.8mm
|
Driver IC
|
ILI9341
|
Resolution(dots)_
|
240*RGB*320
|
Viewing Direction
|
6H
|
Operating temperature(°C)
|
-20-70
|
Storage temperature(°C)
|
-30-80
|
Number of Pixel(pixels)
|
320(H)x 3RGB x 240(V)
|
Pixel arrangement
|
RGB Vertical Stripe
|
Display mode
|
Normally white
|
Weight(g)
|
TBD
|
Backlight
|
4LED, White
|
Touch panel
|
4 wire resistive touch panel
|
Weight(g)
|
TBD
|
Interface
|
8080 system 8 bits parallel bus interface
|
Module lifetime(Hours)
|
50,000-100,000
|
