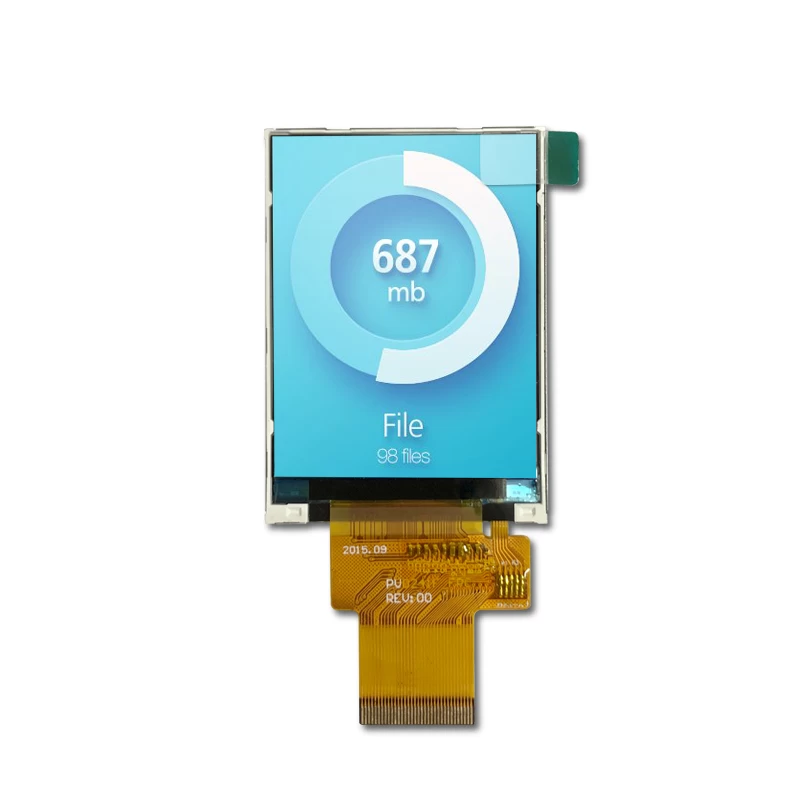

240X320 resolution 2.8 inch tranflective TFT LCD display with R61505W controller

240X320 resolution 2.8 inch tranflective TFT LCD display with R61505W controller

Facebook Twitter Pinterest LinkedIn 分享

Specification
Display type 262k color TFT,Transflective
Description QVGA 240x320 2.8 tft lcd
Display Colors 16.7M Dithering
Outline Dimension(mm) 50x69.2x3.35
A.A.(mm) 43.2x67
Driver IC R61505W
Resolution(dots)_ 240*RGB*320
Viewing Direction 12H
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 240(H)x 3RGB x 320(V)
Dots Pitch 0.18x0.18
Color Configuration RGB stripe
Backlight 4 LEDs, White
Weight(g) TBD
Interface Parallel /Serial interface
Module lifetime(Hours) 50,000-100,000
