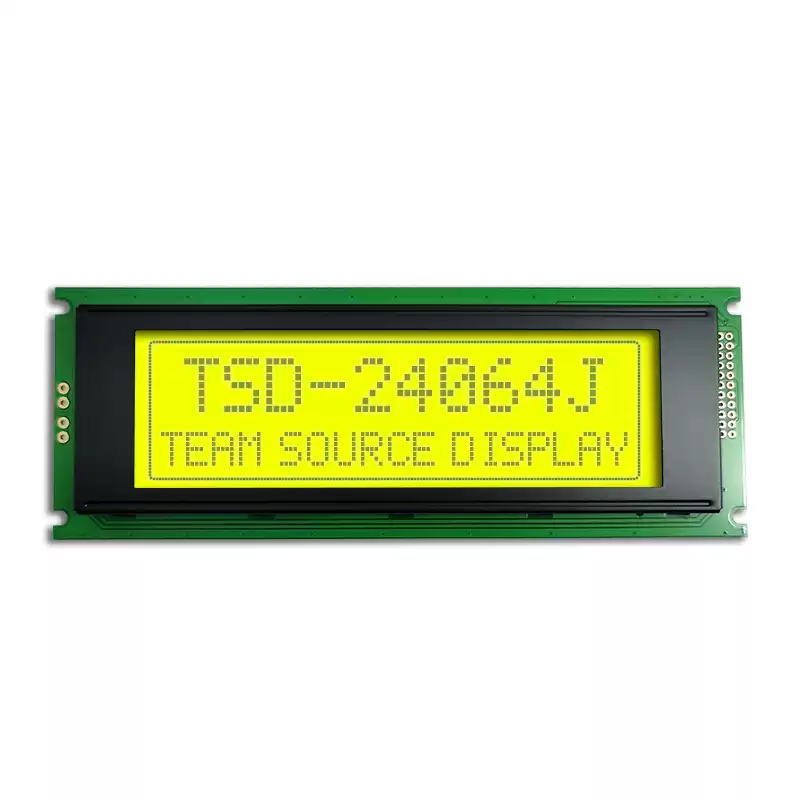

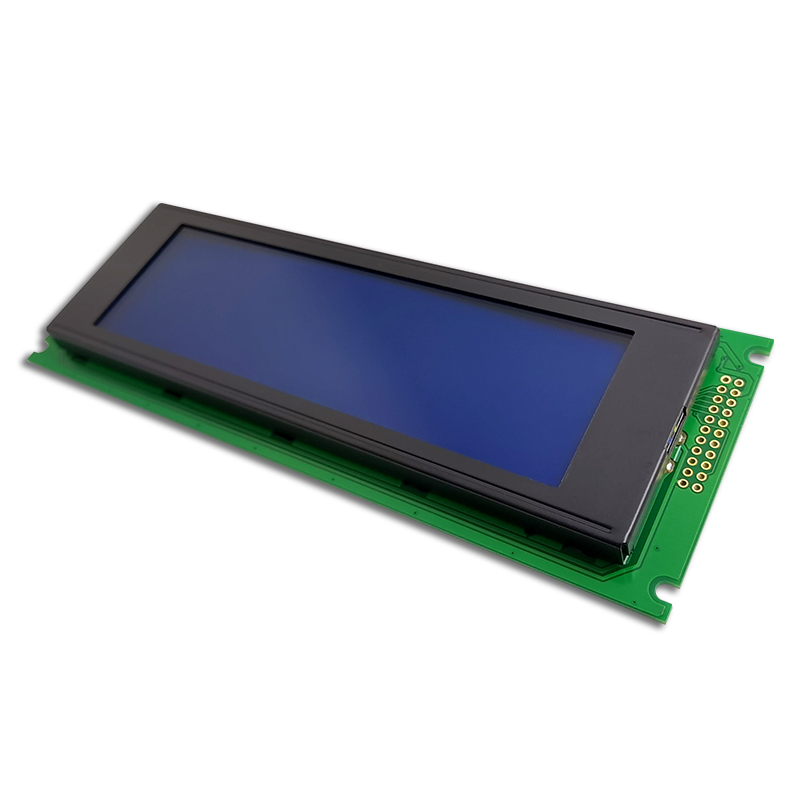

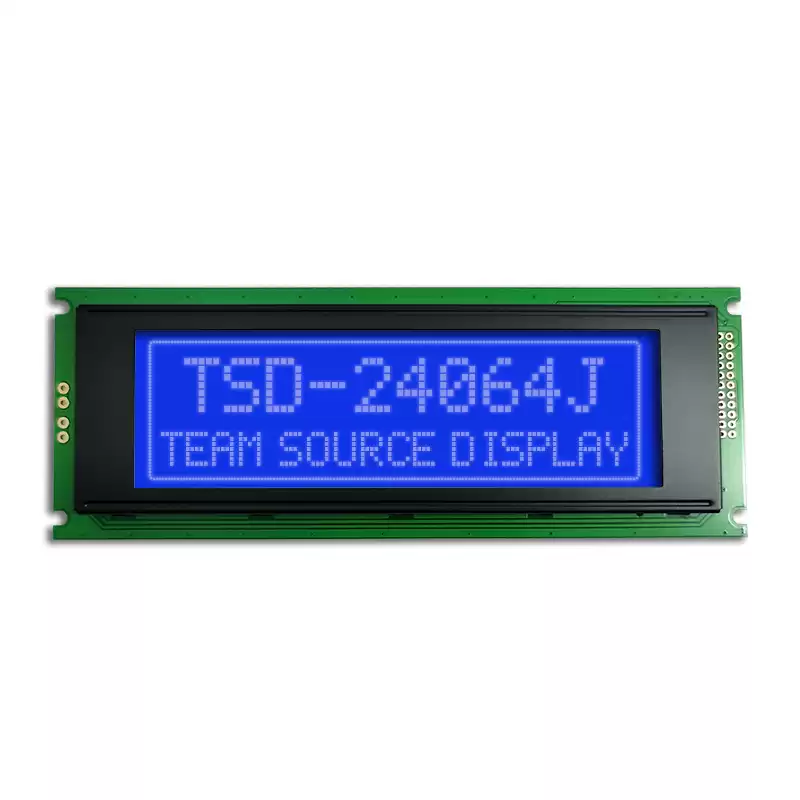

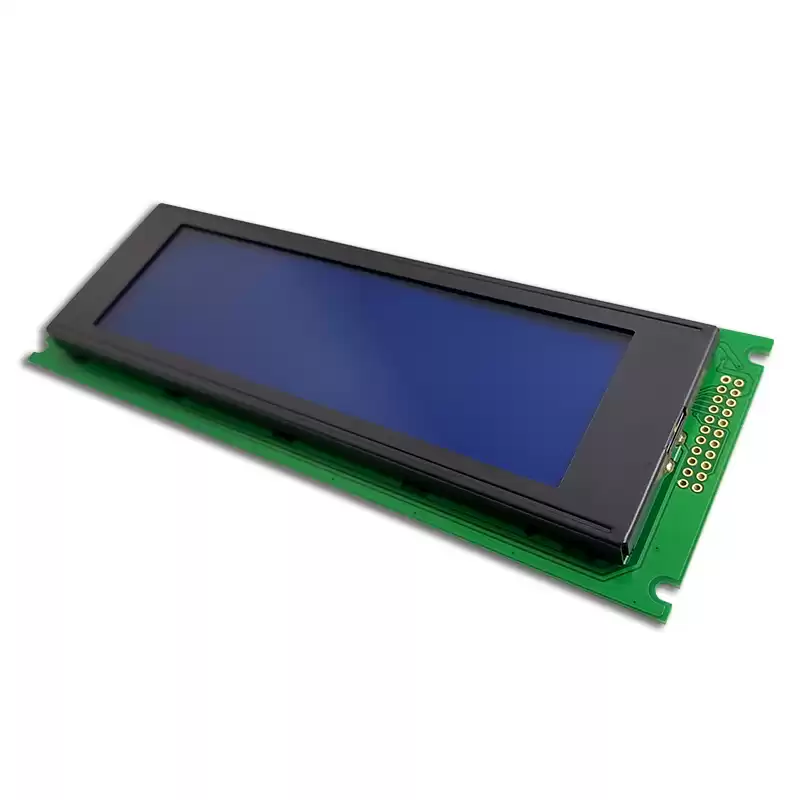

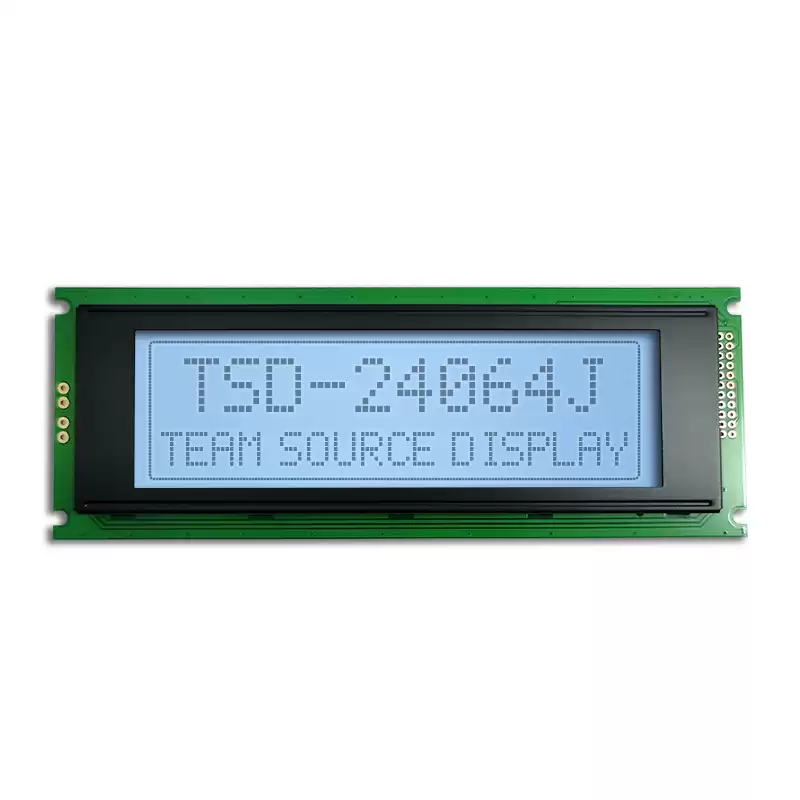

240x64 dots STN graphic lcd display COB module

240x64 dots STN

1/64 duty, 1/9 bias

COB module

Facebook Twitter Pinterest LinkedIn εˆ†δΊ«
Item Spec.
Display Character 240 x 64
Display type STN
Description 240x64 graphic lcd module
Driving method 1/64 DUTY, 1/9 BIAS
Outline Size 180x65x14.5mm
View Area 132x39mm
Active Area 127.16x33.88mm
Character size 0.49x0.49mm
Character pitch 0.53x0.53mm
Number of pins 22

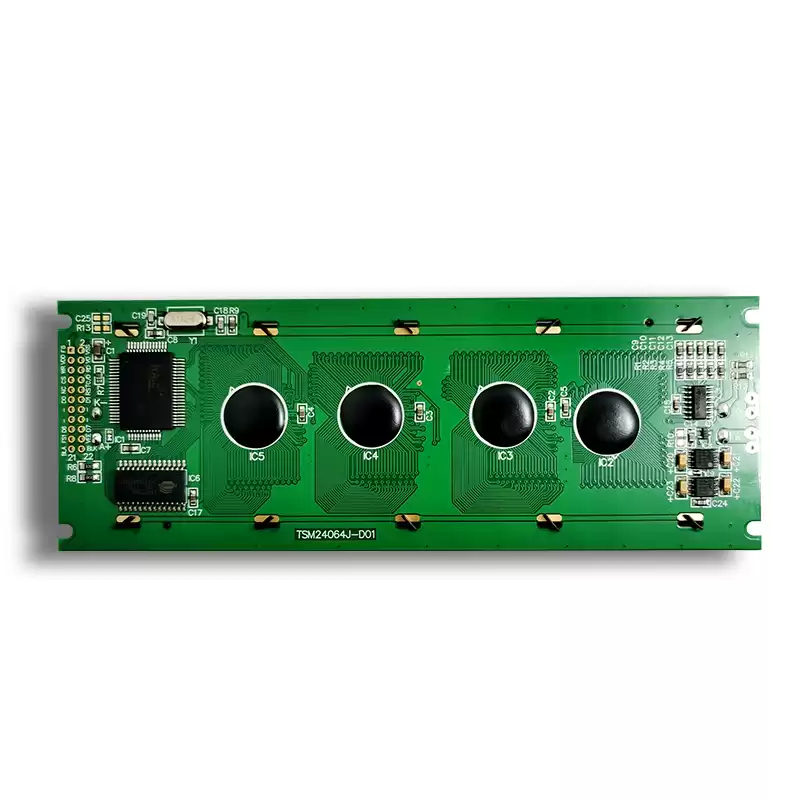

Model name TSM24064J-D01
Warranty 12 months
Operating temperature -20-70℃
Storage temperature -30-80℃
MOQ 1000pcs
