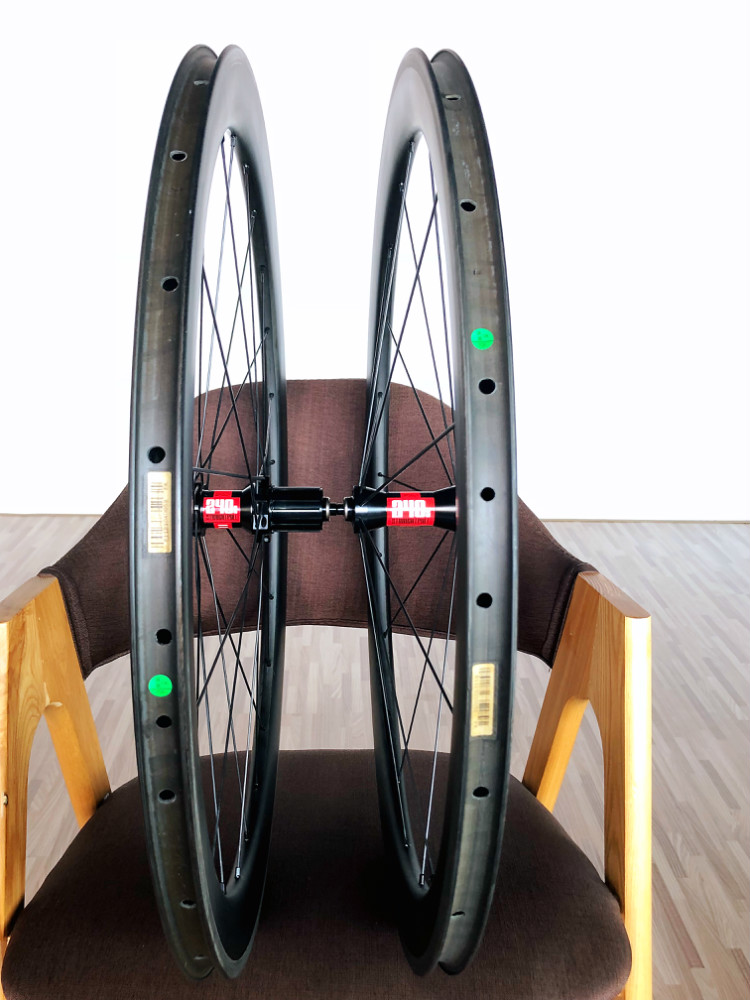

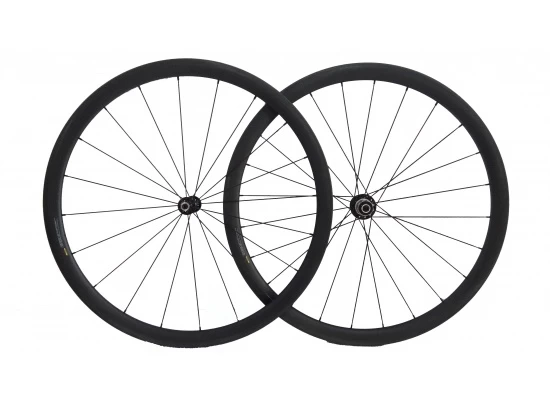

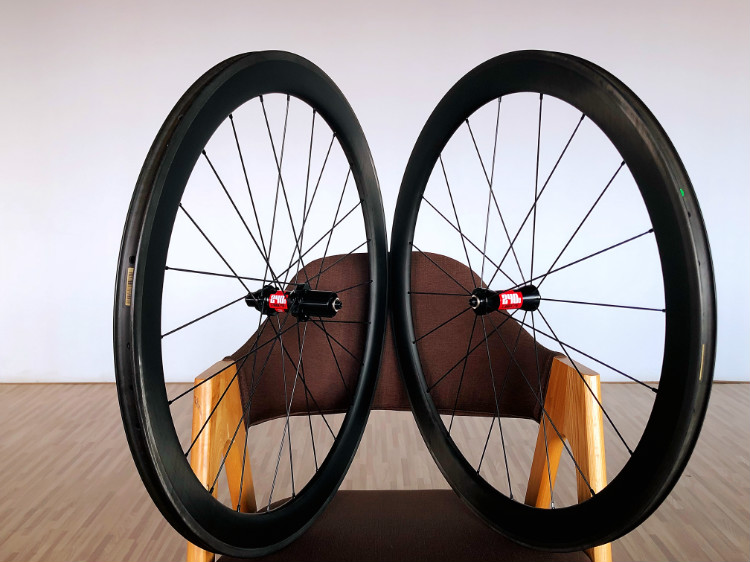

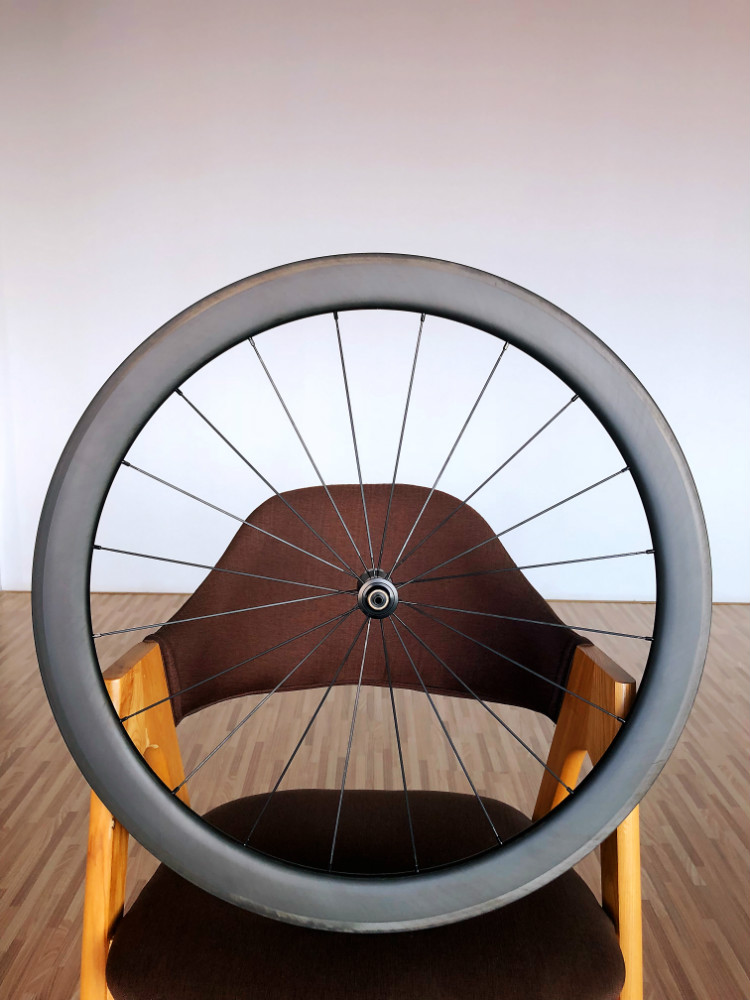

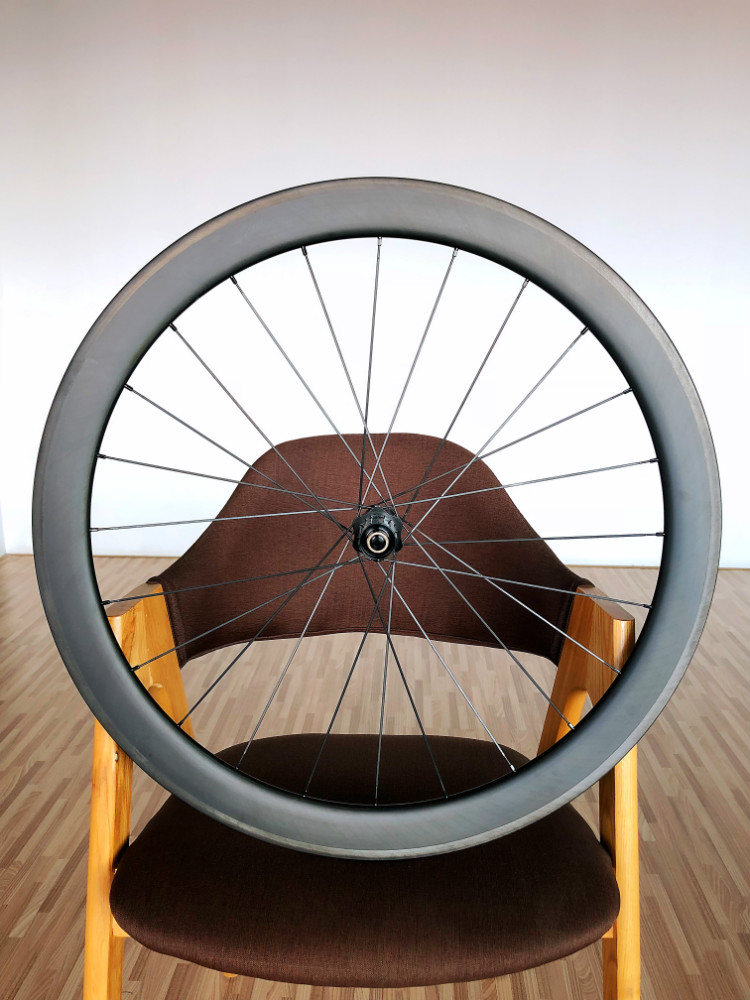

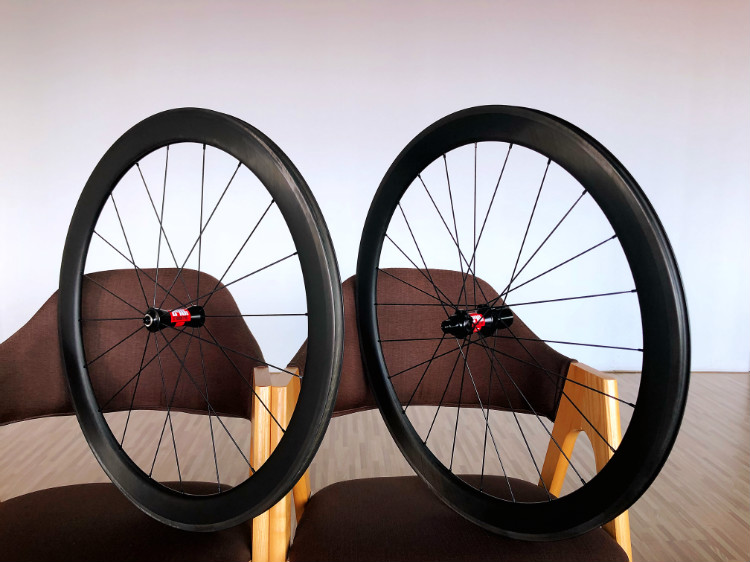

24mm wide 36mm filament wound carbon road clincher wheelset (SC-24WH36C)



Filament wound series is the first choice and highest level, they are manufactured by filament winding machine and applied with self-developed yellow color high temp resin, the advanced manufacture tech and layup design make filament wound series more superior than other Chinese carbon rims. They have been offering to some famous riders and big brands in the world.


Rims                                                                                 Hubs

Material: Toray T700 (Imported from Japan / Korea)                        Novatec 291/482 SL

Size: 700C                                                                                        Powerway R13 / R36 / R39

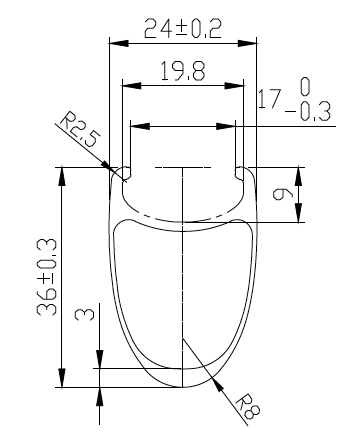

External Width: 24mm                                                                       Bitex RAF10 / RAR9

Internal Width: 17mm                                                                        DT350s

Depth: 36mm                                                                                    DT240s

Weave: UD                                                                                       White Industries T11

Finish: Matt / Glossy (Customized with your logos)                           Spokes

Spoke count: 20/24H                                                                          Pillar PSR AERO 1423

Nipple hole: External / Internal                                                            Sapim CX-Ray

Weight: From 1380g+/-20g (Varied with different hubs and spokes)

Rider weight limit: 120KG

Max tire pressure: 125PSI

Max spoke tension: 140KGF

Flatness: ≤0.2mm

Roundness: ≤0.3mm



Highlights

  • Patented filament winding process to ensure that each carbon fiber layer can be distributed evenly and bonded tightly, enabling its strength to reach a maximum value. Also machine managed process can avoid the random layup errors and result higher accuracy & precision.
  • Patented self-developed 240 degree high temperature resin, tested by DMA / DSC in house.
  • Carbon fiber pre-preg weaving in house, impregnating with own HTG resin system.

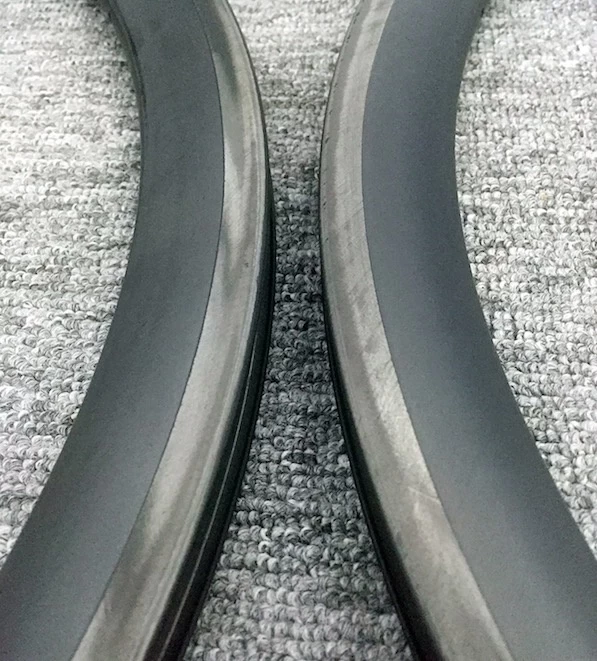

  • Using hard mandrel to shape the rim bed, it stays very well under curing without movement, results a much more precise clincher hook. (While others use silicone or three-piece molds)
  • X-Ray machine to inspect the inside layup structure to guarantee the strength from every aspect.
  • First time 220 degree molding; Second time 230 degree baking 8 hours; Third time 230 degree baking 6 hours.
  • Full inspection of tire pressure test at 140psi for every rim.
  • Rim profile designed by American composite expert who use CFD work to optimize the aerodynamics.

  • UCI / ISO test standard; Wind tunnel test in Arizona USA.
