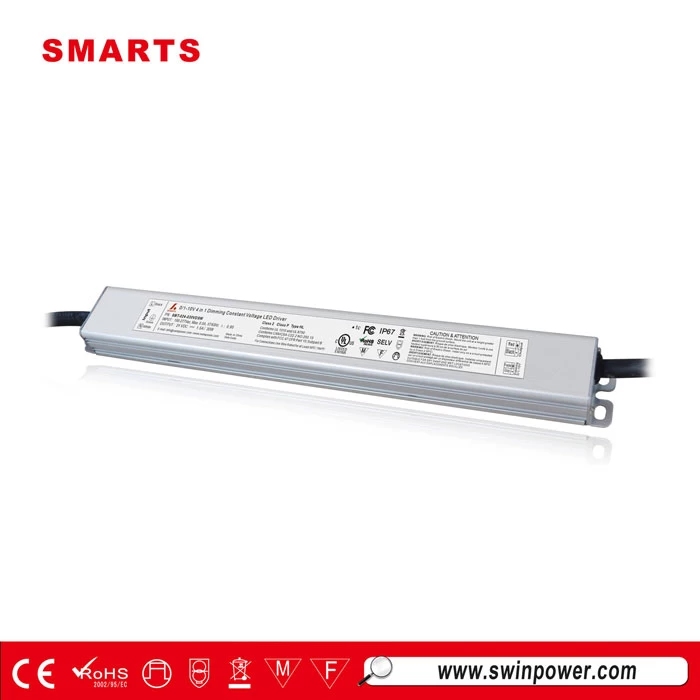

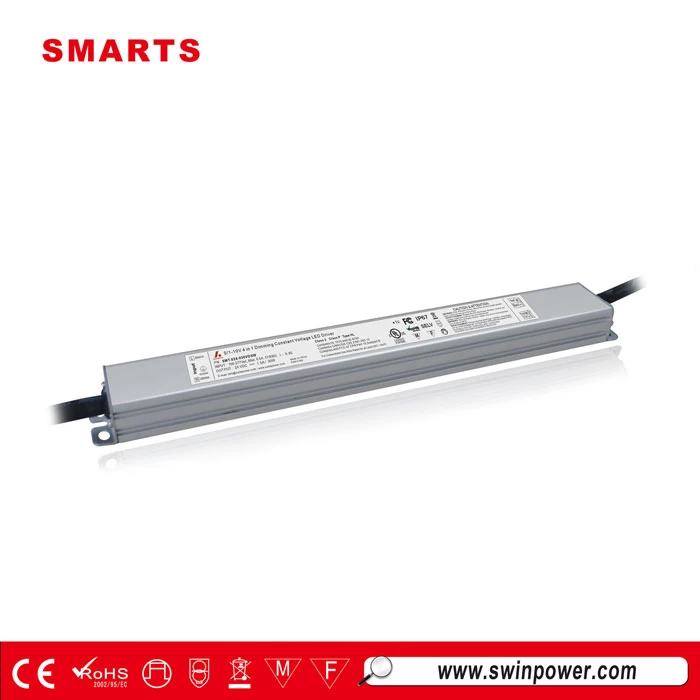

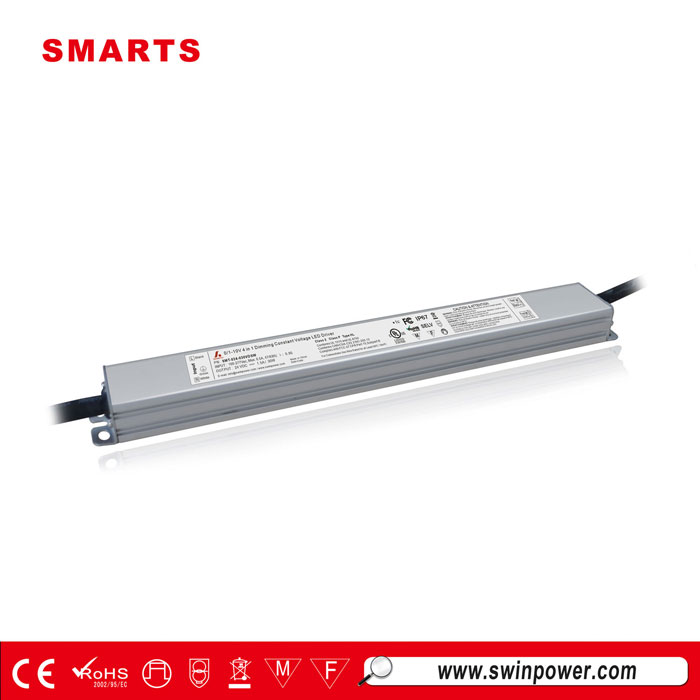

model

SMT-012-030VDSW

SMT-024-030VDSW

Output

DC Voltage

12VDC

24VDC

Voltage Accuracy

±5%

±5%

Rated current

2.5Amp

1.25Amp

Rated power

30W

30W

Voltage Regulation

±0.5%

Load Regulation

±1%

±1%

Input

Voltage Range

100-277 VAC

Frequency Range

47~63HZ

Power Factor ( Typ.)

PF>0.99/110V ;  PF>0.98/277V

THD(Typ. ) @ full load

<10%@120VAC  <15%@277VAC

Full Load Efficiency(Typ.)

>84%

>85%

AC Current(Typ.)

0.5A

Inrush Current(Typ.)

5A, 50%, 960us @120VAC;   13A, 50% , 1ms @277VAC

Leakage current

<0.5mA

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over Loading

≤120% shut down o/p voltage, re-power on to recover

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.

Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes

Safety&EMC

Safety standards

UL8750 +UL 1310, CAN/CSA-C22.2 No.250.13

Withstand voltage

I/P-O/P:1.88KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC 47 CFR Part 15 ,Subpart B

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,,11, ,

Alight industry level

Others

Weight

0.35Kg

Size

260*32*20mm (L*W*H)

packing

290*270*160mm , 50PCS/CTN

Notes

1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,

Rated load and 25℃of ambient temperature.

2. Tolerance: includes set up tolerance, line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
