24V 100A High-power fast charge electric forklifts battery charger
1.Product Introduction:
**1. Touchscreen Interface:**
- Configure output voltage and current settings effortlessly through the intuitive touchscreen interface.
- Schedule charging sessions in advance based on the specific voltage and current requirements of the charging equipment.
**2. Data Export and Fault Code Display:**
- Easily export charging data and relevant information for analysis and record-keeping.
- Visual display of fault codes on the screen for quick diagnosis and troubleshooting.
**3. Advanced Main Power Module:**
- Featuring an in-house developed main power module, with individual modules certified by TUV Rheinland and UL.
- Modular construction and state-of-the-art digital power technology ensure high performance and reliability.
- All internal components adhere to North American standards, utilizing imported brands from the United States and Canada.
2.Technical Parameters：
|
Input technical parameters :
|
|
Input voltage
|
Three-phase four-wire system (AC480Vac±10%)
|
|
Input voltage range
|
432Vac ~ 528Vac
|
|
Input maximum current
|
6A
|
|
Breaker specifications
|
C8A
|
|
Maximum power
|
3.3kW
|
|
Frequency
|
60Hz
|
|
Power factor
|
≥0.99
|
|
Output parameters :
|
|
Maximum output voltage
|
30VDC
|
|
Minimum output voltage
|
20VDC
|
|
Maximum output current
|
100A
|
|
Minimum output current
|
5A
|
|
Maximum output power
|
3.0kW
|
|
Current limiting range
|
10% ~100% Continuous
|
|
Working efficiency
|
≥93%
|
|
Voltage regulation accuracy
|
≤±0.5%
|
|
Current regulation accuracy
|
≤±1%
|
|
Current sharing coefficient
|
≤±5%
|
|
Condition and Environment :
|
|
Operating temperature
|
-20℃ ~ 50℃
|
|
Storage temperature
|
-40℃ ~ 75℃
|
|
Relative humidity
|
5～95% , non-condensing
|
|

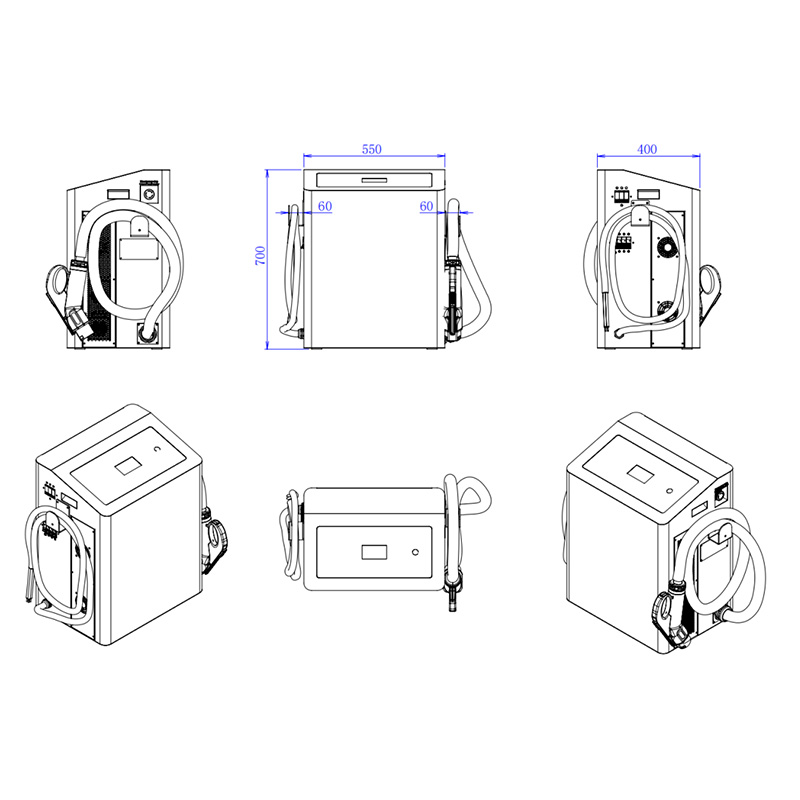

External dimensions
|
Lengths * Widths * Heights : 550 * 400 * 700 mm
|
|
Weight
|
55kg
|
|
Protective function :
|
|
Protection Class
|
IP 20
|
|
Level of protection
|
Class I
|
|
Environment of use
|
Indoor
|
|
Over voltage category
|
OVC III
|
|
Pollution level
|
PD 2
|
|
Output short circuit protection
|
Enter shutdown protection mode within 1 second
|
|
Over temperature protection
|
Reduced output: 50°C~65°C, above 65°C shutdown protection
|

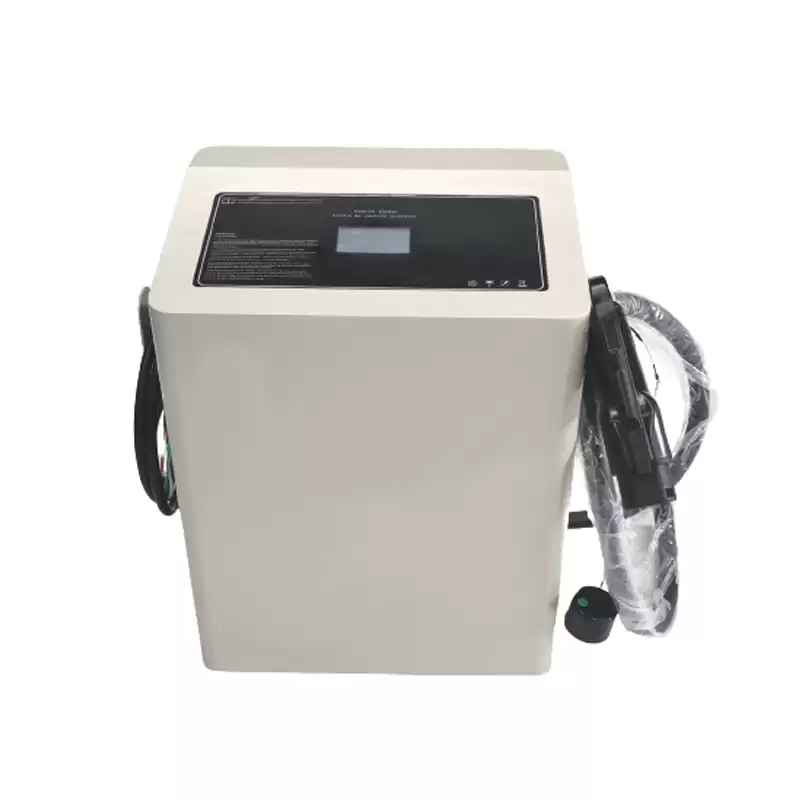

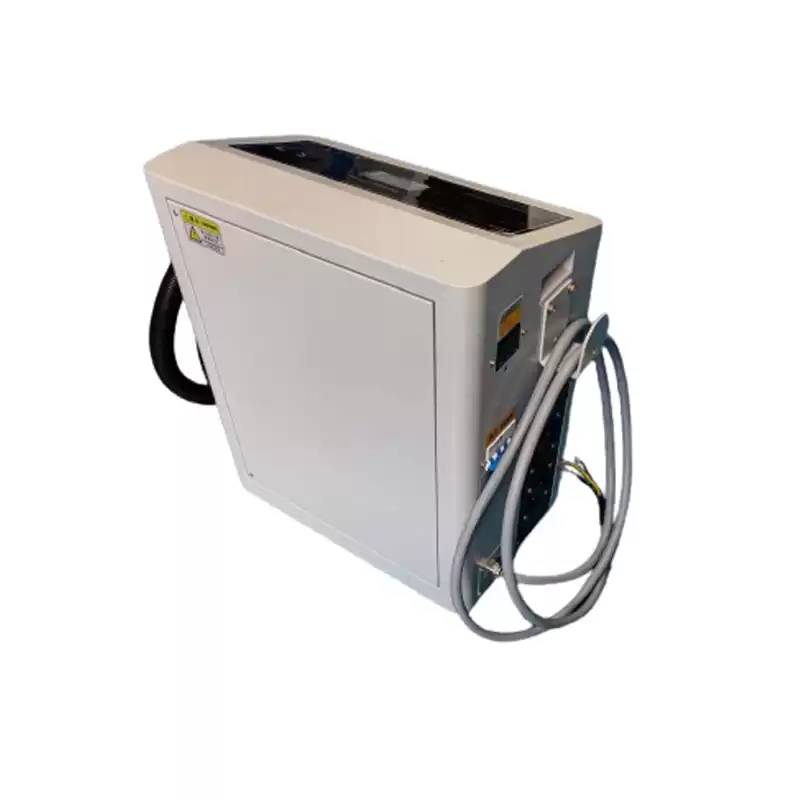

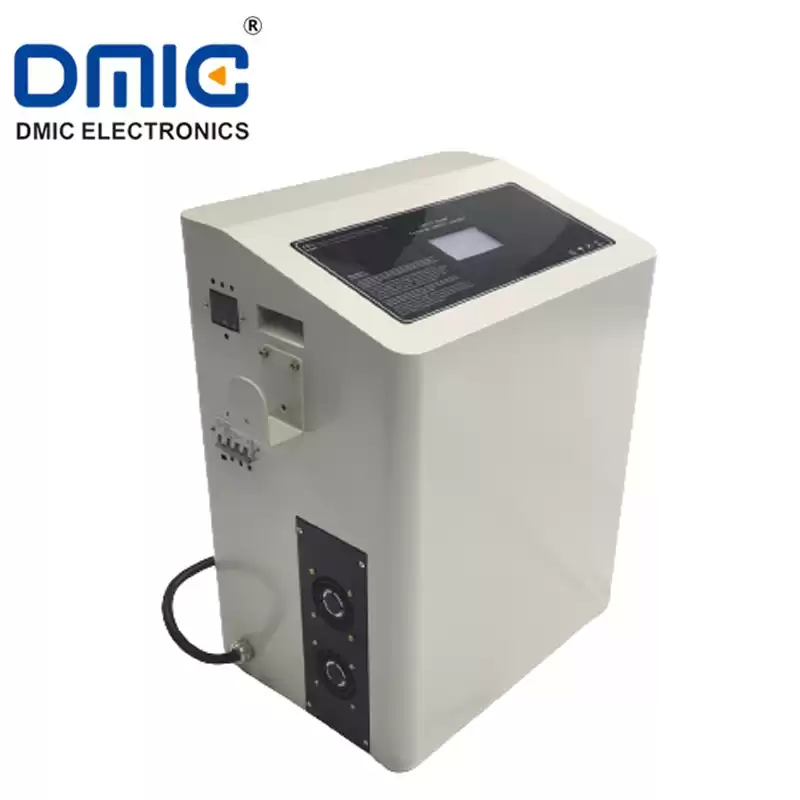

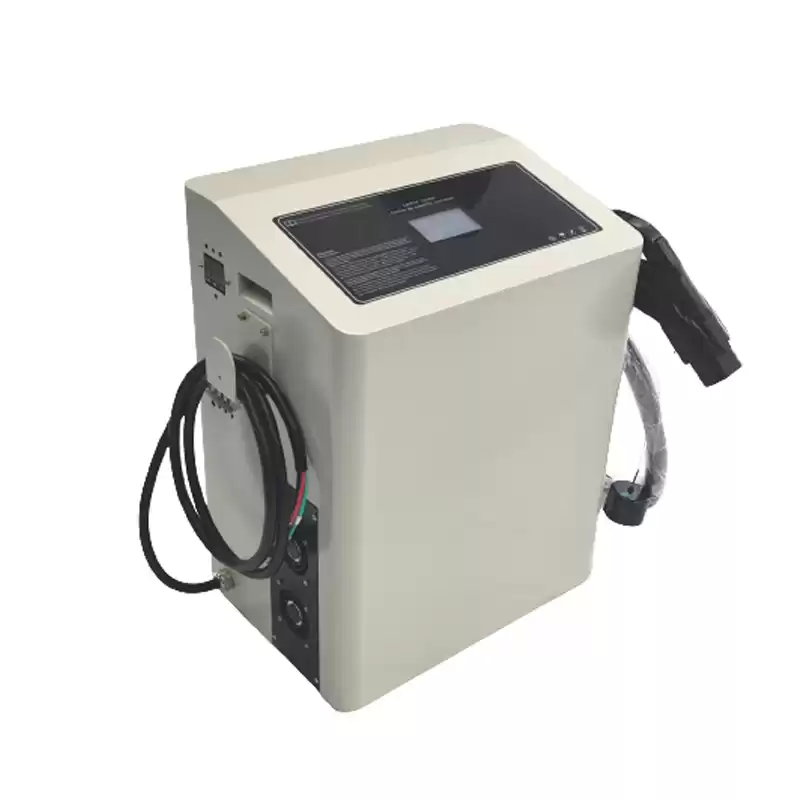

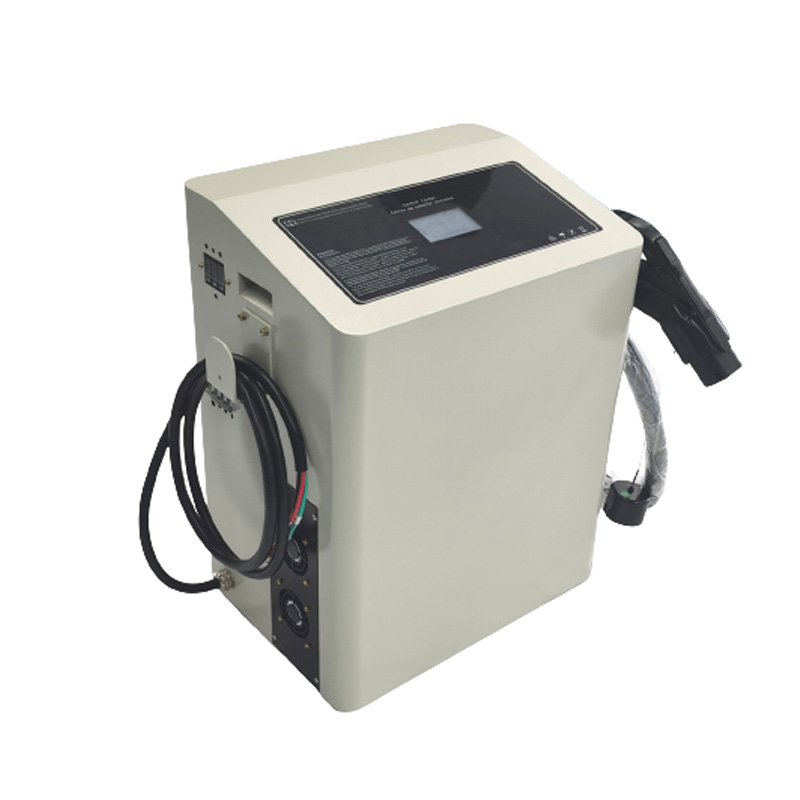

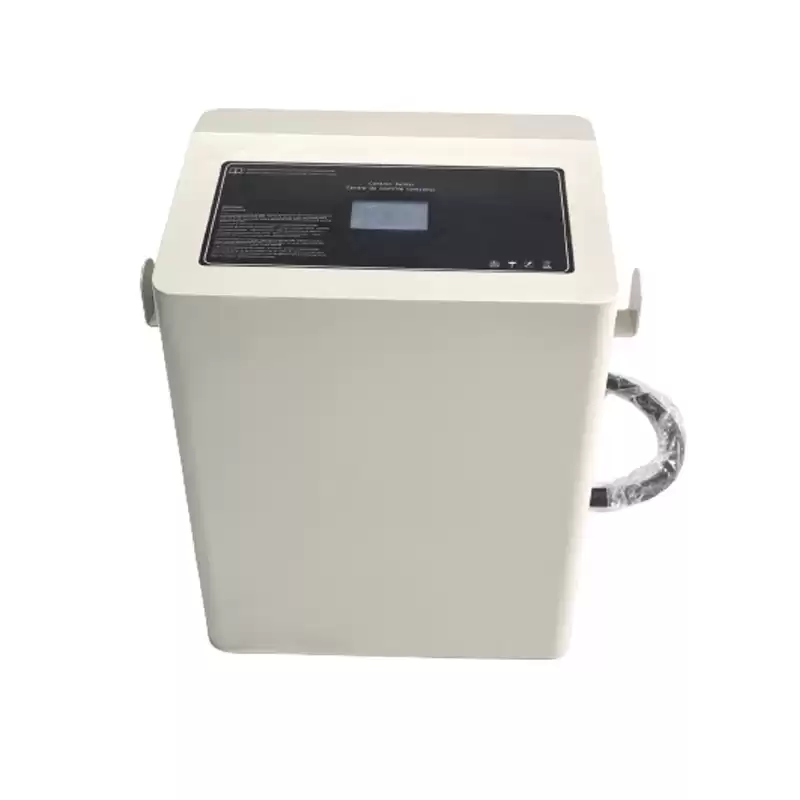

3.Picture Introduction:
4.Our Advantages:

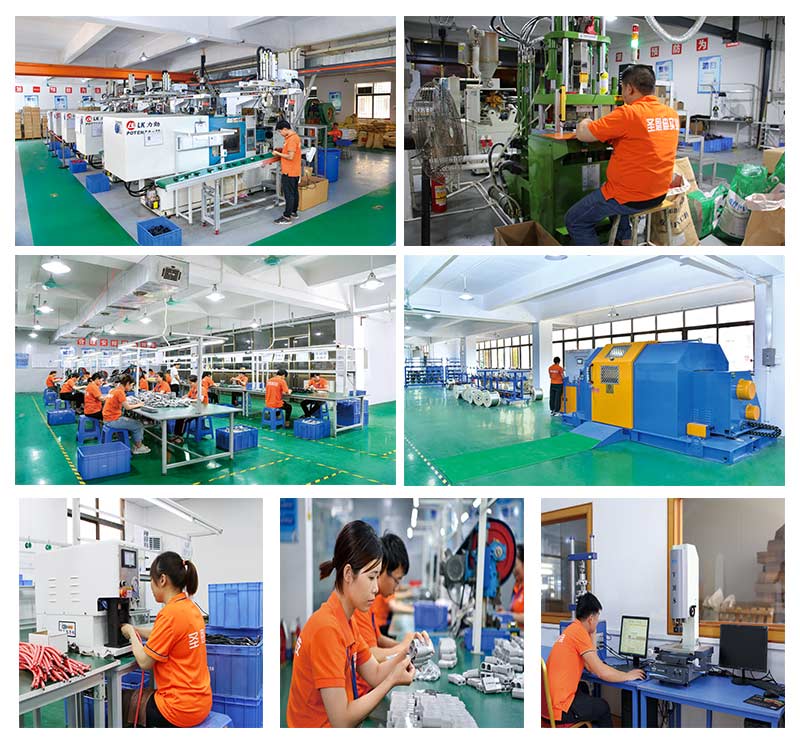

∗At our company, we take pride in our ability to seamlessly integrate the research, development, production, and sales of various high-current connectors and accessories for new energy applications.
∗Offering unparalleled OEM cable harness customization and full-service connector and wire harness solutions, our team delivers a comprehensive approach to meeting your needs.
∗From start to finish, our goal is to provide exceptional quality and service, ensuring the success of your project. Trust us to be your all-in-one partner for cutting-edge new energy interconnectivity.
5.Packages & Shipping:
Our products are packaged to international standards, ensuring that your order arrives in immaculate condition. We are based in Guangdong, China, and dispatch all orders from this location. With our commitment to professional and efficient service, you can trust us to deliver your goods with utmost care and attention to detail.
6.FAQ:
Q: What services does your company offer for high-current connectors and cabling solutions?
A: Our company specializes in providing professional development, design, and integrated cabling solutions for high-current connectors ranging from 5A to 350A. We also offer production and sales of a wide range of high-current connectors, plugs, and UPS/EPS power sockets to support various industries, including automotive, electric vehicles, communication power, medical equipment, power distribution equipment, material handling equipment, solar energy, and new energy.
Our company boasts its own production and R&D base, and has obtained ISO9001 quality system certification. All of our products meet CE, 3C, and other certifications, as well as RoSH and REACH environmental protection requirements. With our commitment to quality and excellence, we offer reliable and efficient solutions to support our clients' businesses.
