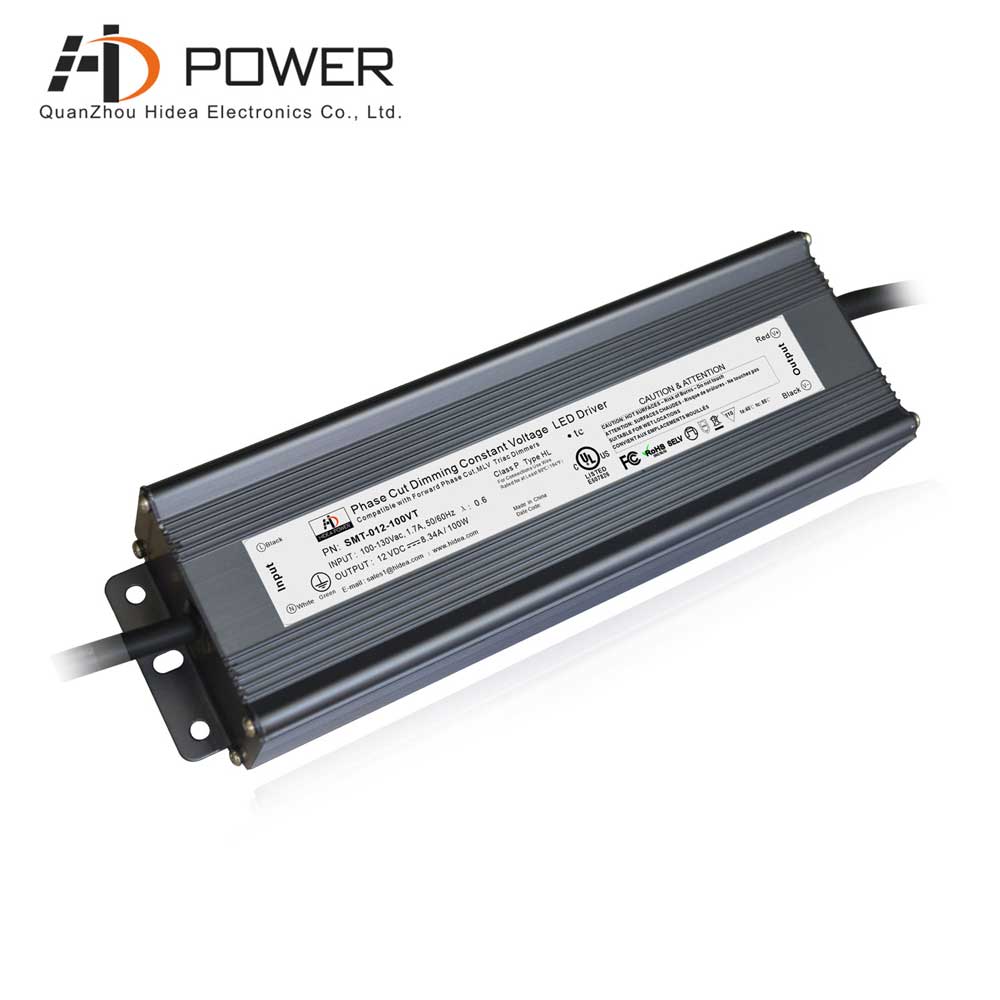

It is 24vac 100w triac dimmable led drivers.These power source are applied to led strip lights. This constant voltage LED Drivers are fully dimmable with any standard PHILIPS TRIAC dimmer switch.
Specification
|
Model
|
SMT-012-100VT
|
SMT-024-096VT(class 2)
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
±0.5V
|
|
Rated current
|
8.33A
|
4.0A
|
|
Rated power
|
100W
|
96W
|
|
Input
|
Voltage Range
|
100~130V AC/170~265V AC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
PF≧0.93/110V,PF≧0.94/170V,PF≧0.95/220V,PF≧0.95/265V
|
|
Full Load Efficiency(Typ.)
|
>83%
|
>83%
|
|
AC Current(Typ.)
|
0.61A/110VAC 0.58A/170VAC 0.46A/220VAC 0.41A/265VAC
|
|
Leakage current
|
﹤0.25mA/110V/220VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over voltage
|
≦140VAC(90~135V) , ≦270VAC(170~265V)
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN-60950-1, EN61347-1 EN61347-2-13
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance toEN55015,EN61000-3-2 (≧50%load)
|
|
EMC IMMUNITY
|
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11,EN61547 Alight industry level (surge4KV)
|
|
Others
|
Weight
|
1.3Kg
|
|
Size
|
230*70*46mm(L*W*H)
|
|
packing
|
329*279*176mm , 10PCS/ctn
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and 25℃of ambient temperature.
|
|
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor
|
|
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|
Compatible Light Type
This 100w led driver IP67 waterproof is water-risitant and suitable for outdoor applications. The model is guaranteed 5 years warranty. 12V and 24V are both available. Such MR16 in BIOLUZ LED shows good compatibity.
Related Products
|

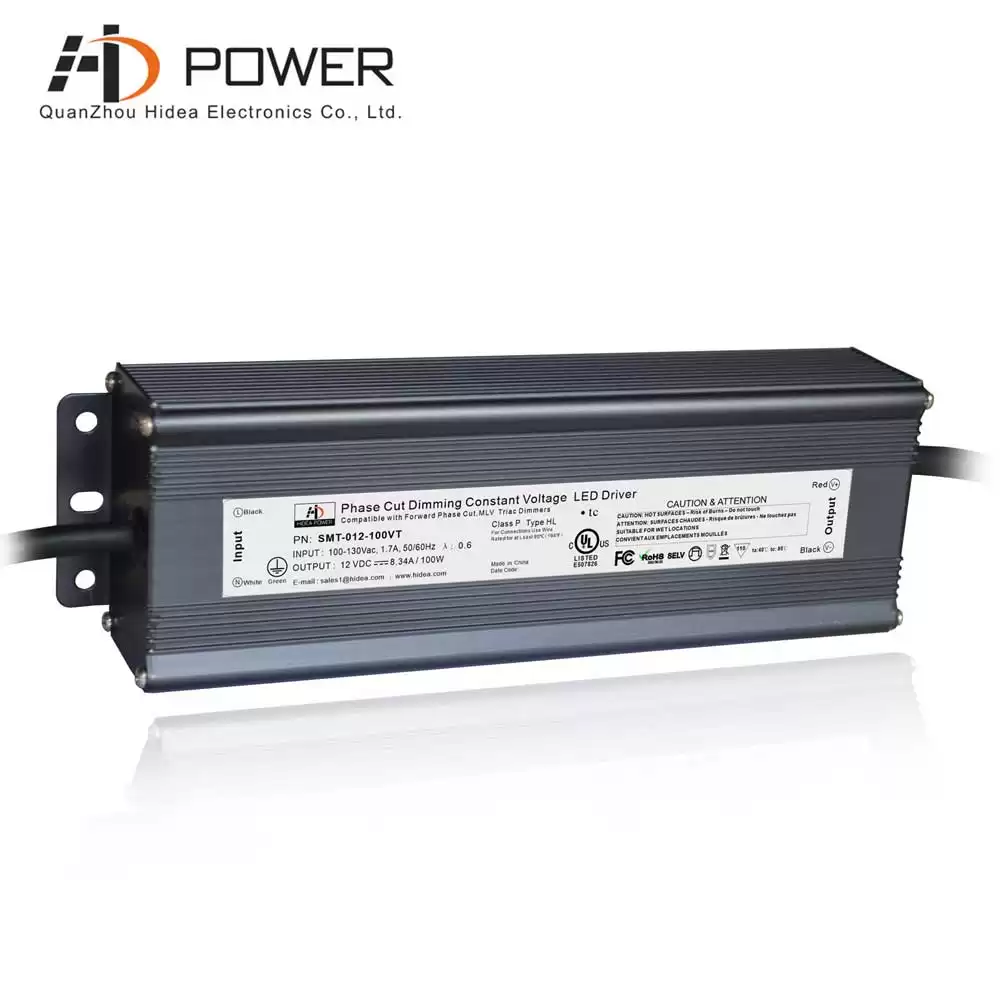

 This led driver 100w combines two types of dimmng mode: triac + 0-10v. Each way can achieve smooth dimming effect.
Mode：SMT-012-100VTD
Dimming Mode : Triac/0-10V(5 in 1) Dimming
Output Power : 100W
intput voltage：100~277V AC
Size：230*70*43MM （L*W*H）
|
