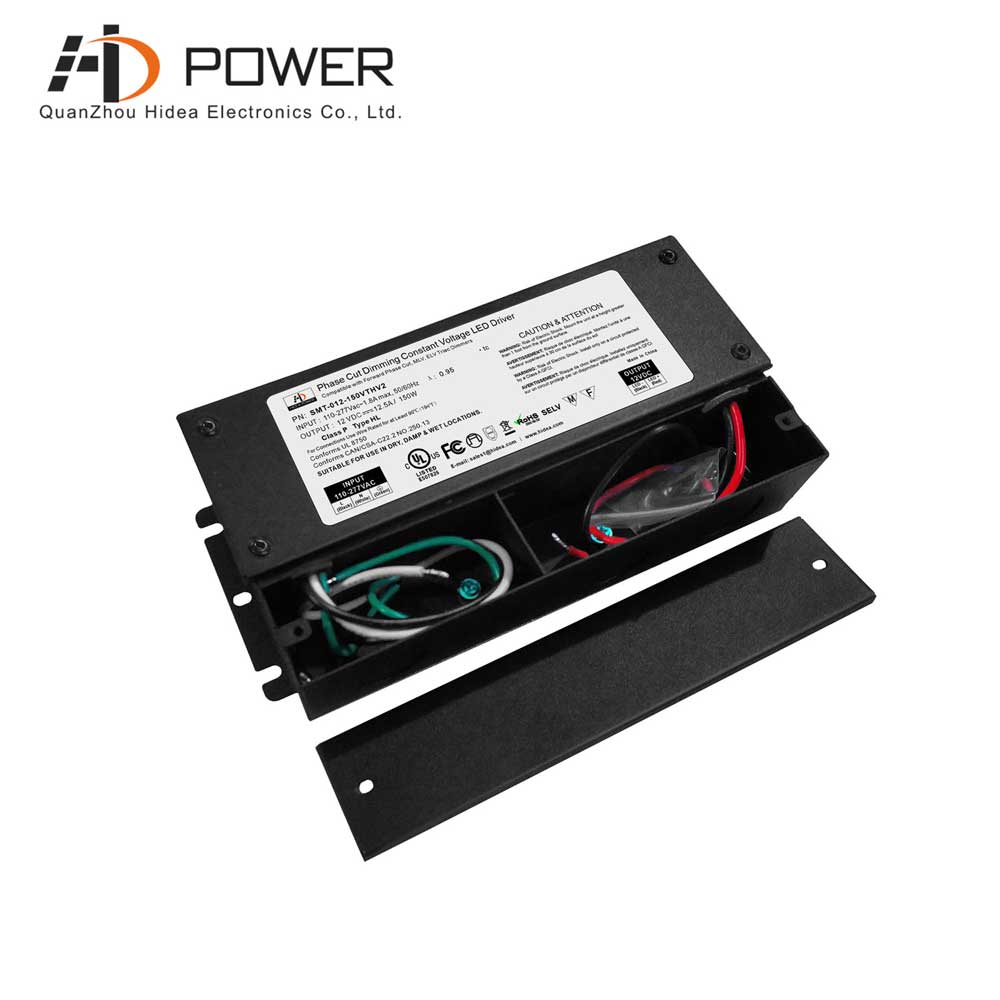

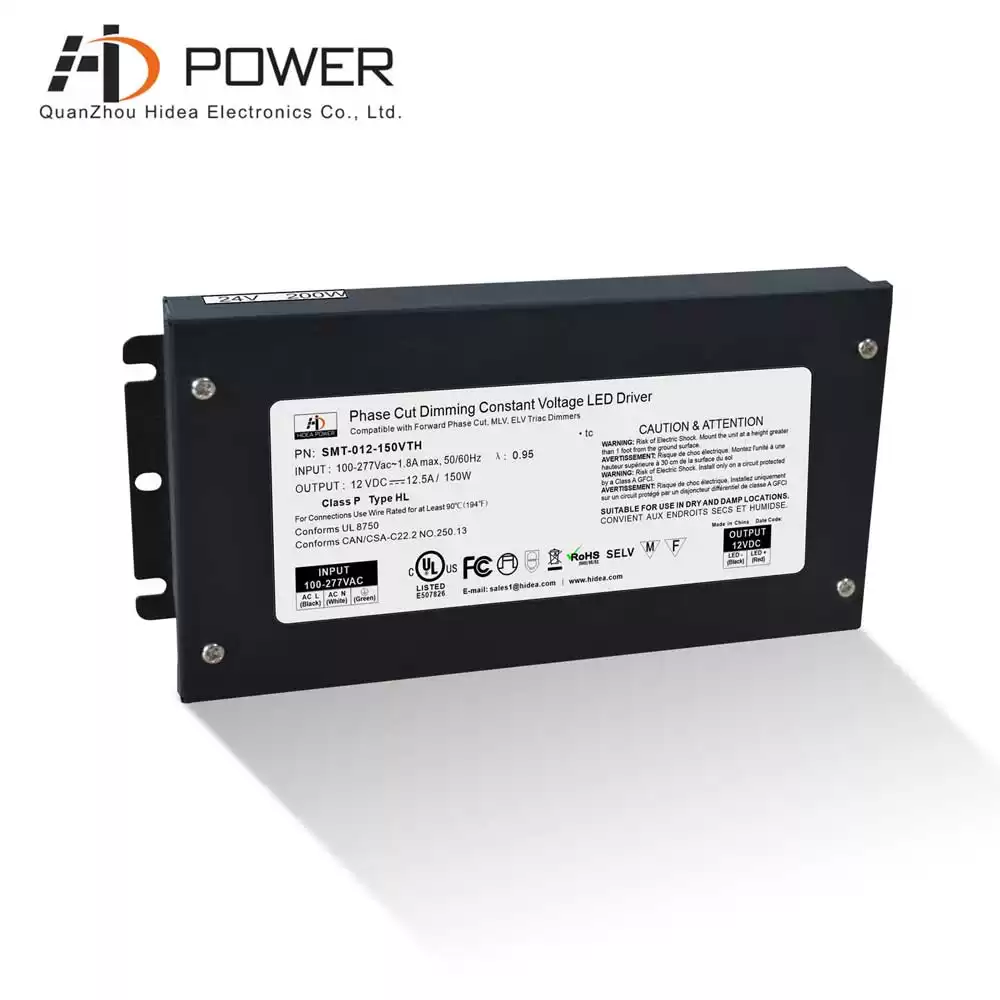

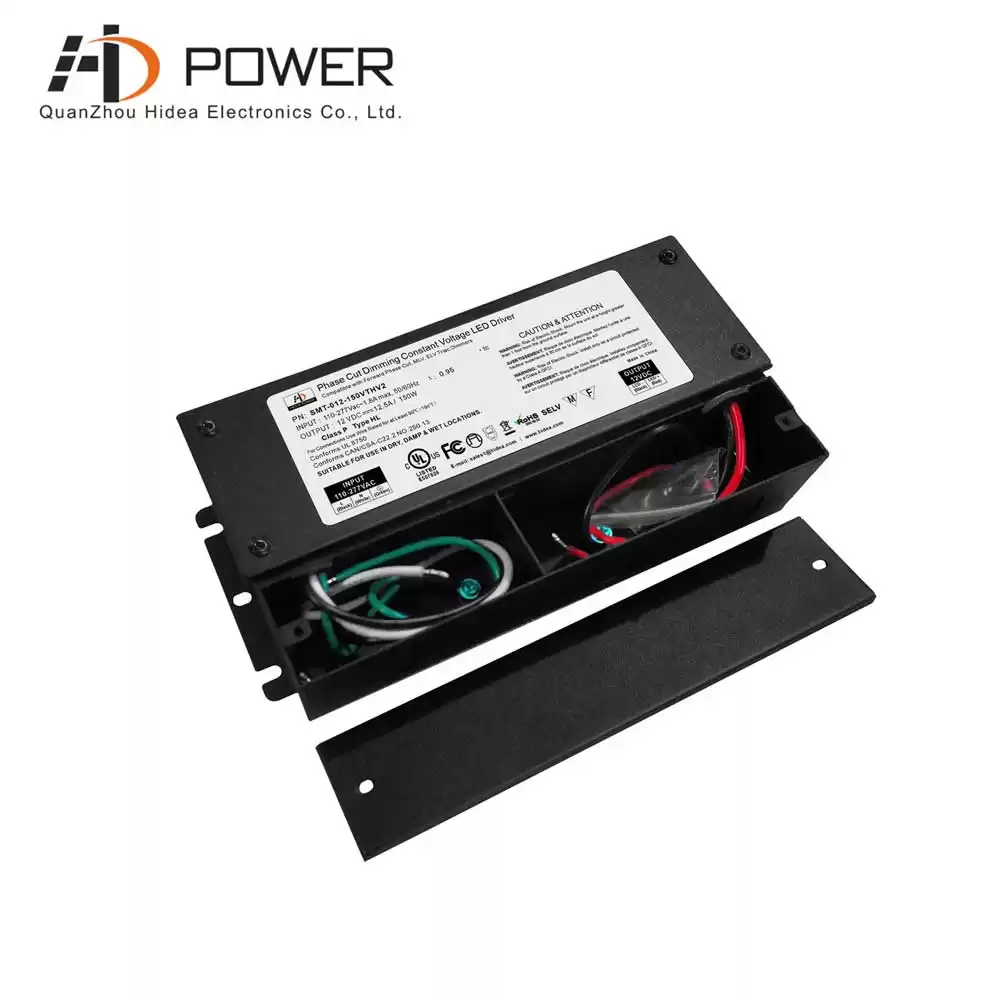

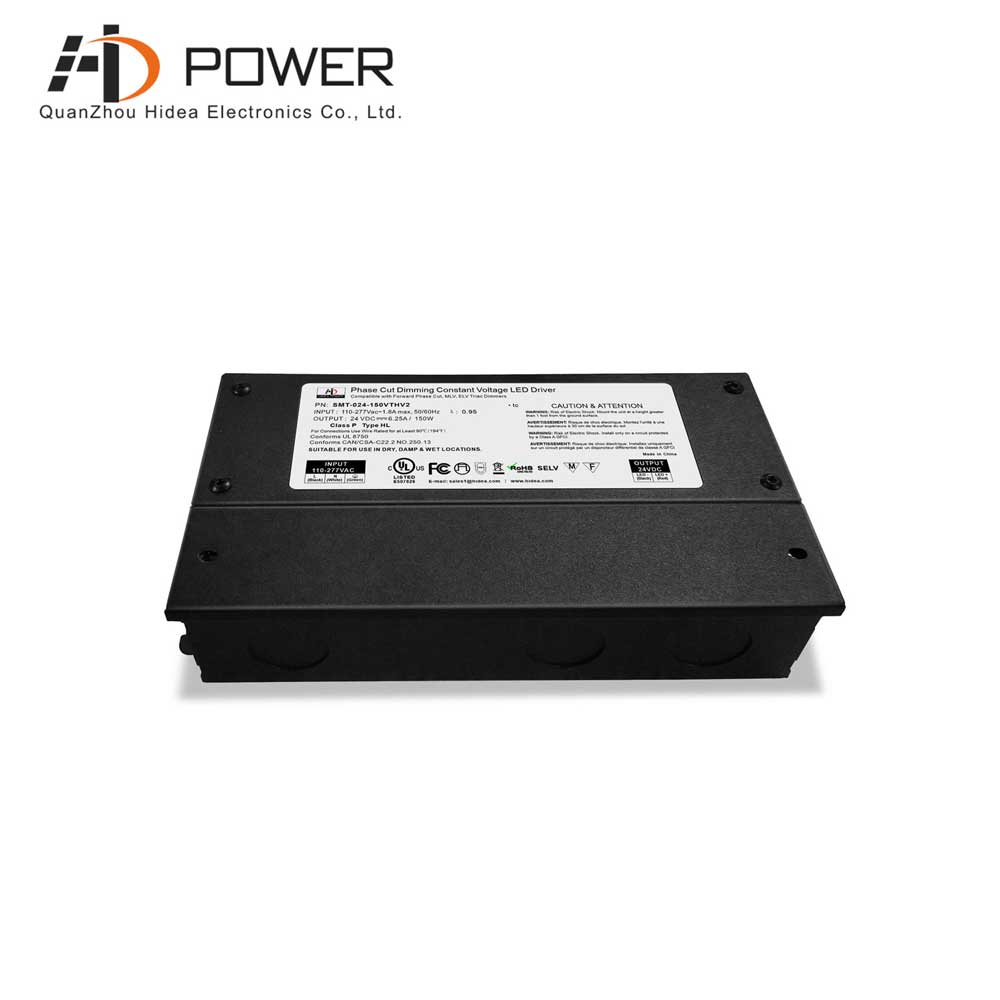

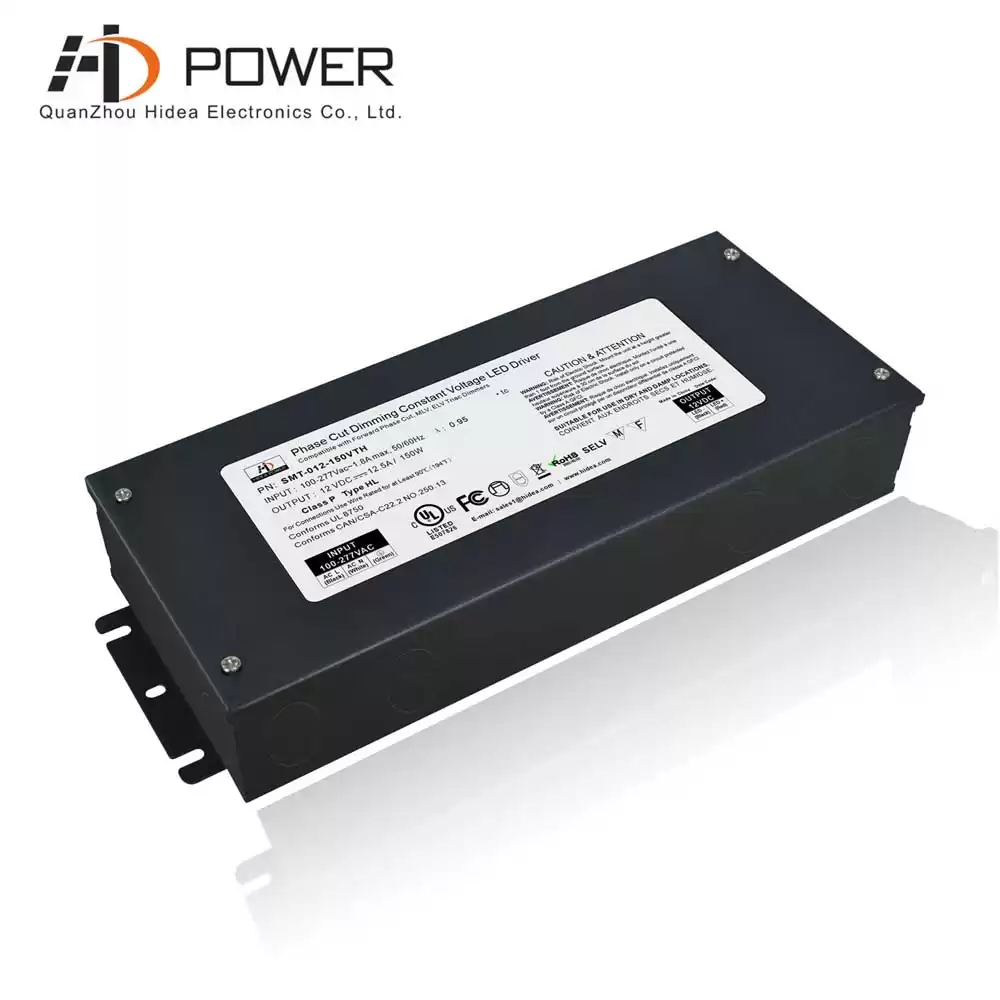

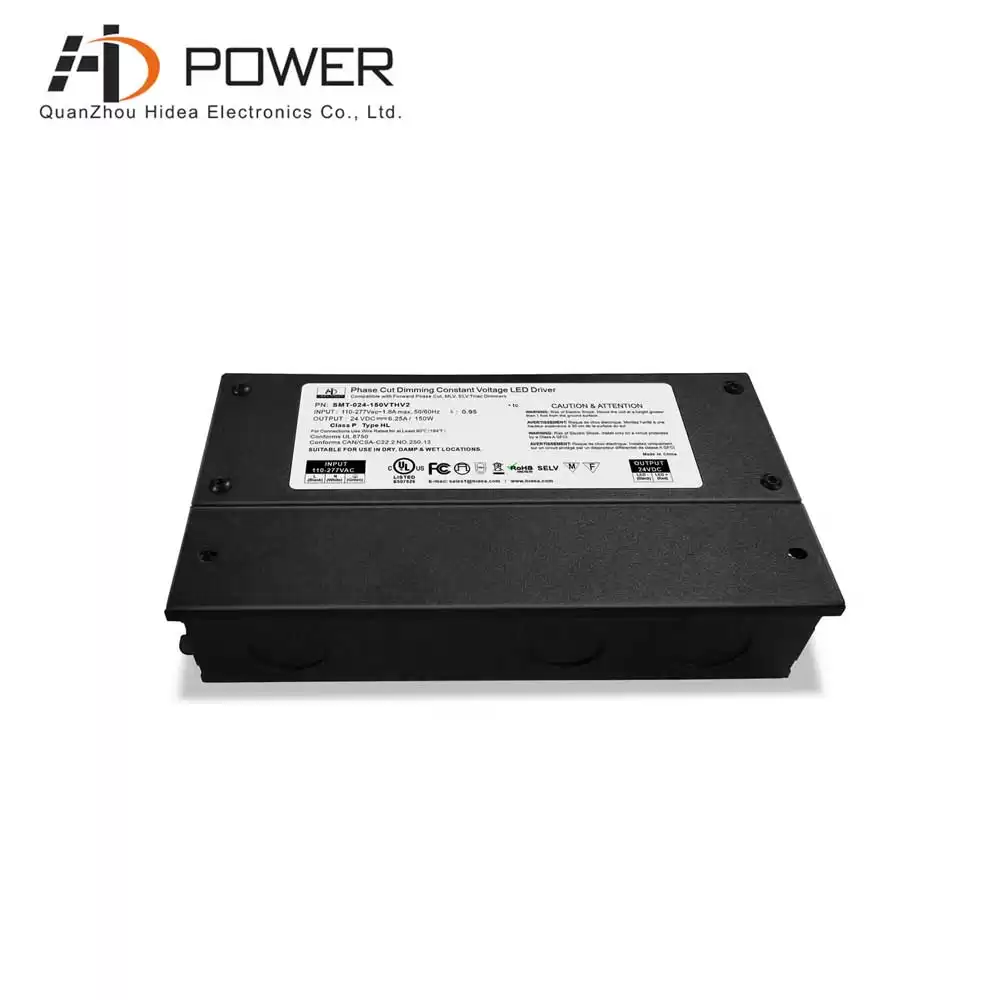

24v 150w electronic triac dimmable constant voltage led driver power supplies
150W TRIAC dimmable led driver constant voltage working mode, working efficiency up to 85%, PWM output does not change the color index, dimming range is 0-100%, complies with global safety lighting regulations, has 7-year warranty
Specification
|
Model
|
SMT-012-150VTH (1.0 ver)
|
SMT-024-150VTH (1.0 ver)
|
|
SMT-012-150VTHV2 (2.0 ver)
|
SMT-024-150VTHV2 (2.0 ver)
|
|
SMT-012-150VTHWV2 (3.0 ver)
|
SMT-024-150VTHWV2 (3.0 ver)
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Rated Current
|
12.5A
|
6.25A
|
|
Rated Power
|
150W
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±2%
|
±1%
|
|
Input
|
Voltage Range
|
110-277VAC
|
|
Frequency Range
|
47-63HZ
|
|
Power Factor(Typ.)@
|
0.98@120VAC 0.95@277VAC
|
0.99@120VAC 0.94@277VAC
|
|
full load
|
|
THD(Typ.)@ full load
|
<20%
|
|
Efficiency(Typ.)@ full load
|
85%
|
85%
|
|
AC Current(Max.)
|
1.8A@110VAC
|
|
Inrush Current (Typ.)
|
15A, 50%, 1.4ms
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90% RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
1.8Kg
|
|
Size
|
1.0 ver: 260*103*46mm ; 2.0 ver: 260*105*45mm
3.0 ver: 260*125*45mm
|
|
packing
|
Carton size: 440*295*145mm , Packaging: 10PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible Light Type
The wall lights is placed in home lighting and we can see everythere for people's home.
Related Products
|

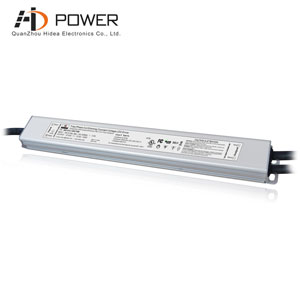

 slim size triac dimmable led driver 150W, waterproof IP67, constant voltage operating mode, UL certified, compliant with global safety lighting regulations, 7-year warranty
