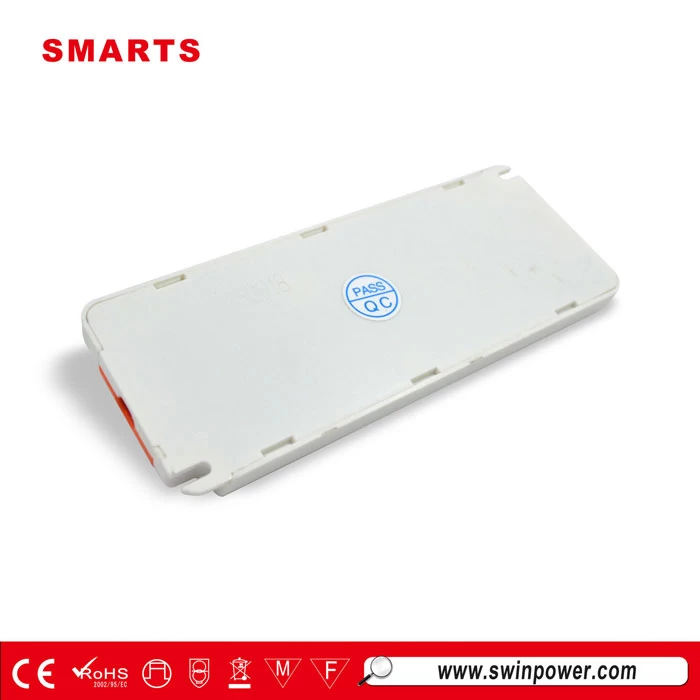

24v 15w led downlight driver

Non-dimmable Constant voltage plastic led power supply 12V 24V led driver for led downlight .this led driver are give 2 years warranty.


  • Output Voltage24vdc
  • Output Current0.625
  • Working Modeconstant voltage
  • Dimming modenon-dimmable
  • Input Voltage100-240V
  • Size127.5*50*12mm
  • Certificationce

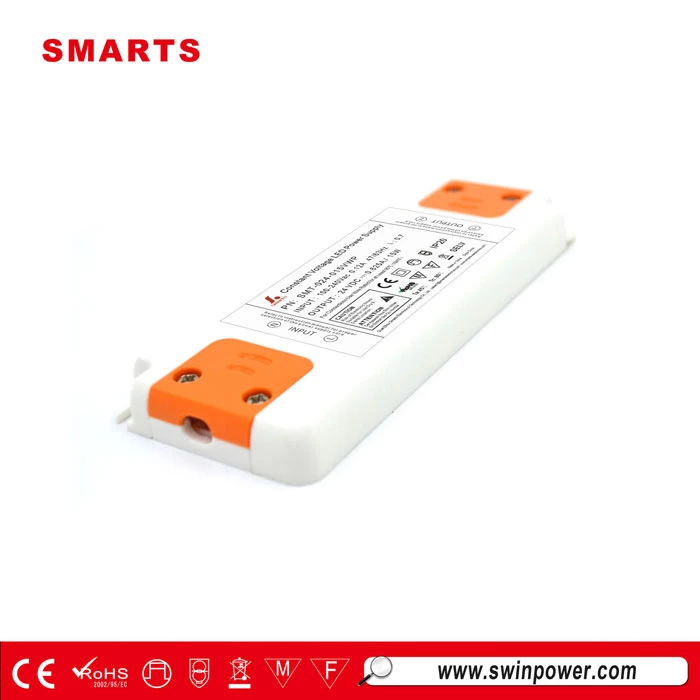

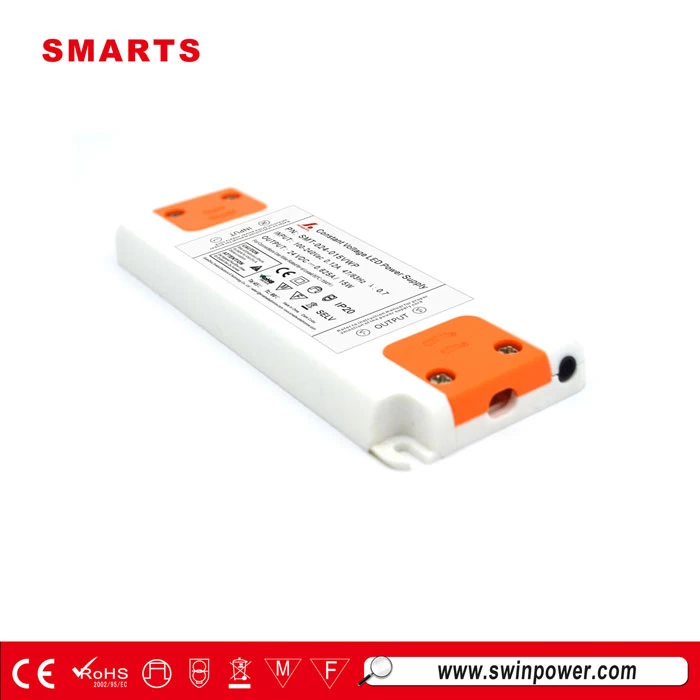

24v 15w led downlight driver

This 24v led downlight driver sealed unit that is designed to be ultra thin type. To determine the size driver you will need for your project just add up the watts of the total number of lights required. Don't forget to include any lights you use inside your cabinets. This is the perfect driver for runs of LED Flex strip and led lights.


  Label for 15w led driver:

led driver 15w 24v



  Specification:

MODEL SMT-012-015VWP SMT-024-015VWP
OUTPUT DC VOLTAGE 12V 24V
RATED CURRENT 1.25Amp 0.625Amp
VOLTAGE RANGE
RATED POWER 15Watt 15Watt
RIPPLE&NOISE(max) 300mV 300mV
VOLTAGE TOLERANCE ±5% ±5%
LINE REGULATION ±1% ±1%
LOAD REGULATION ±2% ±2%
INPUT VOLTAGE RANGE 100-240VAC 100-240VAC
FREQUENCY RANGE 47-63Hz 47-63Hz
POWER FACTOR(Typ.)
EFFICIENCY(Typ.) >83% >83%
AC CURRENT(Typ.) 0.17A/110VAC, 0.0.86/220VAC
PROTECTION SHORT CIRCUIT Protection type:recovers automatically after condition is removed
OVER CURRENT overload protected@145-160% above peak rating
OVER LOAD 2.3A 1.2A
ENVIRONMENT WORKING TEMP. -10~+50℃ (Refer to output load derating curve)
WORKING HUMIDITY 20~99% RH non-condensing
STORAGE TEMP.,HUMIDITY -40~+80℃,10~99%RH
SAFETY&EMC SAFETY STANDARDS EN61347-1;EN61347-2-13; CE /ROHS approval
WITHSTAND VOLTAGE I/P-O/P:2KVAC  I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC Test Standards EN55015;EN61000-3-2;EN61000-3-3;
EN61547;EN61000-4-2,3,4,5,6,8,11;


  Question:


1. Could you extend the warrantee of the drivers for more than 3 years instead of only two years?

  Answer:

About the guarranty for our non-dimmable constant voltage LED drivers,  yes, we give 2 years warranty for those solutions, and if you can control the load around 80% and have a good ventilation environment,  most of our LED drivers will run more than 2.5year to 3 years , NO problem...


  Applications:

Our products are widely used in various industries, such as

·  indoor LED illuminating lights,

· LED Neon,

· LED urban Decoration

· LED Lighting Advertising,

· LED Display,

· Safety Protection Apparatus,

· Telecommunications,

· Networks,

· Vehicle Lights, Controller Panels, etc.

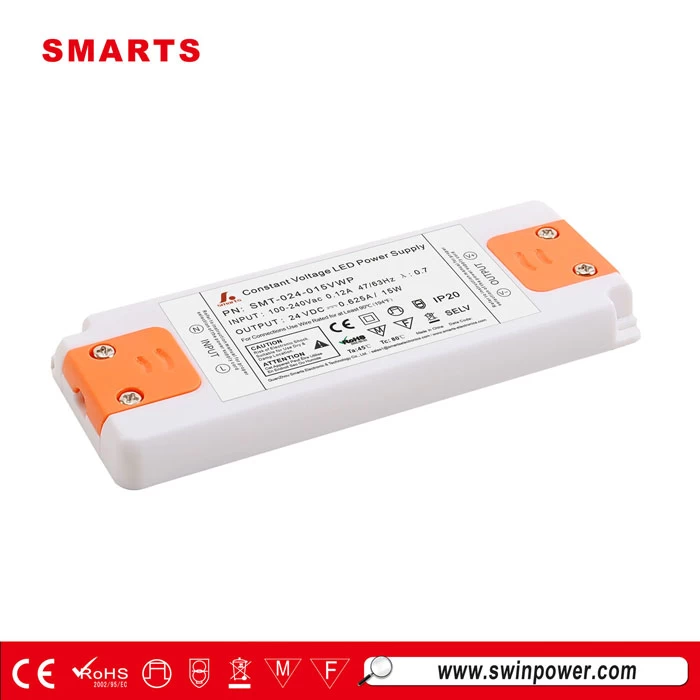

led driver 15w 24v
