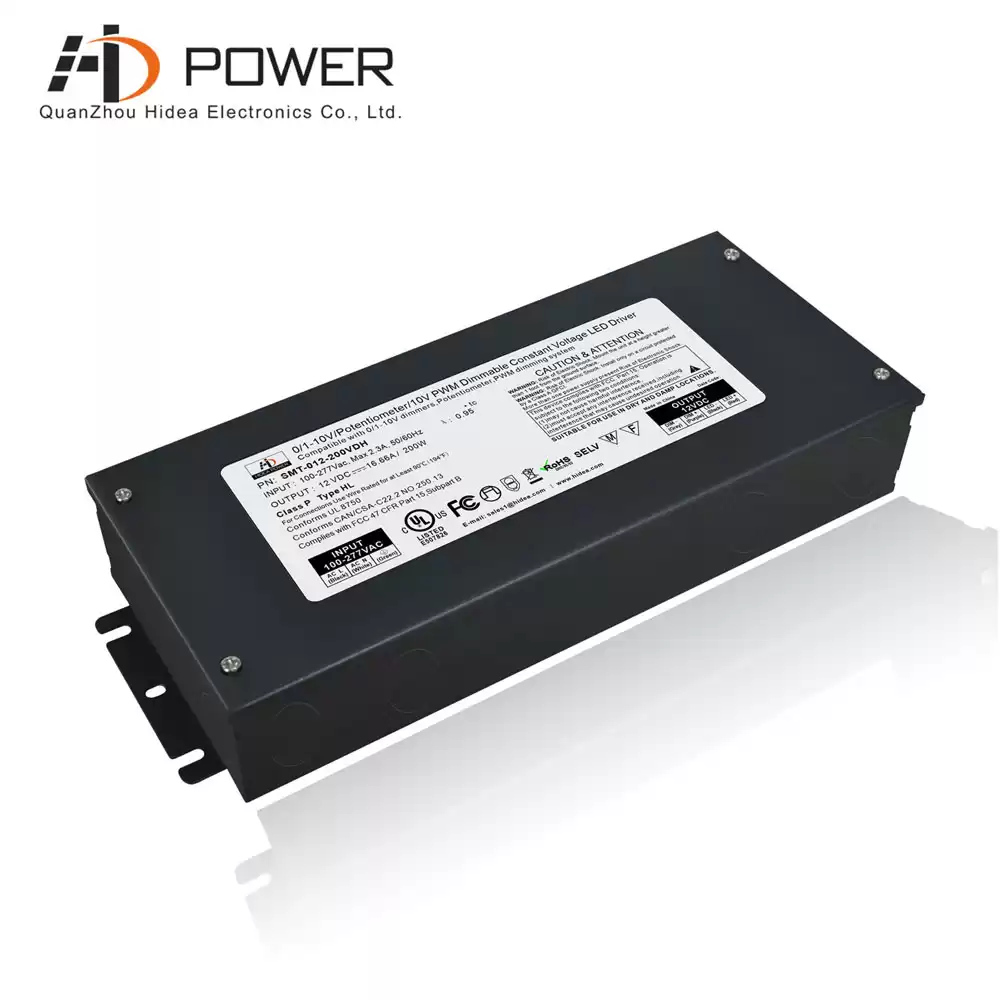

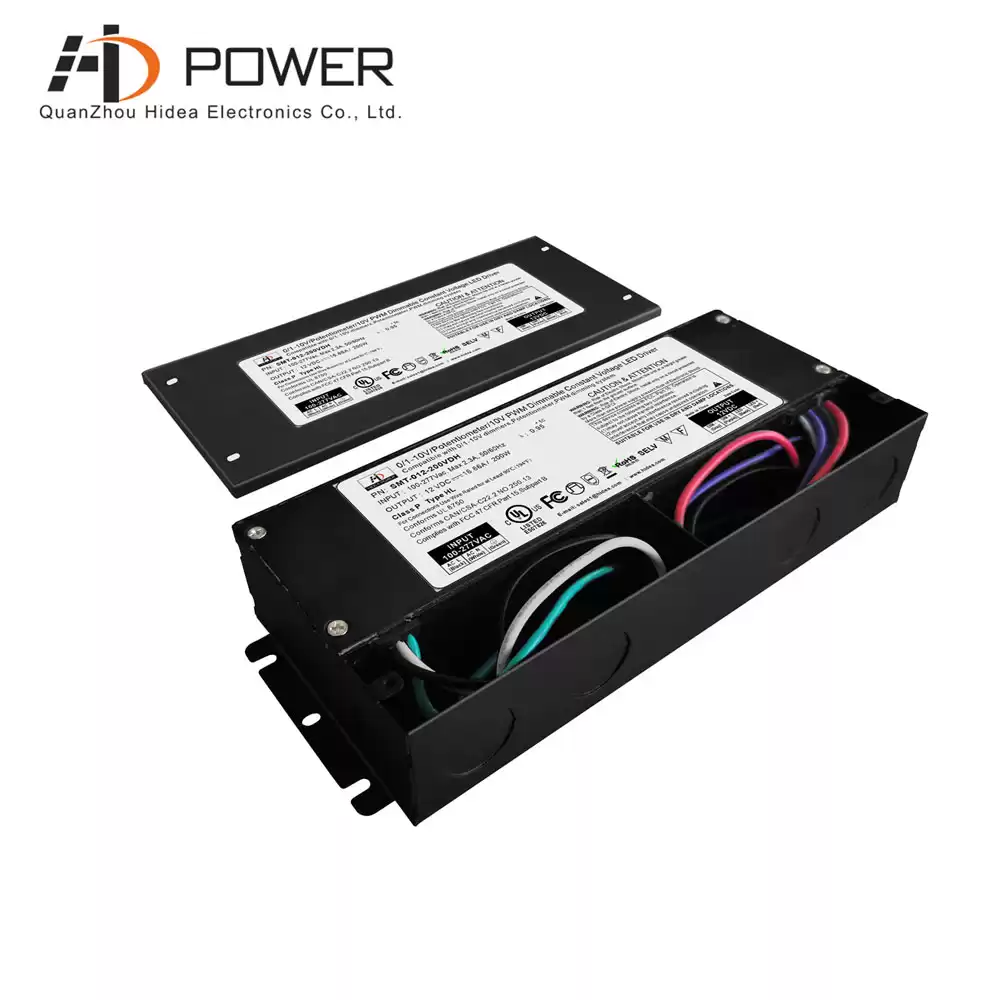

24v 200w 0 10v dimmable led strip light power supply junction box
200W 0 10v dimmable led driver constant voltage working mode, built-in PFC function, working efficiency up to 88%, UL certification, dimming range between 0-100% to achieve smooth flicker-free dimming
Specification
|
Model
|
SMT-012-200VDH (1.0 version)
SMT-012-200VDHV2 (2.0 version)
SMT-012-200VDHWV2 (3.0 version)
|
SMT-024-200VDH (1.0 version)
SMT-024-200VDHV2 (2.0 version)
SMT-024-200VDHWV2 (3.0 version)
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Rated Current
|
16.67A
|
|
Rated Power
|
200W
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±2%
|
|
Input
|
Voltage Range
|
110-277VAC
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor(Typ.)@ full load
|
0.98@120VAC 0.97@277VAC
|
0.98@120VAC 0.95@277VAC
|
|
THD(Typ.)@ full load
|
<20%
|
|
Efficiency(Typ)@ full load
|
83% @120Vac / 87%@277Vac
|
86% @120Vac / 88%@277Vac
|
|
AC Current(Max.)
|
2.3A@100Vac
|
|
Inrush Current (Typ.)
|
15A, 50%, 1.4ms @120Vac 30A, 50%, 1.4m,s @277Vac
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
1.8Kg (1.0 version)
|
|
Size
|
1.0 version: 260*103*46mm /2.0 version: 260*105*45mm (L*W*H) 3.0 version: 260*125*45mm (L*W*H)
|
|
packaging
|
Packaging: 10PCS
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature.
|
|
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
|
|
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|
Compatible Light Type

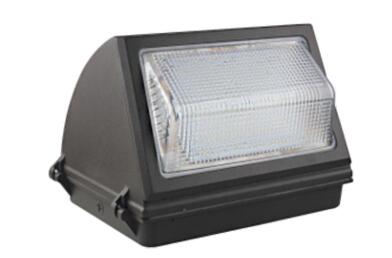

The 12600 Lumen 100 Watt Traditional Wall Pack Color Selectable could be used with our 12vdc 150w led driver, it takes about 66% load.
Related Products
|

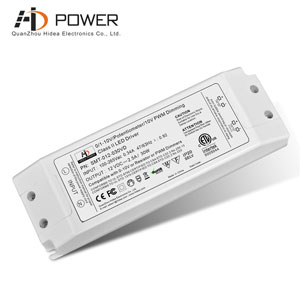

30W 0 10V dimmable led driver has a small body, easy and fast installation, plastic shell, and uses free air convection cooling. It is compatible with most 0 10v dimmers on the market to achieve smooth and flicker-free dimming.
Mode：SMT-012-030VD
Dimming Mode : 0-10V Dimming
Output Power : 30W
intput voltage：100~265V AC
Size：140*45*27MM （L*W*H）
|
