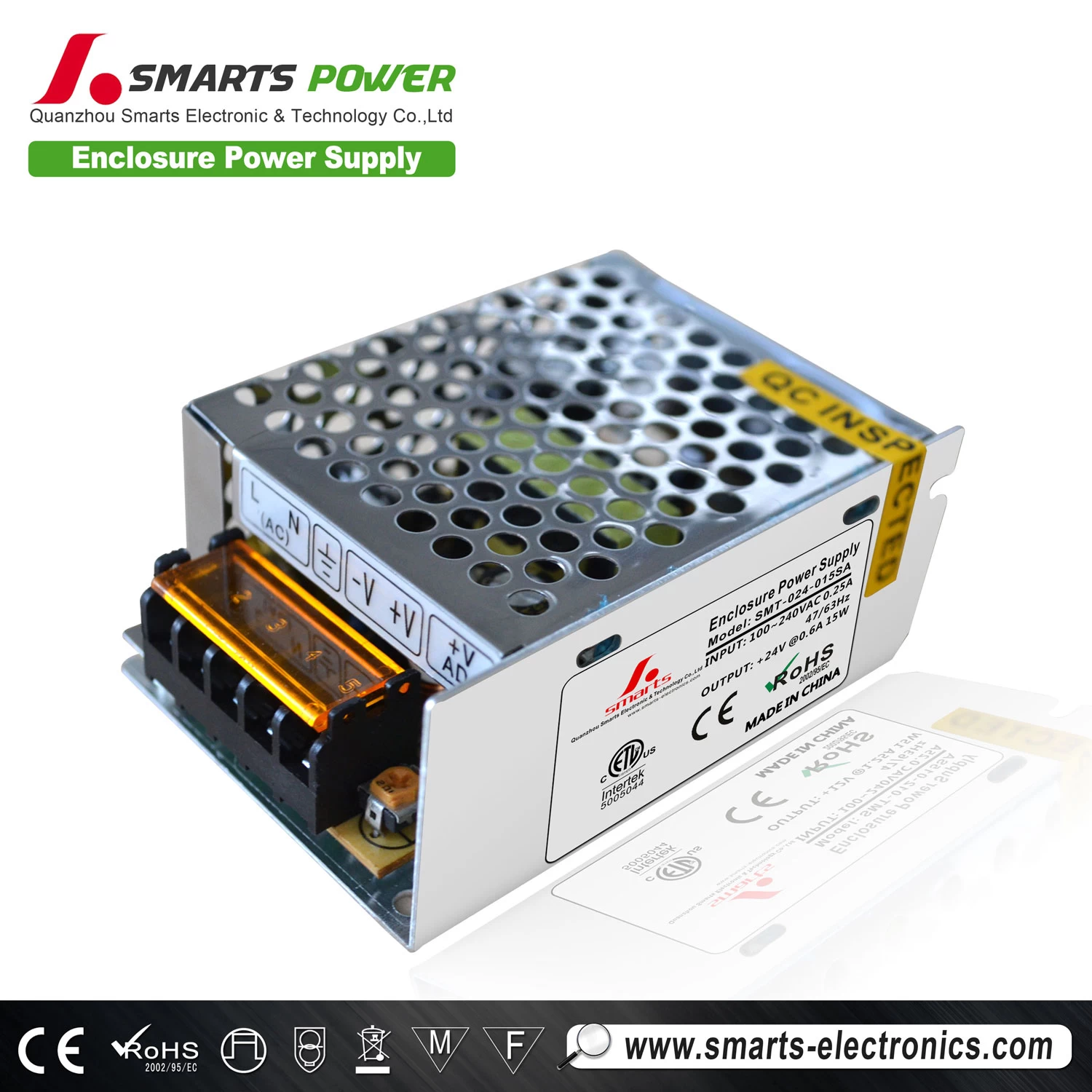

24V 25W enclosure power supply constant voltage aluminum mesh

DC 24V 25w enclosure power supply constant voltage aluminum mesh

Specifications:

Product size: 85*58*38 mm

Case material:aluminum

Net weight/pc: 165g

Input voltage: 100-240v

output voltage: 12V,  24V

Frequency: 47-63Hz

Output power: 25W

Features:

Competitived price and high reliability

105 °C Output capacitor

AC input power suitable for the world

High efficiency and low operation temperature

Soft-start current can reduce the AC input impact effect

With short-circuit and overload protection

Compact size, light weight

100% full-load burn-in test

Installed with EMI filter, minimum wave

2 years warranty

Safety:

1.EMC standard: Comply with EN55022,CLASSA

parameter:

Model		SMT-005-025SA	SMT-012-   025SA	SMT-024-  025SA	SMT-036-  025SA	SMT-048- 025SA
output	DC voltage	5V	12V	24V	36V	48V
	Voltage tolerance	±2%	±1%	±1%	±1%	±1%
	Rated current	5A	2.08A	1.04A	0.69A	10.52A
	Current range	0~5A	0~2.08A	0~1.04A	0~0.69A	0~0.52A
	Rated power	25W	25W	25W	25W	25W
	Ripple&noise	100mvp-p	150mvp-p	150mvp-p	150mvp-p	150mvp-p
	DCvoltage ADJ.range	± 10%	±10%	±10%	±10%	±10%
input	Voltage range	100~240Vdc
	frequency	47~63HZ
	AC current	3.2A/115VAC,1.6A/230VAC
	efficiency	83%	83%	83%	83%	83%
	Inrush current	Cold start current 18A/115VAC,36A/230VAC
	Leakage current	< 1mA/240VAC
protection	overload	Rated output power115%~150% start over load protection
		protection type:cutoff output,recovery after restart power
	Over voltage	6.8~8.2V	15.6~17.8V	18.6~20.8V	30.6~33.2V	33.2~35.6V
		protection type:hiccup mode,auto-recovery after fault condition is removed
	-----	-----
		-----
environment	Working temp,humidity	-10°C~+60°C,20%~90%RH
	Storagetemp,humidity	-20°C~+85°C,10%~95%RH non-condensing
	Withstand vibration	10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes
safety	Withstand voltage	I/P-O/P:2.0KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	Isolated resistance	I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
