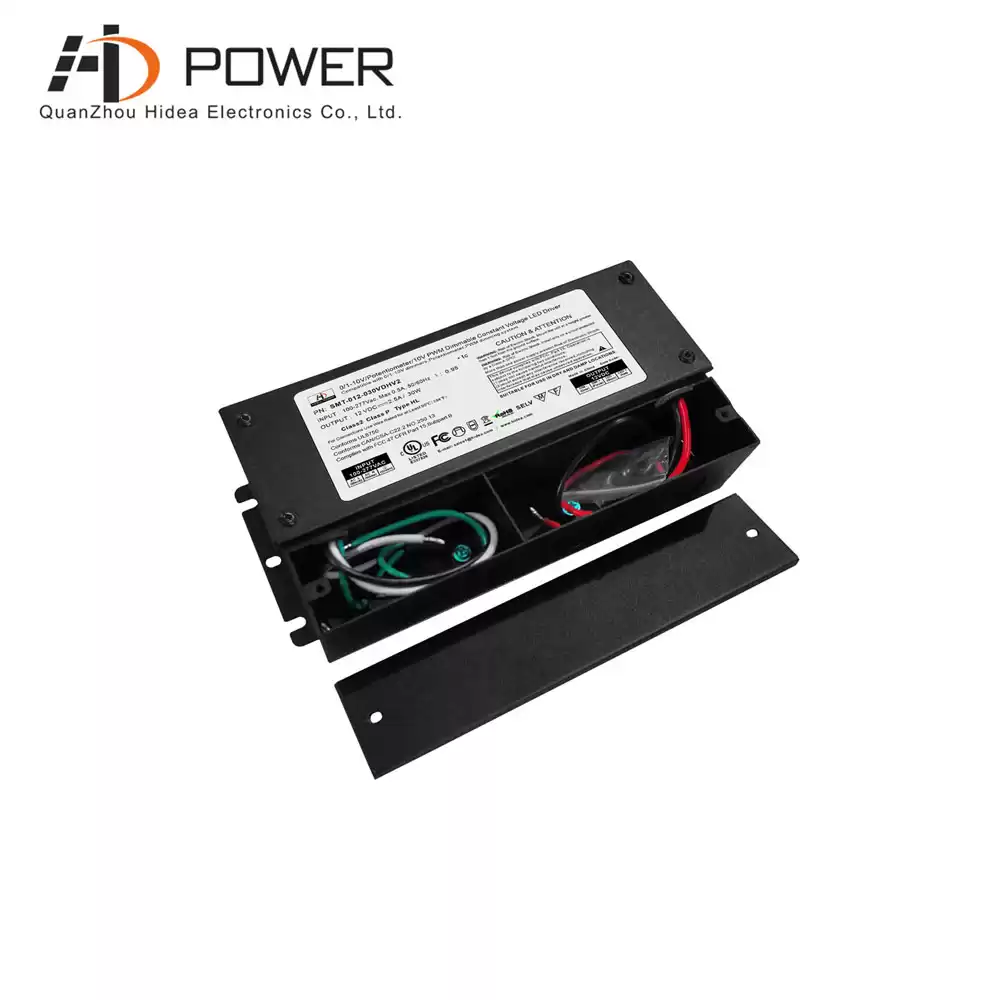

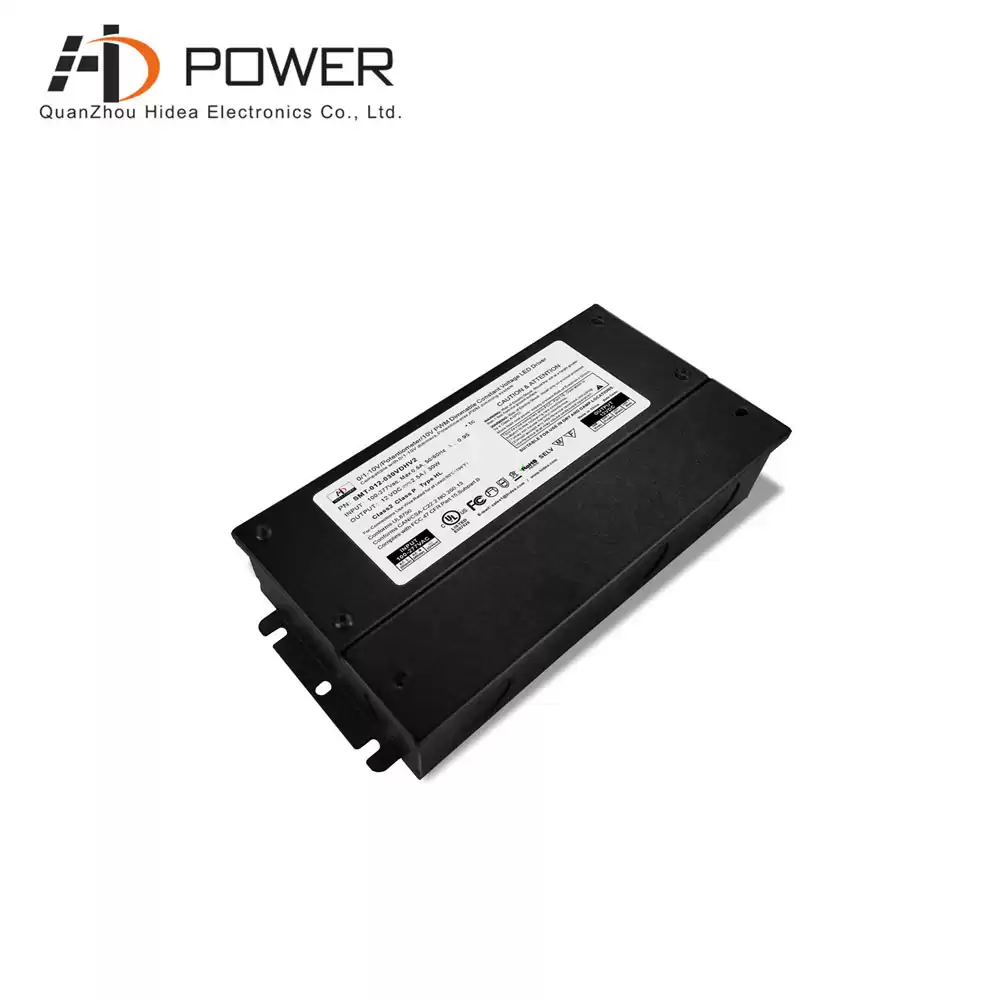

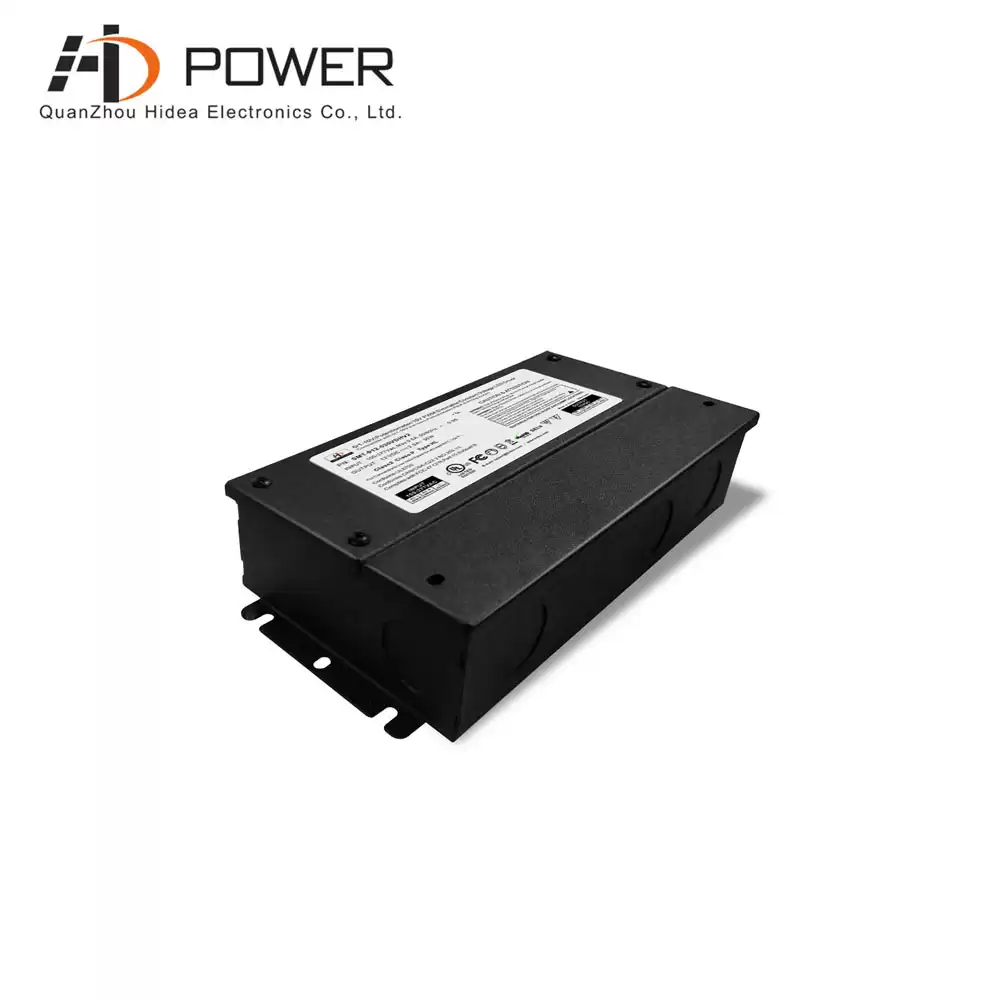

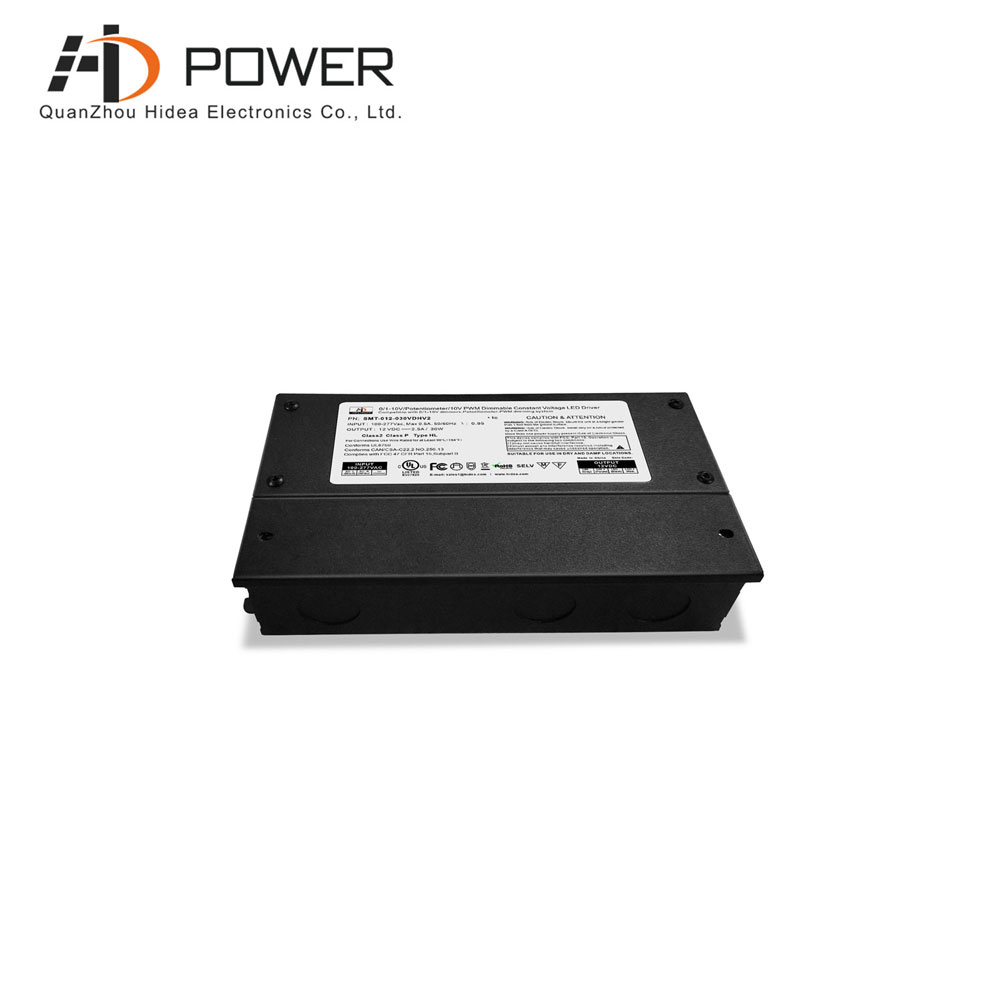

24v 30w 0 10v dimmable Constant voltage led power supply driver price
This hot-selling product 0-10V/1-10V/Potentiometer/10V PWM dimmable led driver 30W 24V constant voltage working mode, with short circuit/overload/overtemperature protection function, working efficiency up to 80%, UL certification, complies with global safety lighting Rules, 7-year warranty
Specification
|
model
|
SMT-012-030VDH (1.0 version)
SMT-012-030VDHV2 (2.0 version)
|
SMT-024-030VDH (1.0 version)
SMT-024-030VDHV2 (2.0 version)
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Rated Current
|
2.5A
|
1.25A
|
|
Rated Power
|
30W
|
30W
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor(Typ.)@ full load
|
0.99@120VAC 0.98@277VAC
|
0.99@120VAC 0.95@277VAC
|
|
THD(Typ.)@ full load
|
<20%
|
|
Efficiency(Typ.)@ full load
|
79% @120Vac 80%@277Vac
|
79% @120Vac 80%@277Vac
|
|
AC Current(Max.)
|
0.5A@100Vac
|
|
Inrush Current (Typ.)
|
7A, 50%, 420us @120Vac 12A, 50%, 480us @277Vac
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
0.95Kg (1.0 version)
|
|
Size
|
1.0 version: 165*92*26mm (L*W*H) / 2.0 version: 165*94.5*40mm (L*W*H)
|
|
packing
|
305*200*150mm / 10PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible Light Type
These small LEDs are often used on baseboards and walls to light dim hallways and staircases. We offer a variety of slim type led driver, unobtrusive lights that will save you on energy costs and add character to your home.
Related Products
|

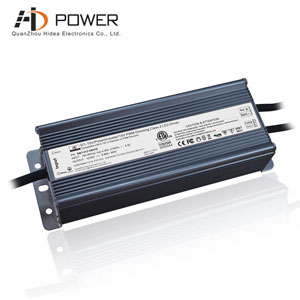

80W constant voltage 0 10v dimmable led driver aluminum housing design, waterproof grade ip67, effectively waterproof and dustproof, suitable for outdoor lighting projects
Mode：SMT-012-080VD
Dimming Mode : 0-10V Dimming
Output Power : 80W
intput voltage：100~265V AC
Size：200*68*45MM （L*W*H）
|
