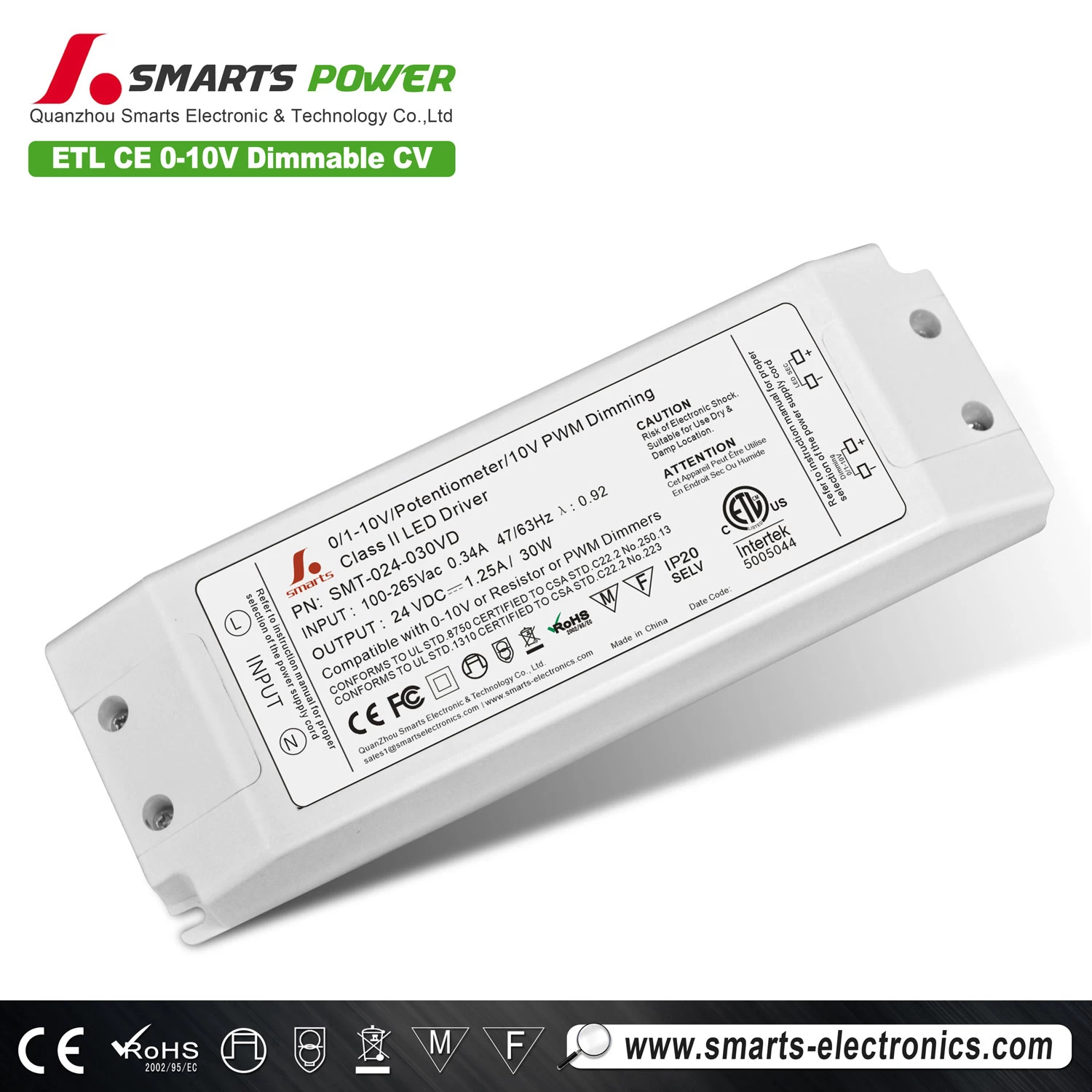

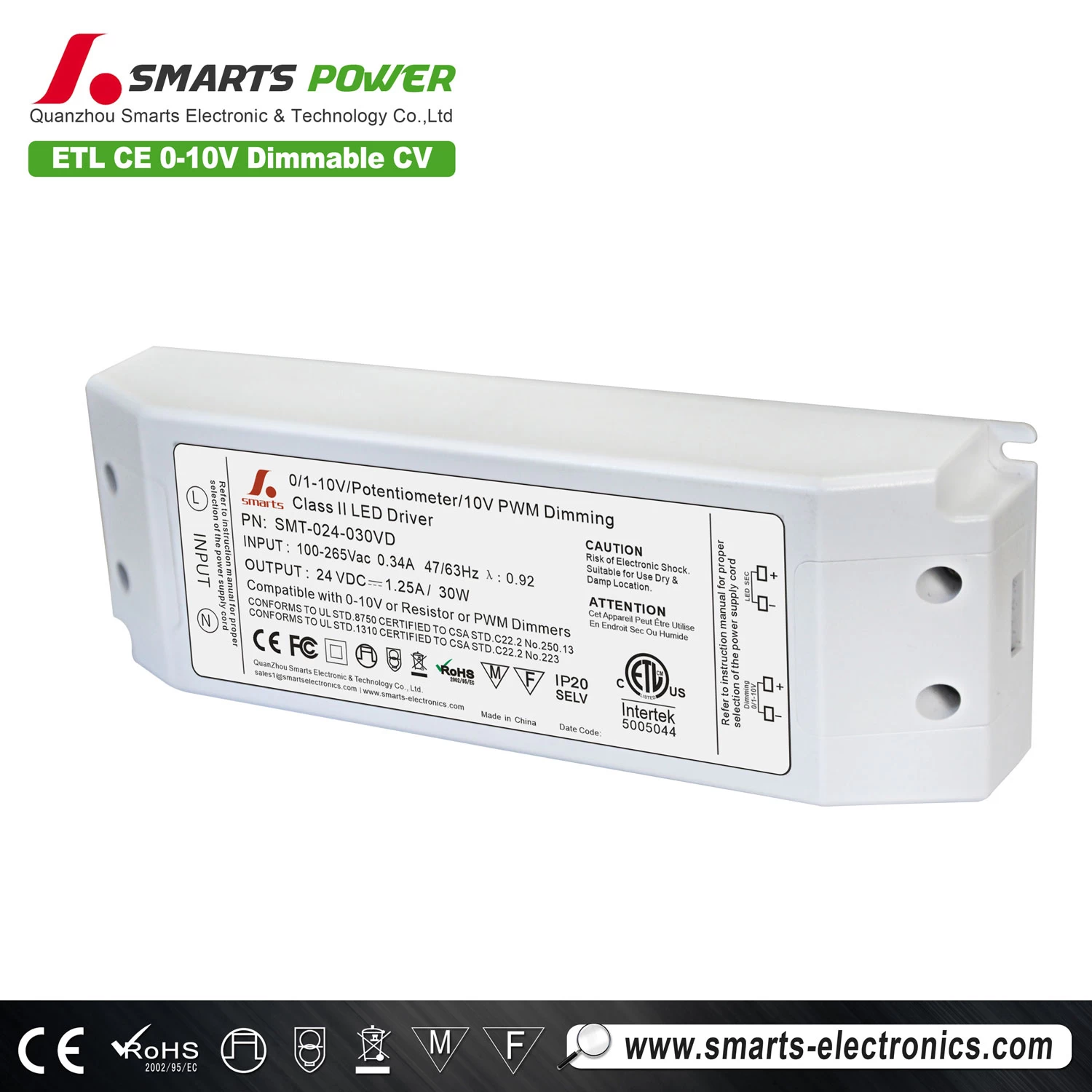

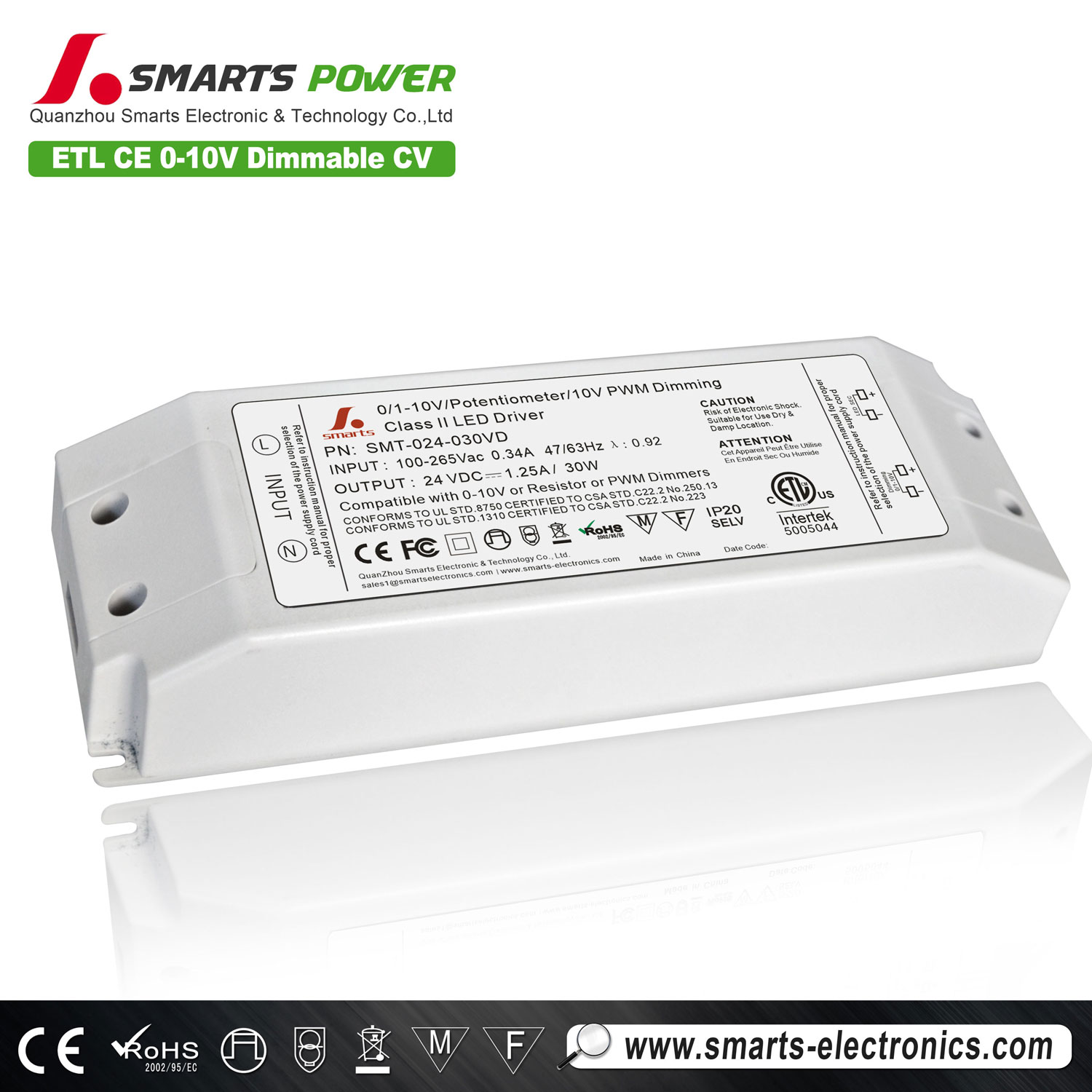

24v 30w constant voltage 0-10v dimming led driver

Features:

• High efficiency,save energy ,protected environment.
• High stability and low ripple, increase light efficiency and decrease light attenuation.
• Meet to safety standard and EMC
• Assure LED stability long lift and light efficiency by constant voltage.
• Protections:Short circuit/Overload/Over temperature
• Cooling by free air convection
• 100% full load burn-in test.
• Suitable for LED lighting
• Brand electrotronic components.
• ROHS material.

Environment:

• Working temp: -30~+50℃ (Refer to output load derating curve)
• Working humidity: 20~99% RH non-condensing(Waterproof)
• Storage temp. humidity:  -40~+80℃,10~99%RH

Safety:

• Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
• Withstand Voltage : I/P-O/P: 3000KVAC
• Isolation Resistance : I/P-O/P:100M Ohms/500VDC

Application:

• Indoor LED illuminating lights
• LED Neon, LED urban Decoration
• LED Lighting Advertising,LED Display
• Safety Protection Apparatus
• Telecommunications, Networks
• Vehicle Lights, Controller Panels
