24v 30W constant voltage triac & 0 10v dimmable led driver power supply for outdoor

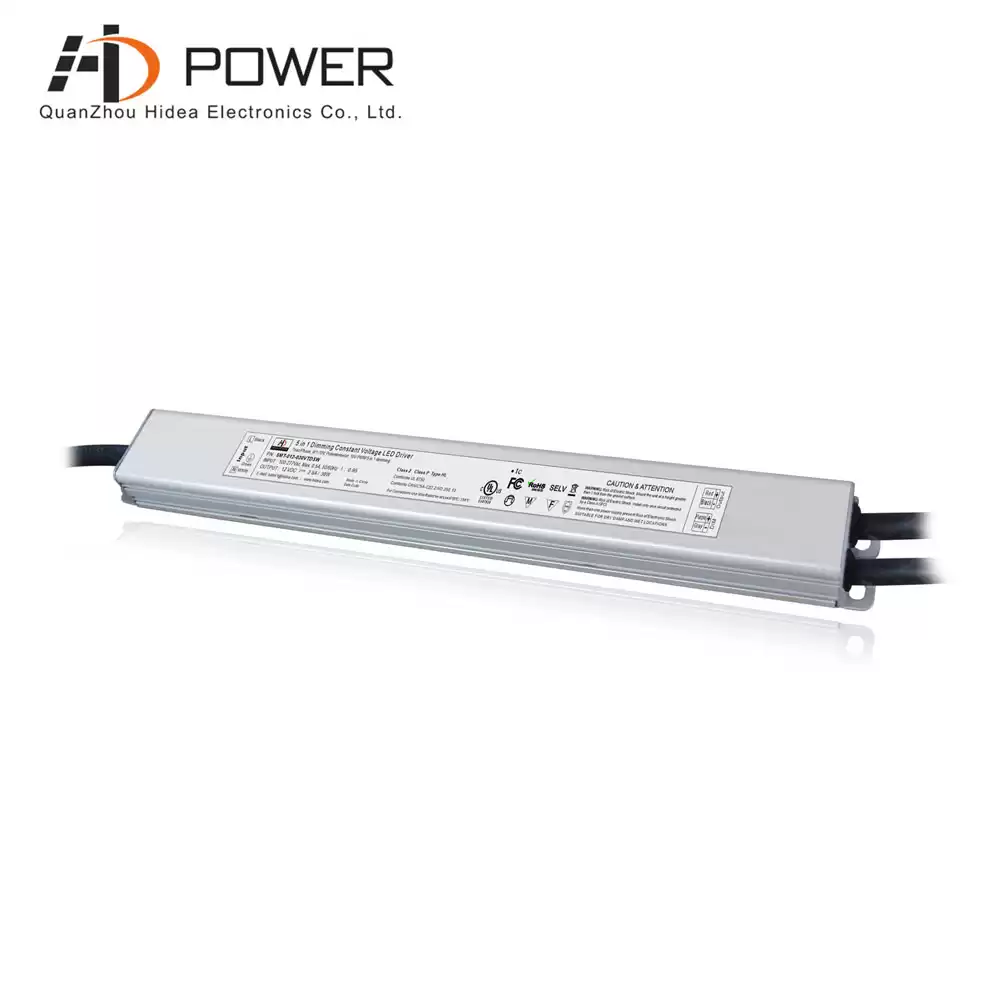

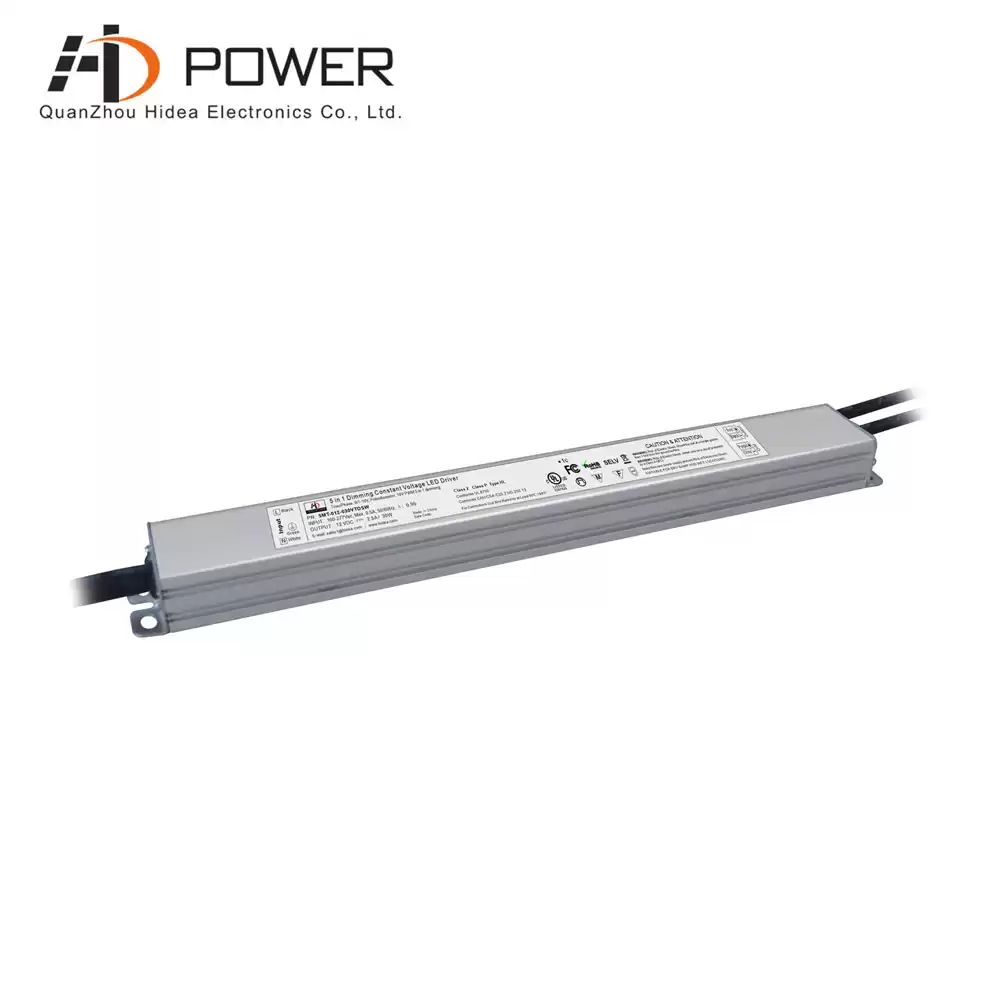

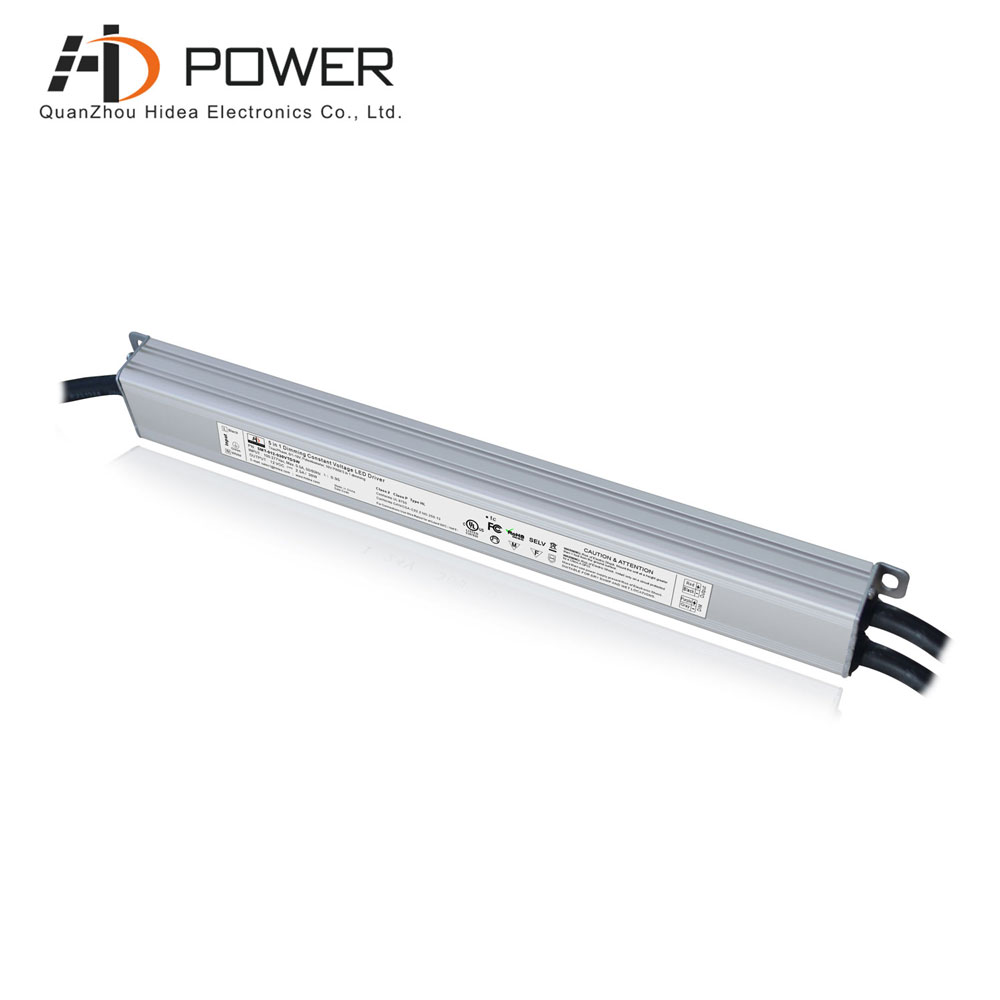

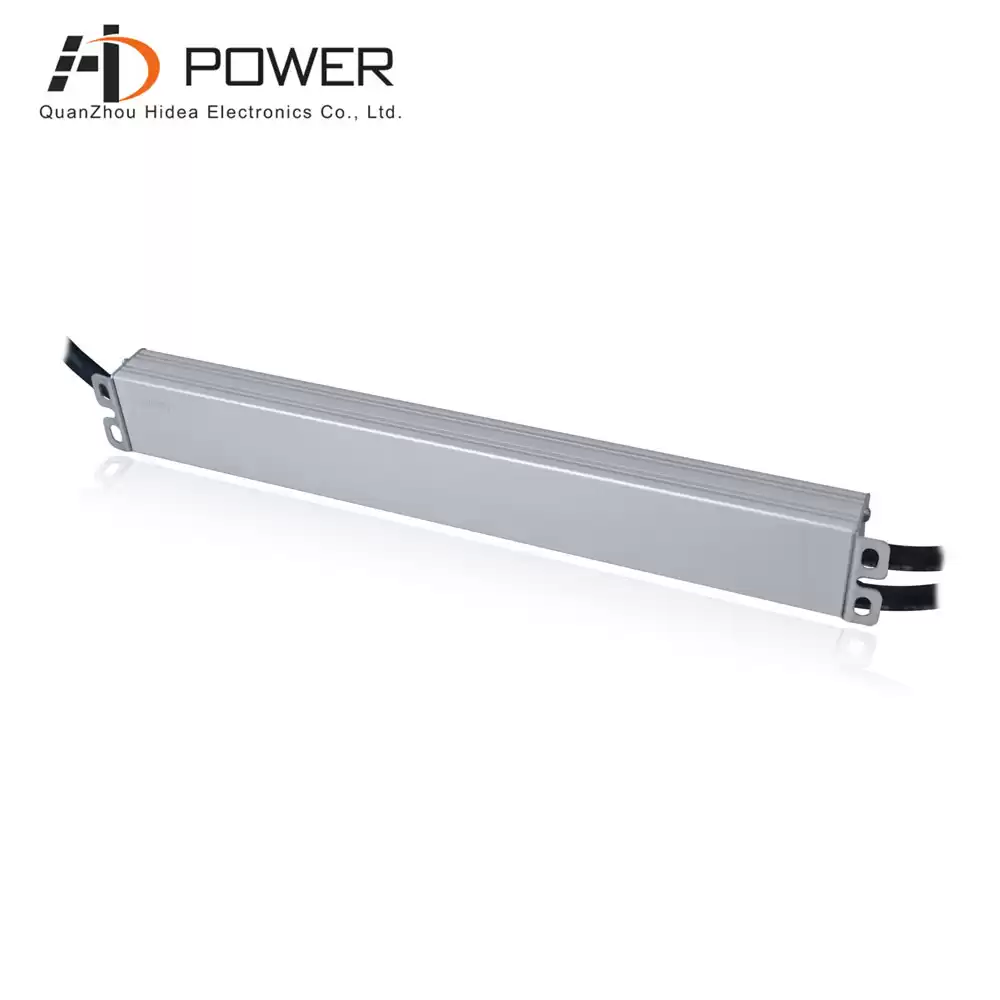

100-277vac waterproof dimmable led driver 30W dimmable mode is Triac/0-10V/1-10V/Potentiometer/10V PWM (5 in 1) Dimmable, has strong compatibility and can be used with CreeLighting's 30W LED floodlight. Very good Compatible for smooth, flicker-free dimming
Label
Specification
|
model
|
SMT-012-030VTDSW
|
SMT-024-030VTDSW
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
Rated current
|
2.5Amp
|
1.25Amp
|
|
Rated power
|
30W
|
30W
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
Input
|
Voltage Range
|
100-277 VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
PF≧0.99/110V ; PF≧0.98/277V
|
|
THD(Typ. ) @ full load
|
<10%@120VAC <15%@277VAC
|
|
Full Load Efficiency(Typ.)
|
79%@120VAC 80%@277VAC
|
|
AC Current(Typ.)
|
0.5A
|
|
Inrush Current(Typ.)
|
13A
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750 +UL1310,CAN/CSA-C22.2 No.250.13
|
|
Withstand voltage
|
I/P-O/P:1.88KVac
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,,11, , Alight industry level
|
|
Others
|
Weight
|
0.35Kg
|
|
Size
|
260*32*20mm(L*W*H)
|
|
packing
|
Carton size: 290*270*160mm 30pcs /CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input , Rated load and 25℃of ambient temperature.
|
|
2. Tolerance:includes set us tolerance,line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Compatible Light Type
This Dimmable LED Driver features an integrated wiring compartment, allowing one to make clean connections inside of the power-supply with no need for external junction boxes. The slim and compact design makes our SMT-012-030VTDSW an excellent solution for under-cabinet LED lighting.
Related Products
|

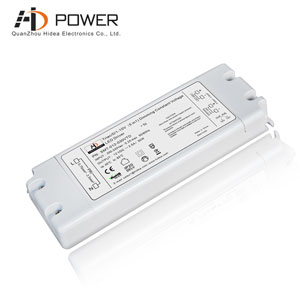

 ip20 plastic shell triac & 0 10v dimmable led driver constant voltage working mode, compact body, easy and fast installation, suitable for indoor lighting projects, such as cabinet lights
Mode：SMT-012-030VTD
Dimming Mode : triac & 0 10v Dimming
Output Power : 30W
intput voltage：100-277VAC
Size：155*54*20mm （L*W*H）
|
