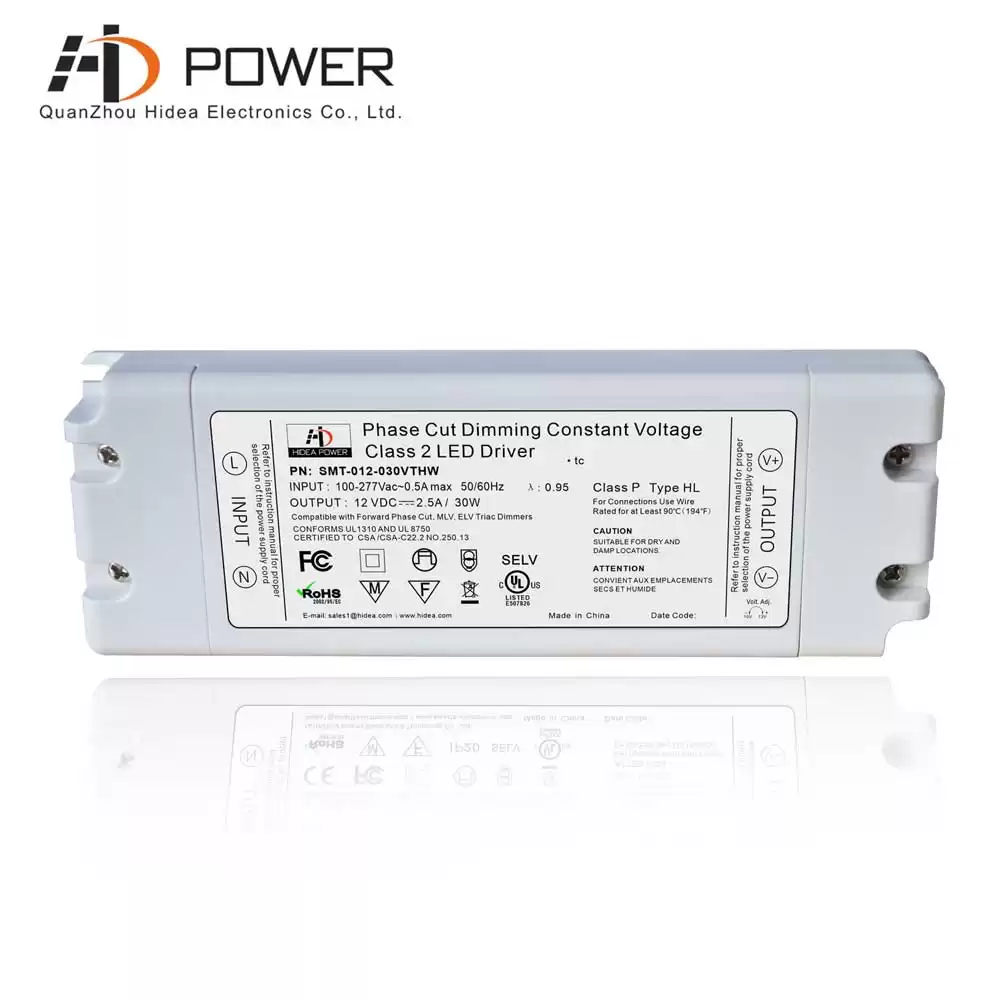

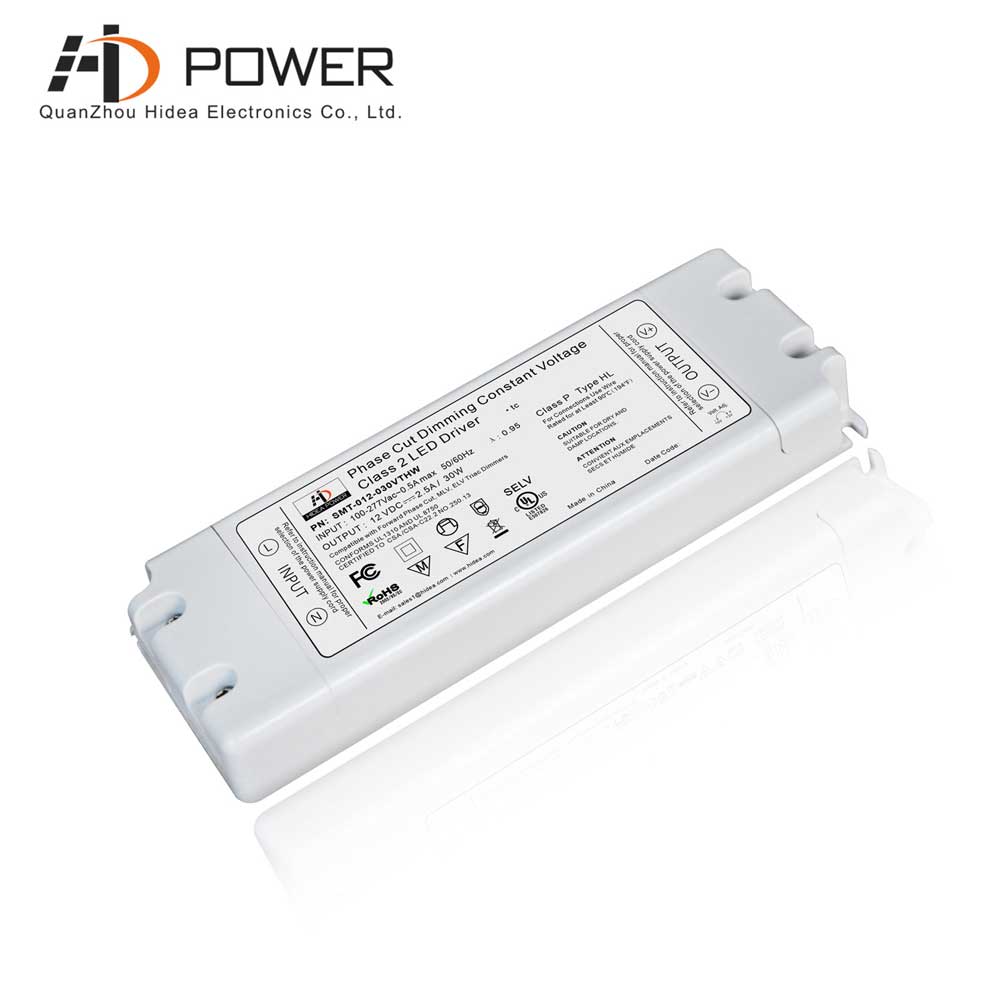

24v 30w constant voltage triac dimmable led driver for strip light
Plastic shell ip20 design triac dimmable 24V led driver 30W, passed UL certification, in line with global lighting safety regulations, easy and fast installation, size only 155*54*20mm, with 7 years warranty
Specification
|
model
|
SMT-012-030VTHW
|
SMT-024-030VTHW
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
±0.5V
|
|
Adj. Voltage Range
|
10-13V
|
21.5-25.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Rated current
|
2.50A
|
1.250A
|
|
Load Regulation
|
±1%
|
|
Rated power
|
30W
|
30W
|
|
Input
|
Voltage Range
|
100-277V AC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
0.99@120VAC 0.98@277VAC
|
0.99@120VAC 0.97@277VAC
|
|
Full Load Efficiency(Typ.)
|
79%
|
79%
|
|
AC Current(Typ.)
|
0.5A/110VAC
|
|
Inrush Current (Typ.)
|
7.0A, 50%, 425us
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed.
|
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1.88KVac
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
0.21Kg
|
|
Size
|
155*54*20mm (L*W*H)
|
|
packing
|
40PCS/CTN 385*335*200mm 20PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|

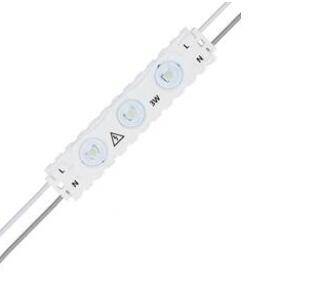

Compatible Light Type
The class 2 led driver 30w constant voltage has short-circuit, overload, and over-temperature protection, and can be used for lighting projects in indoor dry areas
Related Products
|

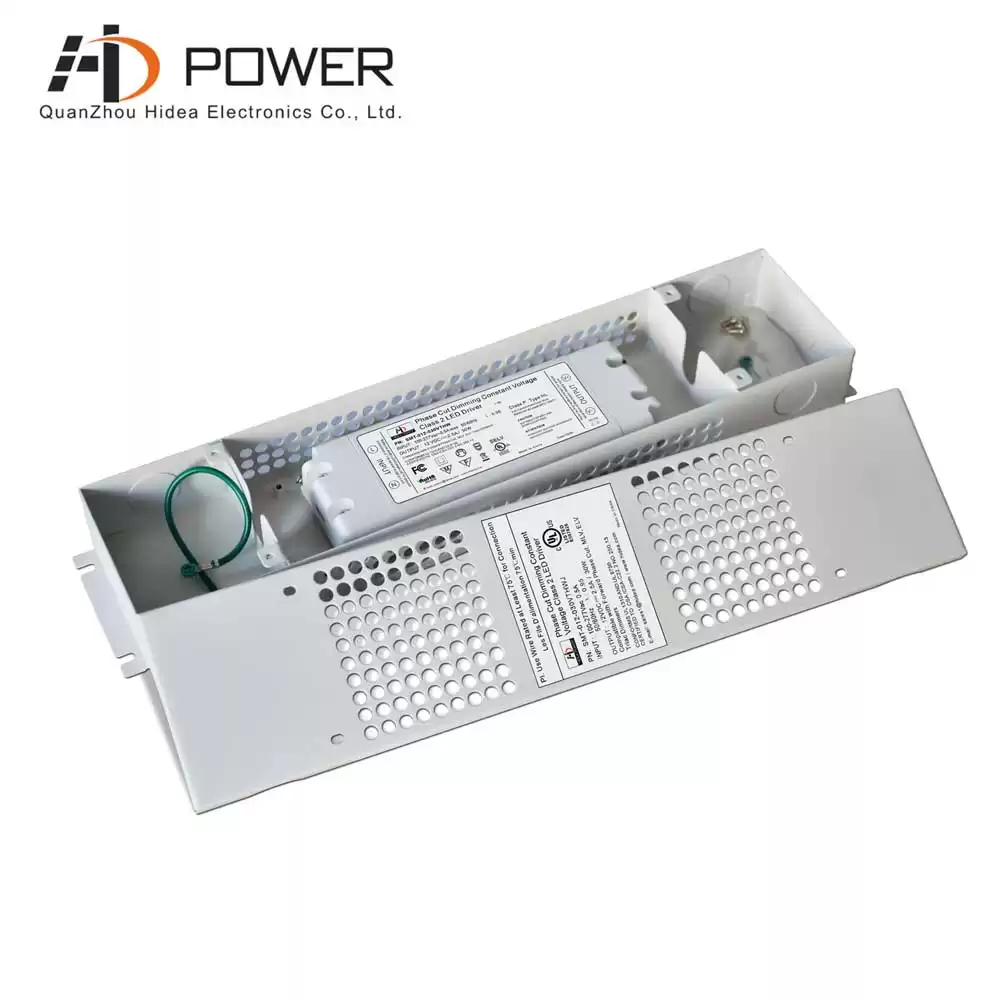

 The 30w triac dimmable led driver is integrated with the junction box, which can protect the life of the power supply, provide wiring space, and avoid wiring exposure, 7-year warranty
