24V 36V DC Heating Water Circulation Pump Manufacturer
A hot water heater recirculating pump is a device used to circulate hot water in a closed-loop system, ensuring hot water is readily available at the fixtures without the need for waiting or wasting water. These heating water circulation pumps help provide instant hot water by continuously circulating hot water from the water heater to the fixtures and back. Hot water recirculating pumps are typically available in two types: traditional and on-demand. Traditional pumps are designed to continuously circulate hot water, whereas on-demand pumps use sensors or timers to activate the pump only when hot water is needed. Our pump is the on-demand one.

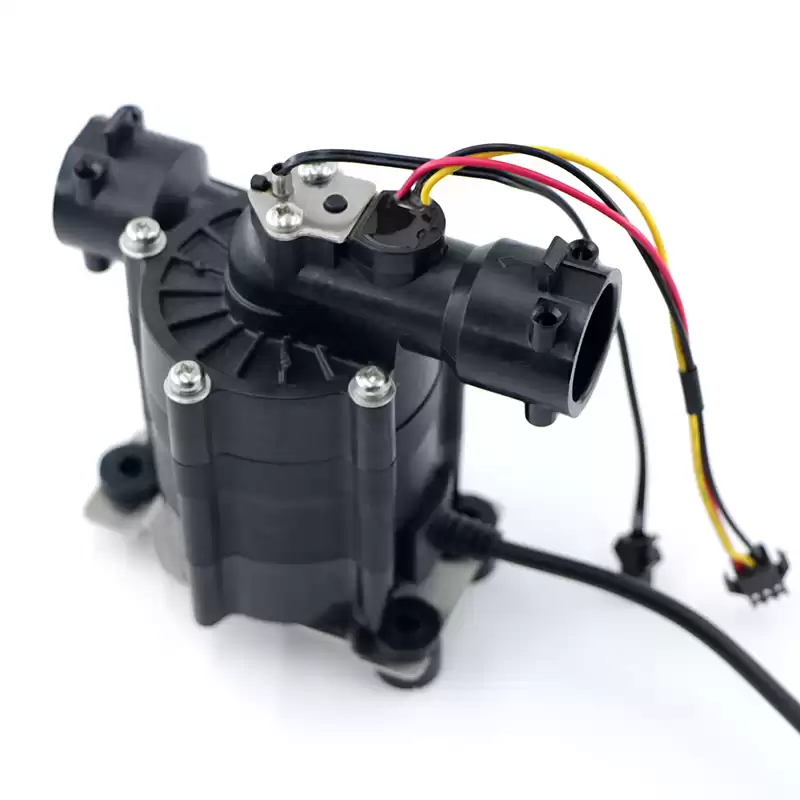

Thermo tankless recirculation pump CRP060A is built-in the electric water heater, gas condensing boiler, instant water heater, solar water heater etc to keep hot water moving throughout the plumbing system so that it’s always available in an instant. It re-routes the cold water back to the storage tank to be heated. Its a submersible pump design with working voltage 24V/36V which is fit the body safety range，Medium is water and Insulation of H(180℃) , Max/Continue Pressure is 3.5MPa/1.5MPa.
The feature of THERMO Water Circulation Pump CRP060A is:
l Compact and small size with light weight 520g
l Inline flow meter & temp meter
l Large Flow Rate & High Pressure
l Long lifetime ≥200,000 Times (15S ON, 15S OFF)
l Lower noise ≤45dB@1m
l Dry-running protection
l Over-current protection
l Blocked protection
l Over-voltage protection
l Lower-voltage protection
l Over-temperature protection
l Constant power
l Reverse protection
l PWM Control & FG Signal Customization
l Liquid temperature range from 0~85℃, Ambient temperature range from -25~60℃
l Static seal design to prevent leakage
