Product Description
Round electromagnets offer an effective alternative to mechanical holding devices, hooks, or chains. Our electromagnets have no moving parts, valves or springs to wear out. Our electromagnets offer increased productivity while decreasing maintenance in automated parts handling, plate, sheet or bar steel handling, and machine shop operations. When energized, the magnet’s outer edge will produce either a North or South magnetic field to surround the center pole. This type of magnetic circuit produces a direct, concentrated magnetic field, ideal for part hold down and quick, sure positioning.
|
Specifications
|
|
Brand
|
Landa
|
Product Name
|
H18090 circular electromagnet
|
|
Model
|
H18090
|
Rated Voltage
|
DC 24v 36v
|
|
Power
|
80-150w
|
Force
|
8000-9000N
|
|
Waterproof Class
|
IP65
|
Duty Cycle
|
50-100%
|
|
Cable Length
|
200mm
|
Material
|
Metal, Electronic Parts
|
|
Action Form
|
Holding type
|
Weight(N.W.)
|
13.5kg
|
|
Install Style
|
Screw
|
Thread Size & Deepth(mm)
|
M12,20
|
|
Hi-Pot Test
|
AC 600V 50/60Hz 2s
|
Insulation Class
|
B
|
|
Packaging Details
|
|
Body Size
|
D180*H90(mm)
|
Carton Box Size(Standard)
|
350*310*180(mm), accepted custom
|
Product Feature
circular holding electromagnet
1. Holding type, round shape, mini size, IP65 waterproof, DC solenoid electromagnet.
2. The electromagnet need to be energised to develop suction force, widely used for holding of ferromagnetic workpieces during machining or assembly, safety mechanisms, selector devices in textiles machinery, door latching holdback devices and etc.
3. Energised-on-holding, and release deenergised. We also offer an optional spring loaded ejector pin to overcome residual magnetism, as well as optional armature plates as a magnetic counterpart for optimum performance.
4. Also offer custom shape and energise to release circular electromagnet

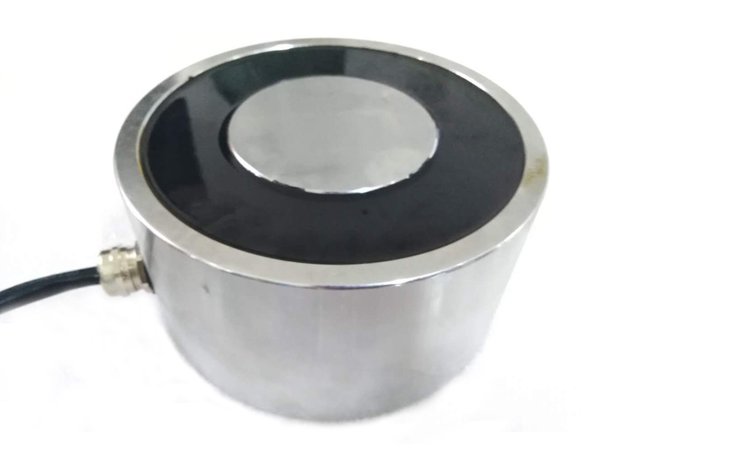

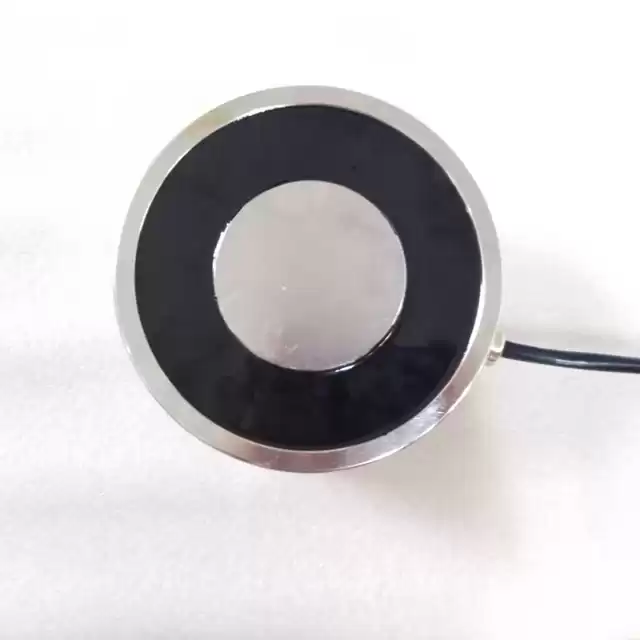

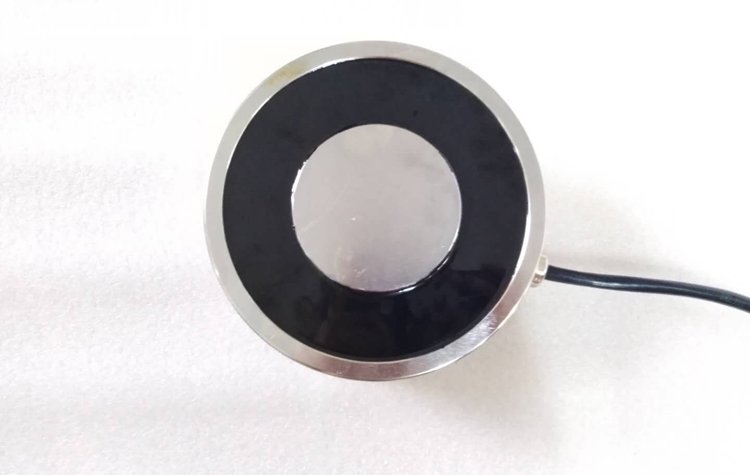

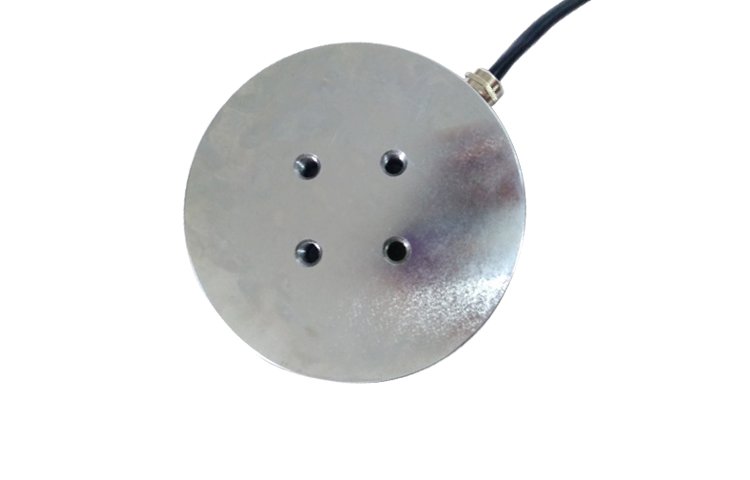

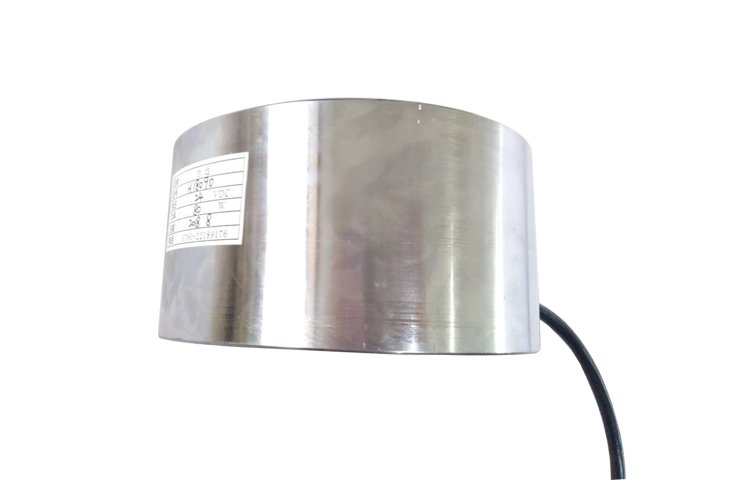

Detailed Images
