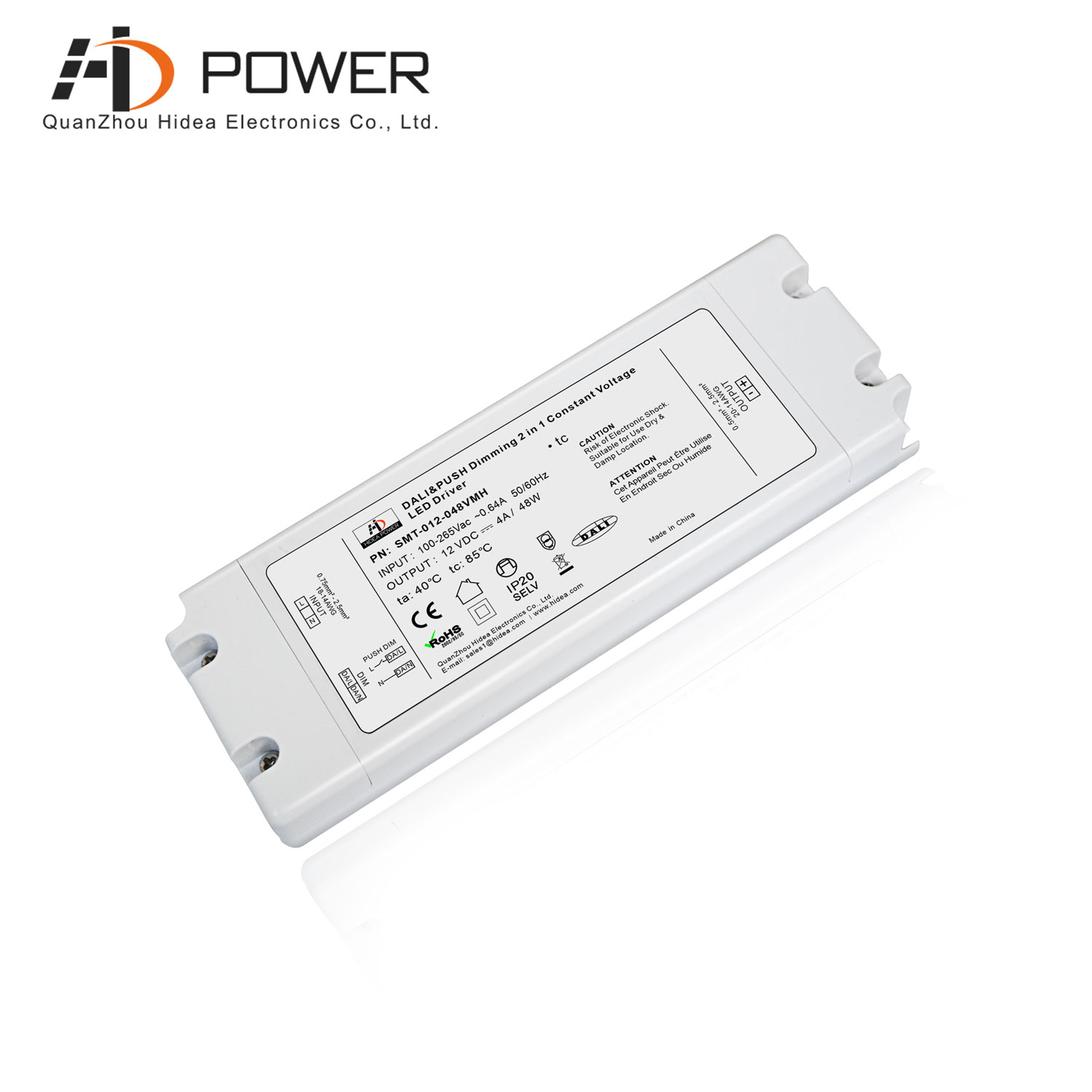

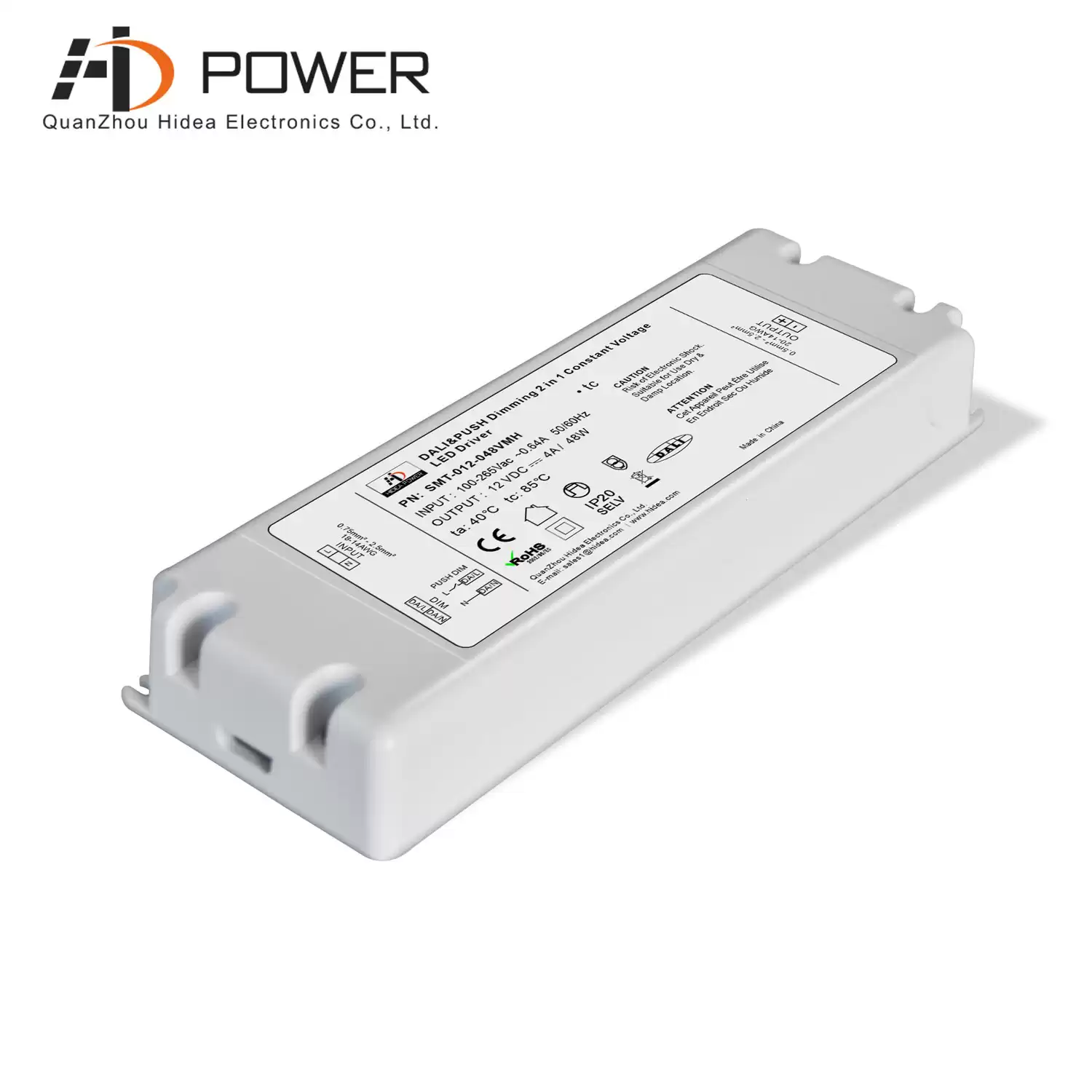

24v 48W constant voltage dali dimmable led driver ip20 for indoor
This dali dimmable 48W led driver has constant voltage working mode, working efficiency up to 84%, short circuit/overload/overtemperature protection, 100-265vac input voltage, five-year warranty
- Dimming ModeDALI Dimming
- Working ModeConstnat Voltage LED Driver
- Input Voltage100-265Vac
- Output Power(Watt)24W
- Output Voltage12/24Vdc
- Shape & SizeStandard Size
- Output Current
- Size178*61*24mm
- Weight350g
- CertificationCE
- Warranty5 Years
24v 48W constant voltage dali dimmable led driver ip20 for indoor
hideapowertech constant voltage dali dimmable 48W led driver has built-in dali interface and complies with dali dimmable protocol IEC62386, suitable for smart LED lighting projects
Specification
| Model | SMT-012-048VMH | SMT-024-048VMH | |
| Output | DC Voltage | 12V | 24V |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Rated current | 4A | 2A | |
| Rated power | 48W | ||
| Load Regulation | ±2% | ||
| Input | Voltage Range | 100-265VAC | |
| Frequency Range | 47 - 63Hz | ||
| Power Factor(Typ.)@ full load | PF≥0.99 / 120VAC PF≥0.95/ 230VAC (Full loading) | ||
| THD(Typ.)@ full load | <20% | ||
| Efficiency(Typ.)@ full load | 81% | 84% | |
| AC Current(Max.) | 0.62A | 0.60A | |
| Inrush Current (Typ.) | 2.16A/120VAC 13A/230VAC | ||
| Leakage current | <0.5mA | ||
| Protection | Short Circuit | constant current mode, recover automatically after fault condition is removed | |
| Over Load | ≤120% constant current limiting, recover automatically after fault condition is removed | ||
| Over temperature | 100℃±10℃ Shut down o/p voltage, recovers automatically after temperature goes down | ||
| Protection Class | II | ||
| Environment | Working TEMP. | -40~+60℃ (see below derating curve) | |
| Working Humidity | 20 - 95%RH ,non-condensing | ||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95%RH | ||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||
| Vibration | 10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| Safety&EMC | Safety standards | EN61347-1 EN61347-2-13 IP67 | |
| Withstand voltage | I/P-O/P:3.75KVAC | ||
| Isolation resistance | I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH | ||
| EMC Emission | EN55015:2013 EN61000-3-2 ,EN61000-3-3 | ||
| EMC Immunity | EN61000-4-2,3,4,5,6 ,11, EN61547:2009 | ||
| Others | Weight | 0.35Kg | |
| Dimension | 178*61*24mm(L*W*H) | ||
| packing | 290*215*140mm/20pcs /CTN | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature. | ||
| 2. Tolerance: includes set up tolerance, line regulation and load regulation . | |||
| 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. | |||

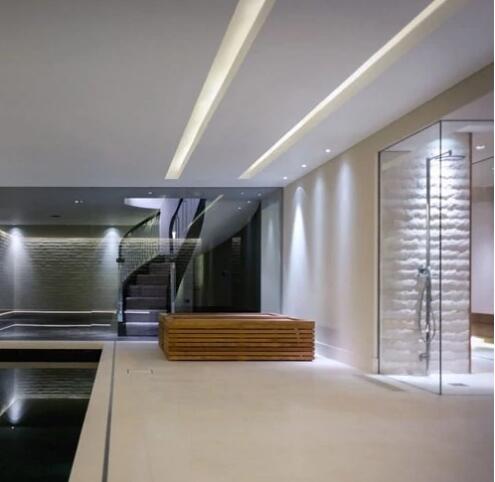

Compatible Light Type
Build with Ferguson tape lights features a flexible 2-layer circuit board that supports increased run lengths with less voltage drop, edge-to-edge 3M™ adhesive, compatible with led dimming power supply.
Related Products
|

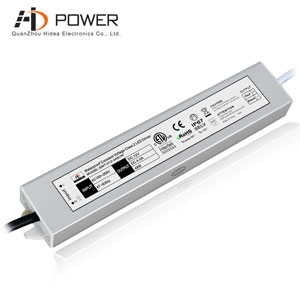

waterproof constant voltage 48w non dimmable led driver with good waterproof rating ip67, able to provide stable protection for lamps, 3-year warranty
