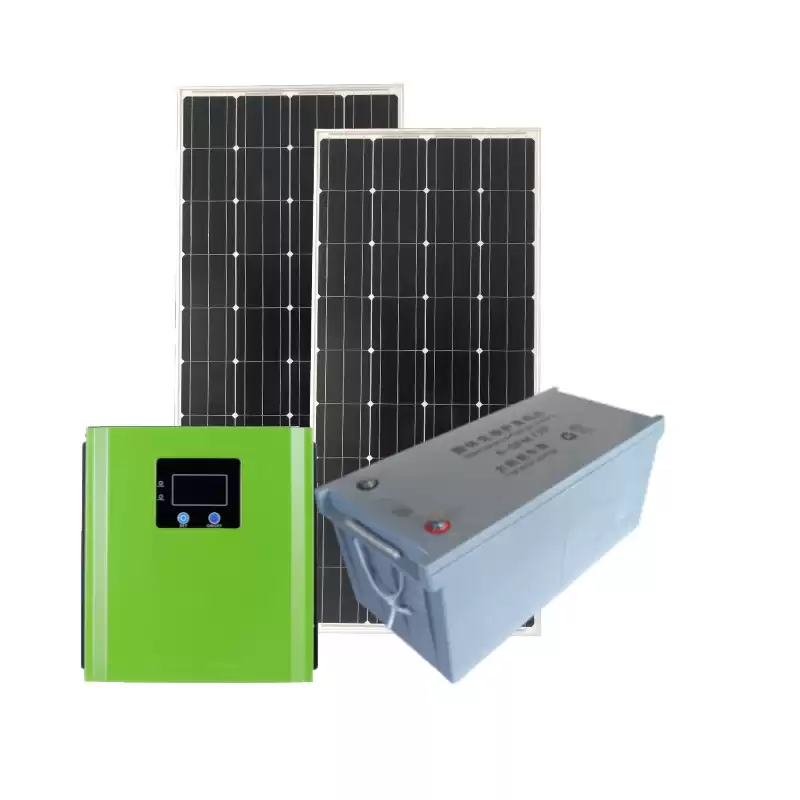

500W Photovoltaic Solar Power System Household
Our best off-grid solar panel kit. They pack solar panels, controllers, inverters, batteries and other accessories in their packaging. It can provide environmentally friendly power for RVs, trailers and campers, and the 500w solar power system is also very suitable for cabins and houses.
The solar photovoltaic power system can provide you with an output of 500 watts, making it suitable for unlimited off-grid power in various applications.
500W Solar Power System Specifications:
|
Inverter*1
|
Input Voltage
|
DC12V
|
|
The Output Voltage
|
AC220V
|
|
Output Power
|
500W
|
|
Peak Power
|
1000W
|
|
Frequency
|
50Hz
|
|
Conversion Efficiency
|
＞88%
|
|
No-Load Current Consumption
|
<0.6A
|
|
Built-In Charger
|
YES
|
|
Recharging Current
|
5A
|
|
Total Harmonic Distortion (Thd)
|
<4％
|
|
Size
|
290*310*135
|
|
Weight
|
About 15KG
|
|
With Usb Interface
|
/
|
|

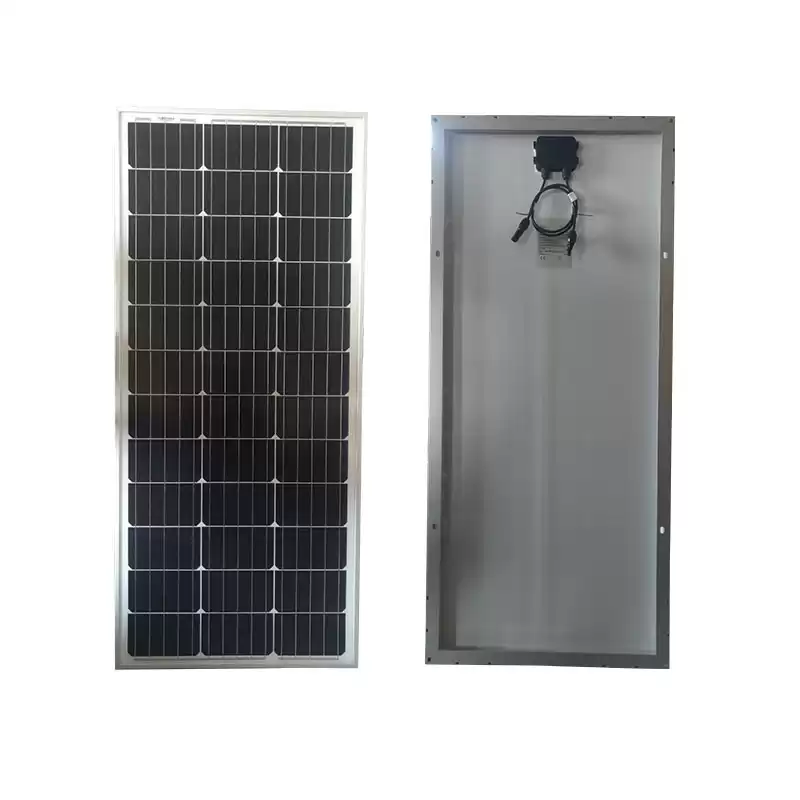

Solar panels*2
|
Maximum Output Power (Pm)
|
150W
|
|
Best Working Voltage (Vmp)
|
18V
|
|
Best Working Current (Imp)
|
8.58A
|
|
Open Circuit Voltage (Voc)
|
21.5V
|
|
Short Circuit Current (Isc)
|
9.7A
|
|
Size
|
1480*670*30
|
|
Weight
|
约13KG
|
|
Conversion Efficiency
|
18%
|
|
Power Deviation
|
3%
|
|
Cell
|
Monocrystalline silicon
|
|
Service Life
|
More than 25 years
|
|

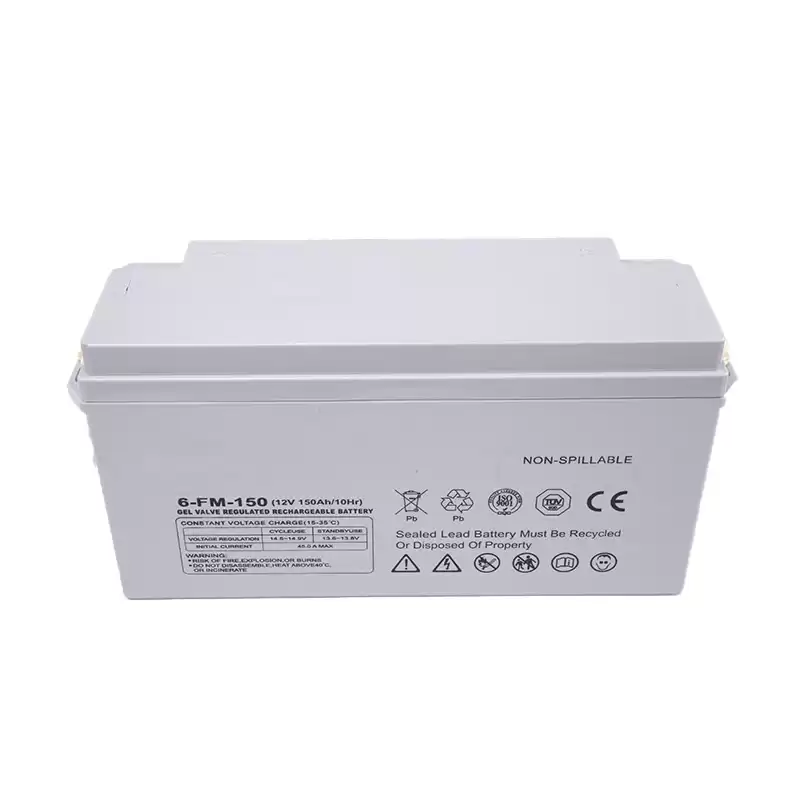

Battery*1
|
Battery Type
|
Valve-controlled maintenance-free gel battery
|
|
Voltage
|
12V
|
|
Capacity
|
150AH
|
|
Size
|
483*170*240mm
|
|
Weight
|
About 42KG
|
|
Accessories
|
Solar Panel Parallel Head
|
Couple
|
|
Battery Series Line
|
/
|
|
Solar Panel Connection Line
|
/
|
|
Host Connection Line
|
/
|
|
Remarks: Accessories can be configured according to personal requirements.
|
Can bring electrical appliances within 500W
-
Rice cooker (300W): Use alone for about 6 hours
-
TV (150W): Use alone for about 12 hours
-
Fan (50W): Use alone for about 36 hours
