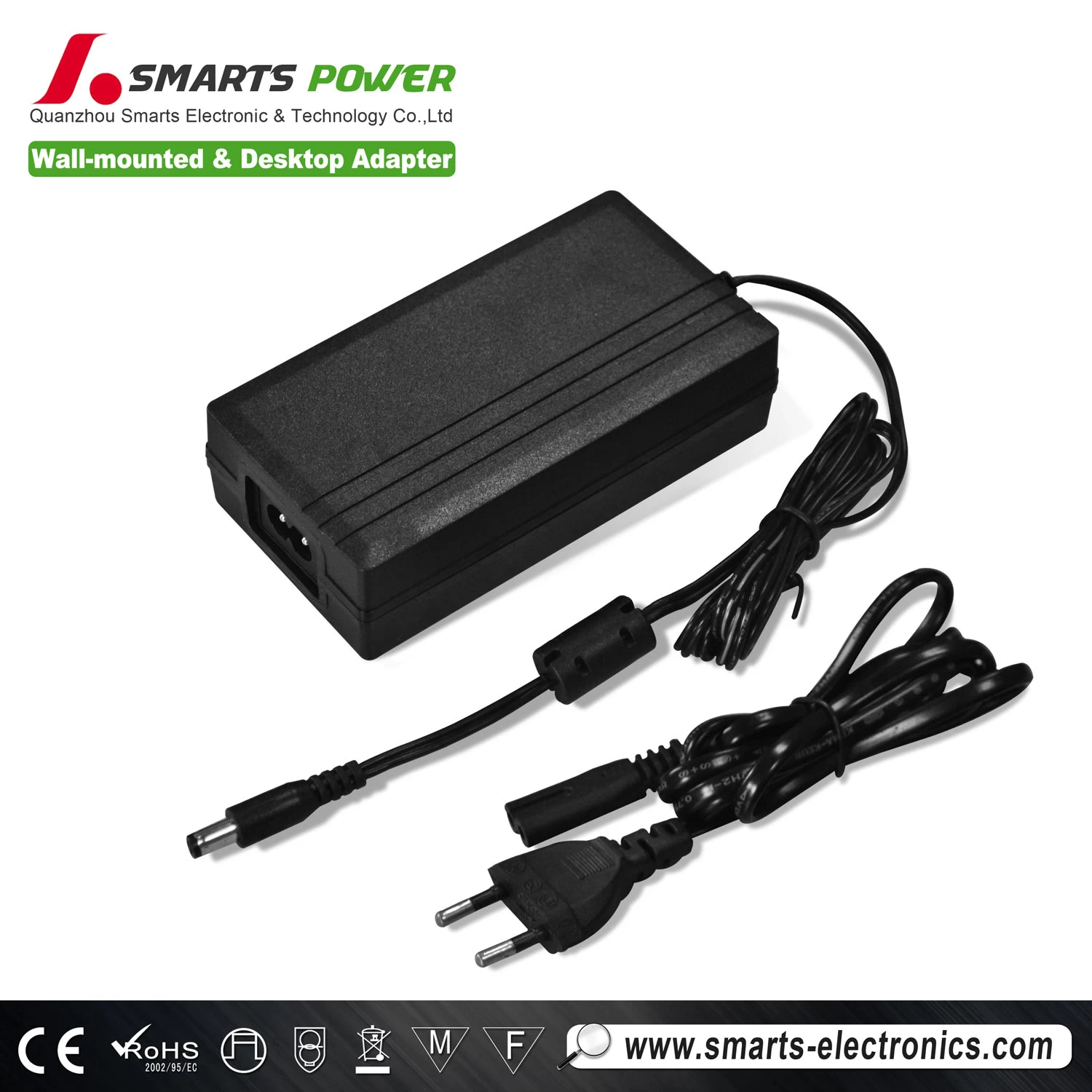

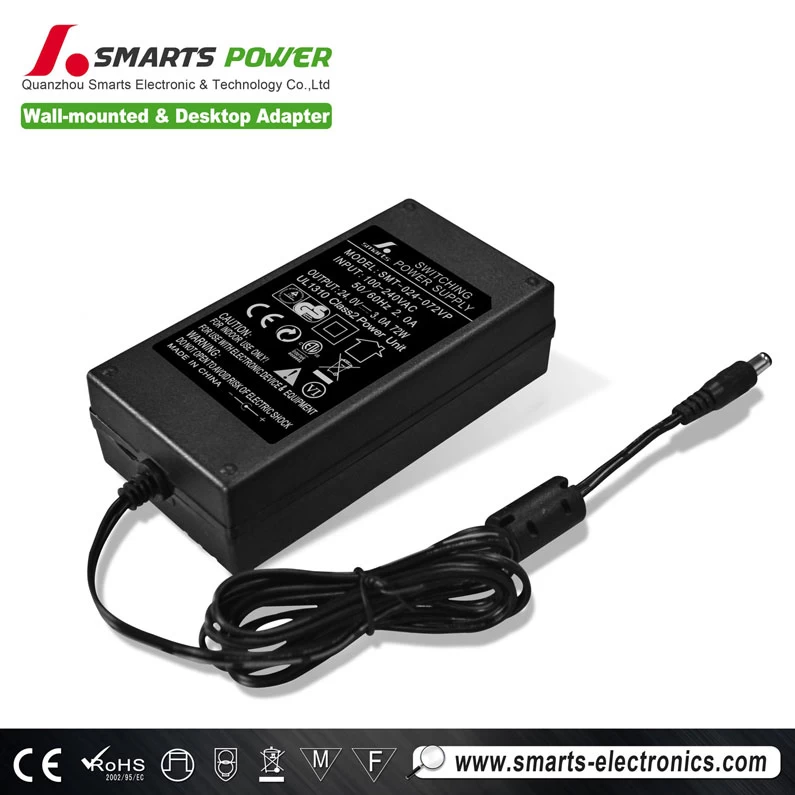

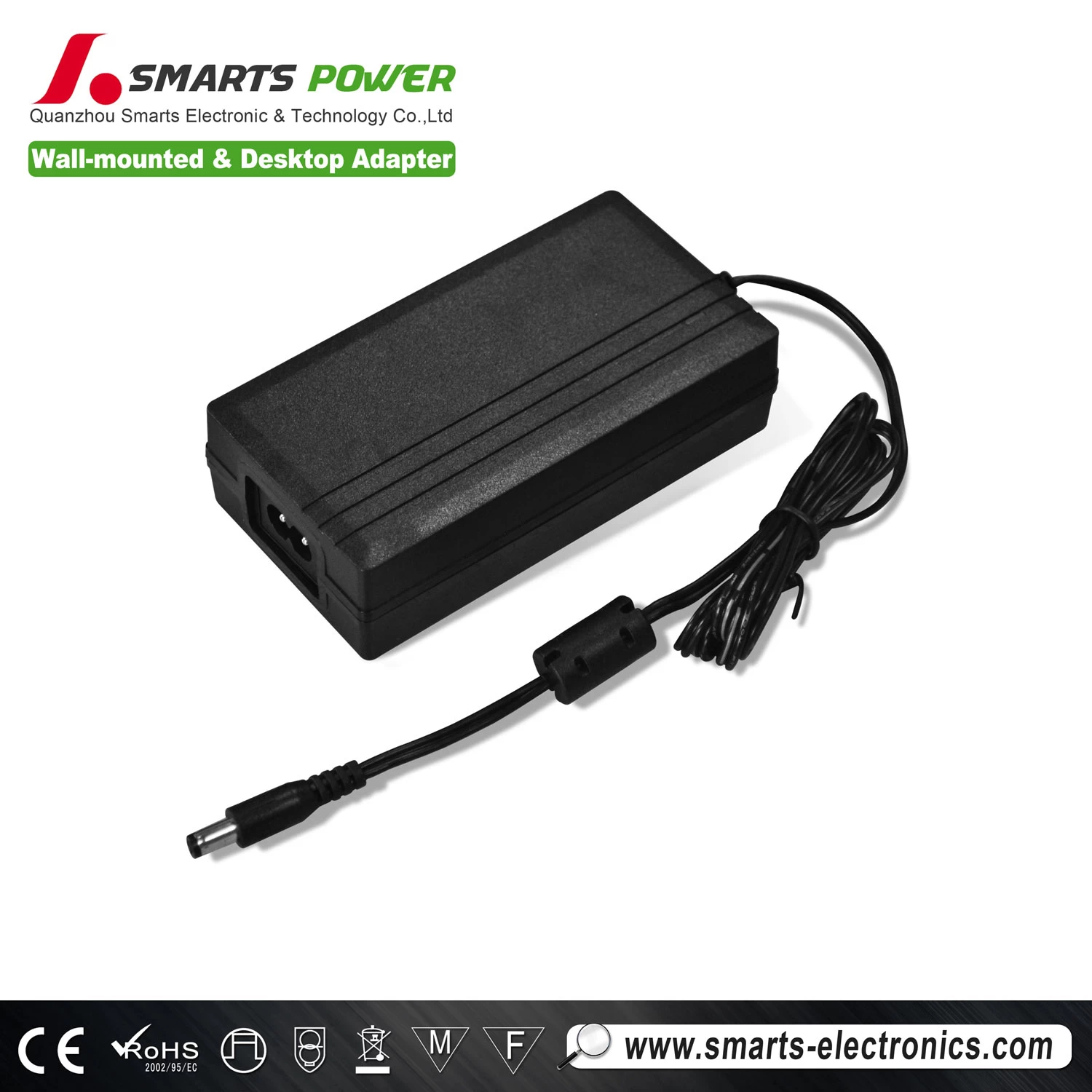

power adapter 24V 72W
Description:
1. Input voltage.:100-240V AC
2. Efficiency>82%
3. output: 24V @ 6A 72W
4. AC cord: EU standard AC plug
5. DC cord: 1.2m EU standard cord with male plug
6. DC connector: 5.5x2.1x10mm
7. CE,ROHS approval
8. Warranty: 18 months
Features :
• Universal AC input: 100~240Vac
• Protections: Short circuit / Overload
• No load power consumption < 0.5W /Over voltage
• 2 or 3 pole US / European type plug
• Fully enclosed plastic case
• Class II power (without earth pin)
• Pass LPS
• Full output 12v 24V safety approved
• 18 months warranty
(AC/DC desktop type switching power adapter)
• Universal AC input/ Full range • Full output 12/24V safety approved
• No load power consumption < 0.3W • Protections: Short circuit Overload
• Pass energy star level IV (CEC) Over voltage
• US / EU / AU/ UK type plug • Fully enclosed plastic case
• Class I/ Class II power • 18 months warranty
General Specification:
AC input voltage range...........100~240VAC / 6A for 72W; 100~240VAC / 3A for 72W
AC inrush current (max.) ........Cold start, <25A peak at 115VAC or 45A peak at 230VAC
Overload protection................Hiccup mode, auto-recovery
Over voltage protection...........Clamp by zener diode > 120%
Withstand voltage..................I/P-O/P: 3KVAC, 1minute
Working temperature ..............-10°C~50°C @ 100% load, 50°C @ 70% load
Safety standards................... , CSA 22.2, TUV EN60950-1, CNS14336
EMC standards ..................... EN55022-B, EN61204-3, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, FCC part15 class B,CNS13438
Length of output cable ...........180cm of 18AWG or 120cm length
Standard DC plug ................... Male or USB DC connector
|
Item No.
|
output voltage
|
current
|
power
|
Tol.
|
R&N
|
Effi.
|
IP Rate
|
|
SMT-012-72VP
|
12V
|
6.00A
|
72W
|
±5%
|
80mV
|
>80%
|
IP20
|
|
SMT-024-72VP
|
24V
|
3.00A
|
72W
|
±2%
|
150mV
|
>80%
|
IP20
|
