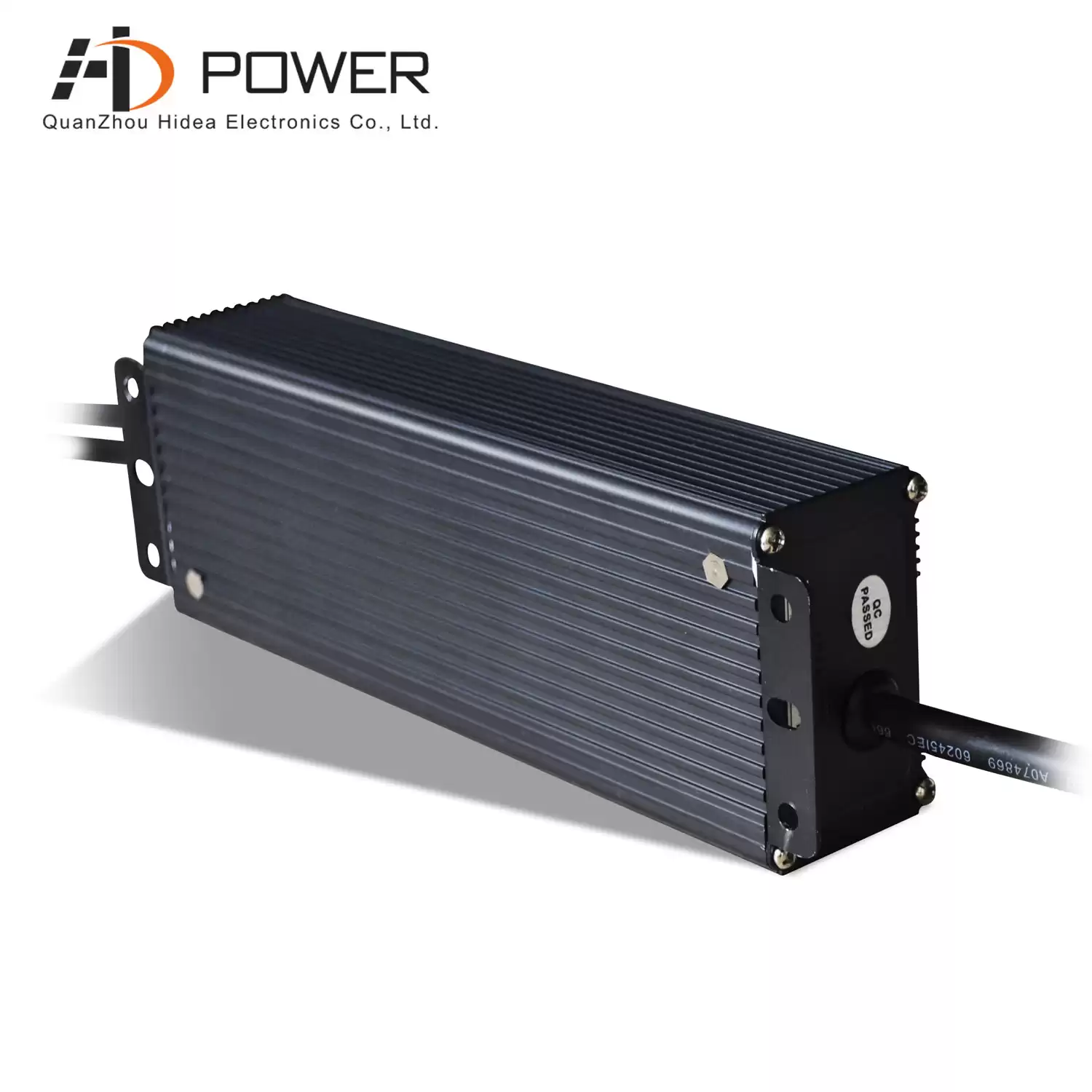

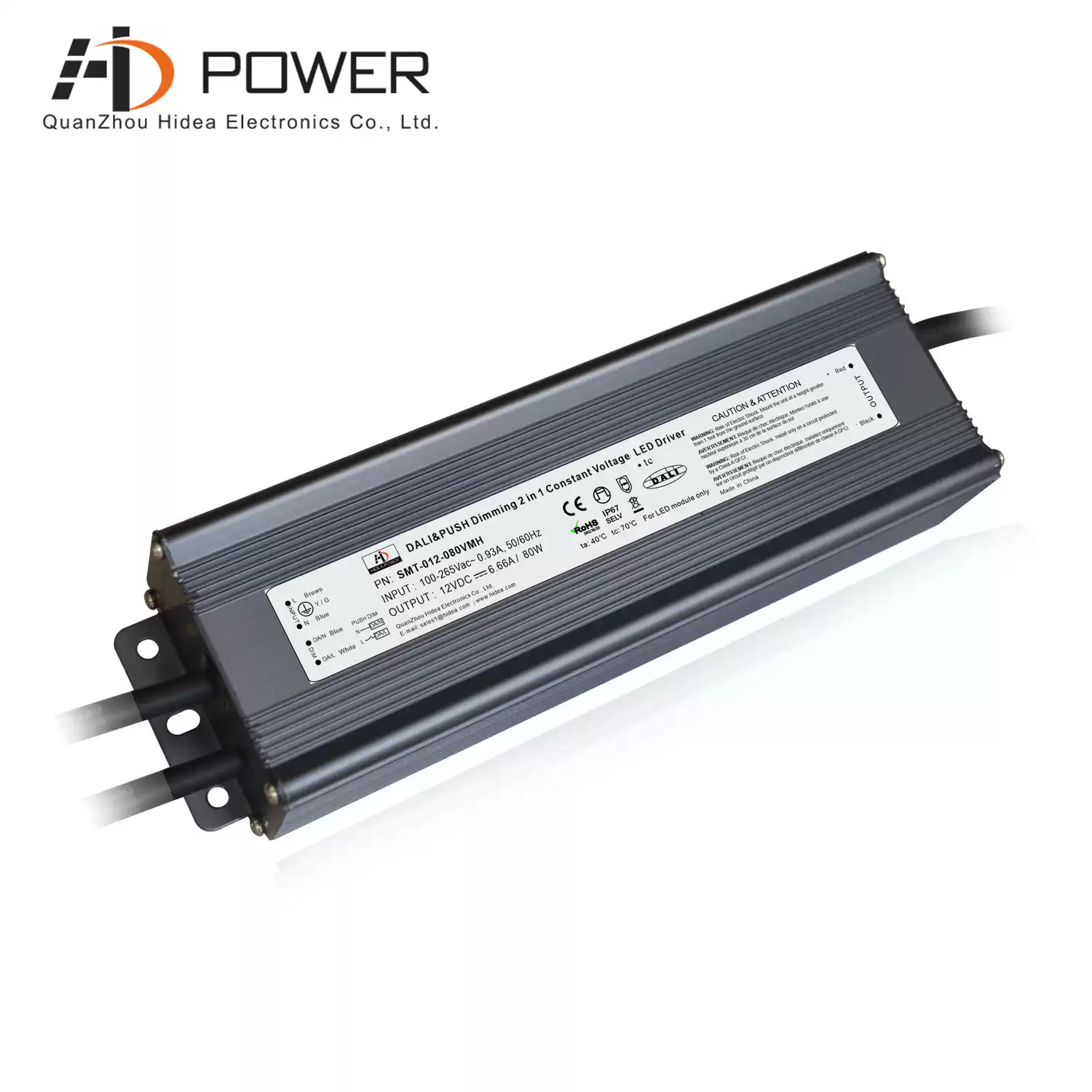

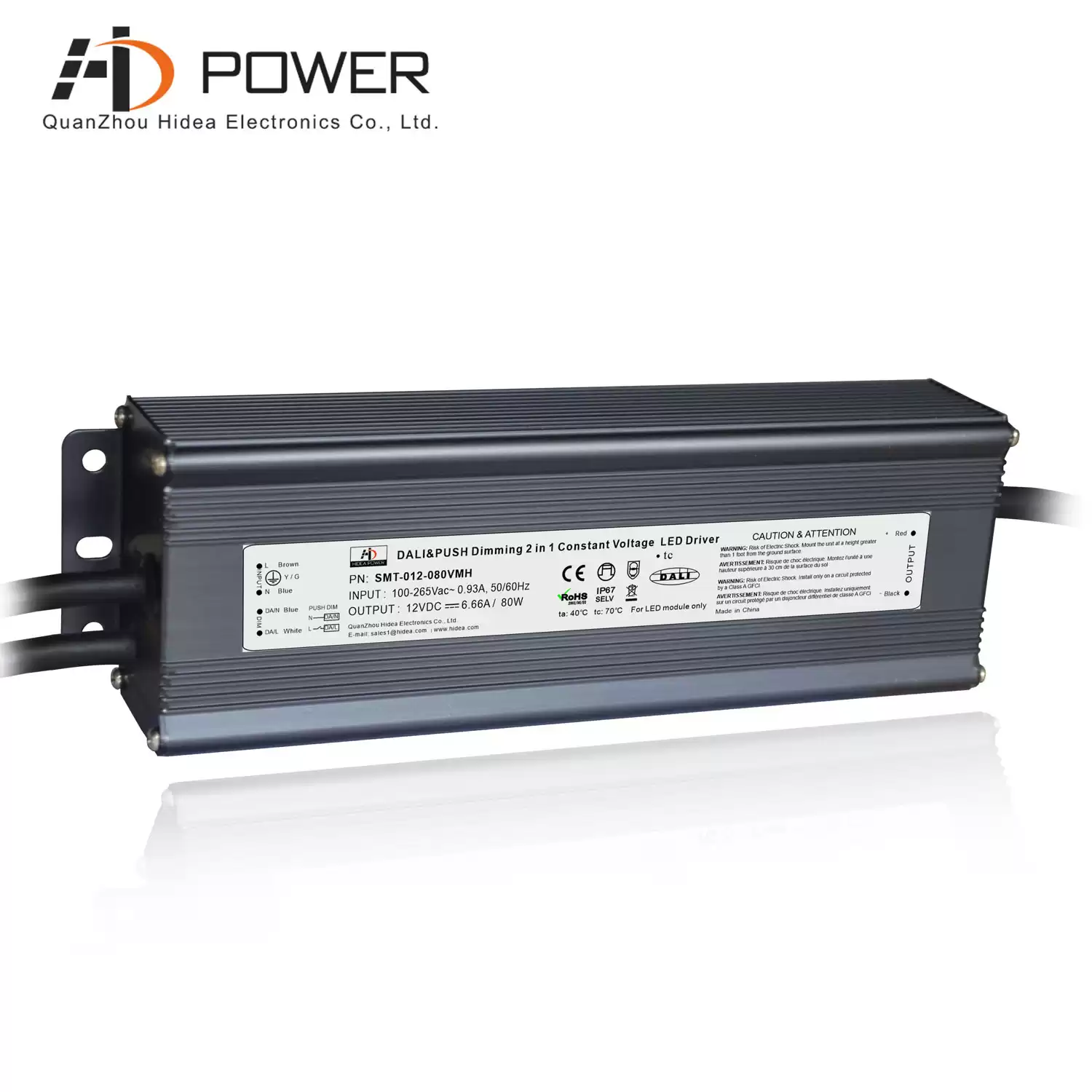

24v 80W dali dimmable constant voltage led power supply waterproof ip67
100-265vac input voltage dali dimmable led driver 80W 24V built-in active PFC function, constant voltage operating mode working efficiency up to 87%, with short circuit/overload/over temperature protection function
Specification
|
Model
|
SMT-012-080VMH
|
SMT-024-080VMH
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.2%
|
|
Rated current
|
6.66A
|
3.33A
|
|
Rated power
|
80W
|
|
Load Regulation
|
±0.5%
|
|
Input
|
Voltage Range
|
100-265VAC
|
|
Frequency Range
|
47 - 63Hz
|
|
Power Factor(Typ.)@ full load
|
PF≥0.99 / 120VAC PF≥0.97/ 230VAC (Full loading)
|
|
THD(Typ.)@ full load
|
<20%
|
|
Efficiency(Typ.)@ full load
|
87%
|
85%
|
|
AC Current(Max.)
|
0.93A
|
0.95A
|
|
Inrush Current (Typ.)
|
13.2A/120VAC 59A/230VAC
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Short Circuit
|
constant current mode, recover automatically after fault condition is removed
|
|
Over Load
|
≤120% constant current limiting, recover automatically after fault condition is removed
|
|
Over temperature
|
100℃±10℃ Shut down o/p voltage, recovers automatically after temperature goes down
|
|
Protection Class
|
Ⅰ
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20 - 95%RH ,non-condensing
|
|
Storage TEM.,Humidity
|
-40 - +80℃,10 - 95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0 - 50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13 IP67
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
Isolation resistance
|
I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
|
|
EMC Emission
|
EN55015 EN61000-3-2 ,EN61000-3-3
|
|
EMC Immunity
|
EN61000-4-2,3,4,5,6 ,11, EN61547
|
|
Others
|
Weight
|
1.1Kg
|
|
Dimension
|
210*70*43mm(L*W*H)
|
|
packing
|
340*275*170mm/10pcs /CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
|
|
2. Tolerance: includes set up tolerance, line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
Compatible Light Type

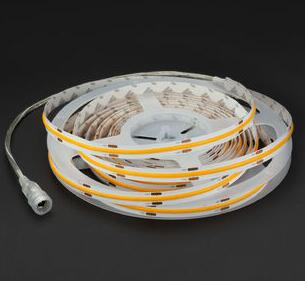

For beautiful accent lighting look to the 60W version of the 3528 Eco LED Strip Light. The beautiful candle light warm white color and gentle lighting easily compliments a variety of projects while be connected with led dimmable power supply.
